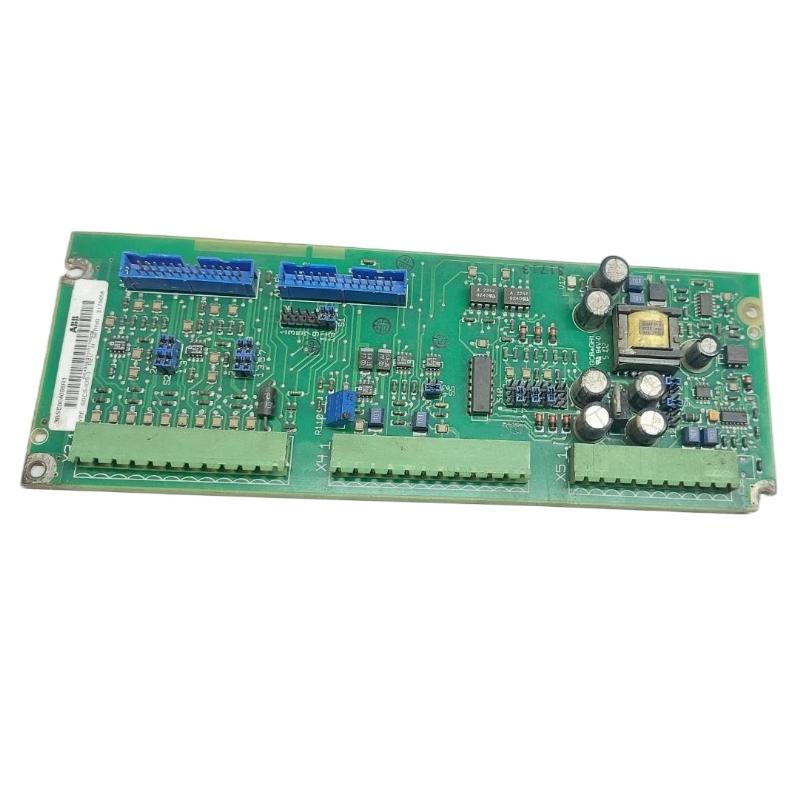

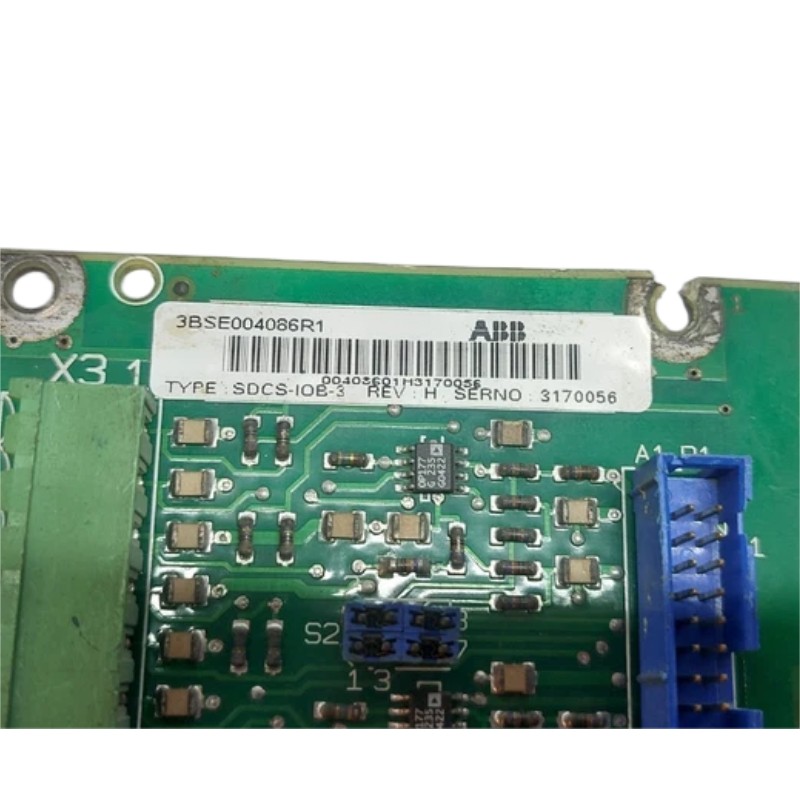

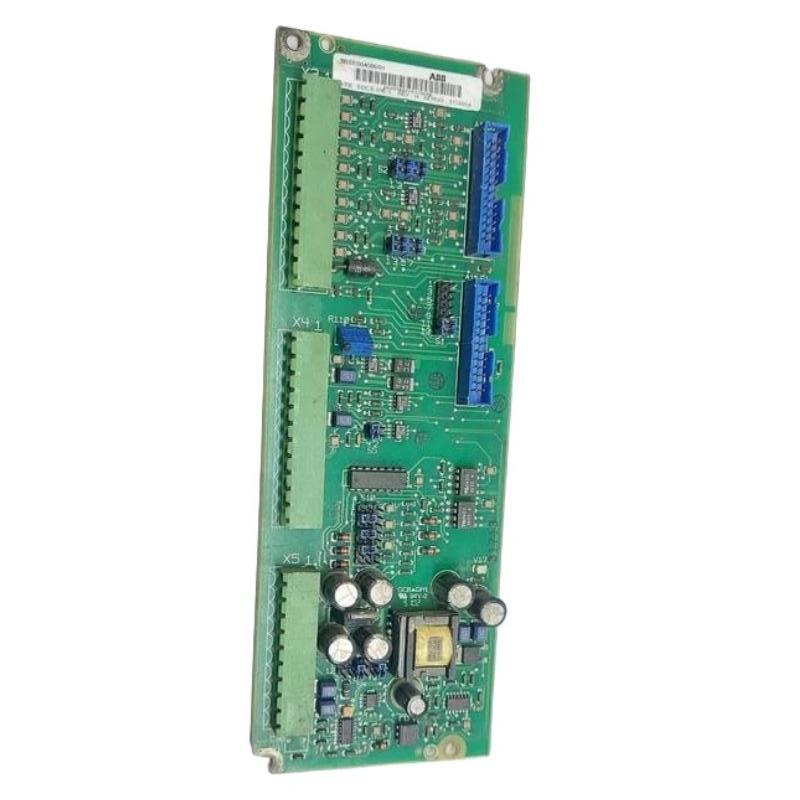

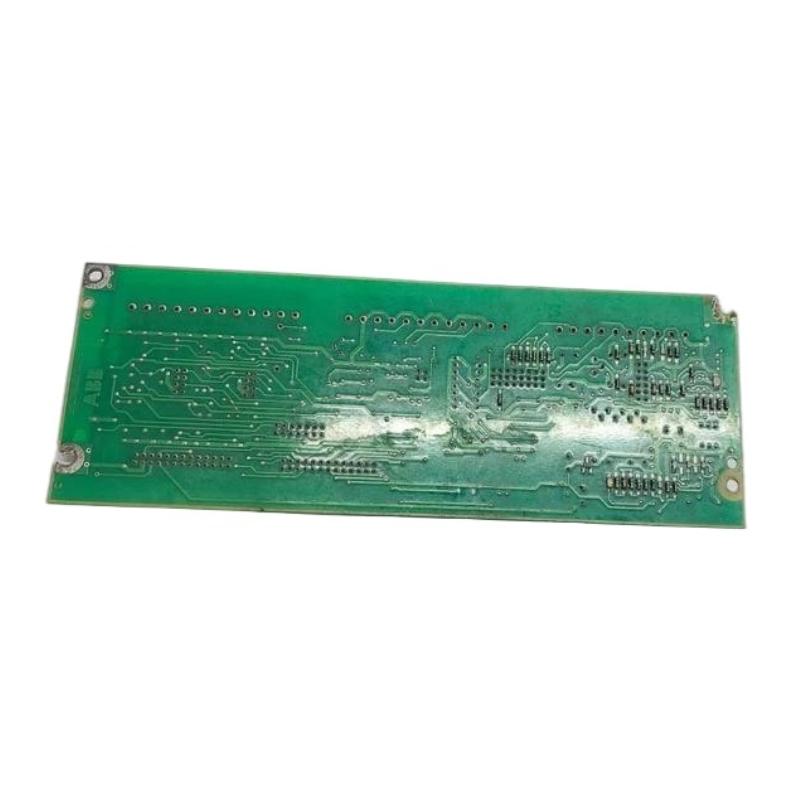

ABB SDCS-IOB-3 3BSE004086R1 Analog I/O Board

Overview

The ABB SDCS-IOB-3 is an analog I/O board designed for SDCS (System Digital Control System) platforms. It provides precise analog signal acquisition and output, enabling reliable communication between control systems and field instruments in industrial automation applications.

General Information

Part Number: 3BSE004086R1

Manufacturer: ABB

Brand / Country of Origin: ABB / Switzerland

Series: SDCS (System Digital Control System)

Type: Analog I/O Board

Mounting: Rack or panel-mounted within SDCS chassis

Technology: High-accuracy analog signal interface with channel monitoring and fault detection

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 8 W

Input: Powered via SDCS backplane

Protection: Short-circuit and reverse-polarity protection

Indicators: LEDs for power, signal status, and fault detection

Communication & Interface

Analog Inputs: Supports voltage and current signals (0–10 V, 4–20 mA)

Analog Outputs: Configurable voltage and current outputs

Bus Interface: Direct SDCS backplane connection for signal routing

Diagnostics: Channel supervision, error detection, and status feedback

Operator Interface: LED indicators and diagnostic test points

Reset Features: Soft reset via controller or hardware reset via onboard jumper

Environmental

Operating Temperature: −20 to +60 °C

Humidity: Up to 90% RH, non-condensing

Protection Rating: IP20, suitable for standard industrial cabinets

Dimensions & Weight

Dimensions (L × W × H): 220 × 100 × 35 mm

Weight: 0.35 kg
