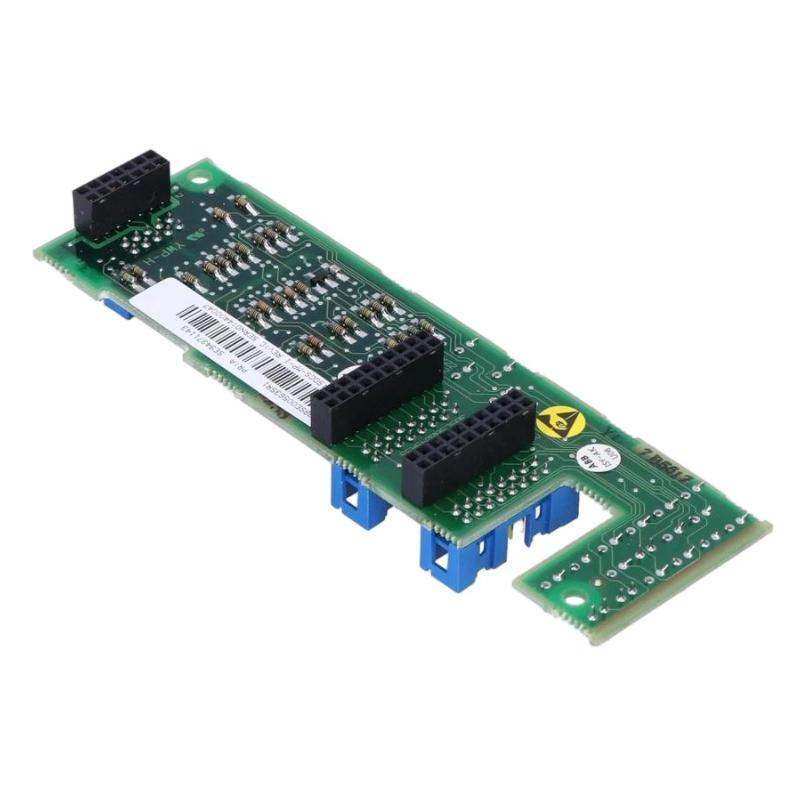

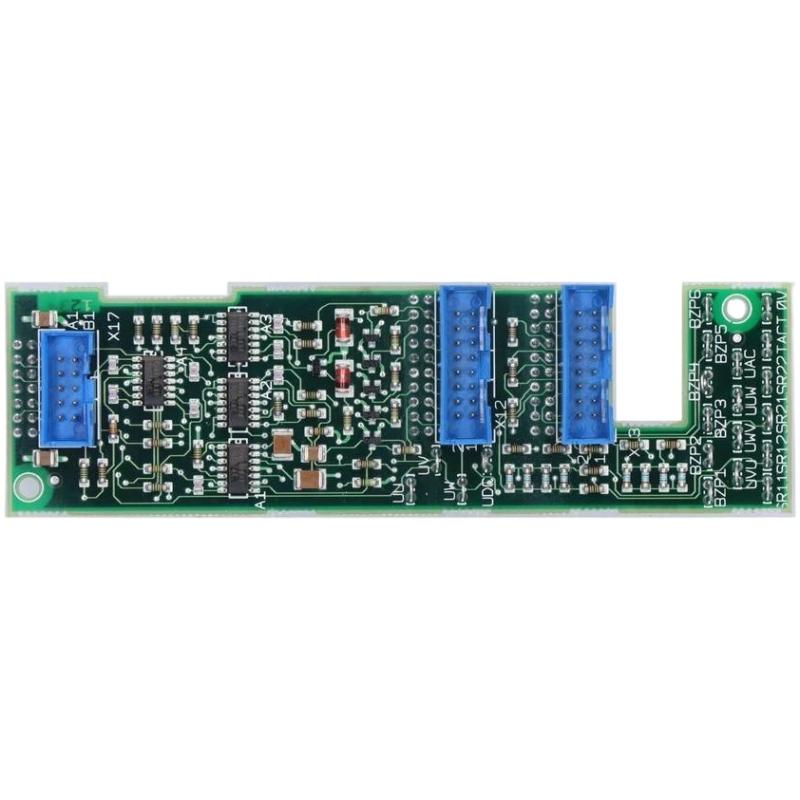

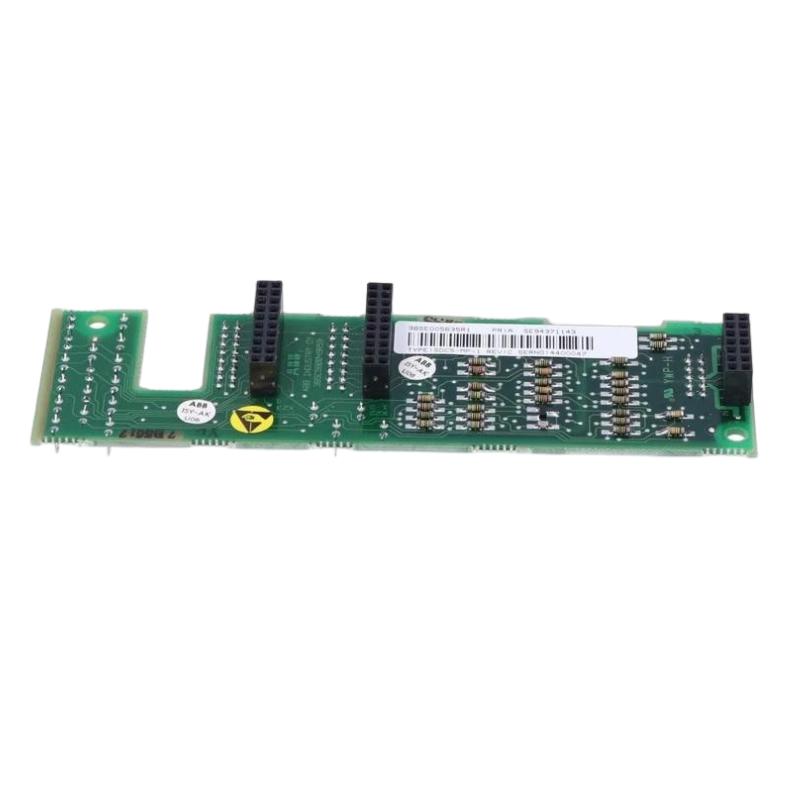

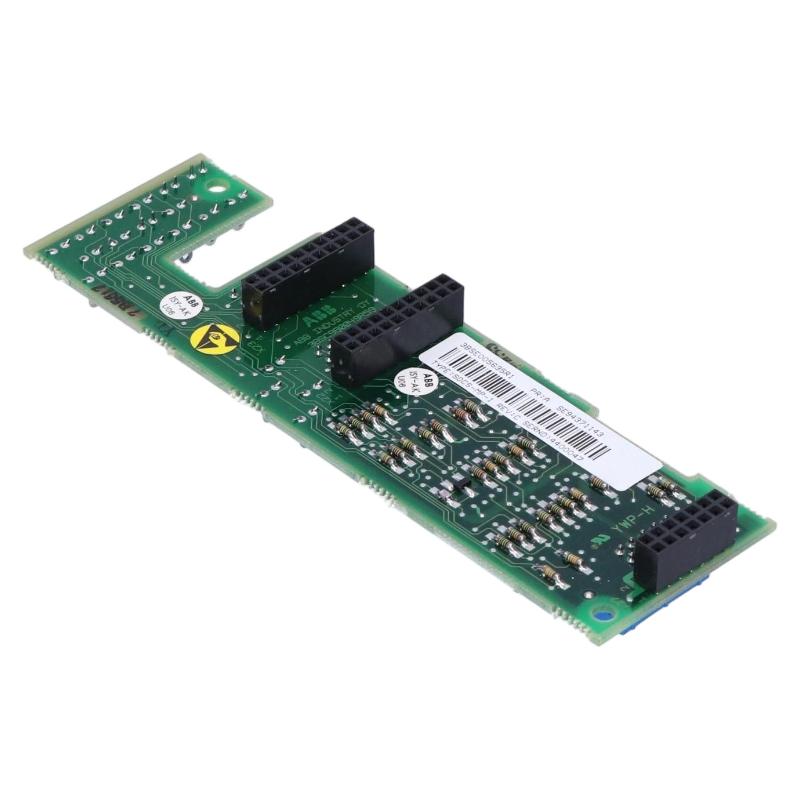

ABB SDCS-MP-1 3BSE005635R0001 Power Signal Measurement Board

Overview

The ABB SDCS-MP-1 is a power signal measurement board designed for SDCS (System Digital Control System) platforms. It accurately monitors and measures electrical signals within the system, providing critical data for control, diagnostics, and system optimization in industrial automation applications.

General Information

Part Number: 3BSE005635R0001

Manufacturer: ABB

Brand / Country of Origin: ABB / Switzerland

Series: SDCS (System Digital Control System)

Type: Power Signal Measurement Board

Mounting: Rack or panel-mounted within SDCS chassis

Technology: High-precision voltage and current measurement interface with fault monitoring

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 2 W

Input: Powered via SDCS backplane

Protection: Short-circuit and overvoltage protection

Indicators: LEDs for power and signal status

Communication & Interface

Analog/Digital Inputs: Measures voltage and current signals from system circuits

Bus Interface: Connects directly to SDCS backplane for data acquisition

Diagnostics: Channel monitoring, fault detection, and status feedback

Operator Interface: LED indicators and diagnostic test points

Reset Features: Soft reset via controller or hardware reset via onboard jumper

Environmental

Operating Temperature: −20 to +60 °C

Humidity: Up to 90% RH, non-condensing

Protection Rating: IP20, suitable for standard industrial cabinets

Dimensions & Weight

Dimensions (L × W × H): 150 × 70 × 10 mm

Weight: 0.05 kg
