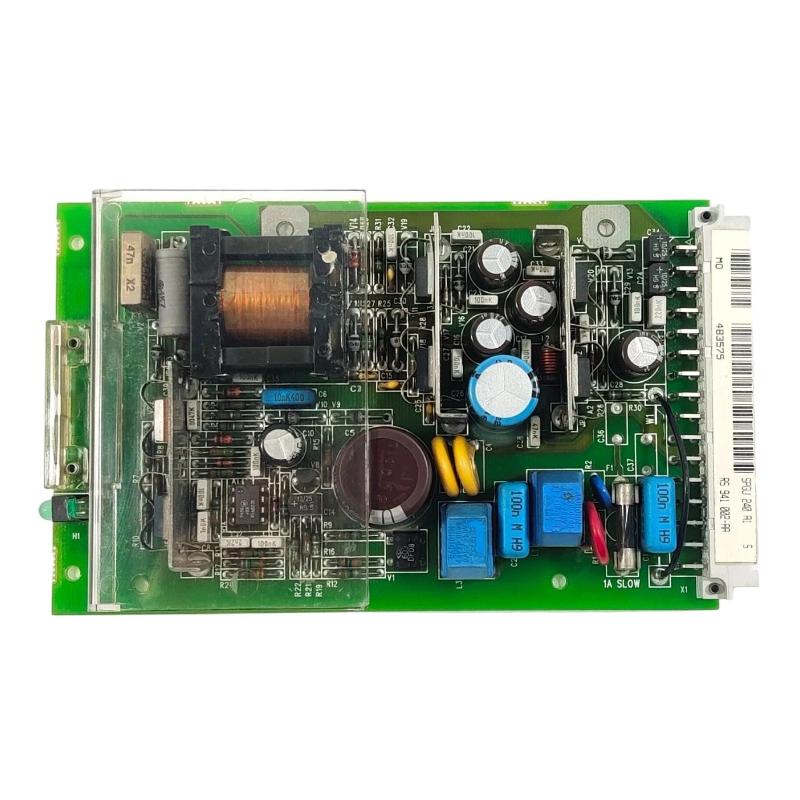

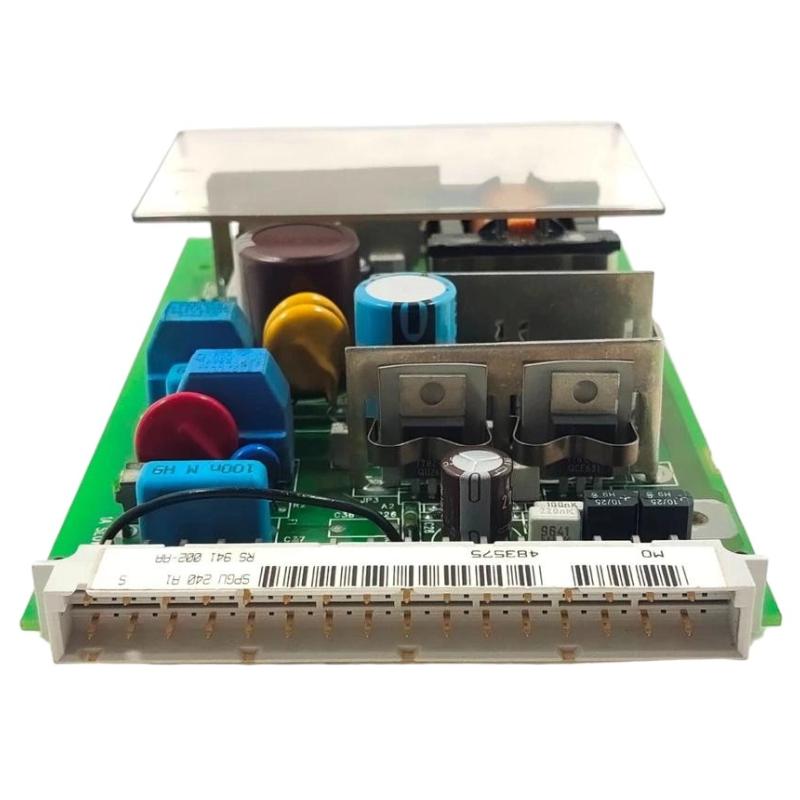

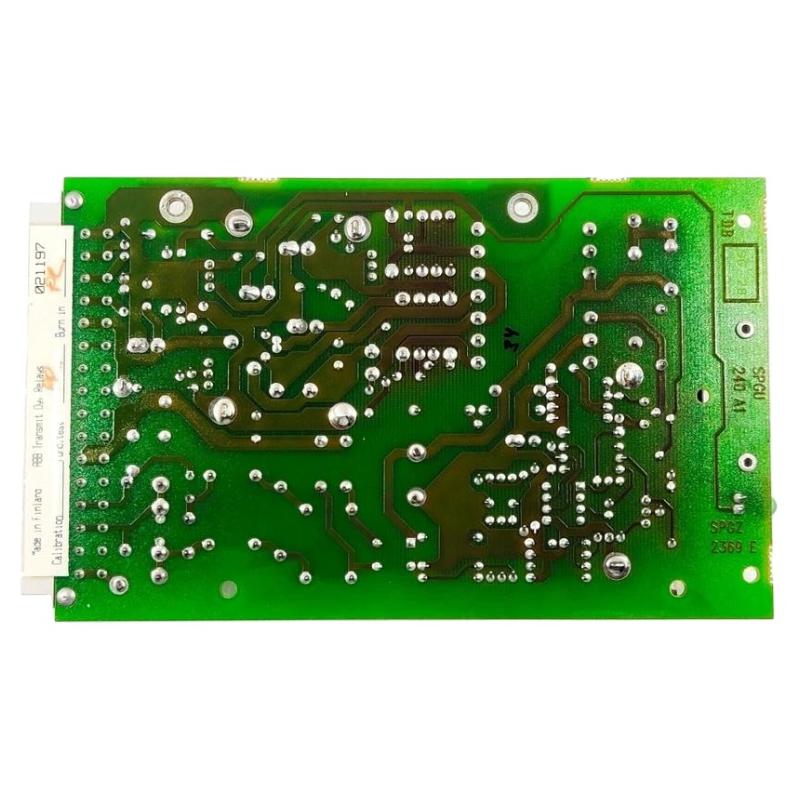

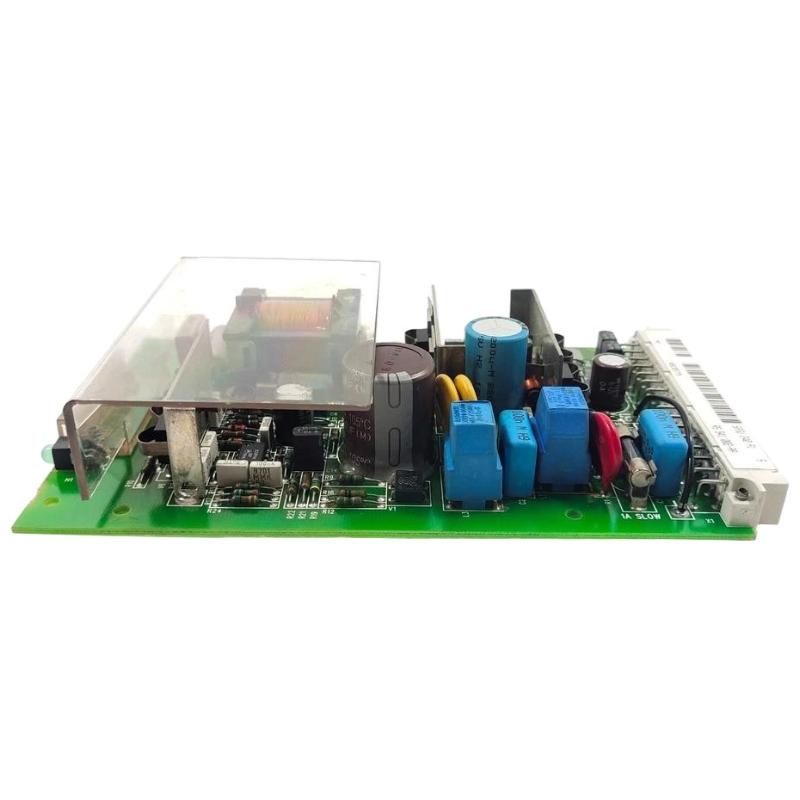

ABB SPGU 240 A1 483575 Power Board

Overview

The ABB SPGU 240 A1 is a power board designed for industrial automation and drive systems. It delivers stable power distribution and protection for critical components, ensuring reliable operation and efficiency in demanding industrial environments.

General Information

Part Number: 483575

Manufacturer: ABB

Brand / Country of Origin: ABB / Sweden

Type: Power Board / Distribution Module

Series: SPGU 240

Mounting: Panel or chassis installation

Technology: Solid-state power electronics with integrated protection features

Power Specifications

Rated Voltage: 240 V AC/DC

Rated Current: 20–30 A (depending on application)

Power Consumption: System-dependent, managed by board design

Protection: Overcurrent, overvoltage, short-circuit, and thermal protection

Indicators: Status LEDs for power and fault

Communication & Interface

Interface Type: Power input/output connections, signal monitoring

Connection: Screw terminals and bus connectors for integration with industrial systems

Application Role: Distributes and regulates power for automation modules and drives

Diagnostics: Fault detection, status reporting, and overload monitoring

Environmental

Operating Temperature: −20 to +70 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 (requires industrial enclosure)

Dimensions & Weight

Dimensions (L × W × H): 188 × 75 × 220 mm

Weight: 1.5 kg
