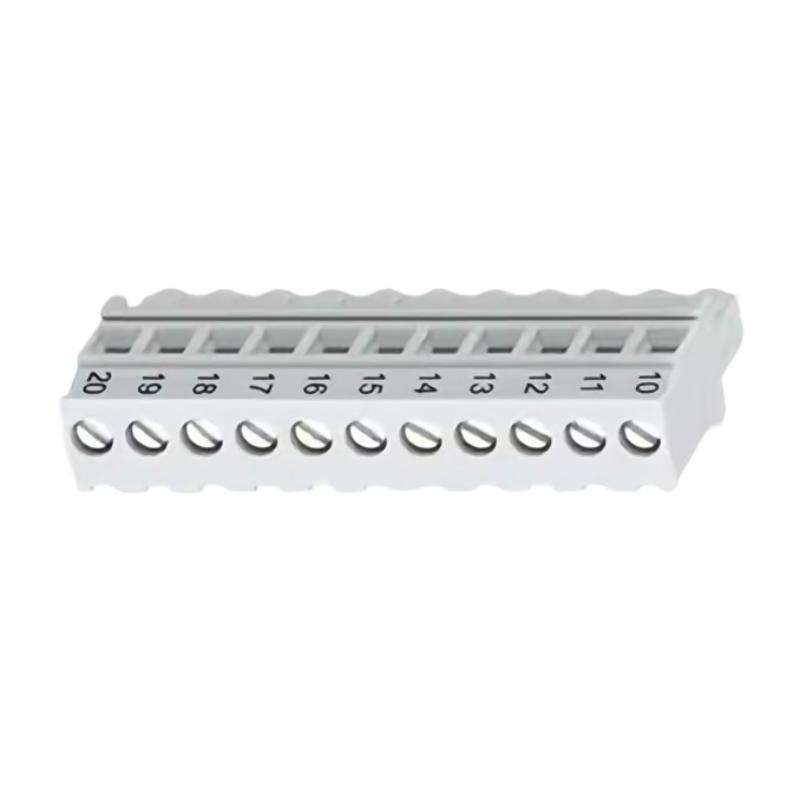

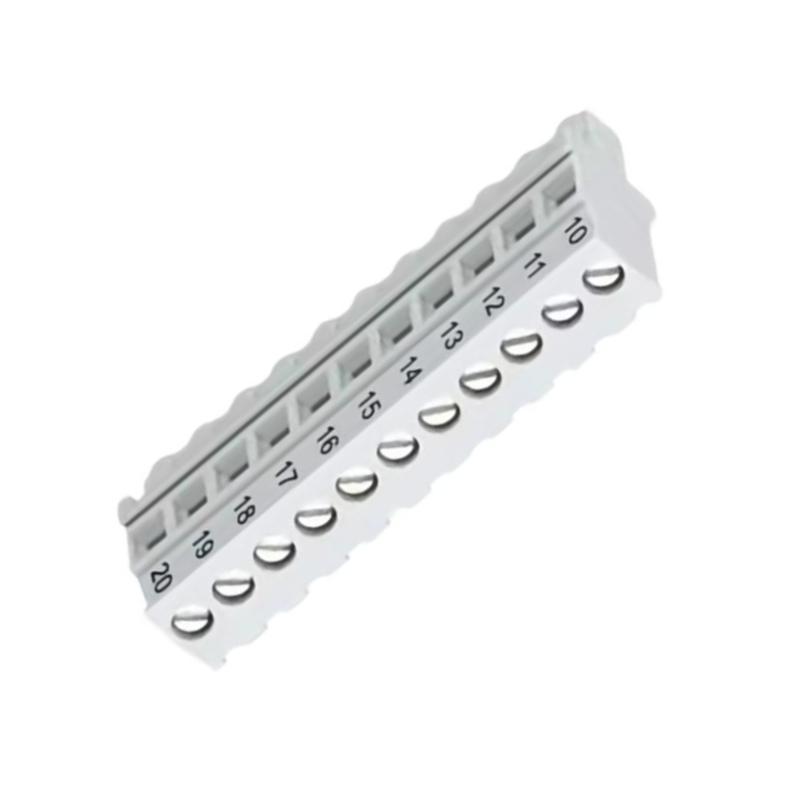

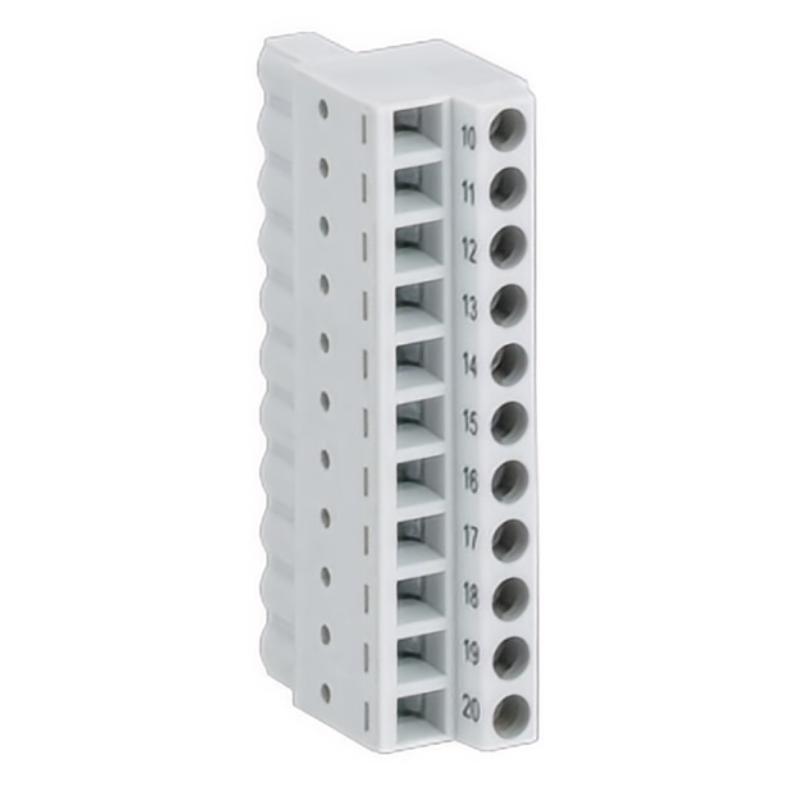

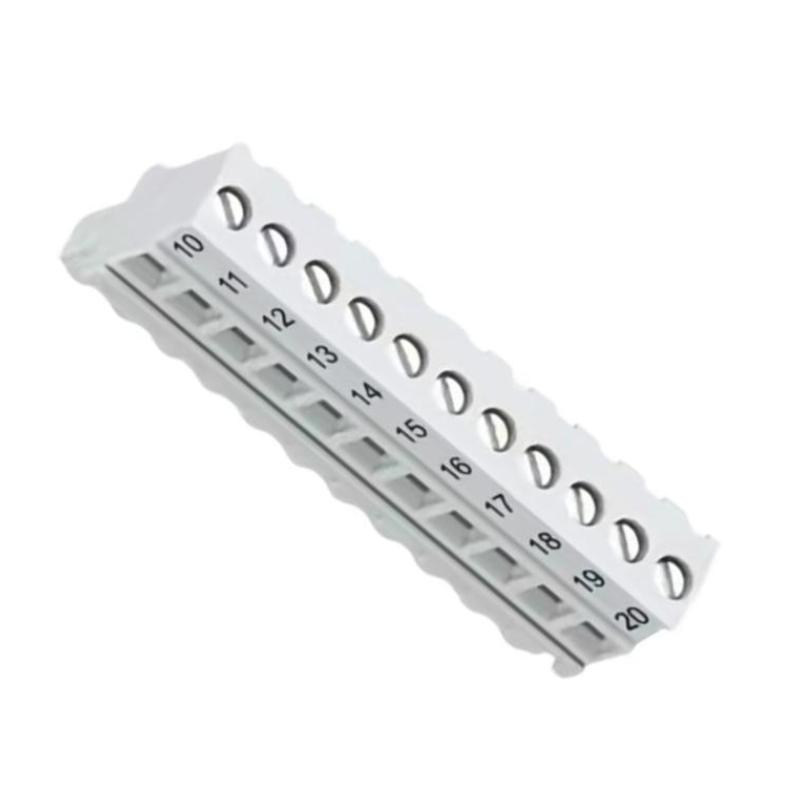

ABB TA564-11 1TNE968901R3104 Terminal Blocks

Overview

The ABB TA564-11 is a set of terminal blocks designed for secure and organized wiring in industrial control panels. It ensures reliable electrical connections, simplifies circuit management, and provides safe distribution of power and signals within automation systems.

General Information

Part Number: 1TNE968901R3104

Manufacturer: ABB

Brand / Country of Origin: ABB / Sweden

Type: Terminal Blocks / Wiring Interface

Series: TA564-11

Mounting: DIN-rail or panel installation

Technology: Screw or clip terminals for secure wire connections

Power Specifications

Rated Voltage: 300 V AC/DC

Rated Current: 10 A

Protection: Insulated housing to prevent short circuits

Indicators: None (passive connection component)

Communication & Interface

Interface Type: Screw terminals for wire connection

Connection: Compatible with standard industrial wires and modules

Application Role: Provides organized and reliable electrical connections for control systems

Diagnostics: Not applicable (passive component)

Environmental

Operating Temperature: −20 to +70 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 (requires enclosure for full protection)

Dimensions & Weight

Dimensions (L × W × H): 40 × 250 × 150 mm

Weight: 0.036 kg
