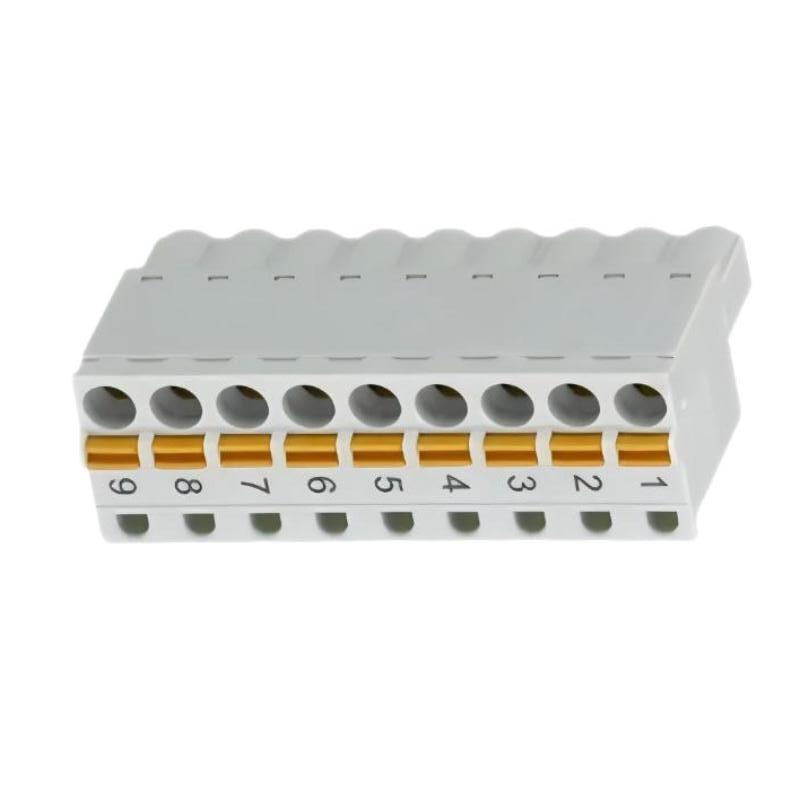

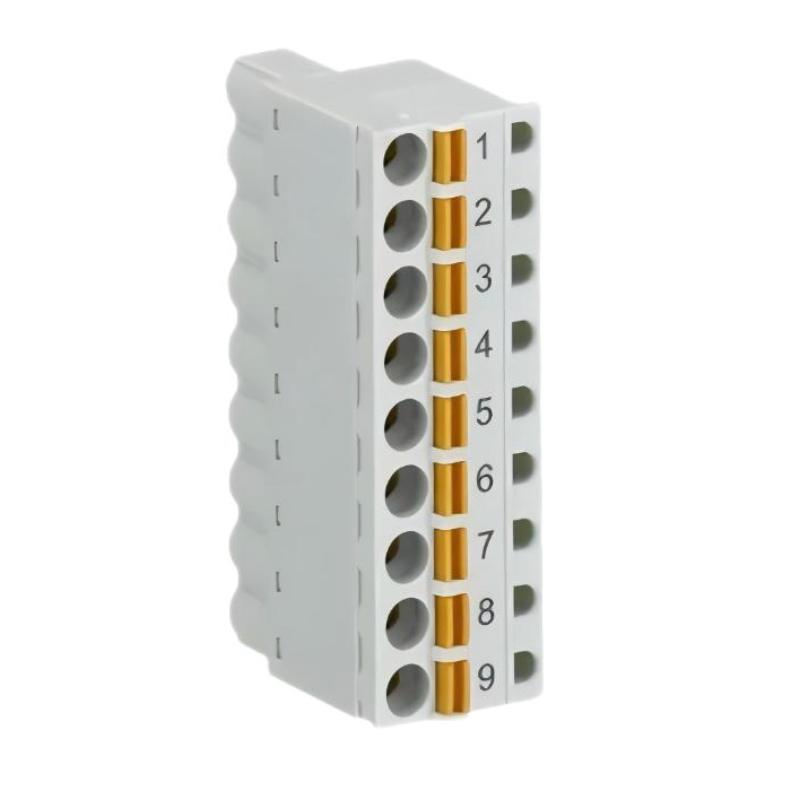

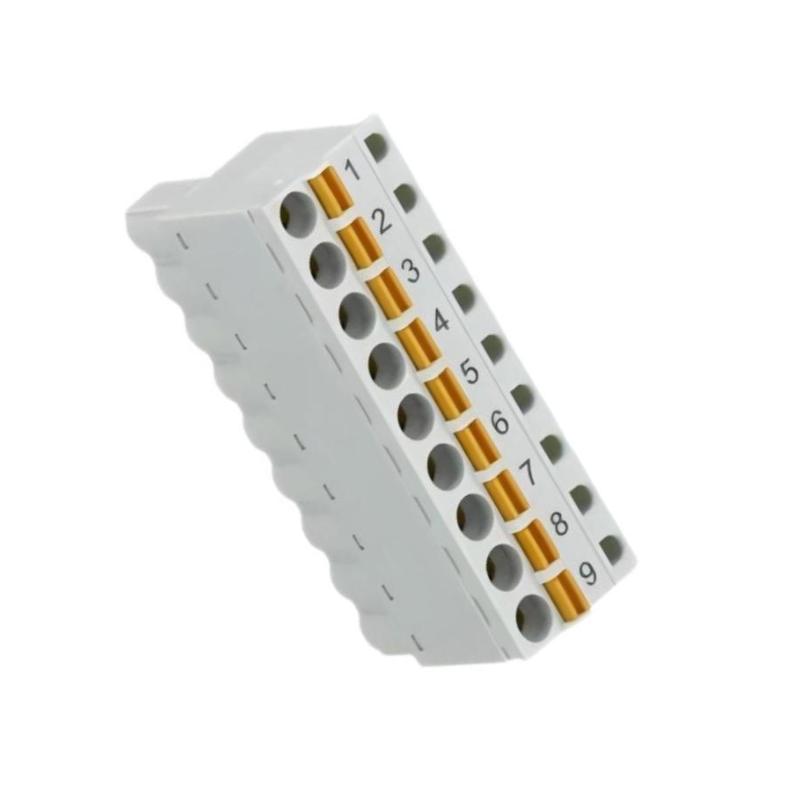

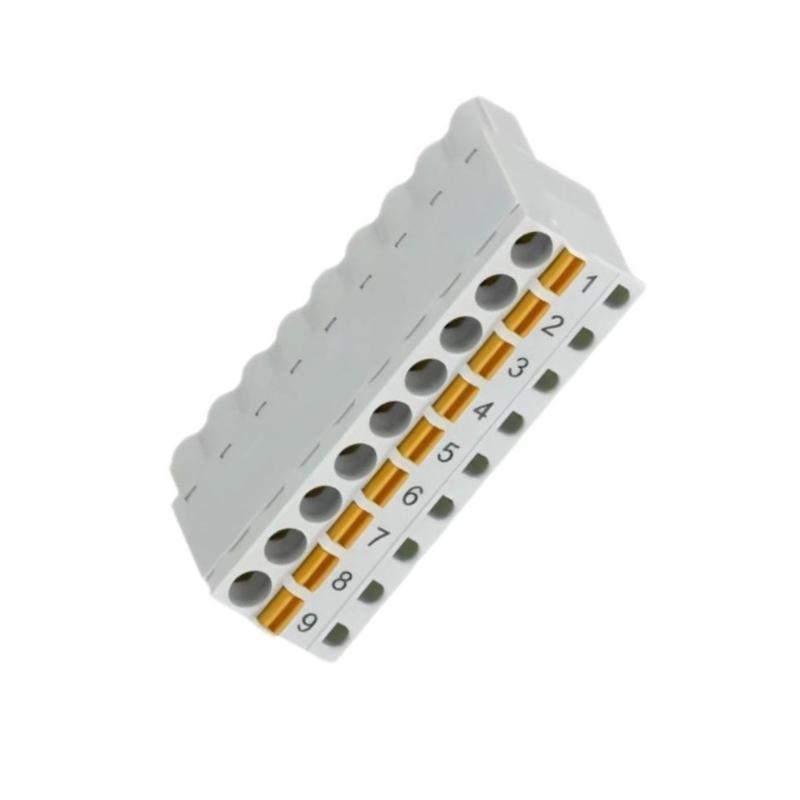

ABB TA565-9 1TNE968901R3105 Terminal Blocks

Overview

The ABB TA565-9 terminal blocks are designed for secure and organized electrical connections in industrial control panels and distribution systems. They provide a reliable solution for wiring multiple circuits efficiently.

General Information

Part Number: 1TNE968901R3105

Manufacturer: ABB

Brand / Country of Origin: ABB / Switzerland

Type: Terminal Blocks

Mounting: DIN rail or panel mount

Construction: Durable thermoplastic housing with high-quality screw or spring clip terminals

Compatibility: Suitable for standard copper conductor connections

Power Specifications

Rated Voltage: 600 V AC / DC max

Rated Current: 10 A

Terminal Type: Screw or spring clip for secure wire connection

Electrical Protection: Designed for safe, insulated connections with short-term overload tolerance

Indicators: None (passive connection component)

Communication & Interface

Interface Type: Electrical terminal interface for signal or power distribution

Connection Method: Screw or spring terminals for copper wire

Channel Support: Multi-circuit connection support

Diagnostics: Not applicable (passive module)

Compatibility Features: Compatible with standard ABB and industrial control wiring systems

Environmental

Operating Temperature: −40 to +85 °C

Storage Temperature: −40 to +100 °C

Humidity: Up to 95% RH, non-condensing

Vibration Resistance: Meets industrial standard vibration and shock requirements

Protection Rating: IP20 when installed in enclosure

Dimensions & Weight

Dimensions (L × W × H): 40 × 250 × 150 mm

Weight: 0.018 kg

Secure Connections, Fast Installation!
