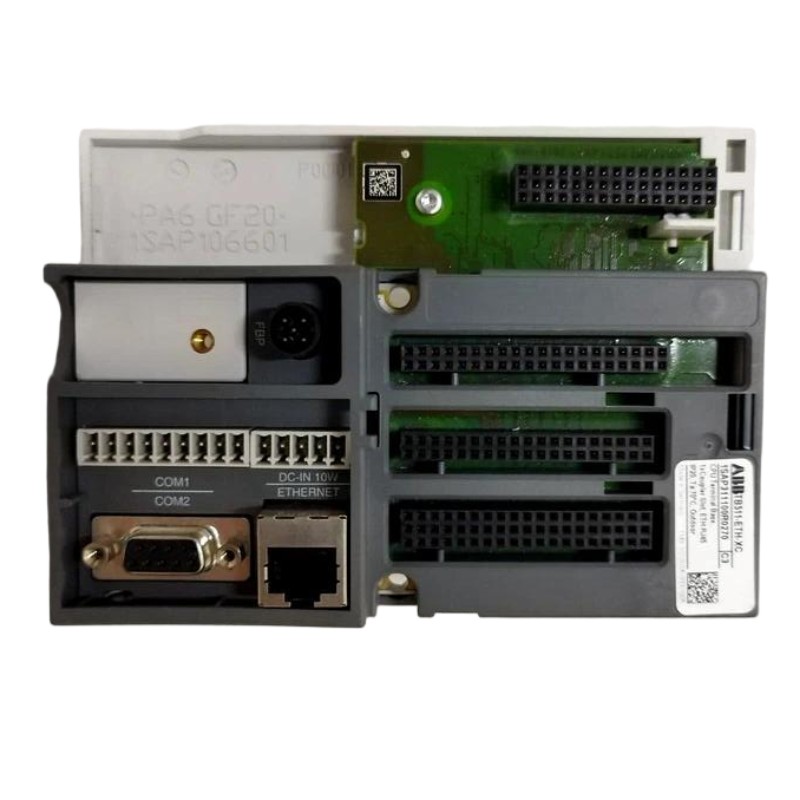

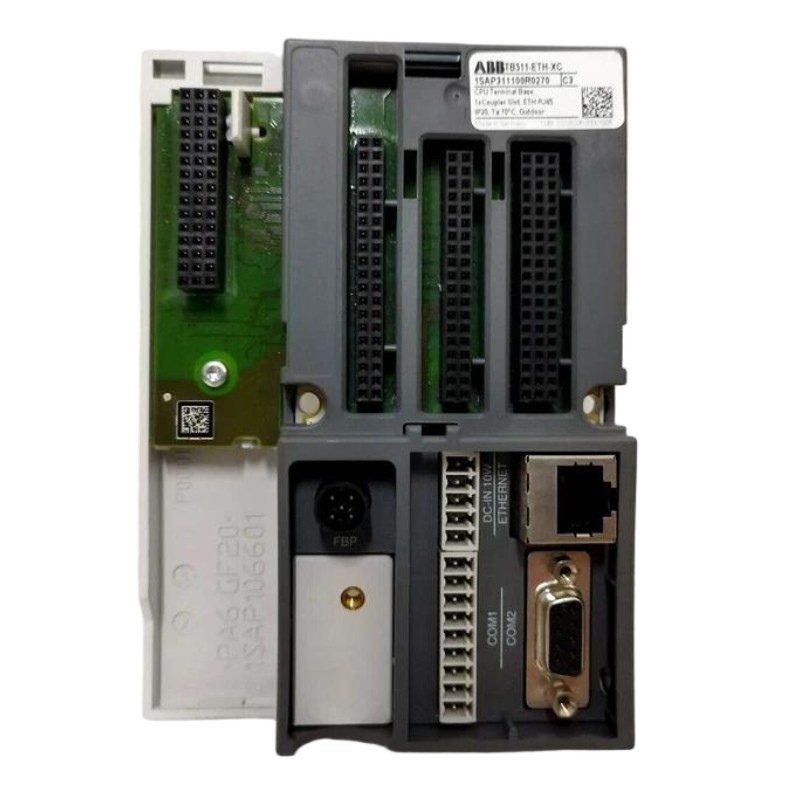

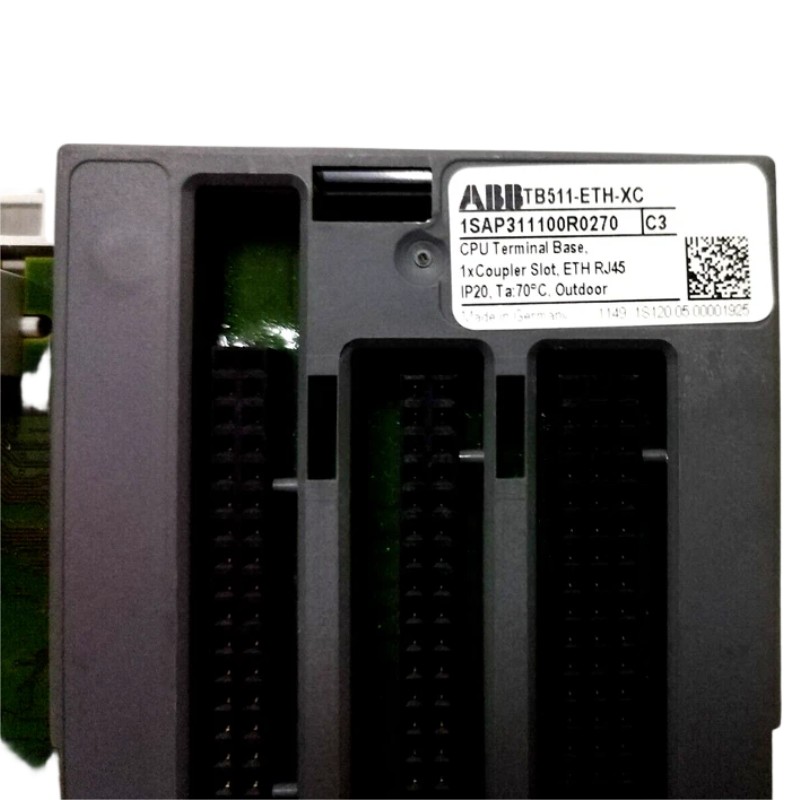

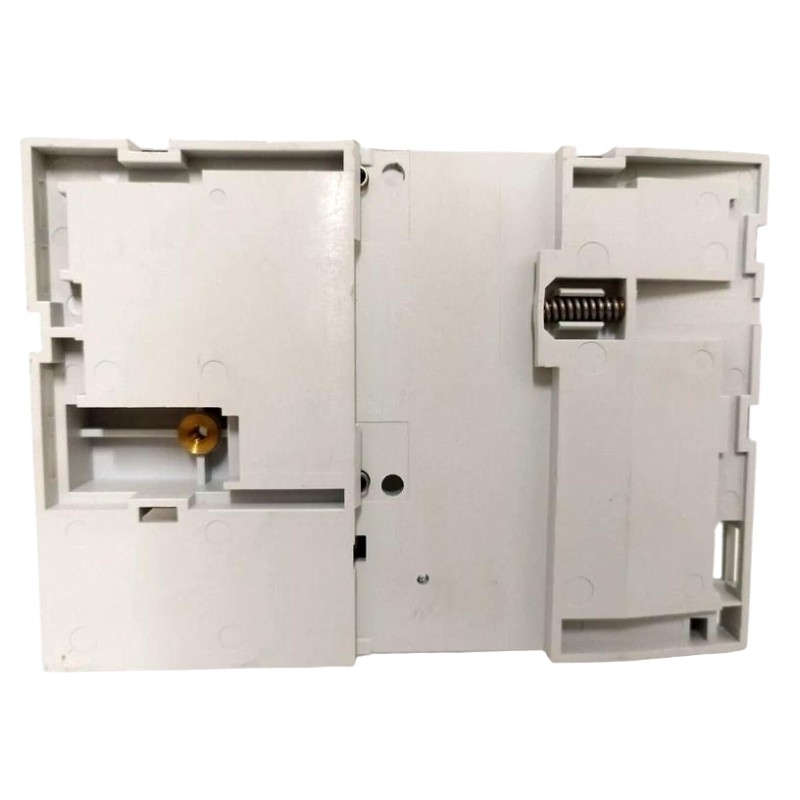

ABB TB511-ETH-XC 1SAP311100R0270 Terminal Base

Overview

The ABB TB511-ETH-XC terminal base is designed for secure mounting and reliable electrical connections of ABB relay and communication modules. It ensures easy installation, stable performance, and seamless integration into industrial automation systems.

General Information

Part Number: 1SAP311100R0270

Manufacturer: ABB

Brand / Country of Origin: ABB / Switzerland

Type: Terminal Base

Mounting: DIN rail or panel mount

Construction: Durable thermoplastic housing with high-quality screw terminals

Compatibility: Compatible with ABB TB511 relay and communication modules

Power Specifications

Rated Voltage: 600 V AC / DC max

Rated Current: 10 A

Terminal Type: Screw terminals for secure wire connection

Electrical Protection: Designed for safe and insulated connections

Indicators: None (passive connection module)

Communication & Interface

Interface Type: Electrical terminal interface for relay and communication modules

Connection Method: Screw terminals for copper wiring

Channel Support: Supports standard module connection points

Diagnostics: Not applicable (passive module)

Compatibility Features: Integrates seamlessly with ABB TB511 modules and industrial control wiring systems

Environmental

Operating Temperature: −40 to +85 °C

Storage Temperature: −40 to +100 °C

Humidity: Up to 95% RH, non-condensing

Vibration Resistance: Meets industrial standard vibration and shock requirements

Protection Rating: IP20 when installed in enclosure

Dimensions & Weight

Dimensions (L × W × H): 28 × 135 × 95.5 mm

Weight: 0.164 kg

Secure Mounting, Reliable Performance!
