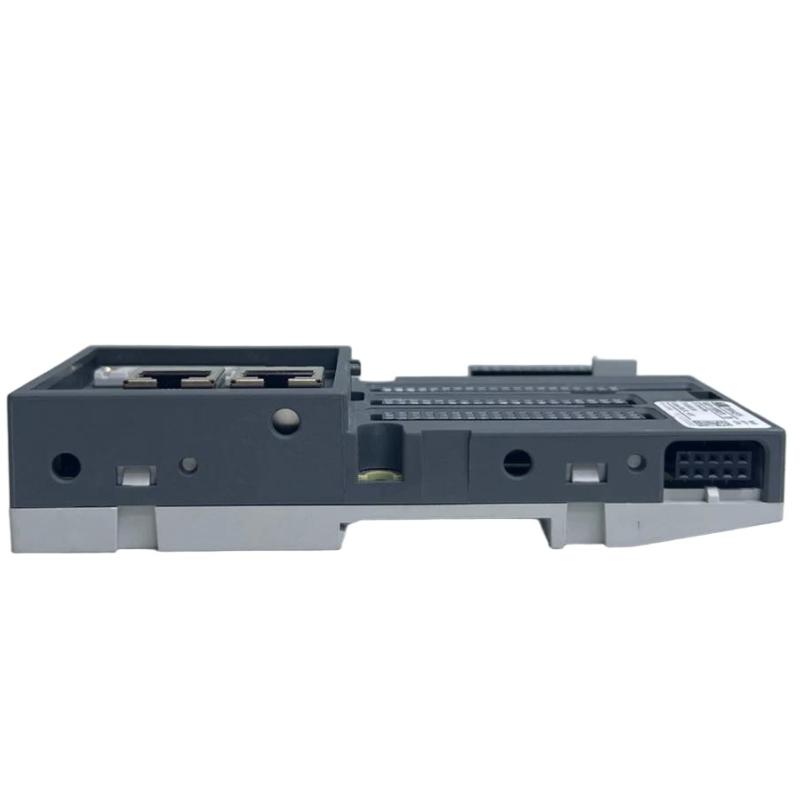

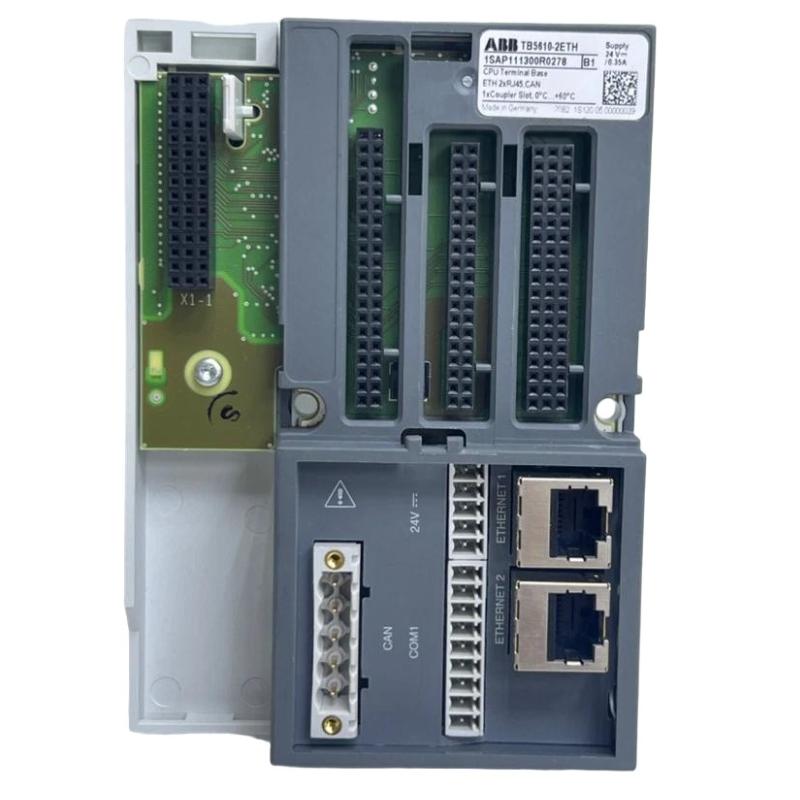

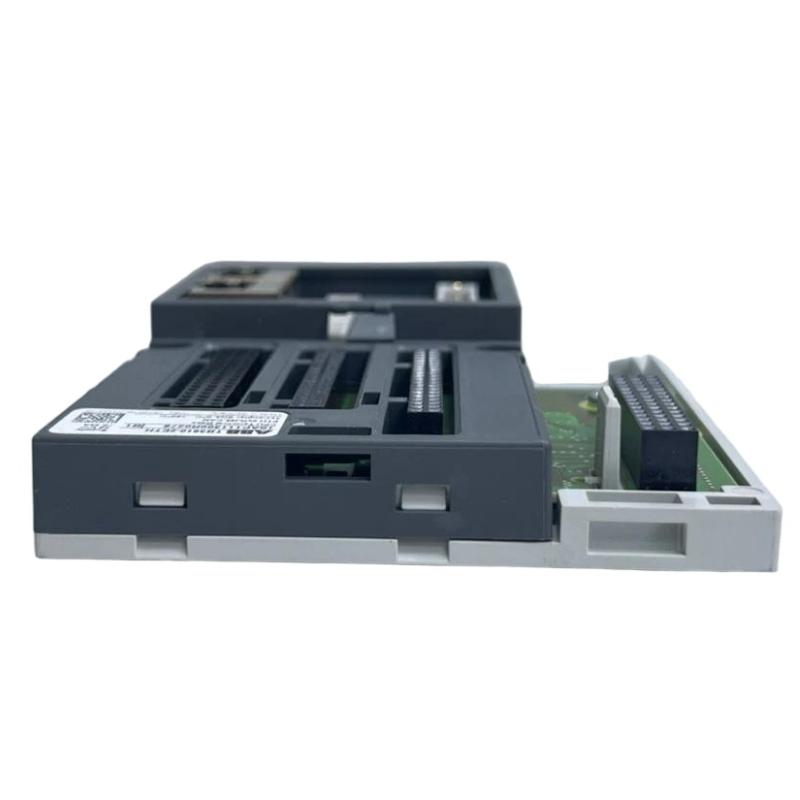

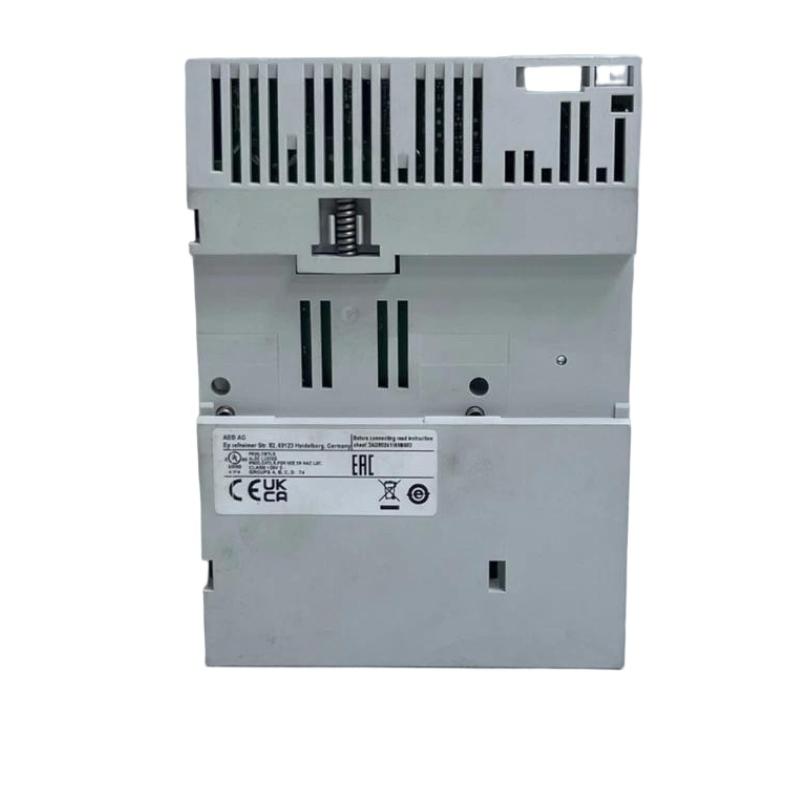

ABB TB5610-2ETH 1SAP111300R0278 Terminal Base

Overview

The ABB TB5610-2ETH terminal base is designed to provide secure and reliable mounting for ABB relay and communication modules. It ensures stable electrical connections and simplifies installation in industrial automation systems.

General Information

Part Number: 1SAP111300R0278

Manufacturer: ABB

Brand / Country of Origin: ABB / Switzerland

Type: Terminal Base

Mounting: DIN rail or panel mount

Construction: Durable thermoplastic housing with high-quality screw terminals

Compatibility: Compatible with ABB TB5610 series relay and communication modules

Power Specifications

Rated Voltage: 600 V AC / DC max

Rated Current: 10 A

Terminal Type: Screw terminals for secure copper wire connection

Electrical Protection: Ensures safe and insulated connections

Indicators: None (passive module)

Communication & Interface

Interface Type: Electrical terminal interface for relay and communication modules

Connection Method: Screw terminals for copper wiring

Channel Support: Standard module connection points

Diagnostics: Not applicable (passive module)

Compatibility Features: Works seamlessly with ABB TB5610 modules and industrial control wiring systems

Environmental

Operating Temperature: −40 to +85 °C

Storage Temperature: −40 to +100 °C

Humidity: Up to 95% RH, non-condensing

Vibration Resistance: Meets industrial standard vibration and shock requirements

Protection Rating: IP20 when installed in enclosure

Dimensions & Weight

Dimensions (L × W × H): 28 × 135 × 95.5 mm

Weight: 0.157 kg

Secure Installation, Reliable Performance!
