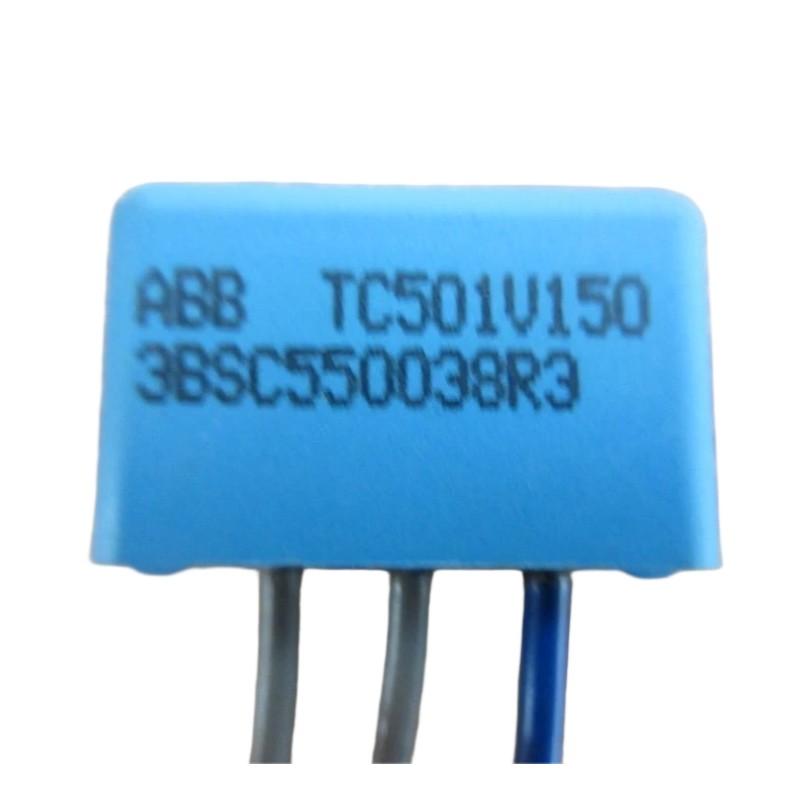

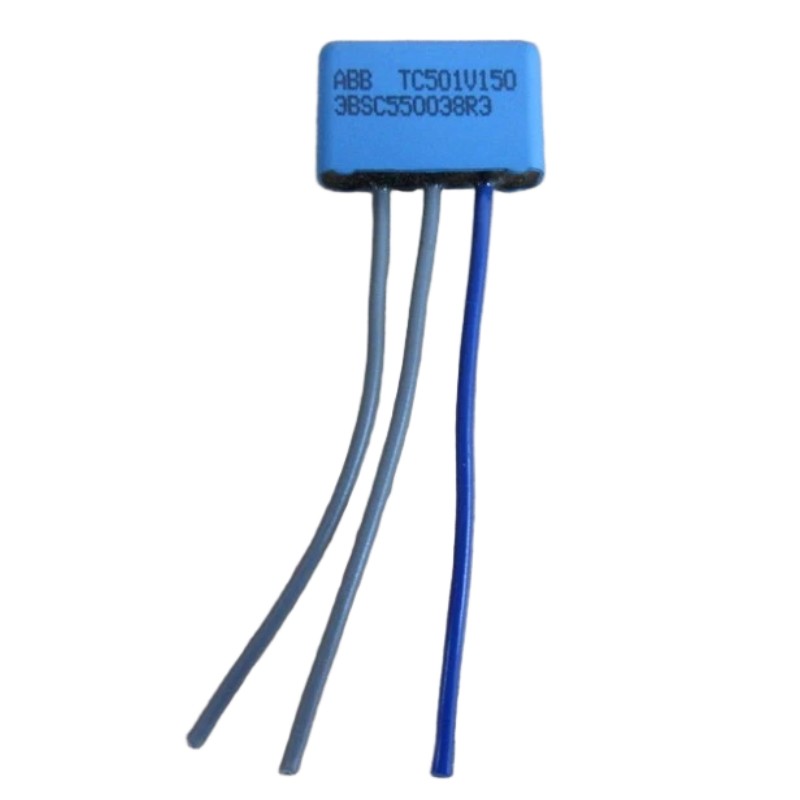

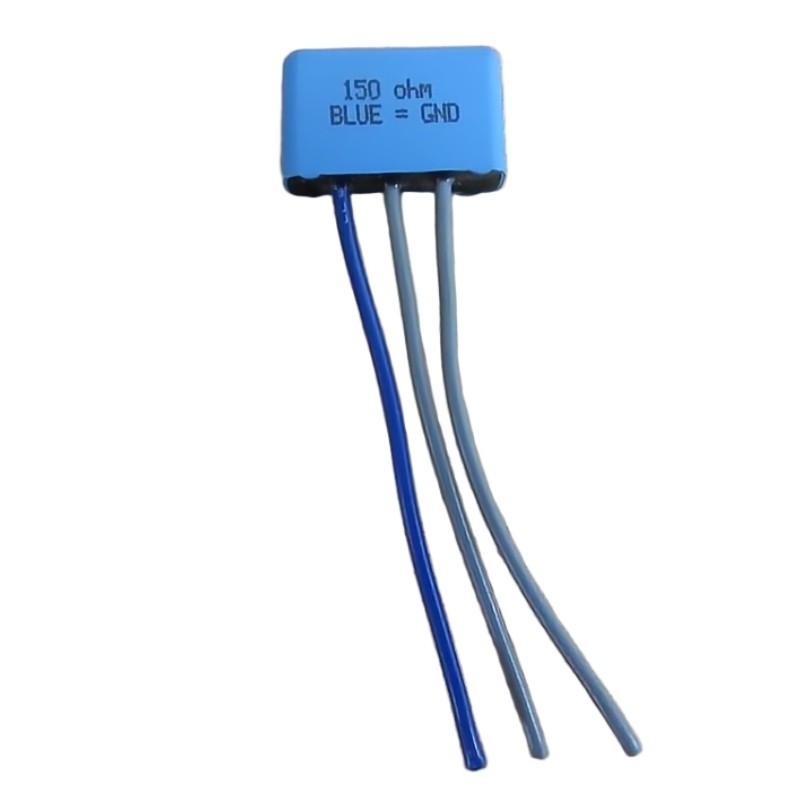

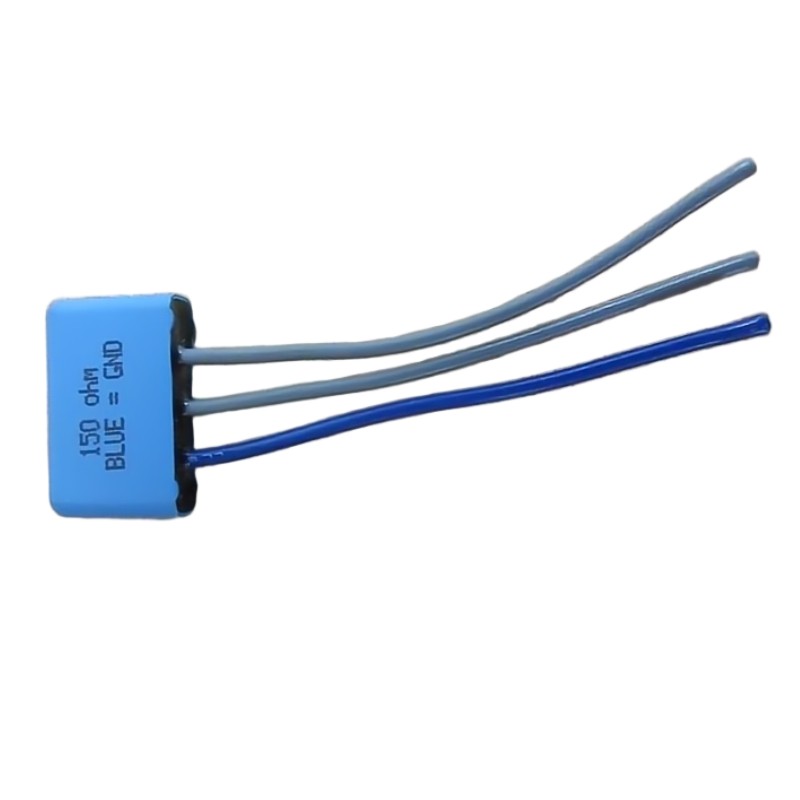

ABB TC501V150 3BSC550038R3 I/O Speedometer Input Module

Overview

The ABB TC501V150 is an I/O speedometer input module designed for ABB’s industrial automation systems. It accurately monitors and reports speed signals from machinery, supporting process control and monitoring in various industrial applications.

General Information

Part Number: 3BSC550038R3

Manufacturer: ABB / Sweden

Series: TC500

Type: I/O Speedometer Input Module

Mounting: DIN rail or panel installation in control cabinets

Technology: Digital input processing, high-precision speed measurement

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 2 W

Protection: Overvoltage and short-circuit protection

Indicators: LED for module status and fault

Communication & Interface

Interface: Connects to ABB control systems via I/O bus

Signal Type: Speedometer / tachometer input signals

Diagnostics: Status reporting and fault detection

Operator Interface: LED indicator for operational and fault conditions

Reset Features: Supports soft reset via control system

Environmental

Operating Temperature: 0 to +55 °C

Storage Temperature: −25 to +70 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20, suitable for industrial cabinet environment

Dimensions & Weight

Dimensions (L × W × H): 100 × 30 × 200 mm

Weight: 0.005 kg

Precision Monitoring, Ready to Install!
