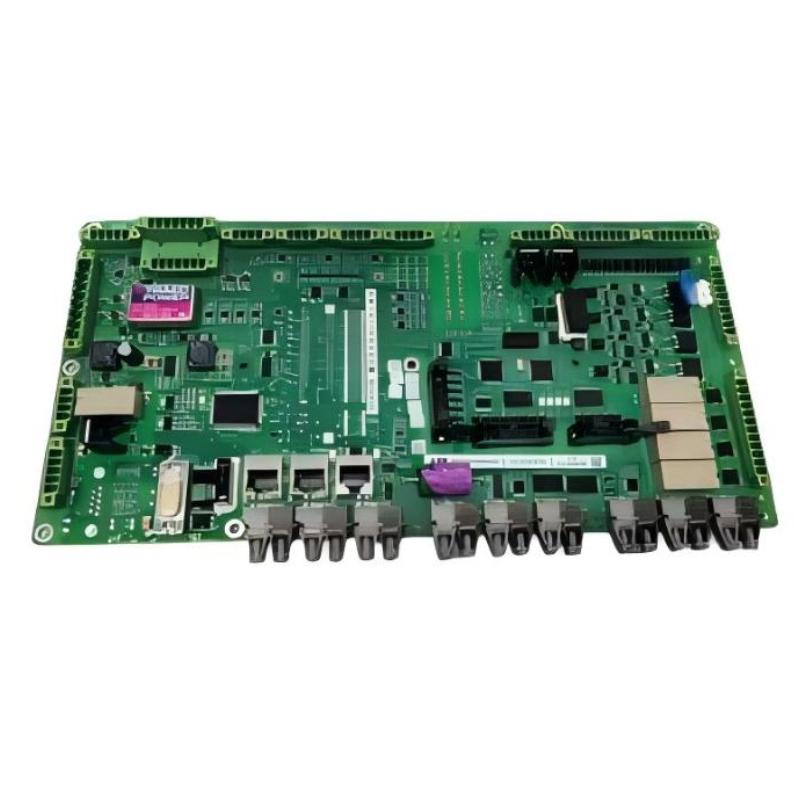

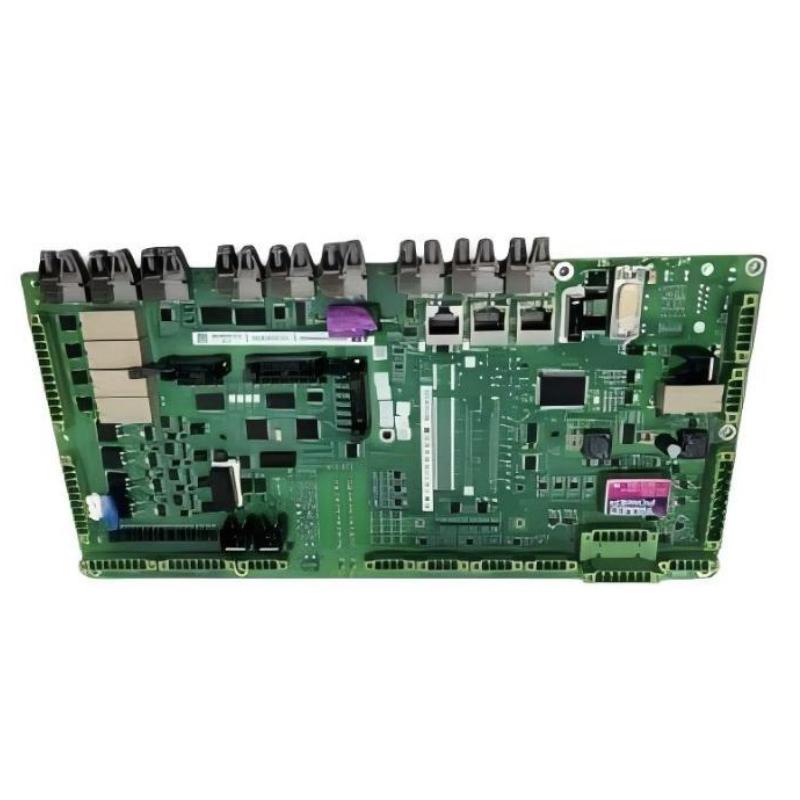

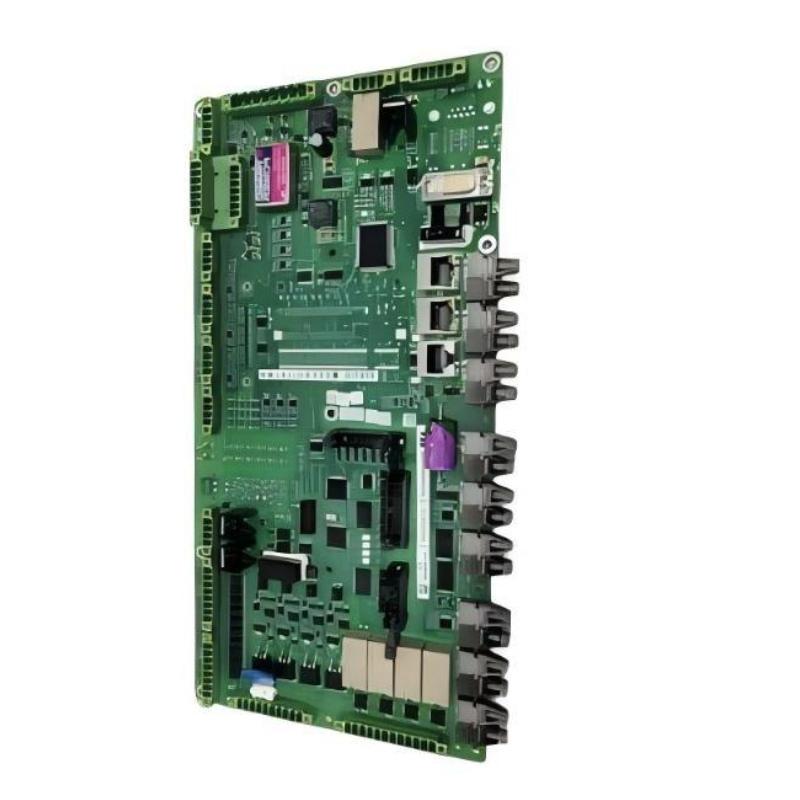

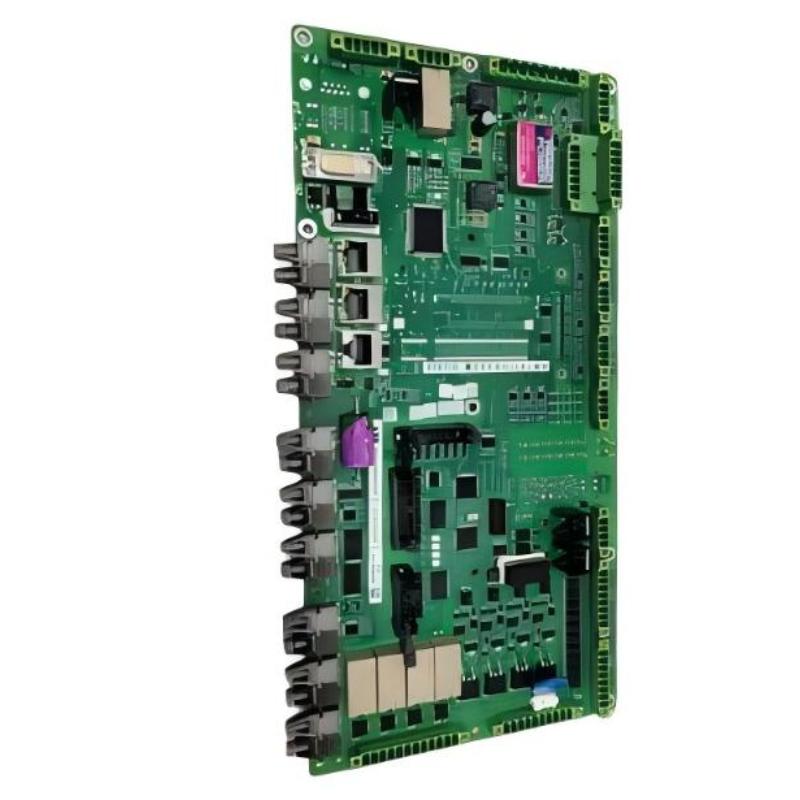

ABB UC D224 A101 3BHE023681R0101 Input Filter Module

Overview

The ABB UC D224 A101 is an industrial input filter module designed for ABB automation systems. It ensures clean and stable electrical input, reducing noise and protecting control circuits from voltage fluctuations and transients.

General Information

Part Number: 3BHE023681R0101

Manufacturer: ABB

Brand / Country of Origin: ABB / Switzerland

Series: UC D224

Type: Input filter module

Application: Industrial automation, control panels, and machinery

Compliance: IEC and UL standards for industrial electronic components

Power Specifications

Input Voltage: Compatible with ABB UC series control systems

Current Rating: As per module specifications for signal and power conditioning

Protection: Reduces voltage spikes, electrical noise, and transients

Communication & Interface

Interface Type: Connects to ABB UC series input circuits

I/O: Supports integration with ABB control modules

Diagnostic Features: Status LEDs for input monitoring

Mounting Interface: Panel or DIN-rail installation

Environmental

Operating Temperature: −25 to +70 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Vibration & Shock: IEC 60068 compliant

Dimensions & Weight

Dimensions (L × W × H): 170 × 40 × 135 mm

Weight: ~ 0.38 kg

Reliable input filtering for smooth automation, ready to ship!
