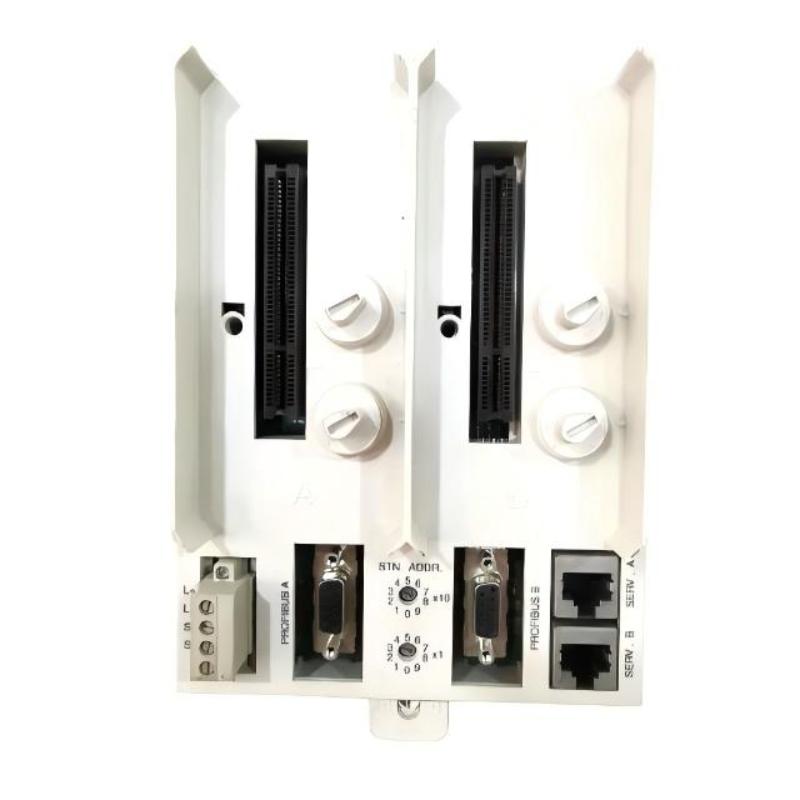

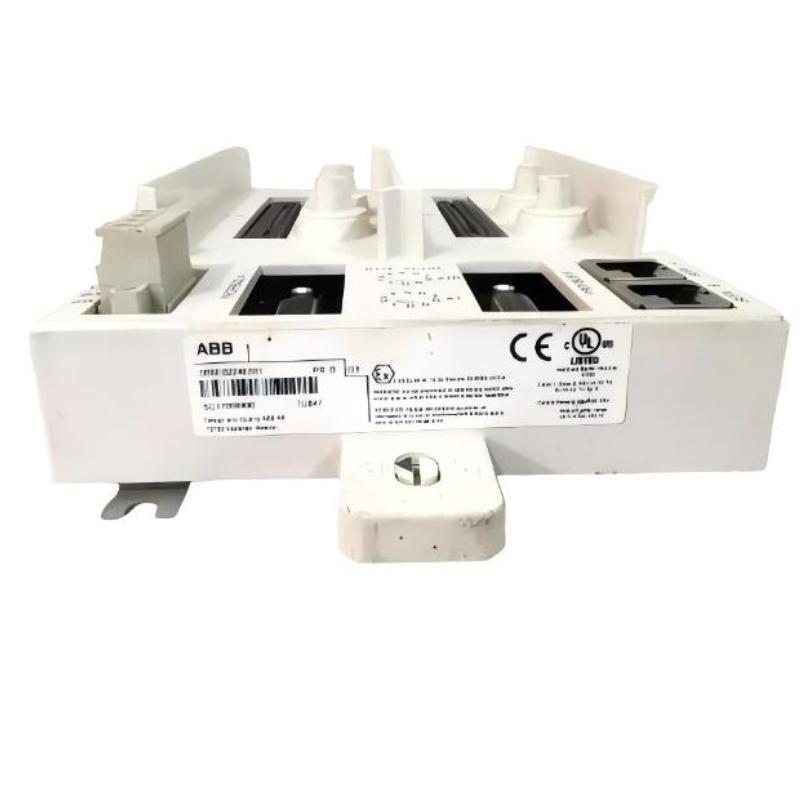

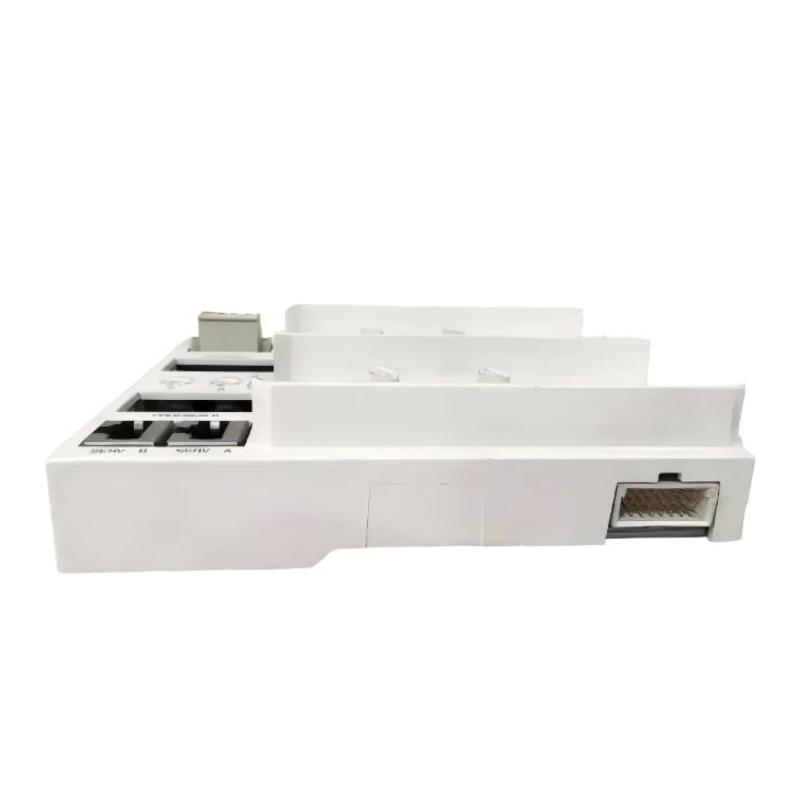

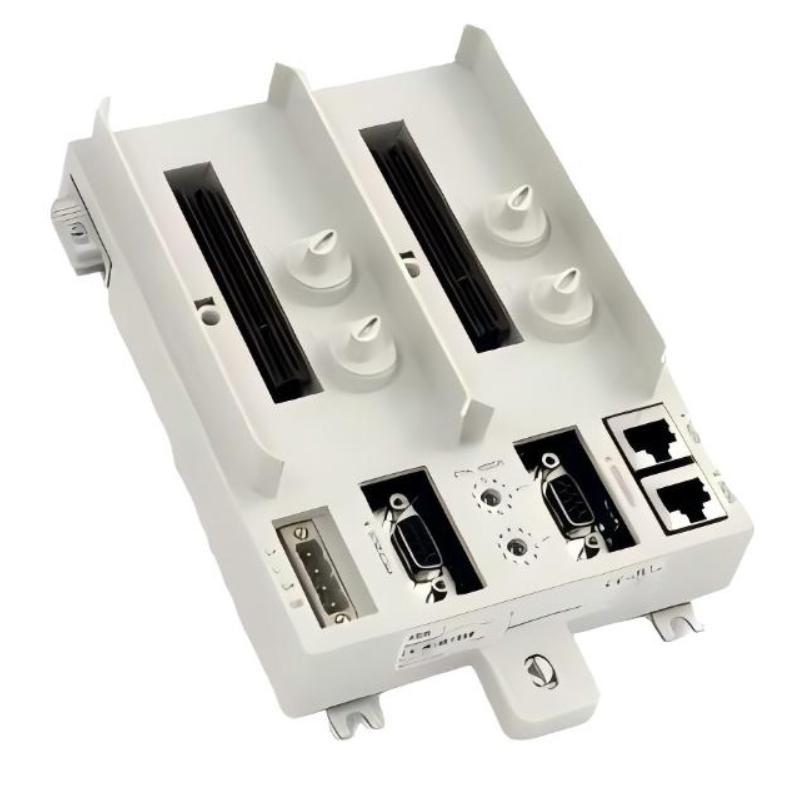

ABB TU847Z 3BSE035338R1 Module Termination Unit (Base/Terminal)

Overview

The ABB TU847Z is a module termination unit (base/terminal) designed to provide secure and reliable electrical connections for ABB control and automation modules. It ensures easy installation, stable signal transmission, and safe operation in industrial environments.

General Information

Part Number: 3BSE035338R1

Manufacturer: ABB

Brand / Country of Origin: ABB / Switzerland

Series: TU (Termination Unit)

Type: Module Termination Unit (Base/Terminal)

Mounting: Panel or DIN rail installation

Technology: Modular connection interface, secure screw terminals, high-reliability contacts

Power Specifications

Supply Voltage: N/A (passive termination unit)

Power Consumption: N/A

Protection: Electrical isolation and surge protection

Indicators: None (function is passive termination)

Communication & Interface

Bus Interface: Compatible with ABB module series

I/O Channels: Dependent on connected modules

Diagnostics: Ensures correct wiring and module connection integrity

Operator Interface: Visual verification of module seating

Reset Features: N/A

Environmental

Operating Temperature: −25 to +70 °C

Humidity: 5–95% RH, non-condensing

Protection Rating: IP20, suitable for industrial cabinet environments

Dimensions & Weight

Dimensions (L × W × H): 124 × 186 × 47 mm

Weight: 0.5 kg

Simplify your module setup with easy installation today!
