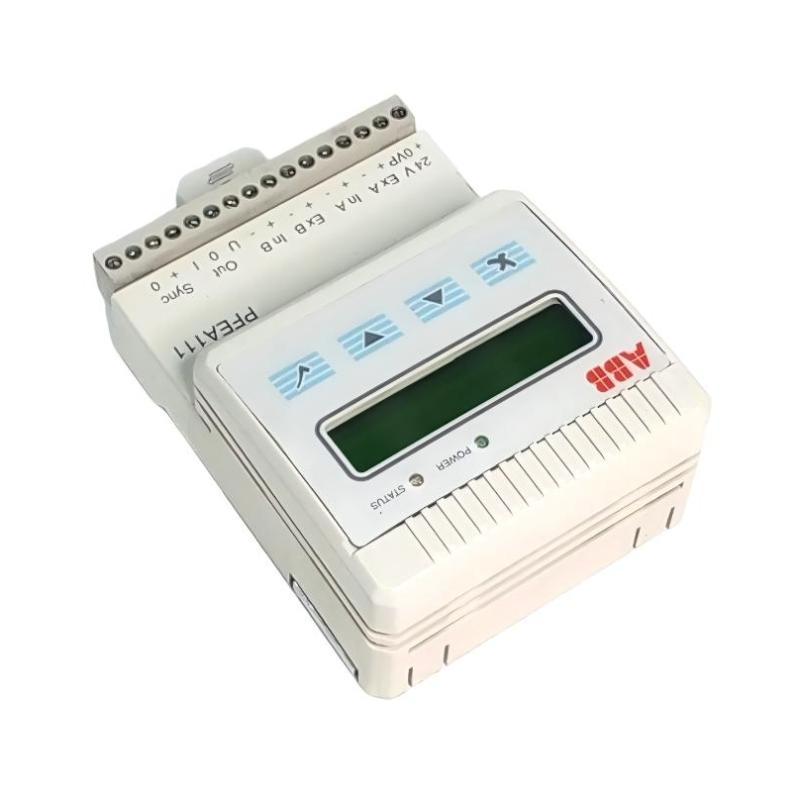

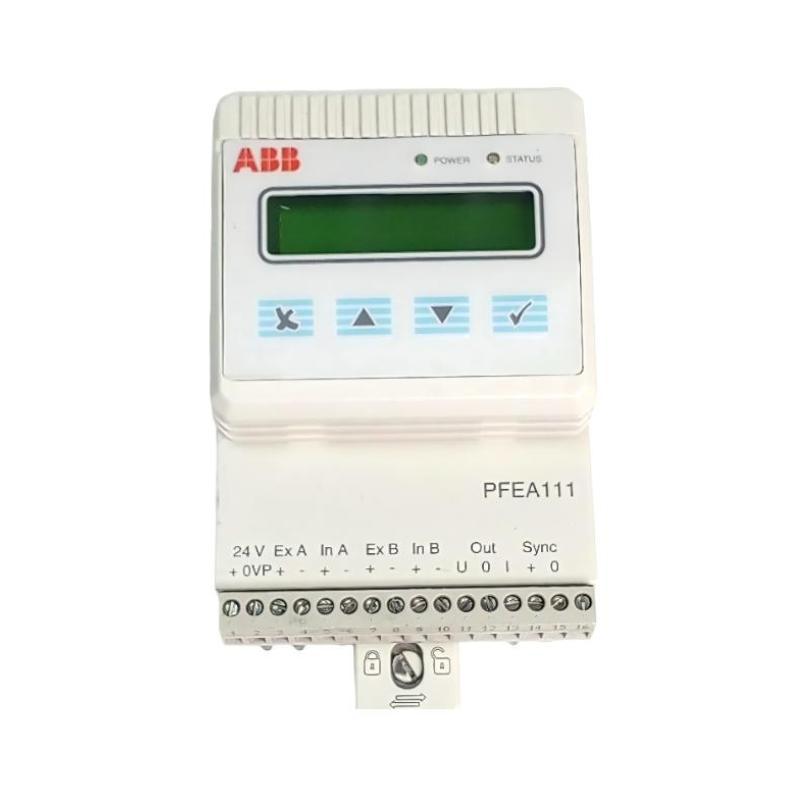

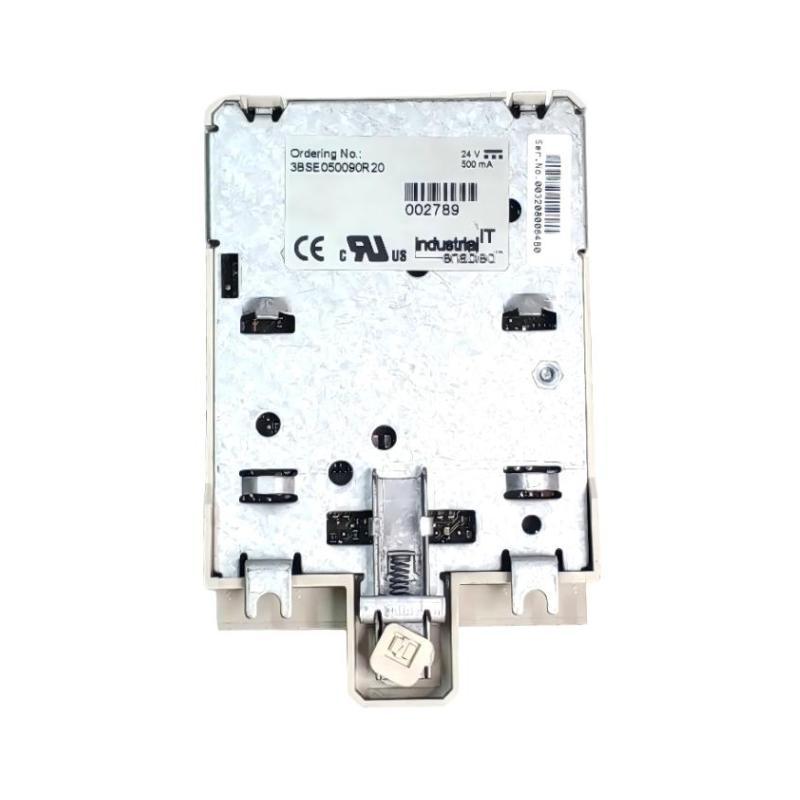

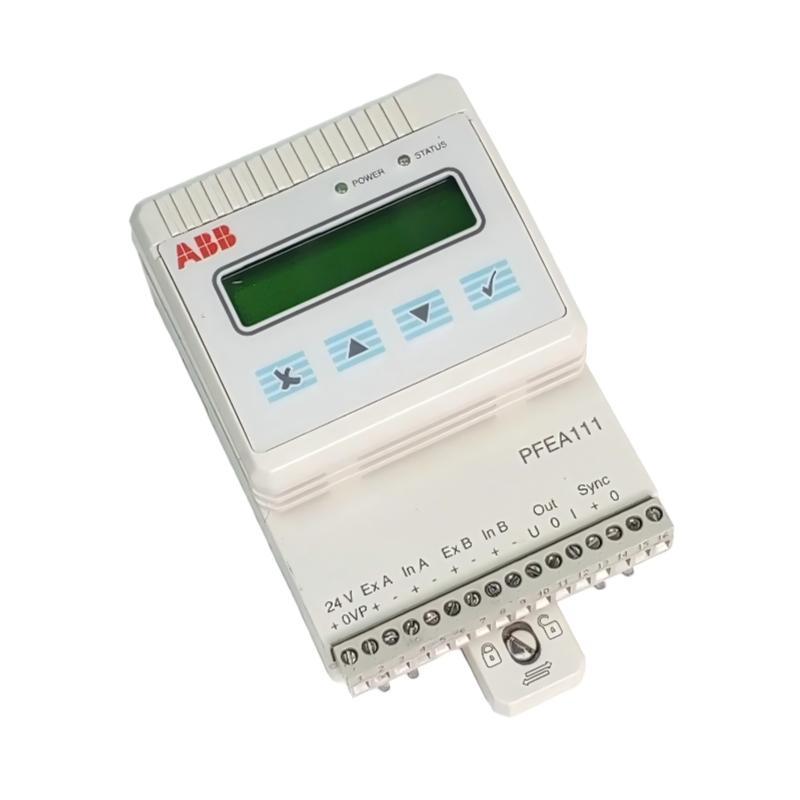

ABB PFEA111-20 3BSE050090R20 Tension Sensor

Overview

The ABB PFEA111-20 3BSE050090R20 is a high-precision tension sensor designed for industrial web handling and tension measurement applications. It provides accurate and stable force monitoring, ensuring consistent material control in production lines such as paper, textile, printing, and film processing systems.

General Information

Part Number: 3BSE050090R20

Model: PFEA111-20

Manufacturer: ABB

Brand / Country of Origin: ABB / Switzerland

Series: Tension Measurement Systems

Type: Tension Sensor

Mounting: Mechanical installation on tension measurement frames or roller systems

Technology: Strain gauge-based force measurement for accurate tension detection

Power Specifications

Supply Voltage: Industrial control system compatible (via connected controller)

Power Consumption: Low power sensor operation

Protection Features: Industrial-grade insulation and signal protection design

Indicators: Status and measurement feedback via external controller

Communication & Interface

Output Signal: Analog tension measurement signal

Control Interface: Connected to ABB tension control systems

Function: Measures web tension and transmits real-time force data

Diagnostics: System-level fault and signal monitoring via controller

Operator Interface: Displayed through external control unit

Reset Capability: Supported through connected control system

Environmental

Operating Temperature: 0 °C to +50 °C

Storage Temperature: −25 °C to +70 °C

Humidity: 5% to 95% RH, non-condensing

Vibration Resistance: Suitable for industrial machinery environments

Protection Rating: IP65 (when properly installed)

Dimensions & Weight

Dimensions (L × W × H): 86 × 136 × 58 mm

Weight: Approximately 0.2 kg

Precision You Can Trust — Built for Continuous Production!
