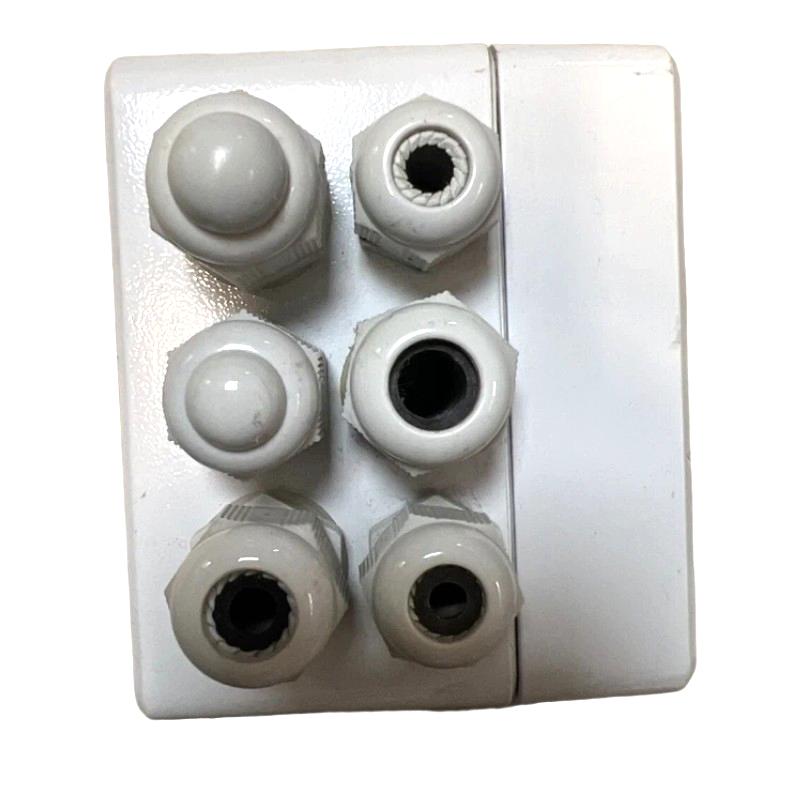

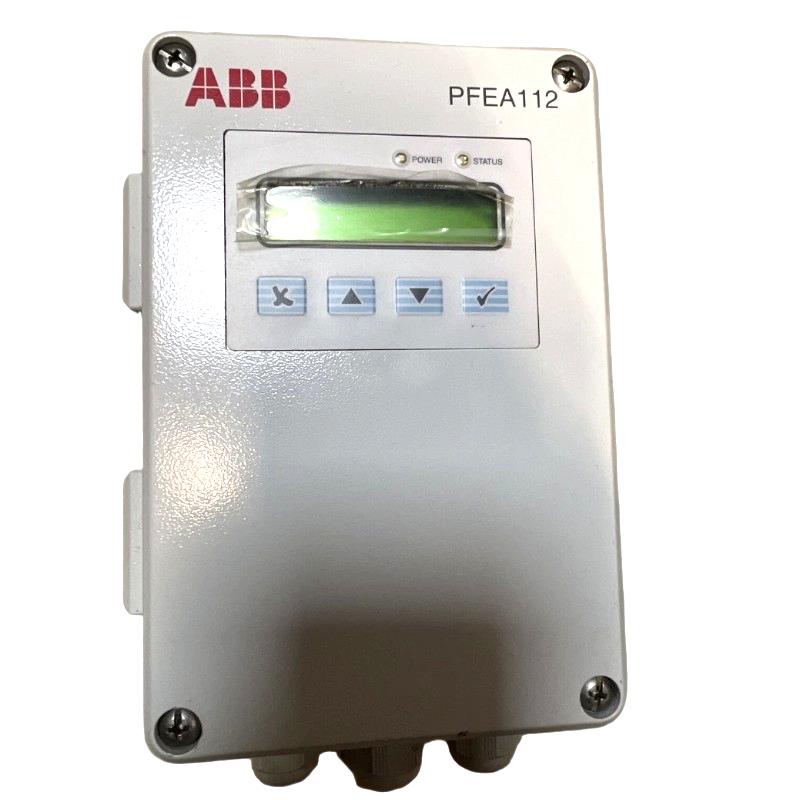

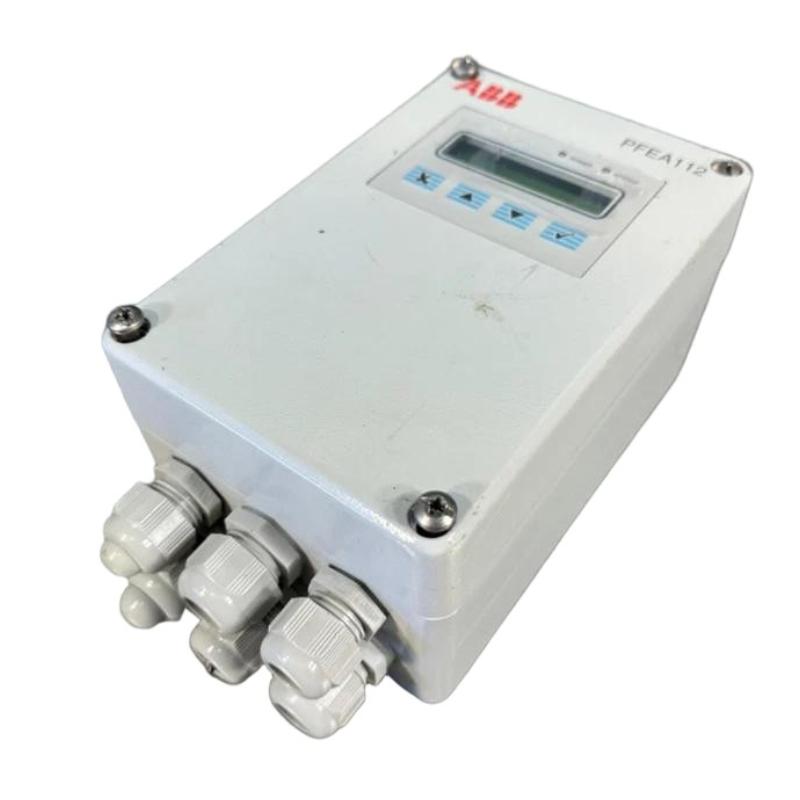

ABB PFEA112-65 3BSE030369R65 Tension Sensor

Overview

The ABB PFEA112-65 3BSE030369R65 is a precision tension sensor designed for accurate web tension measurement in industrial processing systems. It delivers stable and repeatable force detection, supporting consistent material handling in applications such as paper, film, textile, and converting industries. The unit is built for continuous operation in demanding production environments.

General Information

Part Number: 3BSE030369R65

Model: PFEA112-65

Manufacturer: ABB

Brand / Country of Origin: ABB / Switzerland

Series: Tension Measurement Systems

Type: Tension Sensor

Mounting: Mechanical installation on tension measurement frames or roller systems

Technology: Strain gauge-based load measurement for high-accuracy tension sensing

Power Specifications

Supply Voltage: Powered via connected ABB control system

Power Consumption: Low power sensor design

Protection Features: Industrial-grade insulation with noise and interference protection

Indicators: Measurement feedback provided through external control system

Communication & Interface

Output Signal: Analog tension measurement signal

Control Interface: Integrated with ABB tension control solutions

Function: Real-time web tension monitoring and force measurement

Diagnostics: System-based fault detection and signal quality monitoring

Operator Interface: Managed through external controller or display unit

Reset Capability: Supported via connected system controller

Environmental

Operating Temperature: 0 °C to +50 °C

Storage Temperature: −25 °C to +70 °C

Humidity: 5% to 95% RH, non-condensing

Vibration Resistance: Suitable for industrial machinery environments

Protection Rating: IP65 (when properly installed)

Dimensions & Weight

Dimensions (L × W × H): 100 × 180 × 120 mm

Weight: Approximately 1 kg

Engineered for Accurate Tension Control in Continuous Production Lines!
