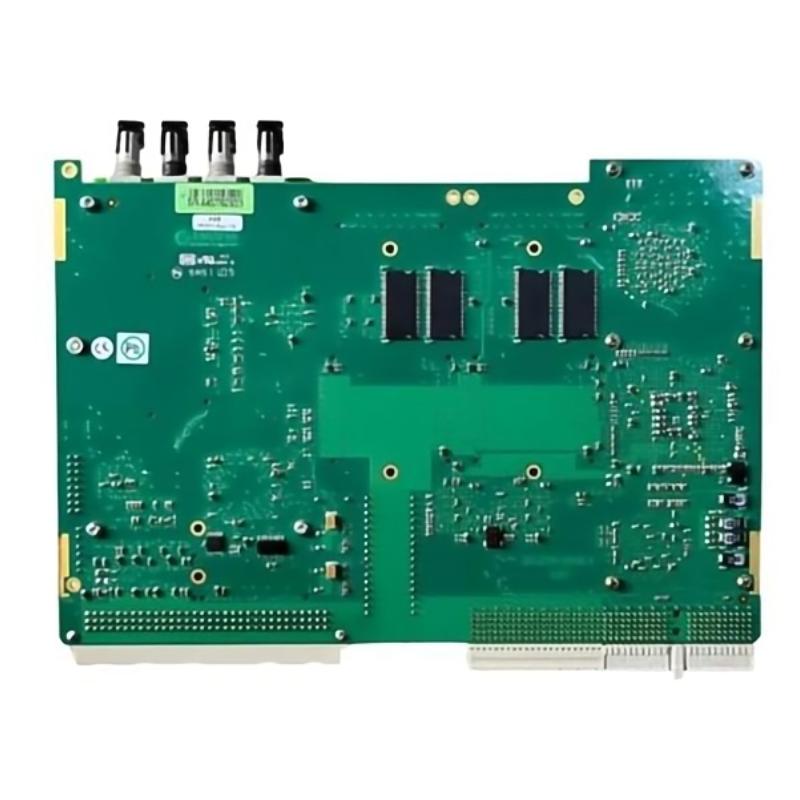

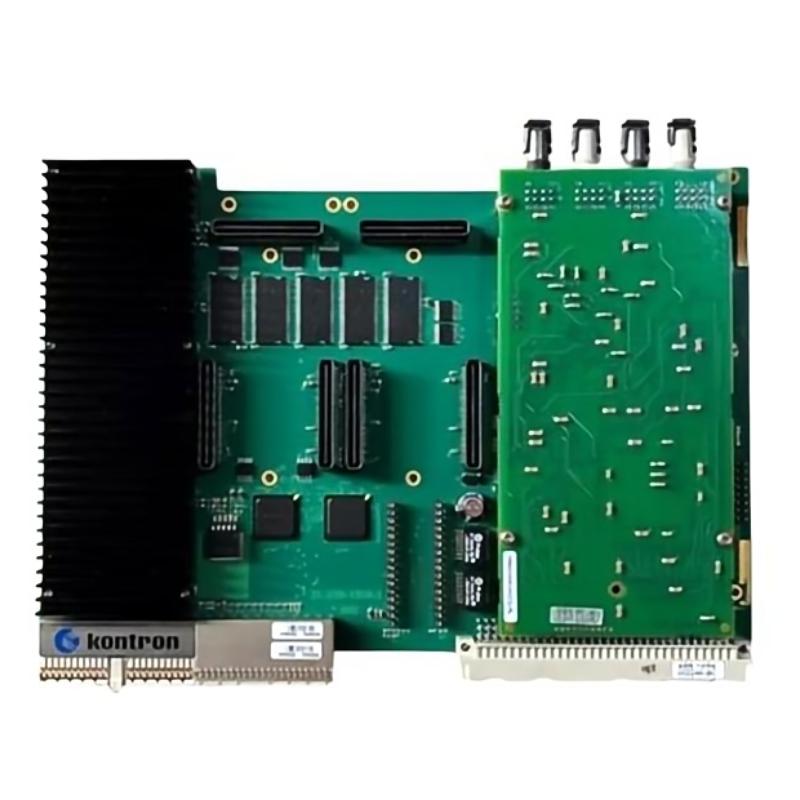

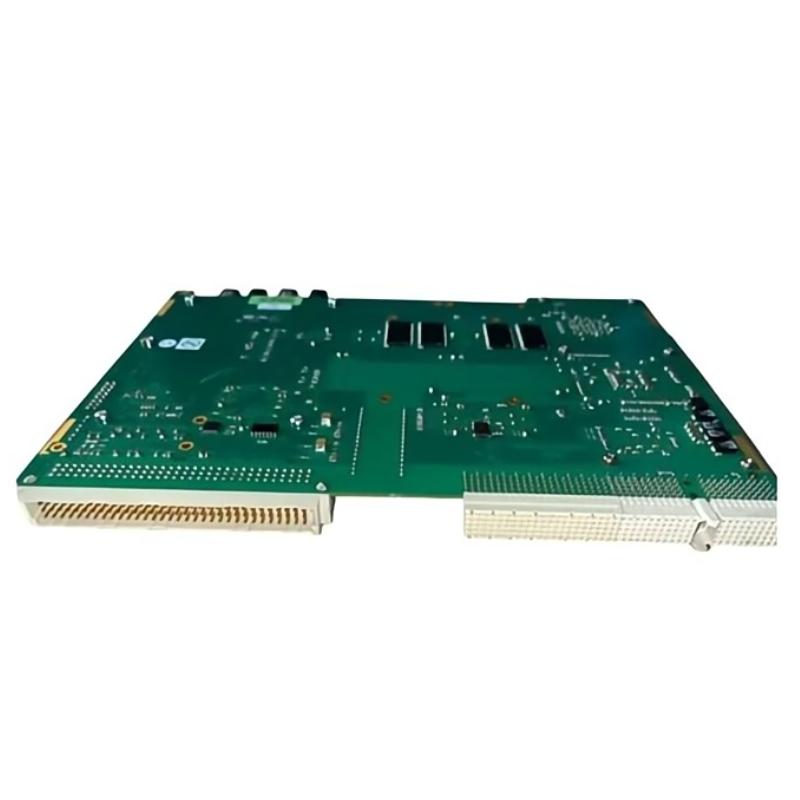

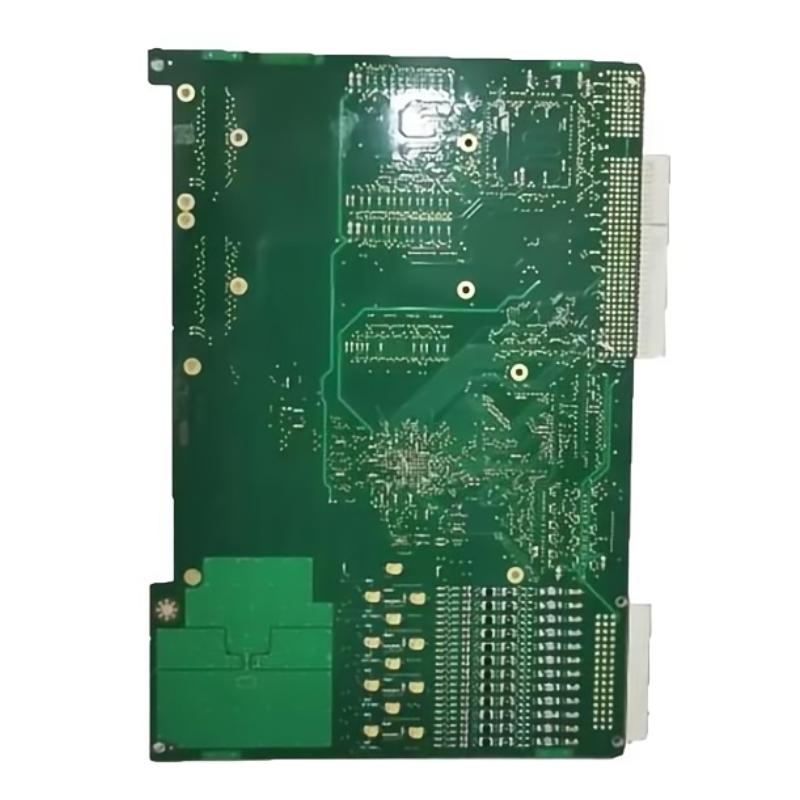

ABB 1MRK002133-ABr01 Binary Input/Output Module

Overview

The ABB 1MRK002133-ABr01 Binary Input/Output Module is an industrial automation component designed for reliable signal processing in protection and control systems. It is used to handle digital input and output signals in substation automation and industrial control applications, ensuring accurate status monitoring and control execution in critical environments.

General Information

Part Number: 1MRK002133-ABr01

Manufacturer: ABB

Brand: ABB

Country of Origin: Switzerland/Sweden

Series: Protection & Control I/O Systems

Type: Binary Input/Output Module

Function: Digital signal acquisition and output control

Application: Substation automation, industrial protection systems

Compatibility: ABB protection and control platforms

Installation: Panel or rack mounted module integration

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: Low power industrial operation

Input Protection: Surge and electrical isolation protection

Output Protection: Short-circuit and overload protection

Status Indicators: LED indication for input/output and module status

Communication & Interface

Input Channels: Binary digital input signals for monitoring field devices

Output Channels: Binary digital outputs for control operations

Interface Type: System backplane communication

Signal Processing: Real-time digital signal acquisition and response

Diagnostics: Built-in fault detection and channel status monitoring

Configuration: Software-configurable via control system tools

Environmental

Operating Temperature: -25°C to +70°C

Storage Temperature: -40°C to +85°C

Relative Humidity: 5% to 95% non-condensing

Shock Resistance: Designed for industrial and substation environments

Vibration Resistance: Suitable for continuous operation in harsh conditions

Protection Rating: Industrial enclosure installation environment

Dimensions & Weight

Dimensions (L × W × H): 120 × 85 × 55 mm

Weight: 0.35 kg
