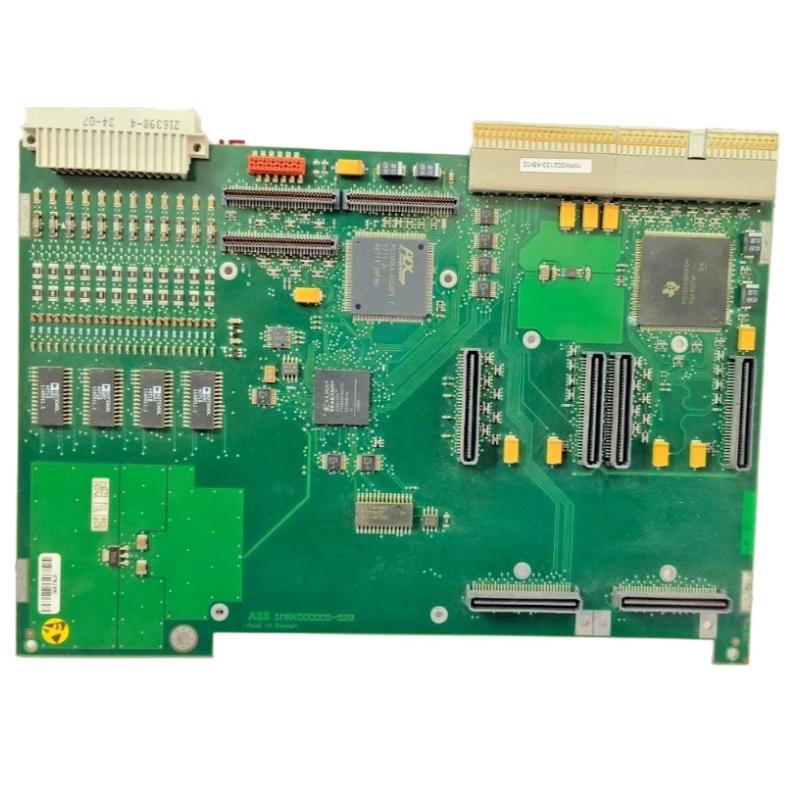

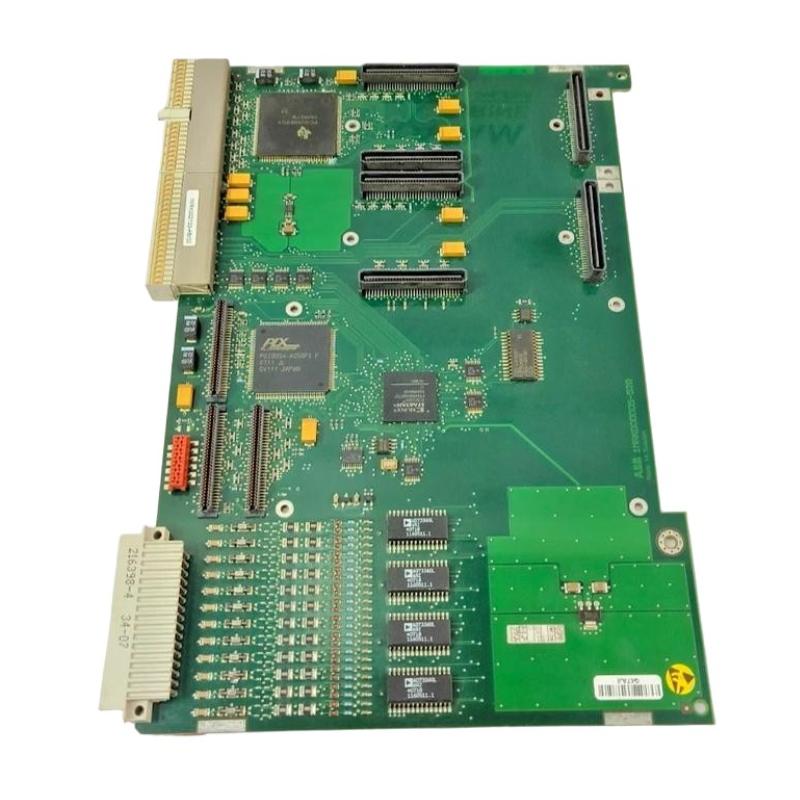

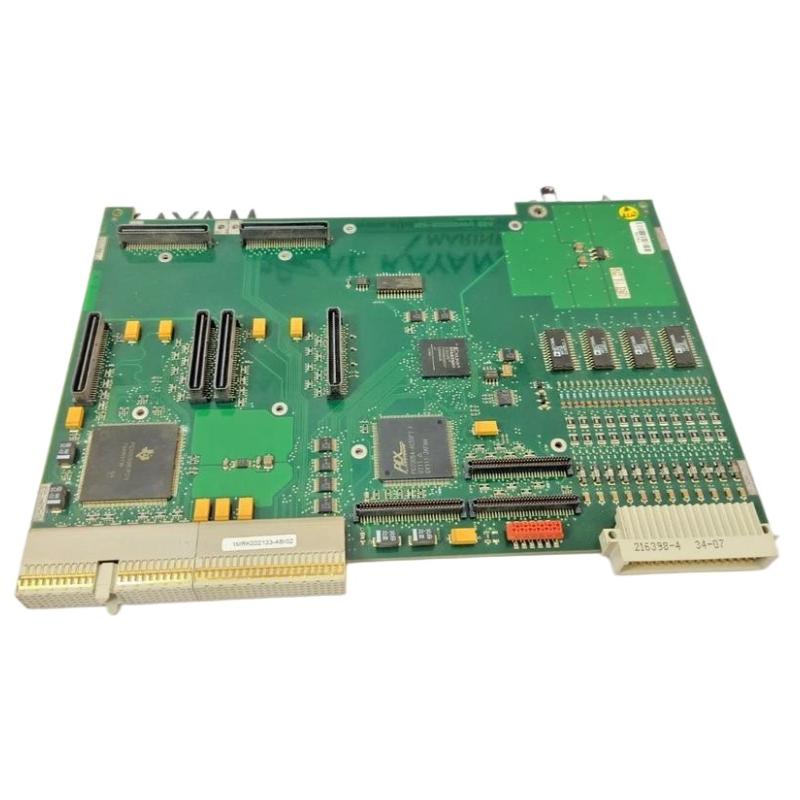

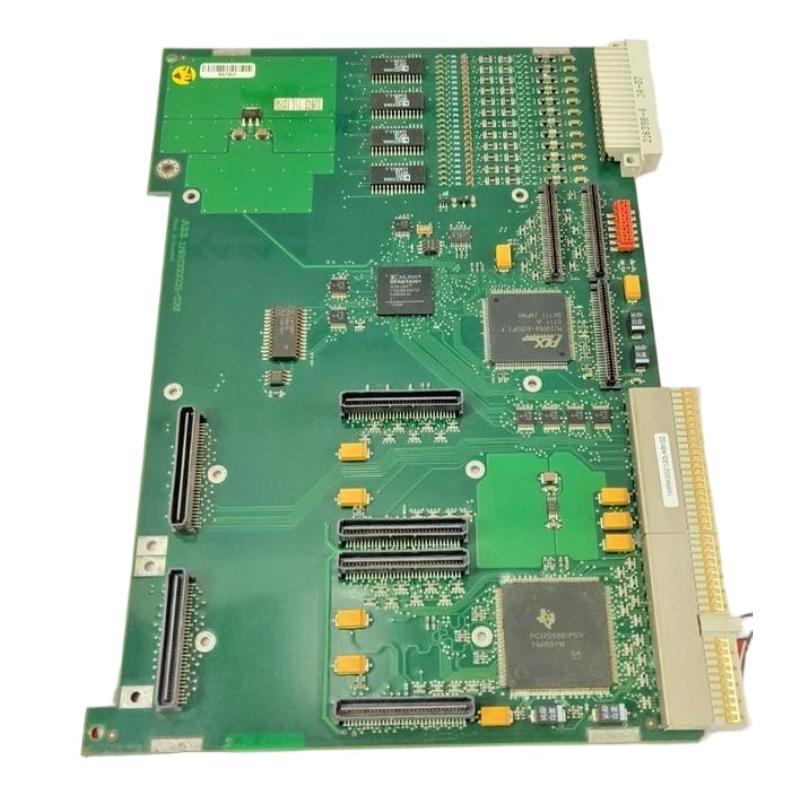

ABB 1MRK002133-ABr02 Binary Input/Output Module

Overview

The ABB 1MRK002133-ABr02 Binary Input/Output Module is an industrial automation device designed for accurate digital signal processing in protection and control systems. It provides reliable acquisition of binary input signals and control of binary outputs, making it suitable for substation automation, industrial protection, and monitoring applications.

General Information

Part Number: 1MRK002133-ABr02

Manufacturer: ABB

Brand: ABB

Country of Origin: Switzerland/Sweden

Series: Protection & Control I/O Systems

Type: Binary Input/Output Module

Function: Digital signal acquisition and output control

Application: Substation automation, industrial protection systems

Compatibility: ABB protection and control platforms

Installation: Panel or rack mounted integration

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: Low power industrial operation

Input Protection: Surge and electrical isolation protection

Output Protection: Short-circuit and overload protection

Status Indicators: LED indication for input/output and module status

Communication & Interface

Input Channels: Binary digital input signals for monitoring field devices

Output Channels: Binary digital outputs for control operations

Interface Type: System backplane communication

Signal Processing: Real-time digital signal acquisition and response

Diagnostics: Built-in fault detection and channel status monitoring

Configuration: Software-configurable via control system tools

Environmental

Operating Temperature: -25°C to +70°C

Storage Temperature: -40°C to +85°C

Relative Humidity: 5% to 95% non-condensing

Shock Resistance: Designed for industrial and substation environments

Vibration Resistance: Suitable for continuous operation in harsh conditions

Protection Rating: Industrial enclosure installation environment

Dimensions & Weight

Dimensions (L × W × H): 183 × 130 × 35 mm

Weight: 0.4 kg
