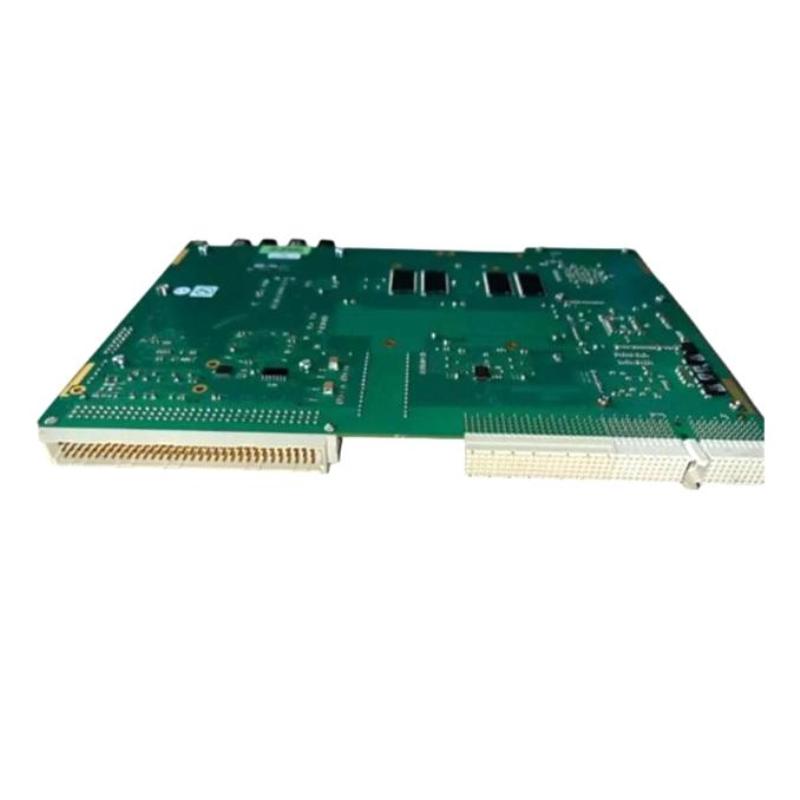

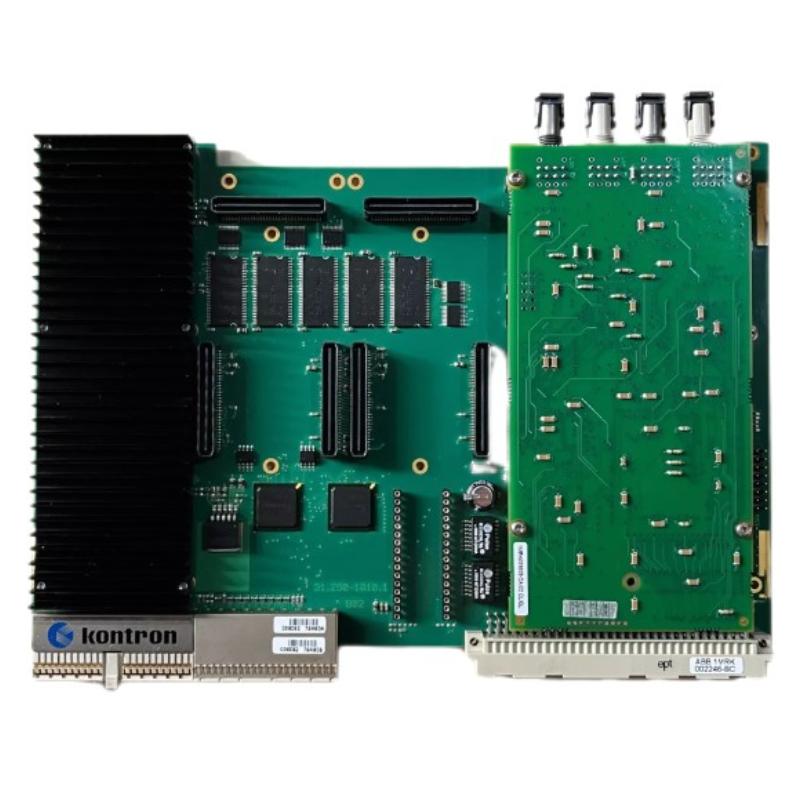

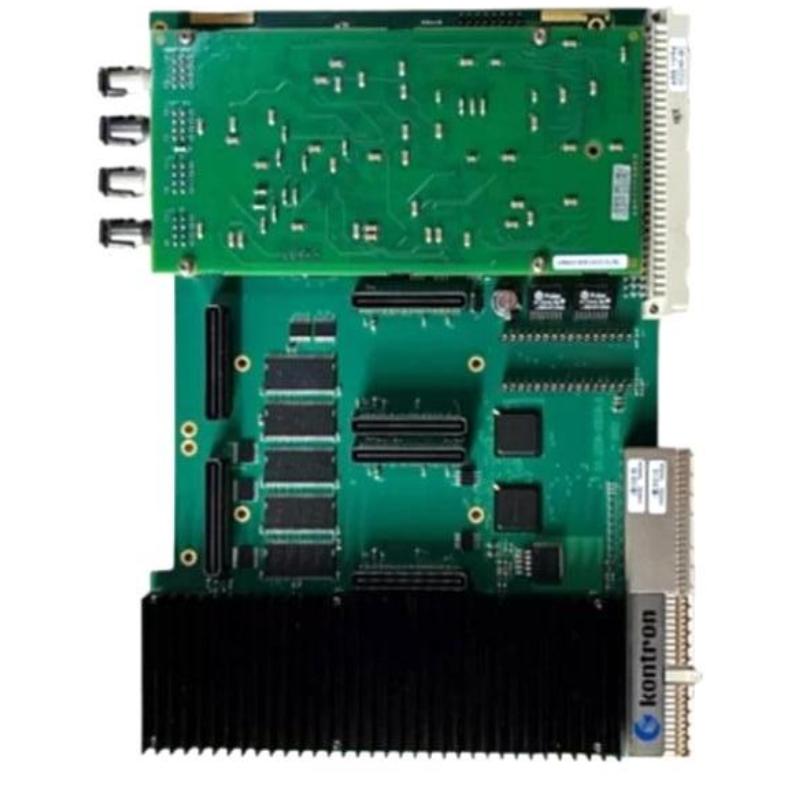

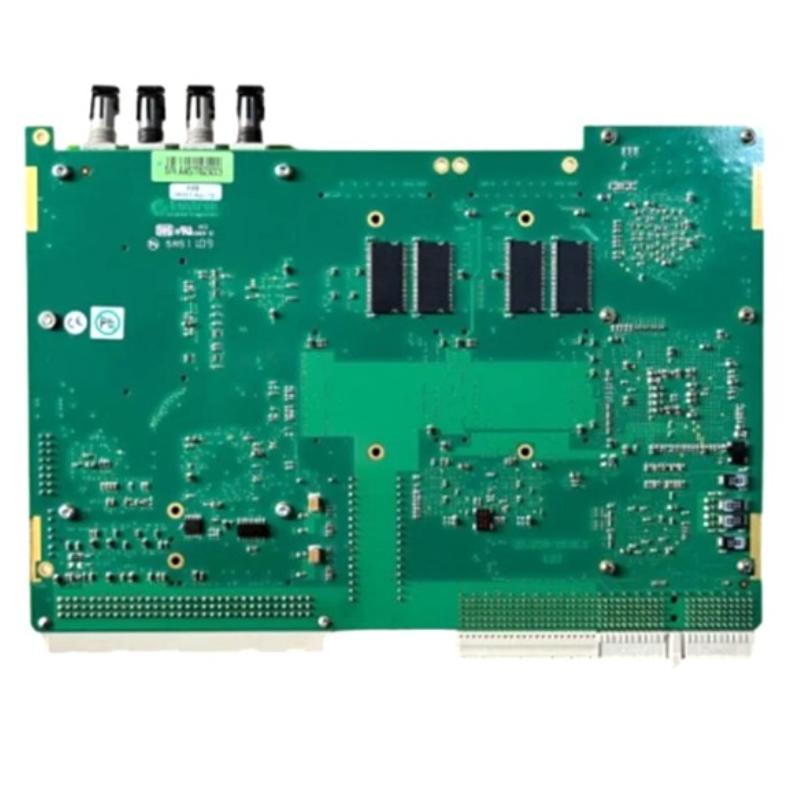

ABB 1MRK002246-BD Binary Input/Output Module

Overview

The ABB 1MRK002246-BD is a binary input/output module designed for industrial automation and protection systems. It provides reliable signal acquisition and output control for switching applications, ensuring accurate status monitoring and fast response in control and protection environments.

General Information

Part Number: 1MRK002246-BD

Manufacturer: ABB

Brand: ABB

Country of Origin: Switzerland

Series: Industrial Control / Protection I/O Series

Type: Binary Input/Output Module

Application: Signal acquisition and switching control in automation systems

Technology: Digital I/O processing with high-speed signal handling

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: Low power consumption depending on I/O load

Input: External DC supply with internal isolation

Protection: Overvoltage, short-circuit, and reverse polarity protection

Indicators: LED status indicators for input and output channels

Communication & Interface

Interface Type: Digital binary input/output channels

Signal Type: On/Off switching signals

Channel Configuration: Multiple configurable I/O points depending on system setup

Diagnostics: Channel-level diagnostics and fault indication

Compatibility: Designed for ABB protection and control systems

Environmental

Operating Temperature: -25°C to +70°C

Storage Temperature: -40°C to +85°C

Humidity: Up to 95% RH, non-condensing

Protection Rating: Industrial enclosure installation required

Dimensions & Weight

Dimensions (L × W × H): 74 × 370 × 361 mm

Weight: 1.52 kg
