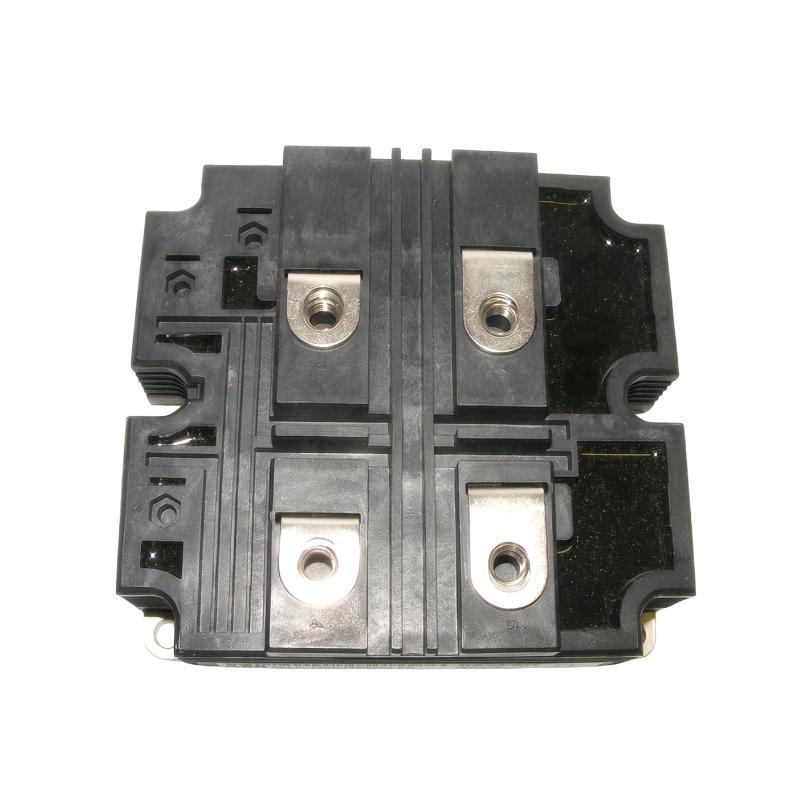

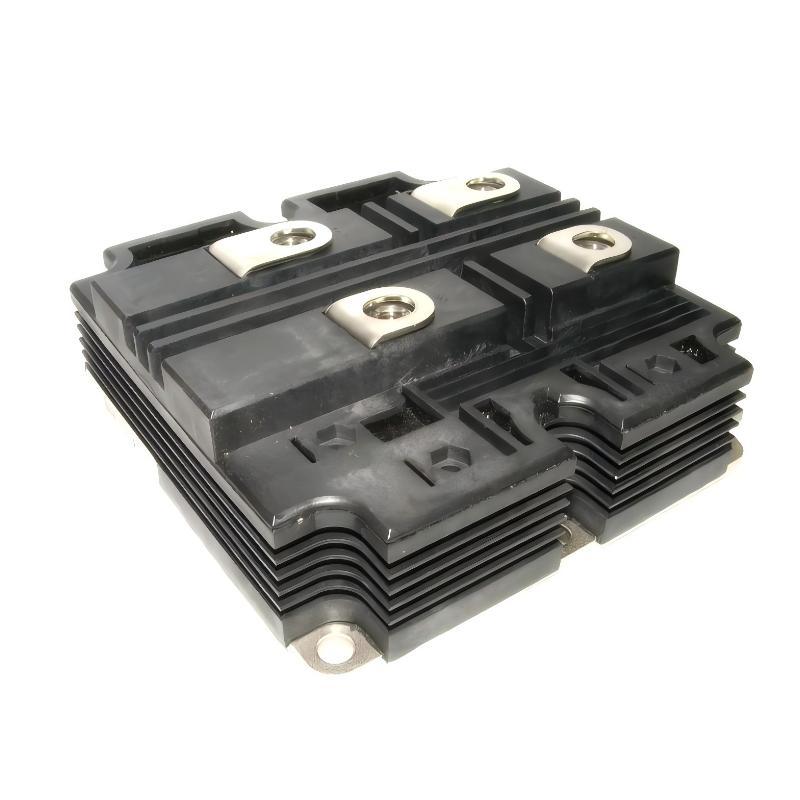

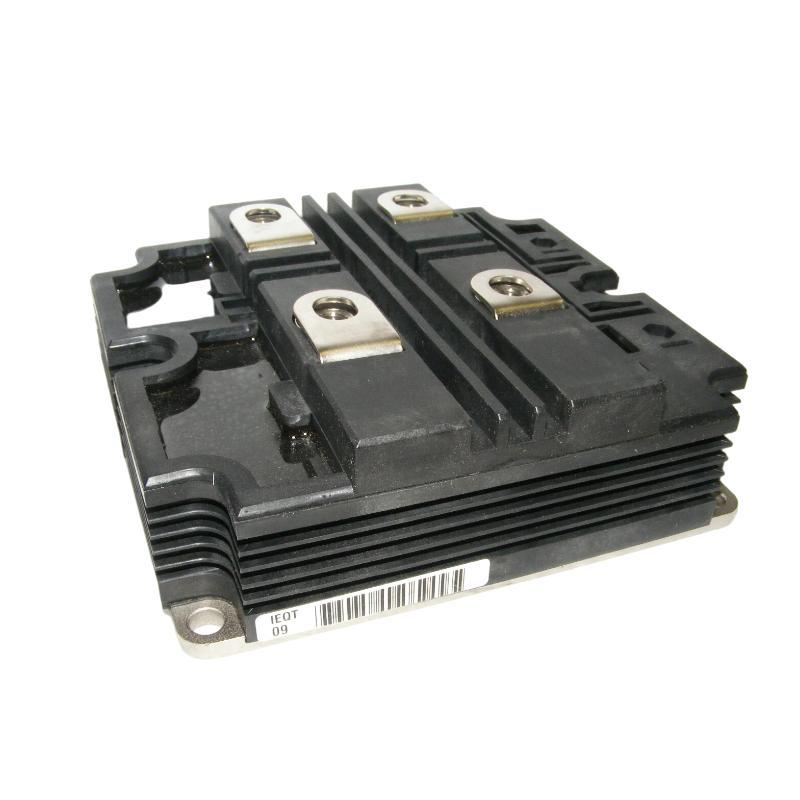

ABB 5SLD0600J650100 HiPak Dual Diode Module

Overview

The ABB 5SLD0600J650100 is a HiPak dual diode module designed for high-power industrial rectification applications. It delivers efficient and reliable current control in power electronic systems such as converters, rectifiers, and industrial drive assemblies. Built with robust semiconductor technology, it ensures stable performance under high electrical and thermal stress conditions.

General Information

Part Number: 5SLD0600J650100

Manufacturer: ABB

Brand: ABB

Country of Origin: Switzerland

Product Type: HiPak Dual Diode Module

Function: High-power rectification and current control

Application: Industrial rectifiers, motor drives, converters, and power electronics systems

Power Specifications

Voltage Rating: High-voltage industrial-grade operation (650 V class typical)

Current Rating: High current capacity for heavy-duty applications

Configuration: Dual diode structure for enhanced rectification efficiency

Efficiency: Low forward voltage drop for reduced power loss

Protection Features: High surge current capability and thermal stability

Cooling Requirement: Requires heat sink or liquid cooling for optimal thermal performance

Communication & Interface

Interface Type: High-power terminal connections

Signal Transmission: Electrical power rectification and conduction control

Compatibility: Industrial power modules, drives, and converter systems

Diagnostics: System-level monitoring of current, temperature, and module performance

Environmental

Operating Temperature: -40 to +125 °C

Storage Temperature: -40 to +125 °C

Relative Humidity: 5% to 95% RH, non-condensing

Vibration Resistance: Designed for industrial power equipment environments

Shock Resistance: Suitable for high-load electrical installations

Protection Rating: Requires enclosure and proper thermal management system

Dimensions & Weight

Dimensions (L × W × H): 130 × 48 × 140 mm

Weight: 0.98 kg

Power You Can Trust for Demanding Industrial Applications
