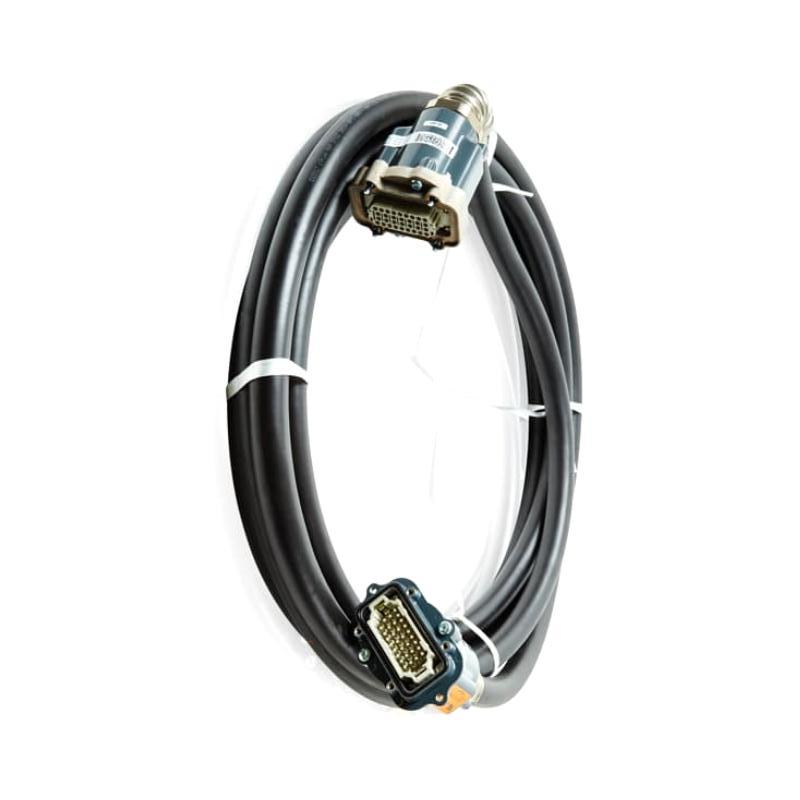

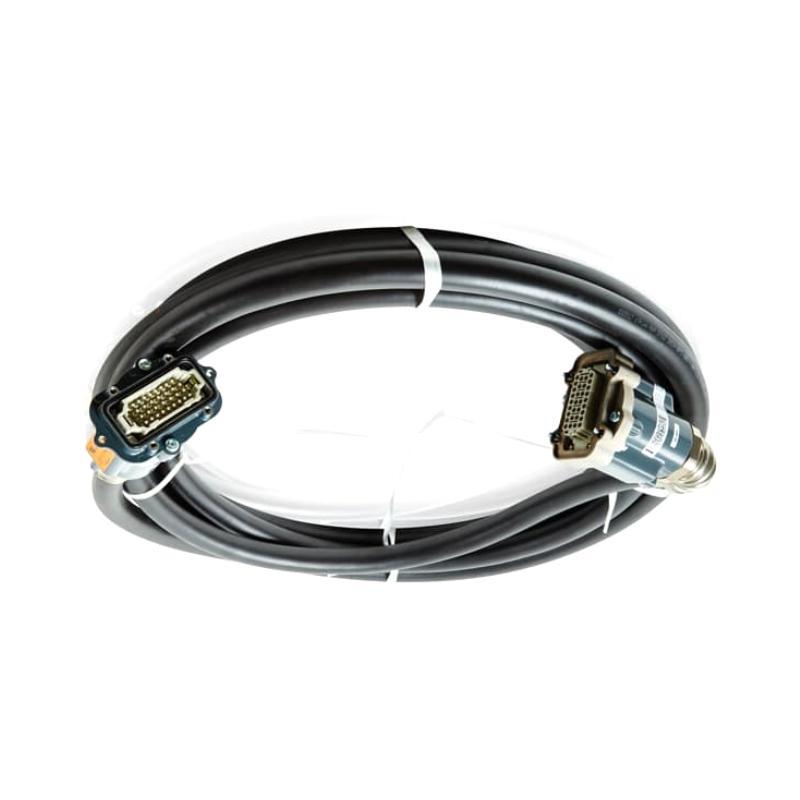

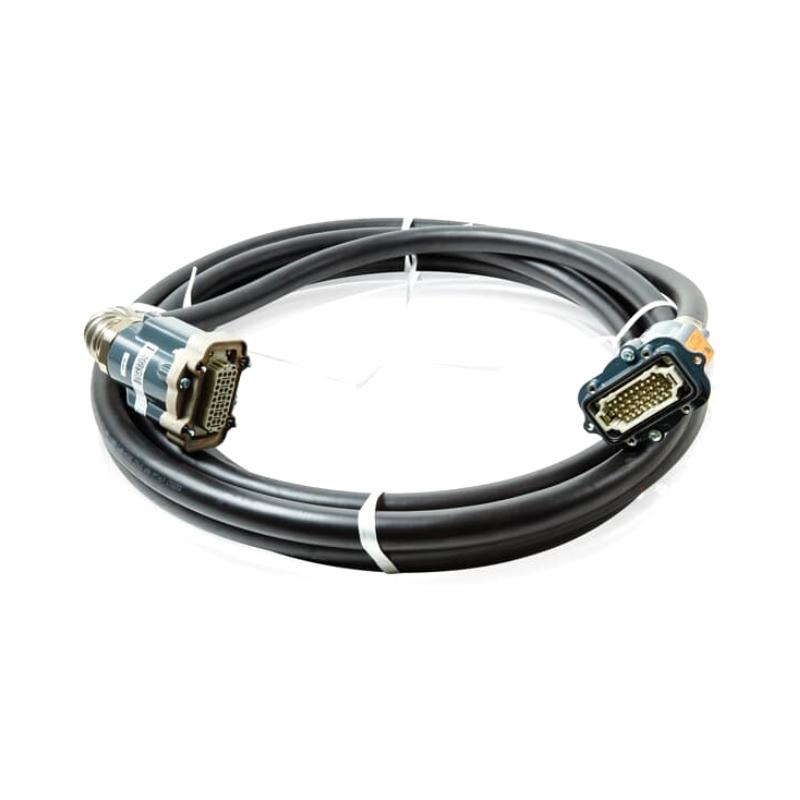

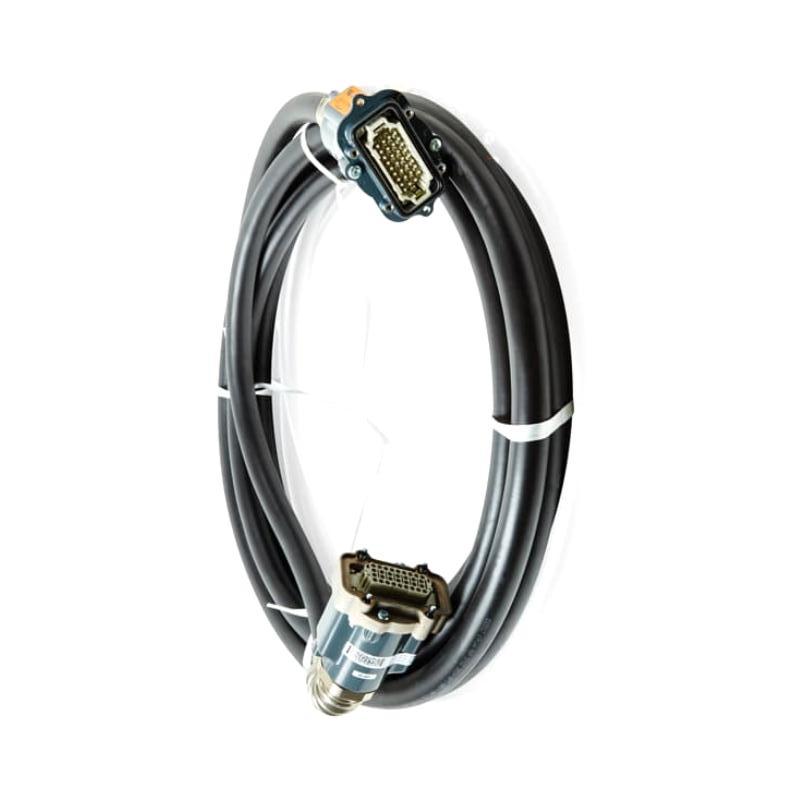

ABB 3HAC058040-001 Robotic Arm Wiring Harness

Overview

The ABB 3HAC058040-001 is a robotic arm wiring harness designed for industrial robotic systems. It provides integrated routing for power, signal, and control connections between robot controllers and robotic arm assemblies. Engineered for high flexibility and durability, it supports continuous motion and demanding automation environments.

General Information

Part Number: 3HAC058040-001

Manufacturer: ABB

Brand: ABB

Country of Origin: Switzerland

Product Type: Robotic Arm Wiring Harness

Function: Power and signal transmission between robot controller and robotic arm

Application: Industrial robotics, automated production lines, robotic arm systems

Cable Length: 7.205 meters

Power Specifications

Power Requirements: Carries multi-channel power and control signals

Voltage Handling: Suitable for industrial robot power distribution systems

Current Capacity: Designed for multi-line power and signal routing

Protection Features: Shielded structure for EMI protection and mechanical durability

Communication & Interface

Interface Type: Multi-connector robotic interface harness

Signal Transmission: Power, encoder feedback, and control signals

Compatibility: ABB industrial robotic arm systems

Functionality: Enables coordinated movement, control feedback, and system integration

Diagnostics: Signal integrity monitored through robot controller diagnostics

Environmental

Operating Temperature: -20 to +70 °C

Storage Temperature: -40 to +85 °C

Relative Humidity: 5% to 95% RH, non-condensing

Mechanical Flexibility: Designed for continuous robotic motion

Vibration Resistance: Suitable for high-cycle robotic applications

Shock Resistance: Industrial-grade durability for automated systems

Protection Rating: Reinforced insulation for harsh industrial environments

Dimensions & Weight

Cable Length: 7.205 meters

Weight: 14.5 kg

Engineered for Precision Connectivity in Advanced Robotics Systems
