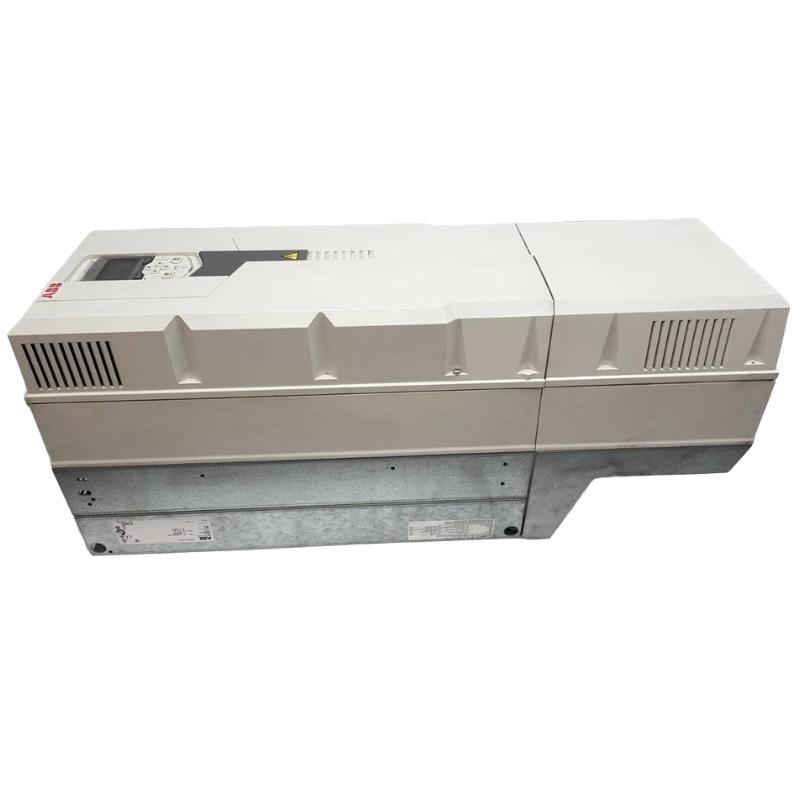

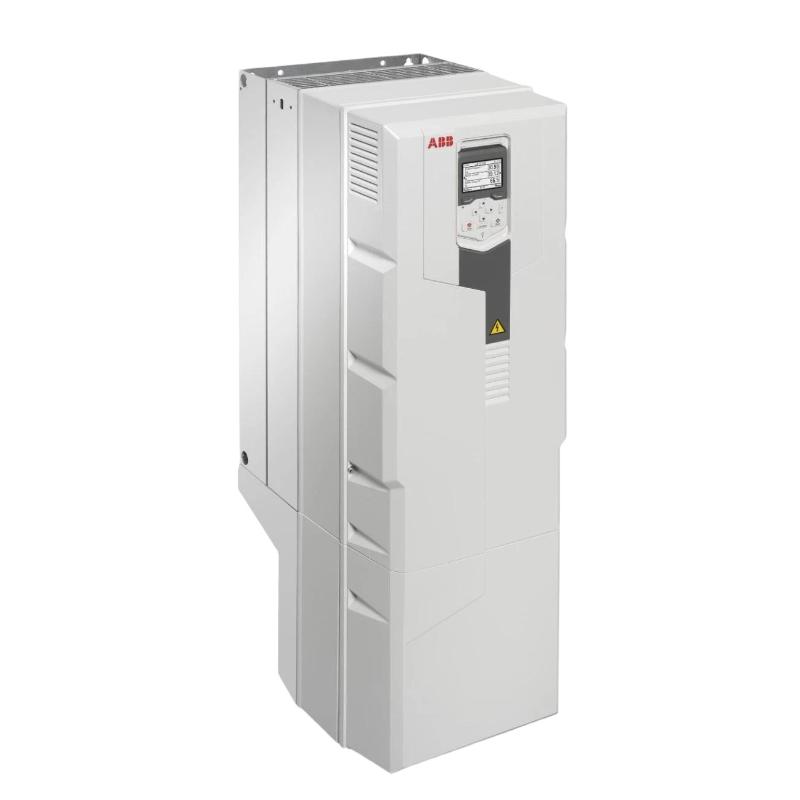

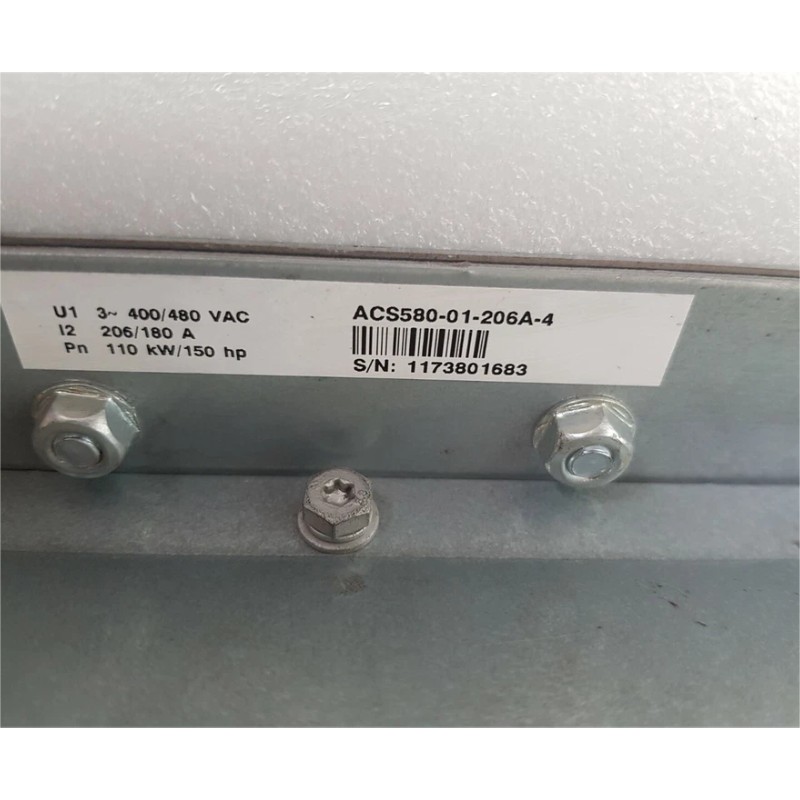

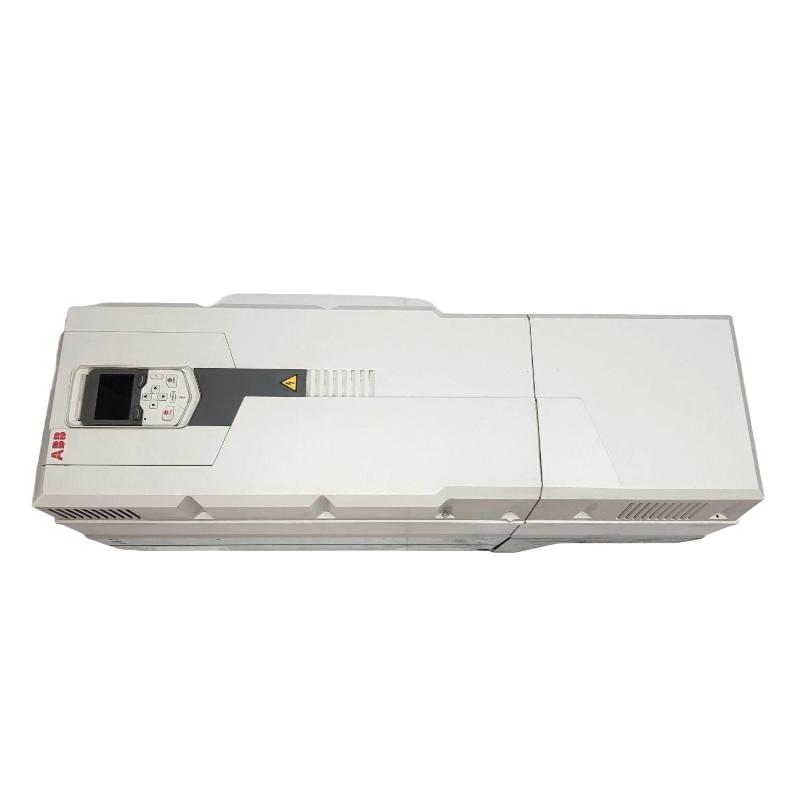

ABB ACS580-01-206A-4 3ABD00045439-D Frequency Converter

Overview

The ABB ACS580-01-206A-4 is a versatile frequency converter designed for industrial motor control applications. It provides efficient speed and torque regulation for AC motors, helping optimize energy consumption and improve process performance. The converter is suitable for a wide range of industrial environments, offering reliable operation and easy integration into automation systems.

General Information

Part Number: 3ABD00045439-D

Manufacturer: ABB

Brand / Country of Origin: ABB / Sweden

Series: ACS580

Type: Frequency Converter

Mounting: Floor or wall-mounted installation within industrial enclosures

Technology: Variable frequency drive (VFD) with integrated protection and control functions

Power Specifications

Supply Voltage: 380–480 V AC, 3-phase

Power Rating: 200 kW

Frequency Range: 0–500 Hz

Power Consumption: Dependent on motor load

Protection: Overvoltage, undervoltage, short-circuit, and thermal protection

Indicators: LED indicators for power, operation, and fault conditions

Communication & Interface

Control Interface: Digital and analog I/O for process integration

Communication Protocols: Modbus, PROFIBUS, and optional Ethernet connectivity

Diagnostics: Built-in monitoring, fault logging, and status reporting

Operator Interface: Integrated keypad with display for configuration and operation

Reset Function: Supports soft reset and system restart

Environmental

Operating Temperature: −10 to +50 °C

Storage Temperature: −40 to +70 °C

Humidity: Up to 95% RH, non-condensing

Protection Level: IP21 or IP54 (depending on enclosure)

Dimensions & Weight

Dimensions (L × W × H): 880 × 284 × 370 mm

Weight: 54 kg
