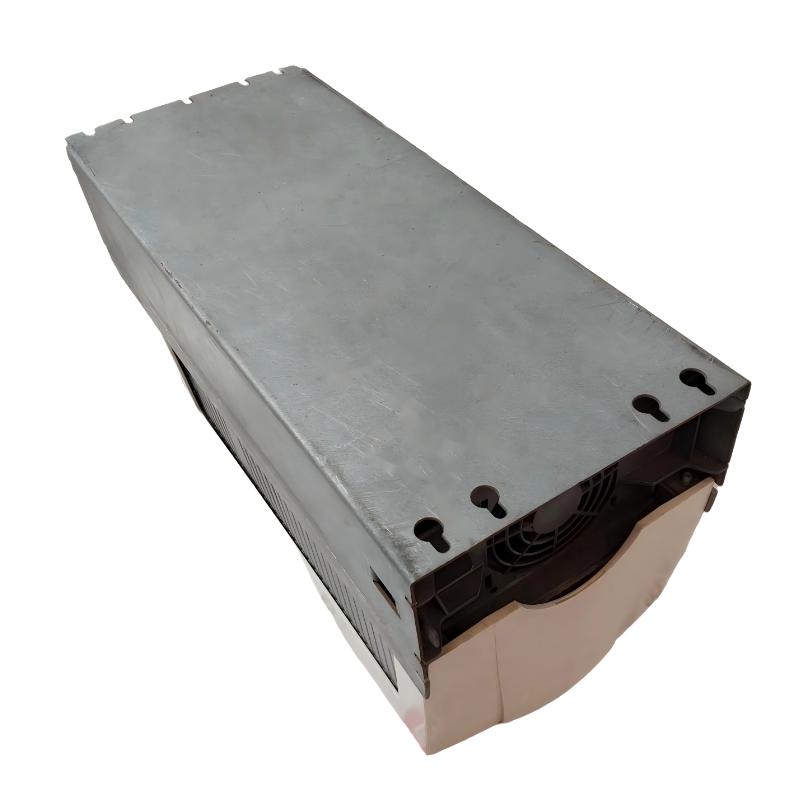

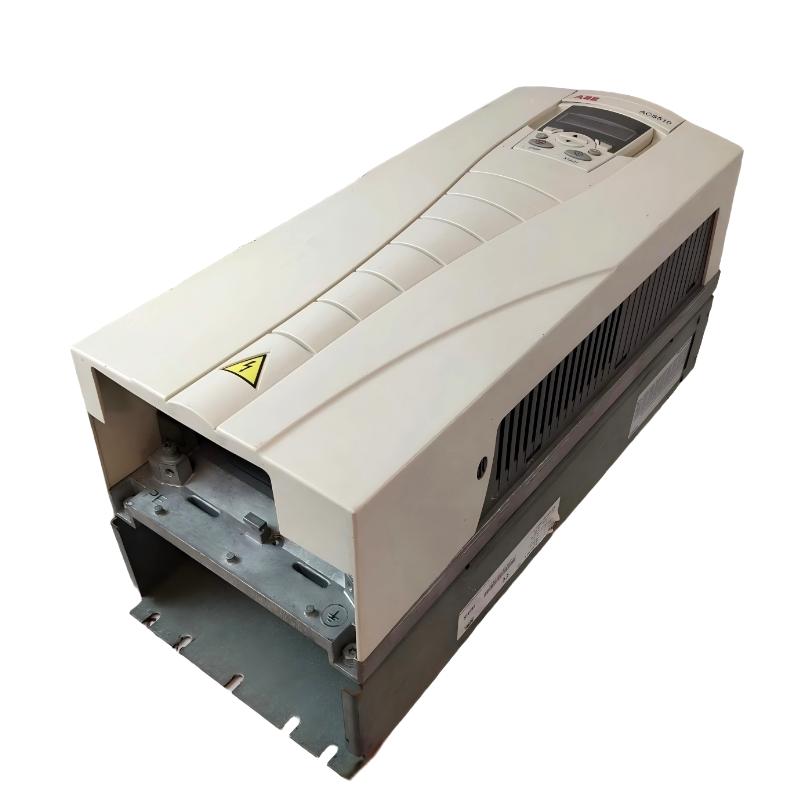

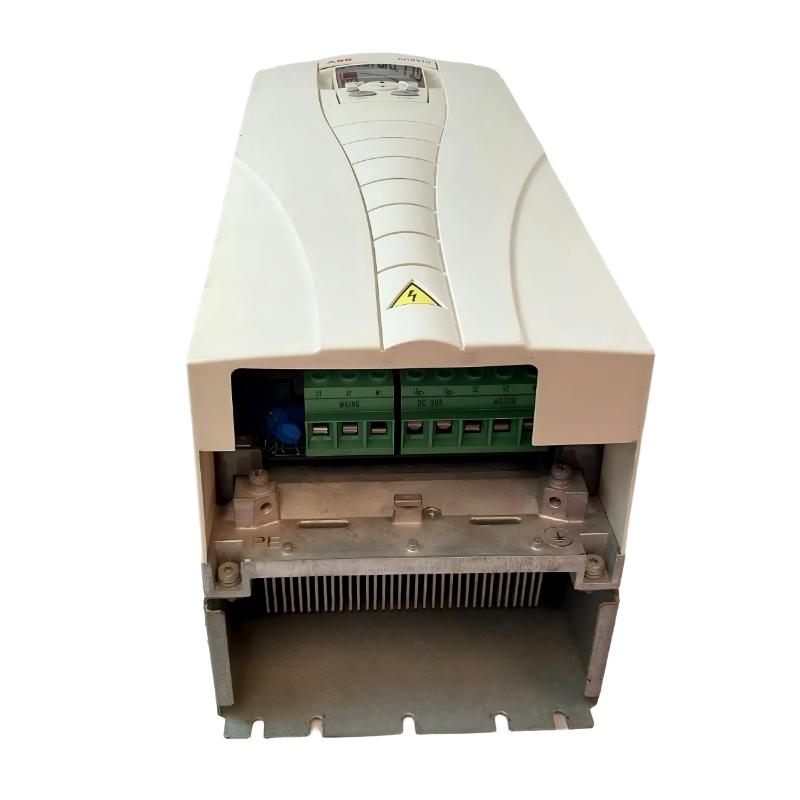

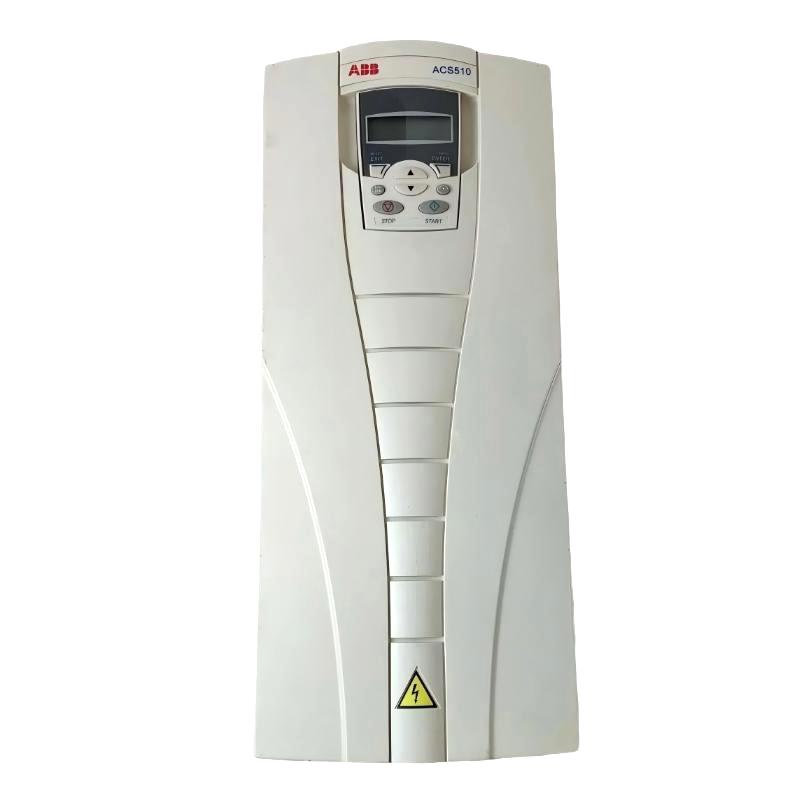

ABB ACS510-01-195A-4 3ABD00015758-D Frequency Converter

Overview

The ABB ACS510-01-195A-4 is a robust frequency converter designed for industrial motor control applications. It delivers precise speed and torque regulation for AC motors, helping improve energy efficiency and ensure stable process performance. The drive is suitable for a wide range of industrial environments and supports reliable long-term operation in demanding conditions.

General Information

Part Number: 3ABD00015758-D

Manufacturer: ABB

Brand / Country of Origin: ABB / Sweden

Series: ACS510

Type: Frequency Converter

Mounting: Wall-mounted or cabinet installation

Technology: Variable frequency drive (VFD) with advanced motor control and protection functions

Power Specifications

Supply Voltage: 380–480 V AC, 3-phase

Power Rating: 160 kW

Frequency Range: 0–500 Hz

Power Consumption: Depends on motor load conditions

Protection: Overvoltage, undervoltage, short-circuit, and thermal protection

Indicators: LED status indicators for operation, power, and fault conditions

Communication & Interface

Control Interface: Digital and analog I/O for process integration

Communication Protocols: Modbus, optional fieldbus extensions

Diagnostics: Built-in fault monitoring, event logging, and system diagnostics

Operator Interface: Integrated keypad with display for configuration and control

Reset Function: Supports manual and automatic reset functions

Environmental

Operating Temperature: −10 to +40 °C

Storage Temperature: −40 to +70 °C

Humidity: Up to 95% RH, non-condensing

Protection Level: IP21 or IP54 depending on enclosure

Dimensions & Weight

Dimensions (L × W × H): 955 × 350 × 420 mm

Weight: 59 kg
