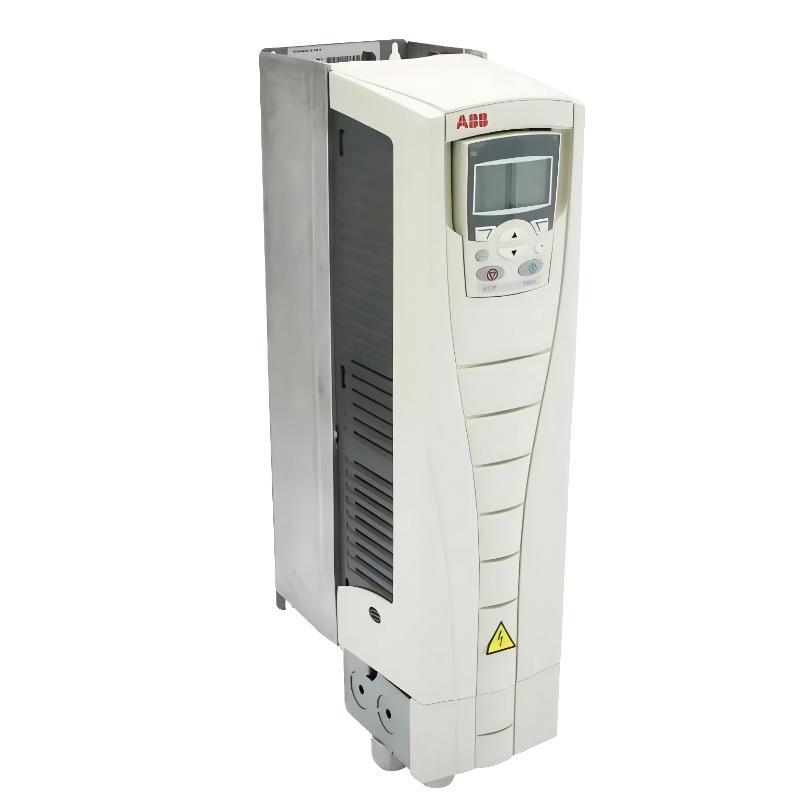

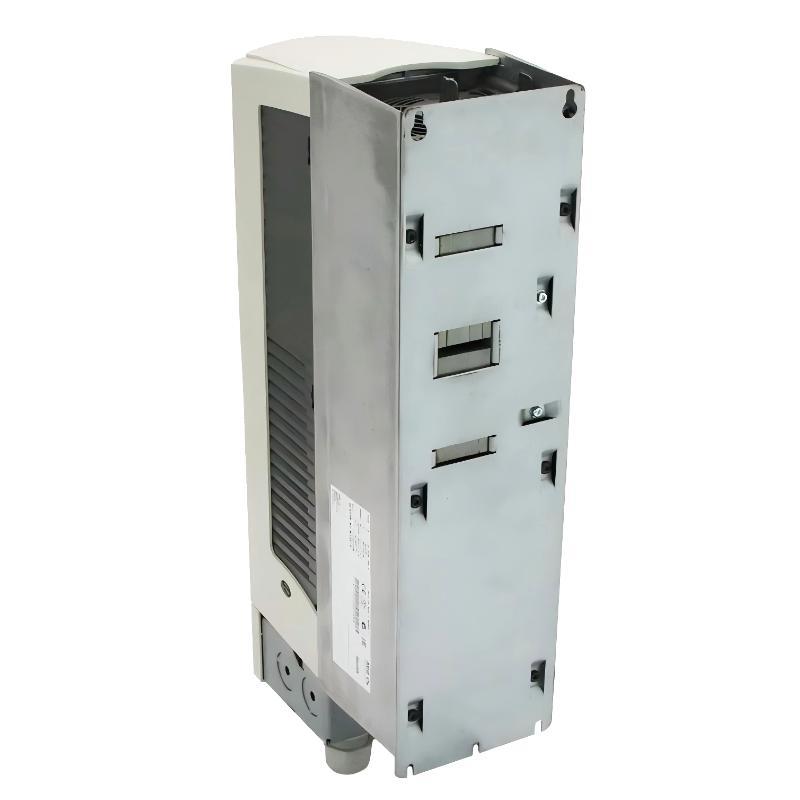

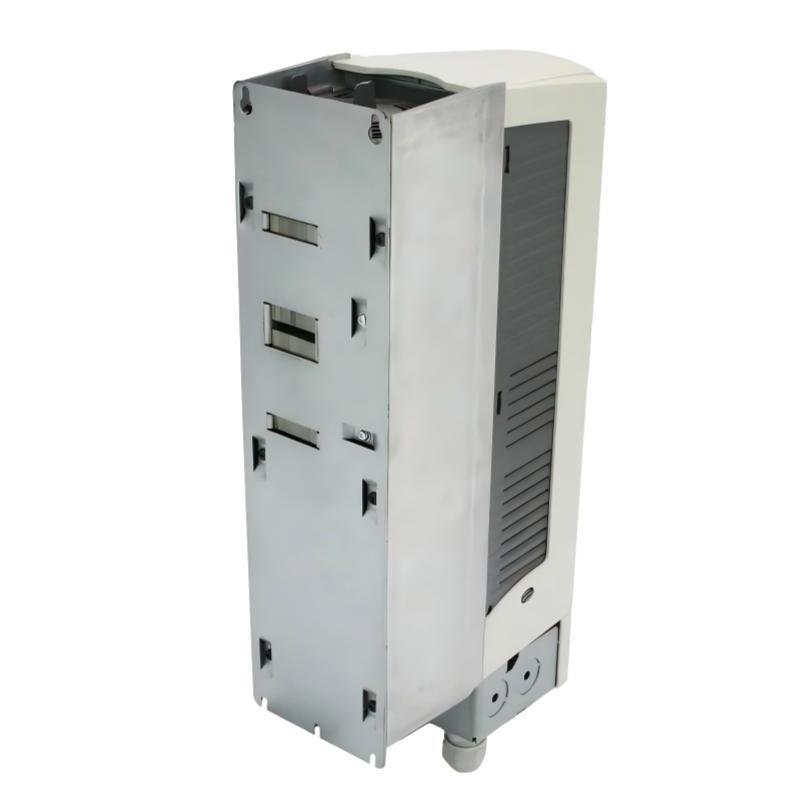

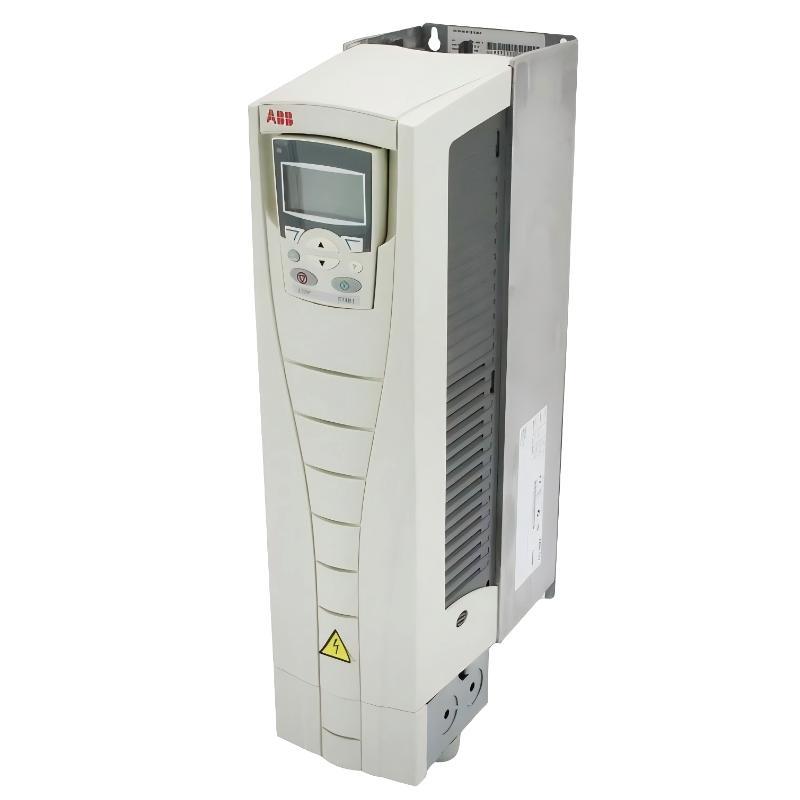

ABB ACS550-01-015A-4 3AUA0000002412-D Frequency Converter

Overview

The ABB ACS550-01-015A-4 is a compact and reliable frequency converter designed for industrial motor control applications. It provides precise speed and torque regulation for AC motors, enhancing energy efficiency and ensuring smooth process operation. Its flexible design allows easy integration into a variety of automation systems.

General Information

Part Number: 3AUA0000002412-D

Manufacturer: ABB

Brand / Country of Origin: ABB / Sweden

Series: ACS550

Type: Frequency Converter

Mounting: Wall or cabinet-mounted installation

Technology: Variable frequency drive (VFD) with built-in motor protection and control functions

Power Specifications

Supply Voltage: 380–480 V AC, 3-phase

Power Rating: 15 kW

Frequency Range: 0–500 Hz

Power Consumption: Depends on motor load

Protection: Overvoltage, undervoltage, short-circuit, and thermal protection

Indicators: LED indicators for power, operation, and fault conditions

Communication & Interface

Control Interface: Digital and analog I/O for process integration

Communication Protocols: Modbus and optional fieldbus extensions

Diagnostics: Built-in fault monitoring, event logging, and status reporting

Operator Interface: Integrated keypad with display for configuration and operation

Reset Function: Supports soft reset and automatic system restart

Environmental

Operating Temperature: −10 to +50 °C

Storage Temperature: −40 to +70 °C

Humidity: Up to 95% RH, non-condensing

Protection Level: IP21

Dimensions & Weight

Dimensions (L × W × H): 565 × 225 × 365 mm

Weight: 9 kg
