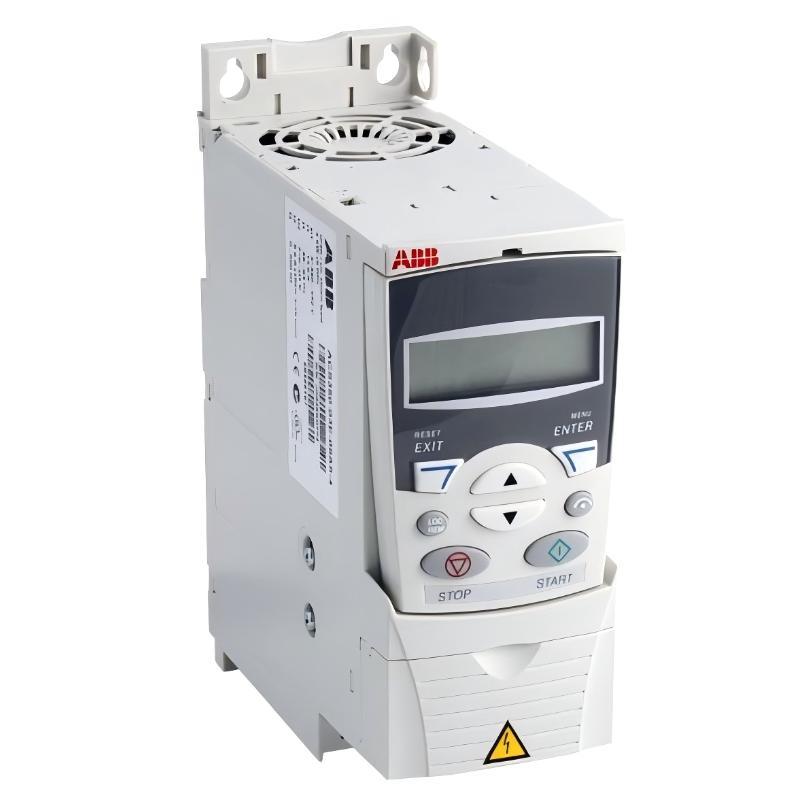

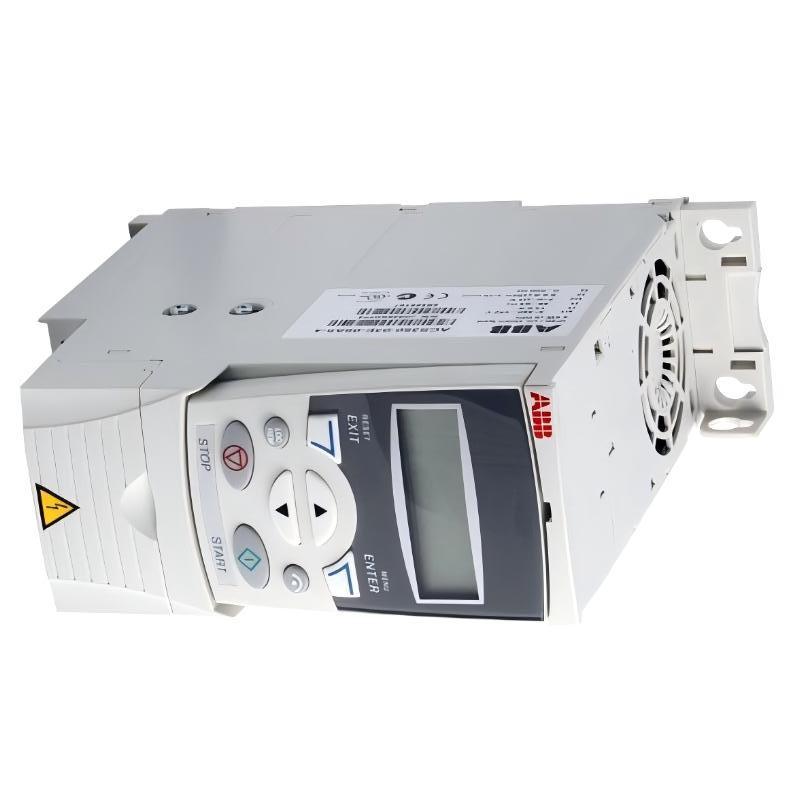

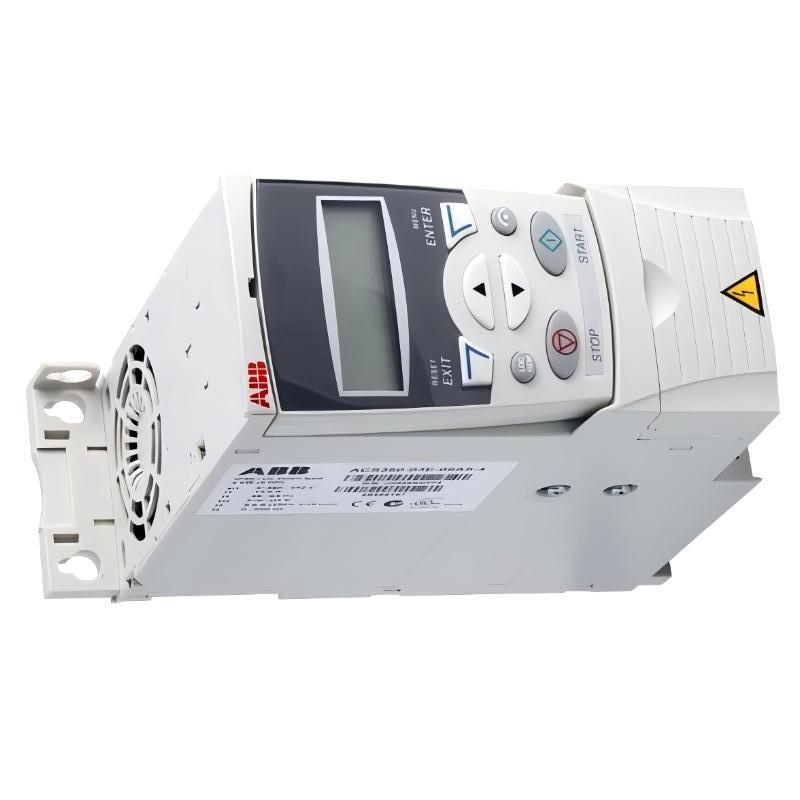

ABB ACS350-03E-03A3-4 68468116 Frequency Converter

Overview

The ABB ACS350-03E-03A3-4 is a compact frequency converter designed for industrial motor control applications. It provides precise speed and torque regulation for AC motors, improving process efficiency and ensuring stable and reliable operation. The drive is optimized for small to medium power applications and supports easy installation and commissioning.

General Information

Part Number: 68468116

Manufacturer: ABB

Brand / Country of Origin: ABB / Sweden

Series: ACS350

Type: Frequency Converter

Mounting: Wall or cabinet-mounted installation

Technology: Variable frequency drive (VFD) with built-in motor control and protection functions

Power Specifications

Supply Voltage: 380–480 V AC, 3-phase

Power Rating: 3 kW

Frequency Range: 0–500 Hz

Power Consumption: Depends on motor load conditions

Protection: Overvoltage, undervoltage, short-circuit, and thermal protection

Indicators: LED status indicators for power, operation, and fault status

Communication & Interface

Control Interface: Digital and analog I/O for process integration

Communication Protocols: Modbus and optional fieldbus support

Diagnostics: Built-in fault monitoring, event logging, and system status reporting

Operator Interface: Integrated keypad for configuration and local control

Reset Function: Supports soft reset and automatic recovery

Environmental

Operating Temperature: −10 to +50 °C

Storage Temperature: −40 to +70 °C

Humidity: Up to 95% RH, non-condensing

Protection Level: IP20

Dimensions & Weight

Dimensions (L × W × H): 344 × 132 × 217 mm

Weight: 1.7 kg
