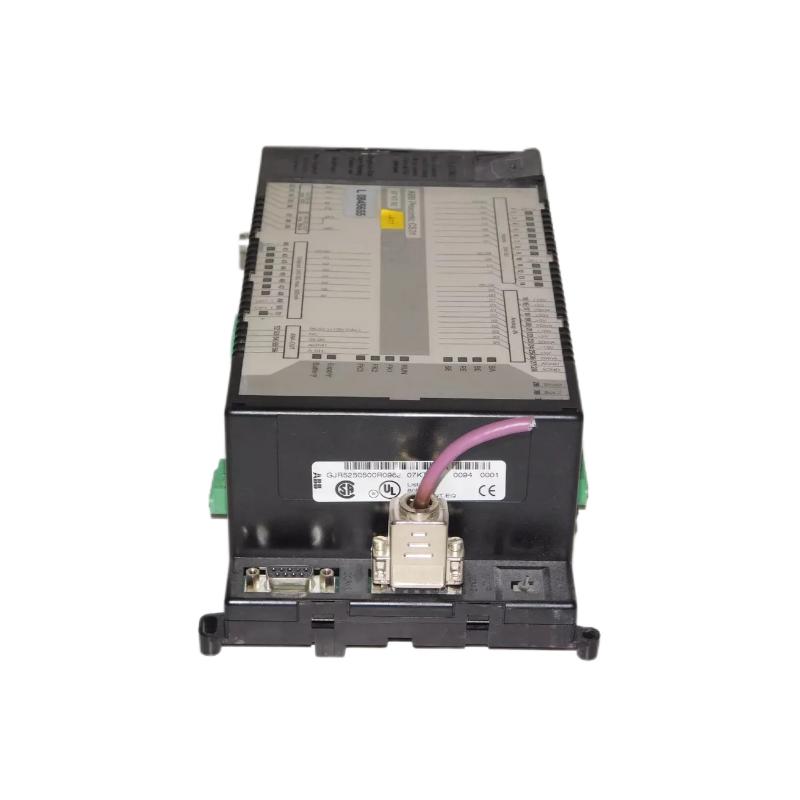

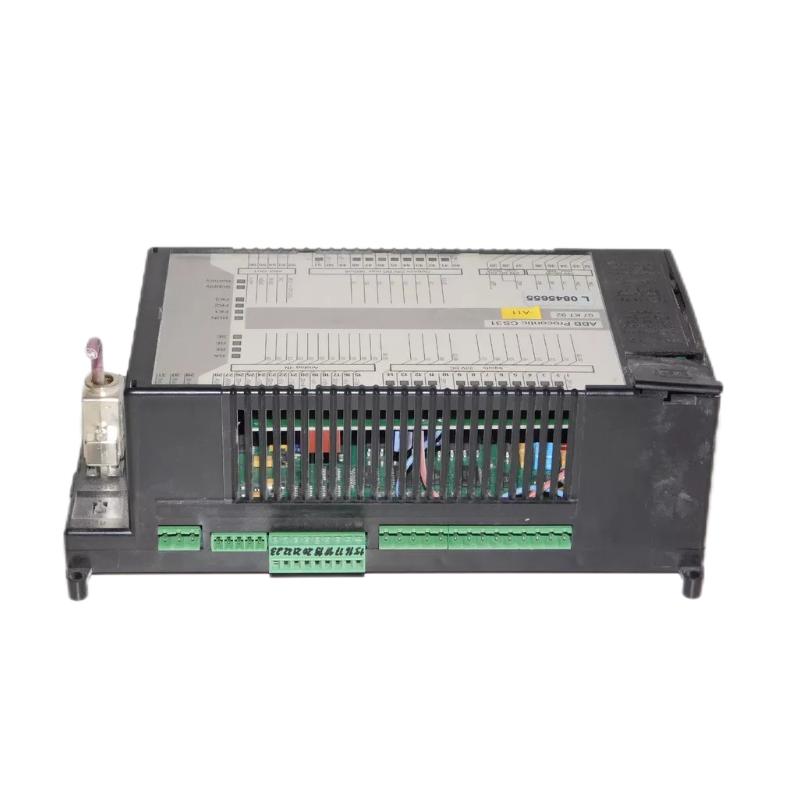

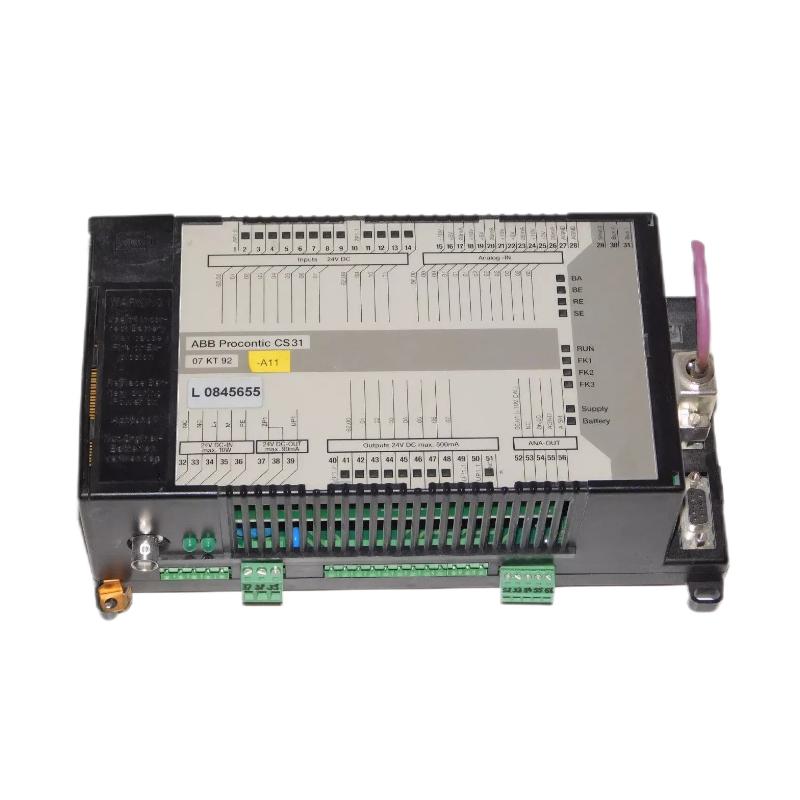

ABB 07KT92 GJR5250500R0902 | Central Processing Unit Module Original

Overview
The ABB 07KT92 GJR5250500R0902 is a central processing unit designed for the ABB Procontic CS31 system, providing core control logic, I/O management and communication functionality. Brand: ABB. Country of Origin: Sweden.

General Information
Part Number: GJR5250500R0902
Manufacturer: ABB
Brand: ABB
Country of Origin: Sweden
Type: Central Processing Unit (CPU)
Function: Executes control programs, manages I/O modules, handles bus communication

Power Specifications
Supply Voltage: 24 V DC nominal
Digital Inputs: 12 inputs (24 V DC)
Digital Outputs: 8 transistor outputs (24 V DC, 0.5 A)
Analog Inputs: 4 channels (12-bit resolution)
Analog Outputs: 2 channels (12-bit resolution)

Communication & Interface
Ports: 2 programmable RS-232 ports, RS-485 system bus interface
I/O Interfaces: Internal bus connections to remote I/O units
Diagnostics: Status LEDs for run/stop, error flags, battery failure indicator

Environmental
Operating Temperature: –20 °C to +70 °C
Storage Temperature: –40 °C to +85 °C
Humidity: Up to 95% RH, non-condensing
Installation: Suitable for industrial control cabinet or DIN-rail mounted environments

Dimensions & Weight
Dimensions: 240 × 140 × 85 mm
Weight: 1.6 kg

Brand-new original components in full stock, supported by live customer chat.
