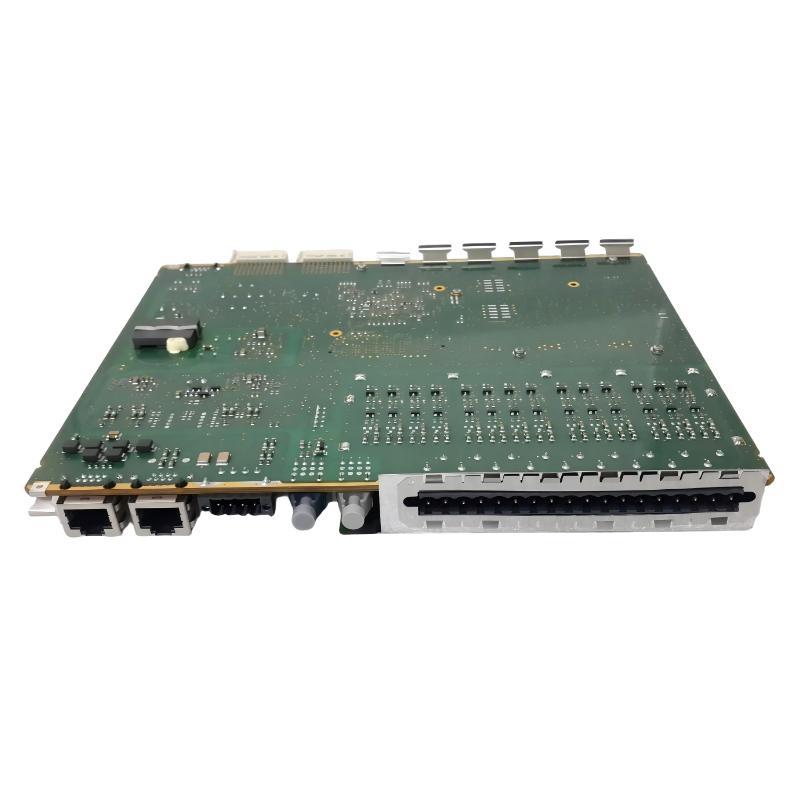

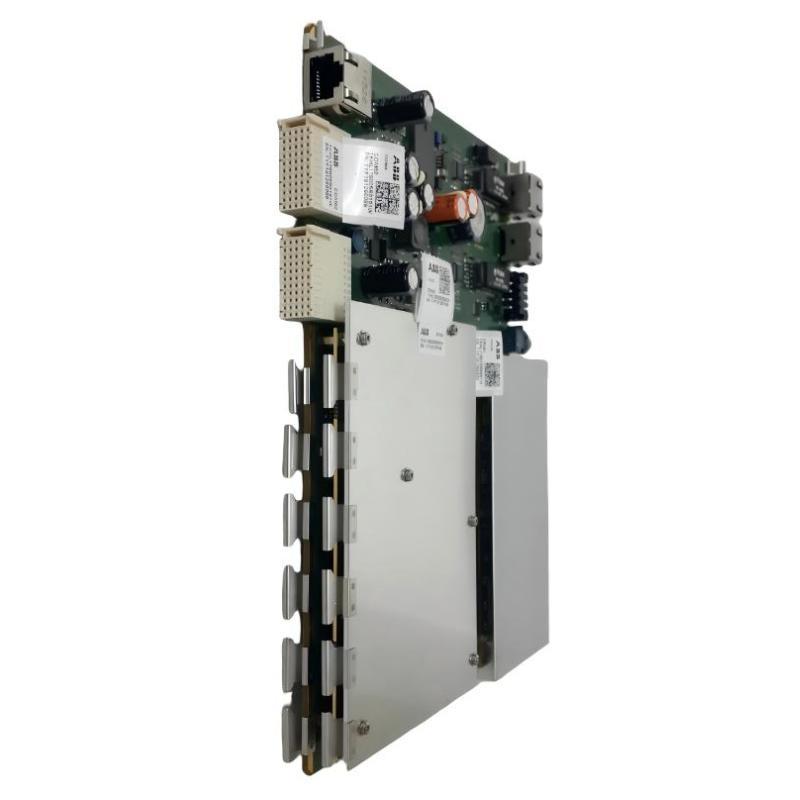

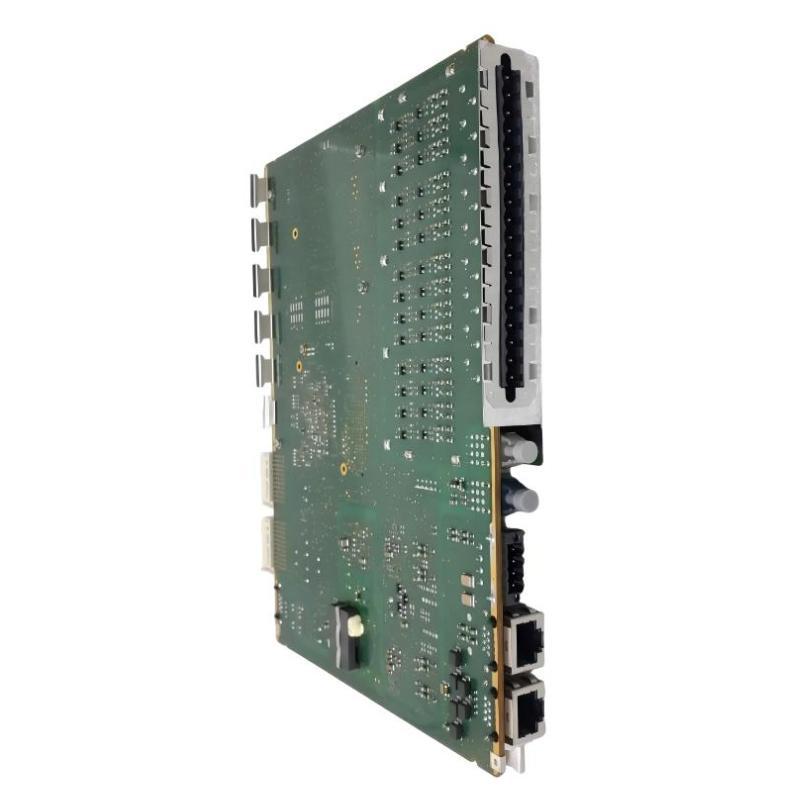

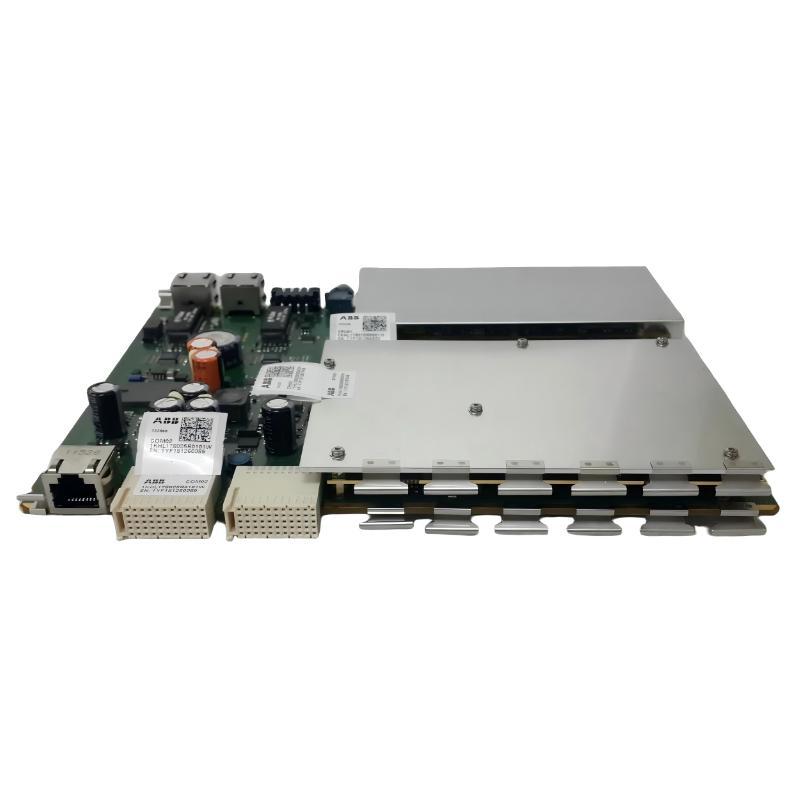

ABB PIO01 1KHL178089R0004D Control Board

Overview

The ABB PIO01 1KHL178089R0004D Control Board is an industrial input/output interface module designed for ABB automation and control systems. It provides reliable signal handling between field devices and the central controller, ensuring stable data exchange in demanding industrial environments. The board is widely used in control cabinets where dependable I/O processing and system integration are required.

General Information

Part Number: 1KHL178089R0004D

Manufacturer: ABB

Brand / Country of Origin: ABB / Switzerland

Type: Control Board / I/O Interface Module

Application: Industrial automation, process control, and I/O signal management

Installation: Mounted inside ABB control systems or industrial control cabinets

Technology: Industrial-grade I/O processing and system interface board

Power Specifications

Supply Voltage: Powered via system backplane or controller interface

Power Consumption: Low-power electronic module (<10 W typical)

Input Type: DC supply via control system backplane

Protection: Built-in electrical isolation and fault protection design

Status Indicators: LED indicators for power status, communication, and fault conditions

Communication & Interface

Interface Type: I/O control system interface

Communication Function: Data exchange between field devices and controller

Signal Support: Digital and analog I/O signal processing

Diagnostics: Real-time monitoring and fault detection support

System Integration: Compatible with ABB control system architecture

Environmental

Operating Temperature: -20°C to +60°C

Storage Temperature: -40°C to +85°C

Humidity: Up to 95% RH, non-condensing

Protection Rating: Designed for industrial cabinet installation (IP20 equivalent)

Durability: Suitable for continuous industrial operation

Dimensions & Weight

Dimensions (L × W × H): 250 × 35 × 130 mm

Weight: 0.6 kg
