Overview

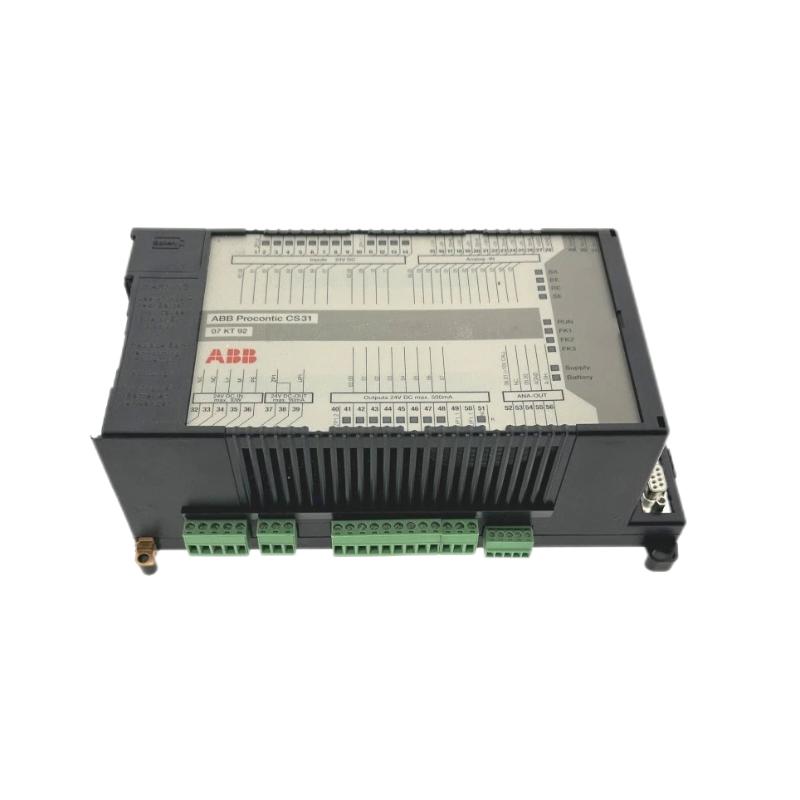

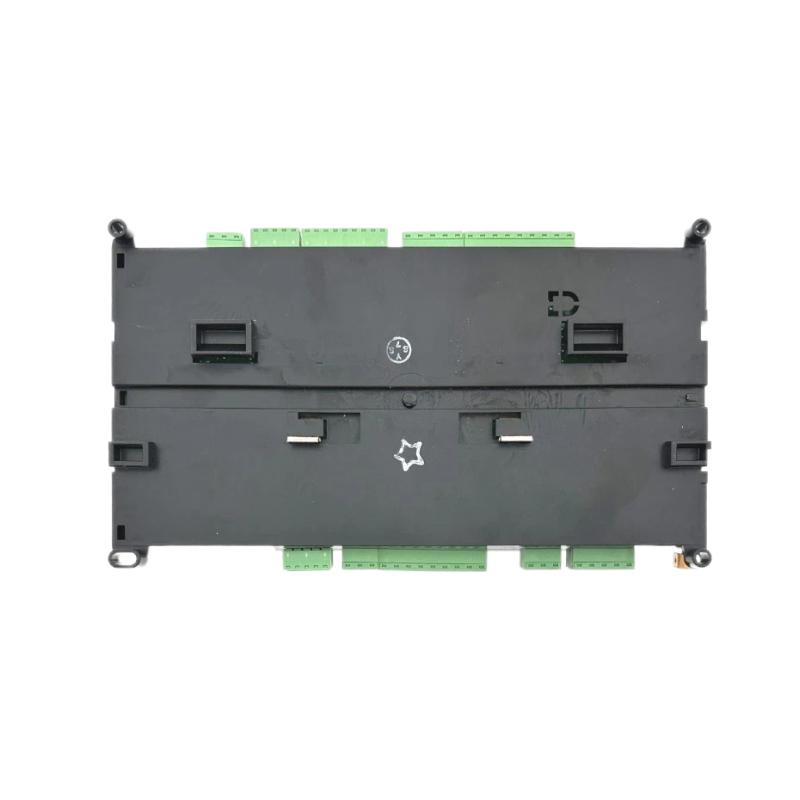

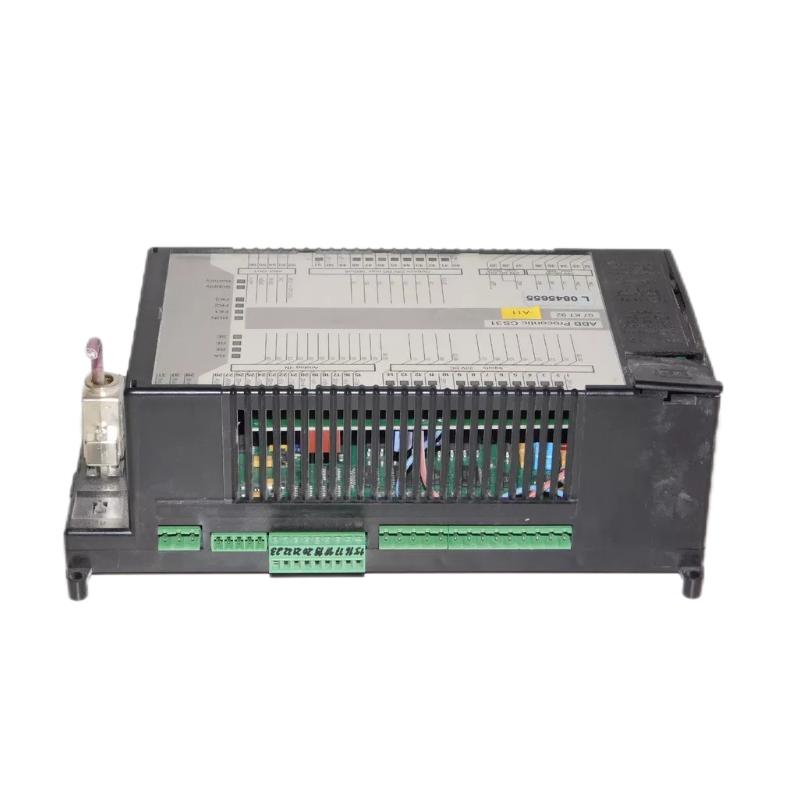

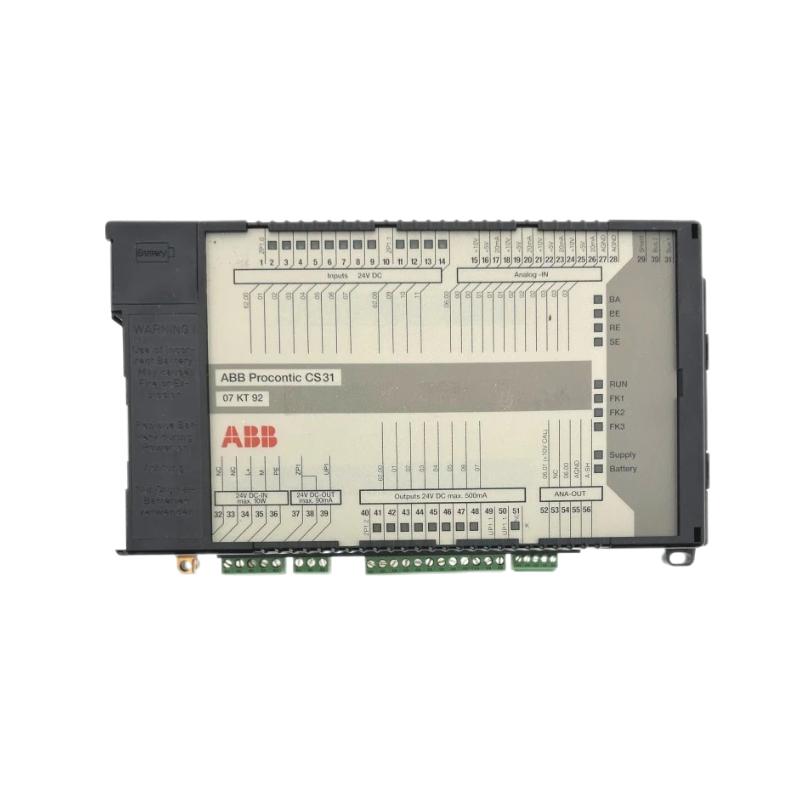

The ABB 07KT93 (GJR5251300R0971) is a central processing unit module for the ABB Procontic CS31 automation system. It delivers core logic processing, I/O management and system communication. Brand: ABB. Country of Origin: Sweden.
General Information
Part Number: GJR5251300R0971
Manufacturer: ABB
Brand: ABB
Country of Origin: Sweden
Type: Central Processing Unit (CPU)
Function: Executes system logic, controls I/O modules and interfaces with communication buses
Power Specifications
Supply Voltage: 24 V DC nominal
Digital Inputs: 24 channels (24 V DC)
Digital Outputs: 16 channels (24 V DC, 0.5 A each)
Memory: 14 kB Flash EPROM for program storage
Communication & Interface
Ports: RS-232 (2 ports), RS-485 system bus interface
I/O Bus: Connects to remote I/O units via CS31 system bus
Diagnostics: Real-time clock, high-speed counter up to 10 kHz, status LEDs for RUN/STOP and ERROR states
Environmental
Operating Temperature: –20 °C to +70 °C
Storage Temperature: –40 °C to +85 °C
Humidity: Up to 95% RH, non-condensing
Dimensions & Weight
Dimensions: 152 × 102 × 254 mm
Weight: 1 kg
