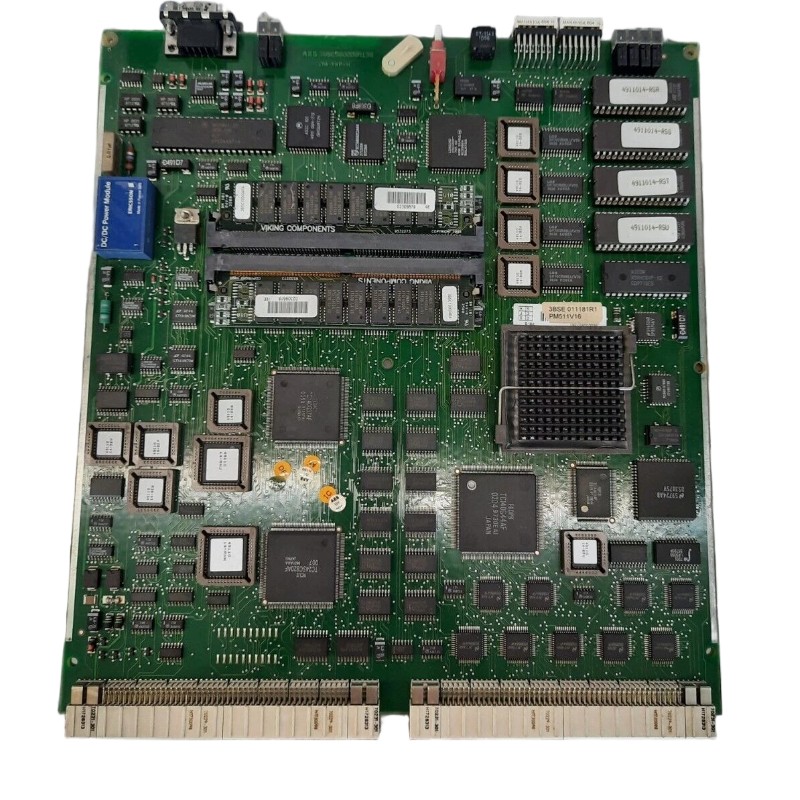

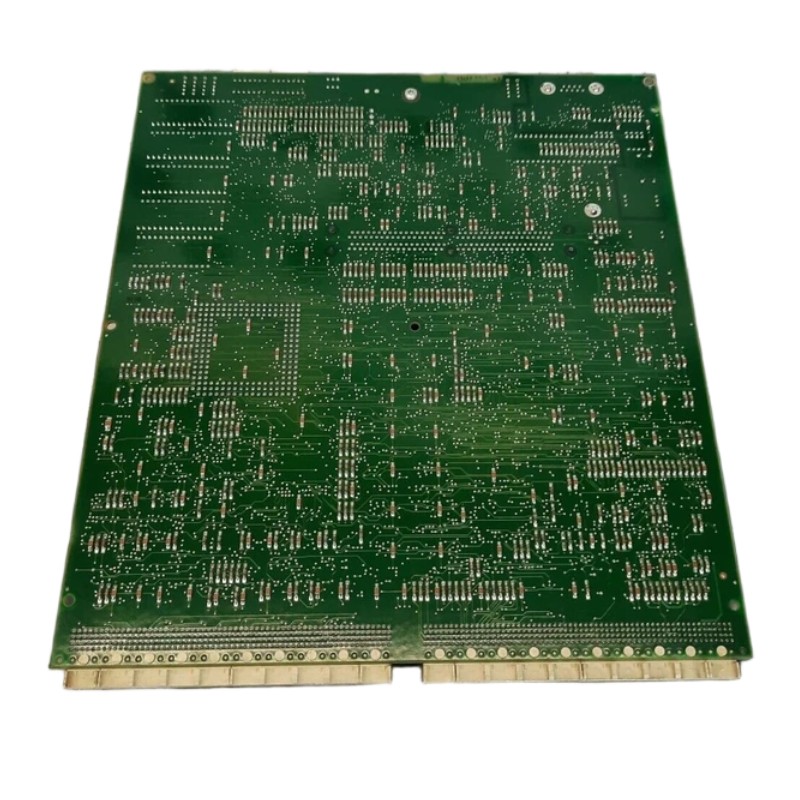

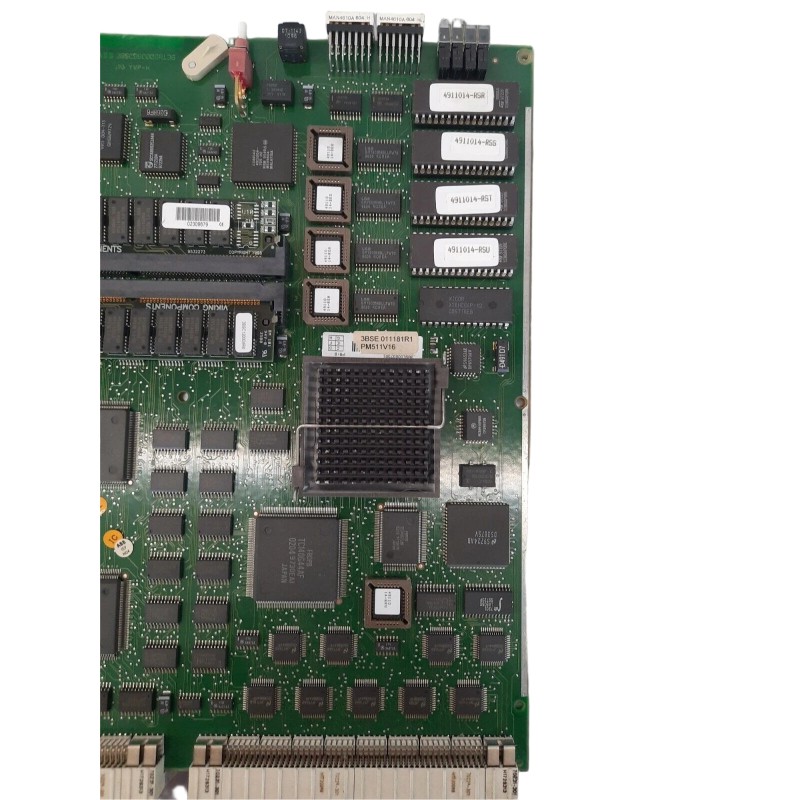

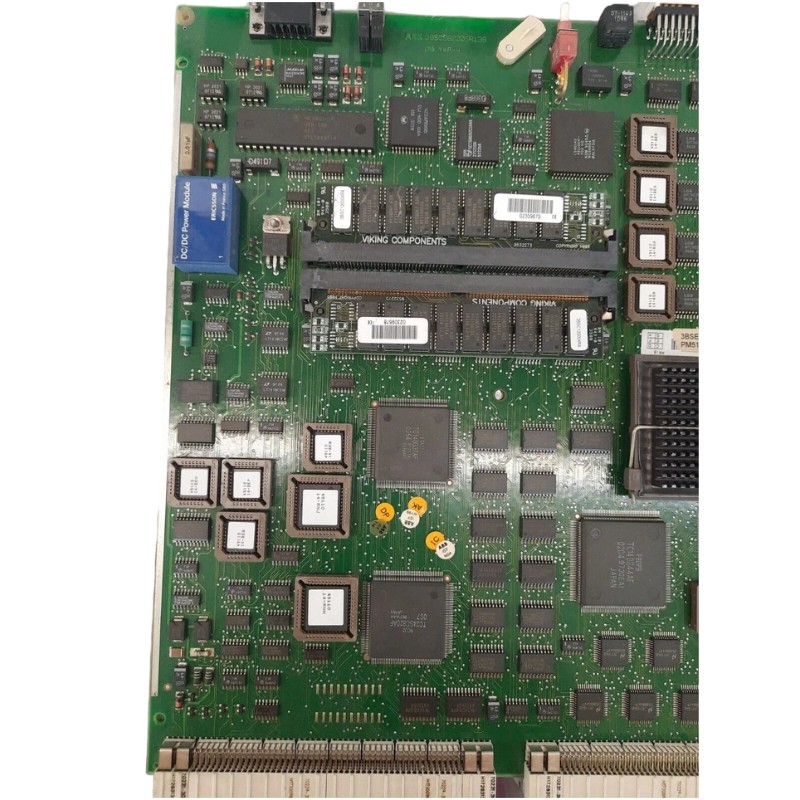

ABB PM510V08 3BSE016239R1 CPU Processor Module

Overview

The ABB PM510V08 is a CPU processor module designed for industrial automation and control systems. It provides stable processing performance for executing control logic, managing communication tasks, and coordinating system operations in PLC-based environments. The module is suitable for demanding industrial applications requiring reliable and continuous control performance.

General Information

Part Number: 3BSE016239R1

Manufacturer: ABB

Brand / Country of Origin: ABB / Switzerland

Series: PM500

Type: CPU Processor Module

Application: Industrial automation and process control

Mounting: Rack or control system chassis installation

Technology: Embedded industrial processor for real-time control and communication

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 10 W (system dependent)

Backplane Power: Supplied via control system rack

Protection: Overvoltage and internal fault protection

Status Indicators: LED indicators for CPU status, run, fault, and communication

Communication & Interface

System Interface: Control system backplane

Communication Ports: Industrial communication interfaces depending on system configuration

Diagnostics: CPU status monitoring, system diagnostics, and fault reporting

Configuration: Software-based configuration via ABB automation tools

Operator Interface: LED status indicators for operational monitoring

Environmental

Operating Temperature: 0°C to +60°C

Storage Temperature: -40°C to +70°C

Humidity: Up to 95% RH, non-condensing

Vibration Resistance: Industrial-grade control environment suitability

Protection Rating: Industrial cabinet installation (IP20 equivalent)

Dimensions & Weight

Dimensions (L × W × H): 477 × 22.5 × 261 mm

Weight: 0.87 kg
