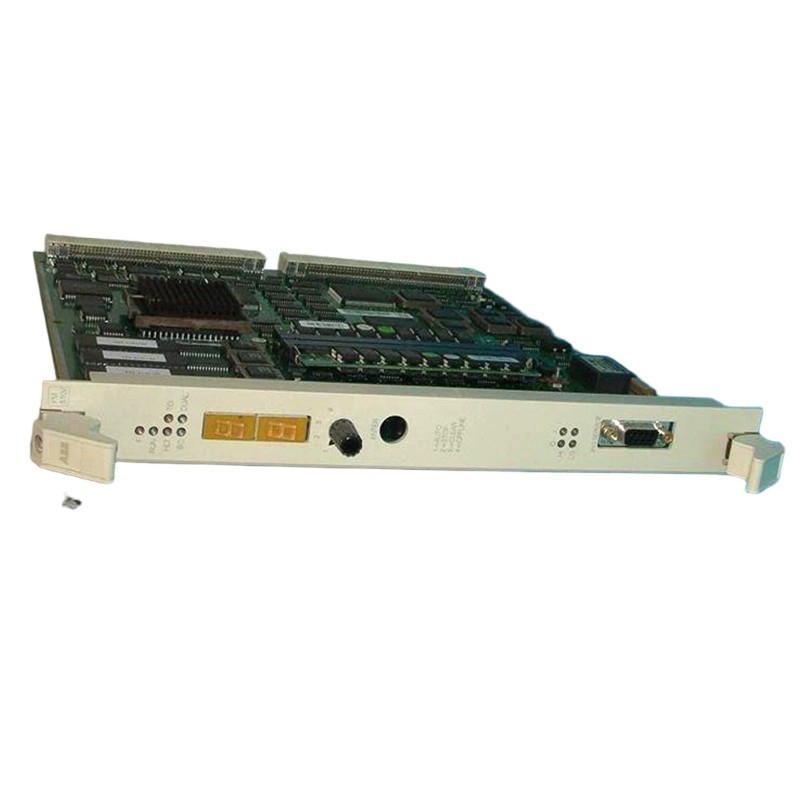

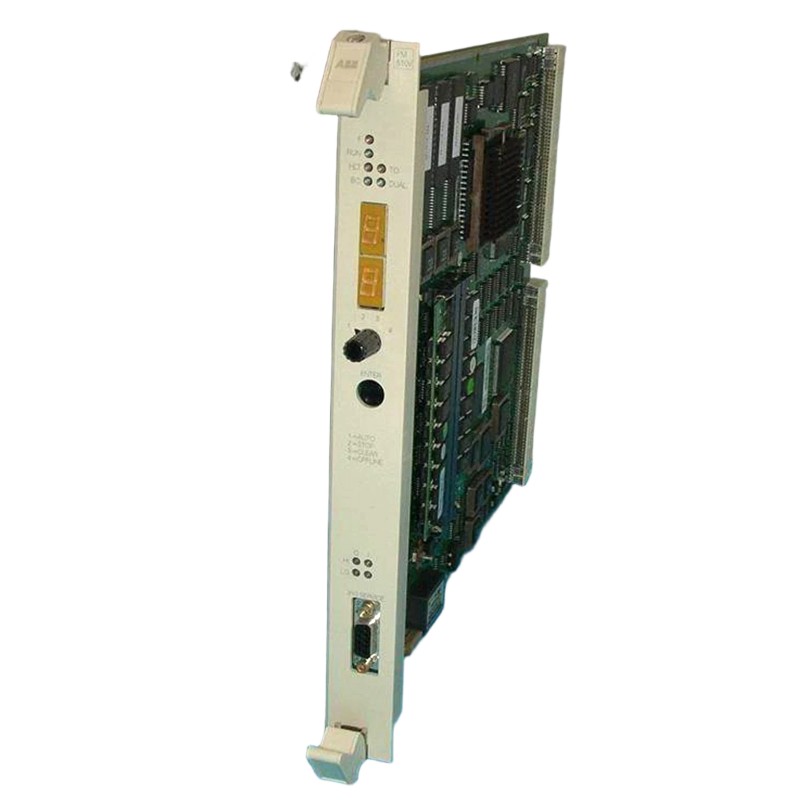

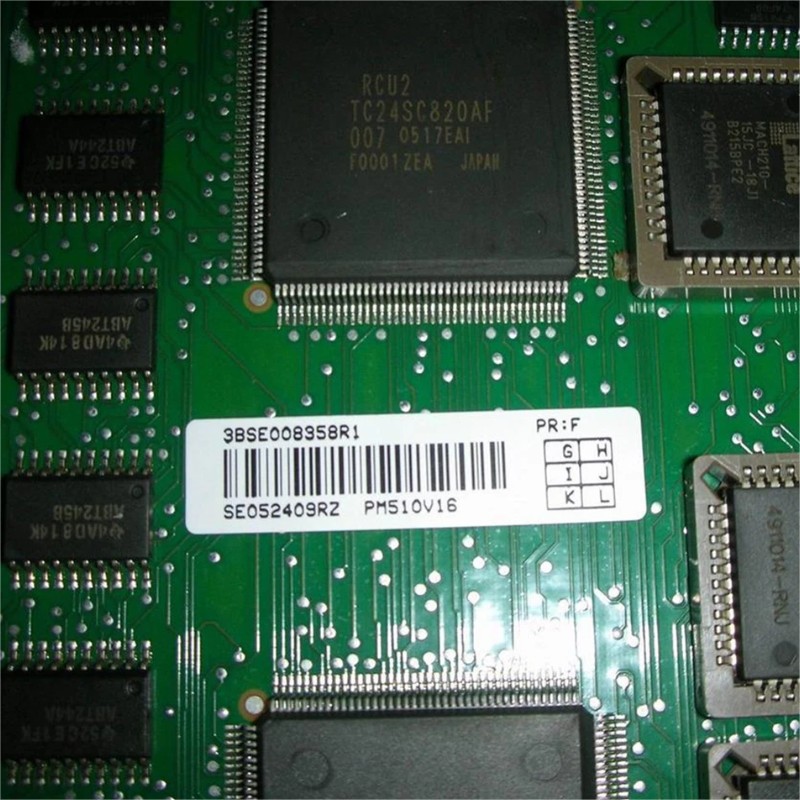

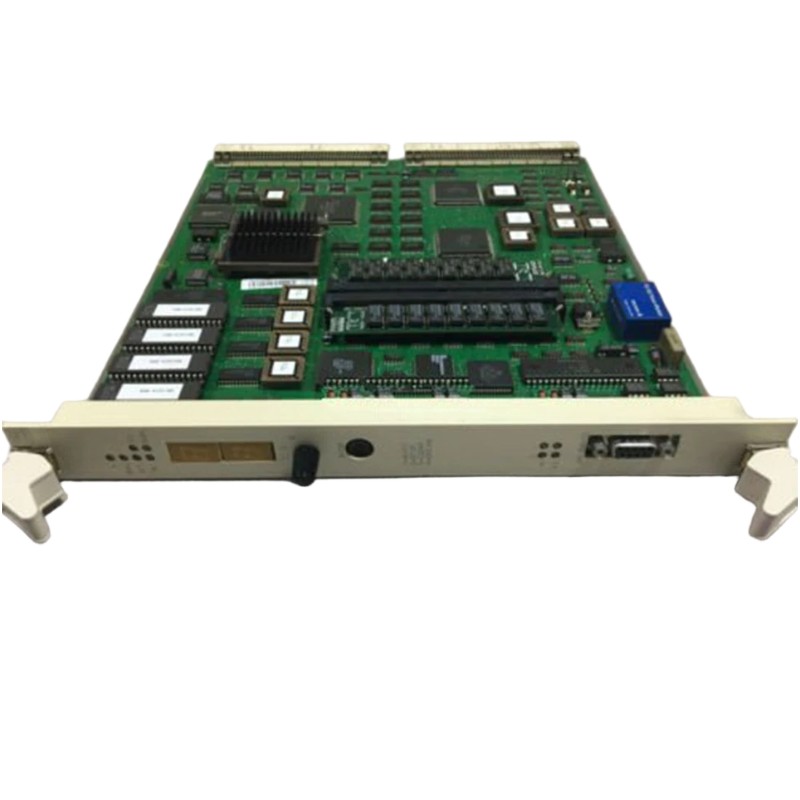

ABB PM510V16 3BSE008358R1 CPU Processor Module

Overview

The ABB PM510V16 is a CPU processor module designed for industrial automation and control applications. It delivers stable processing performance for executing control logic, managing system communication, and coordinating automation tasks in PLC-based control environments. The module is suitable for continuous operation in demanding industrial systems requiring reliable control performance.

General Information

Part Number: 3BSE008358R1

Manufacturer: ABB

Brand / Country of Origin: ABB / Switzerland

Series: PM500

Type: CPU Processor Module

Application: Industrial automation and process control

Mounting: Rack or control system chassis installation

Technology: Embedded industrial processor for real-time control and system communication

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 10 W (system dependent)

Backplane Power: Supplied via control system rack

Protection: Overvoltage protection and internal fault monitoring

Status Indicators: LED indicators for CPU status, run, fault, and communication

Communication & Interface

System Interface: Control system backplane

Communication Ports: Industrial communication interfaces depending on configuration

Diagnostics: CPU status monitoring, system diagnostics, and fault reporting

Configuration: Software-based configuration via ABB automation tools

Operator Interface: LED status indicators for operational feedback

Environmental

Operating Temperature: 0°C to +60°C

Storage Temperature: -40°C to +70°C

Humidity: Up to 95% RH, non-condensing

Vibration Resistance: Industrial control environment rated

Protection Rating: Industrial cabinet installation (IP20 equivalent)

Dimensions & Weight

Dimensions (L × W × H): 477 × 22.5 × 261 mm

Weight: 0.875 kg

Built for Control — Ready to Ship!
