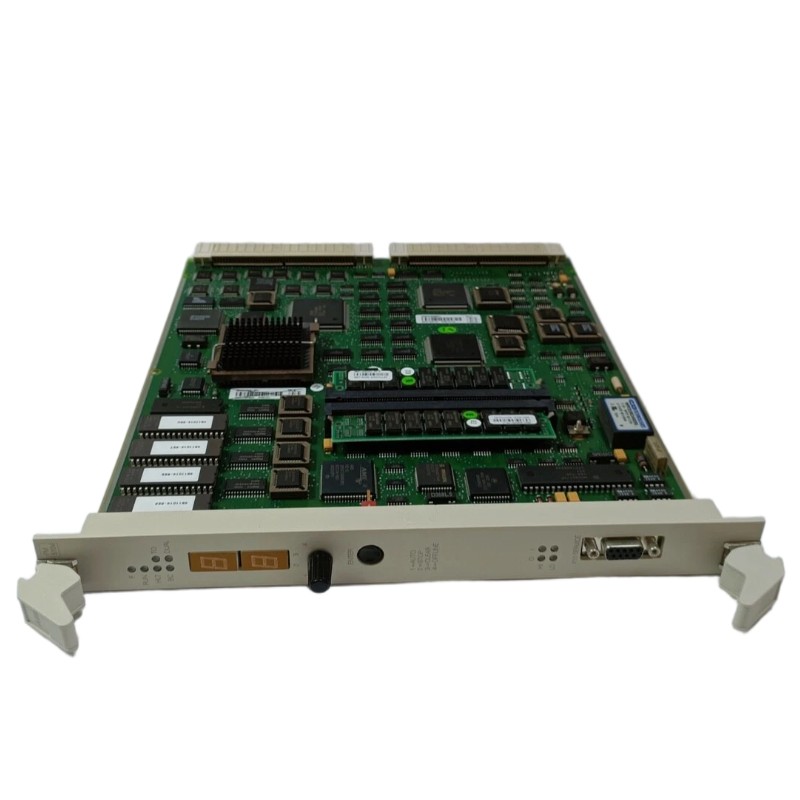

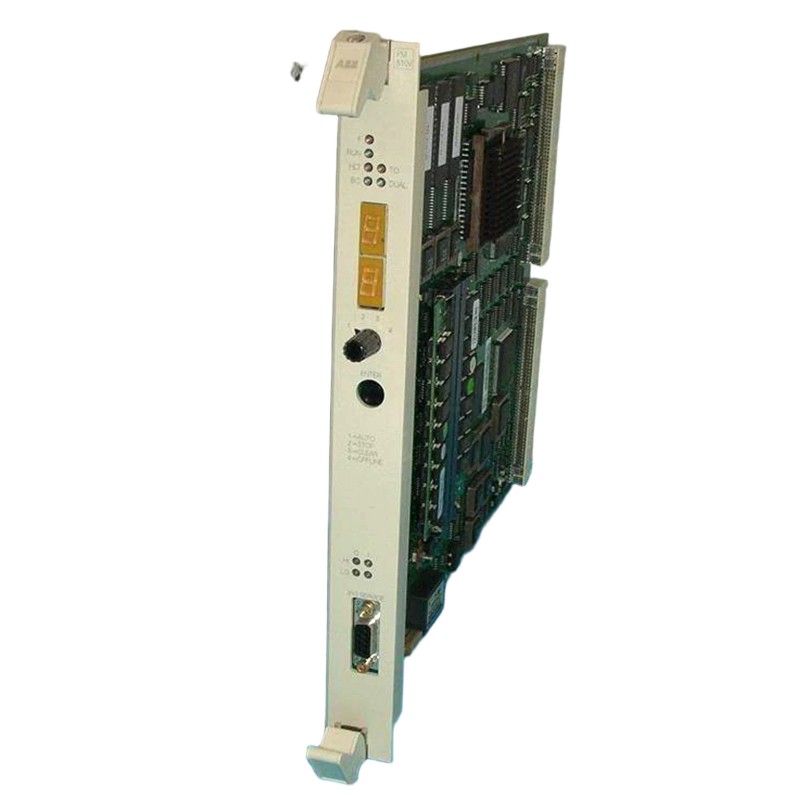

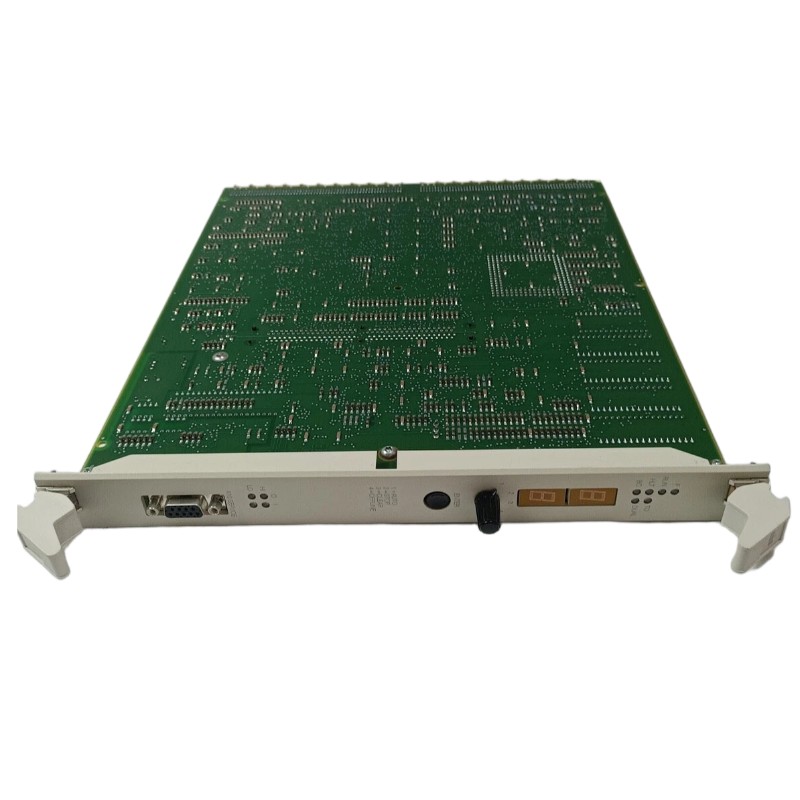

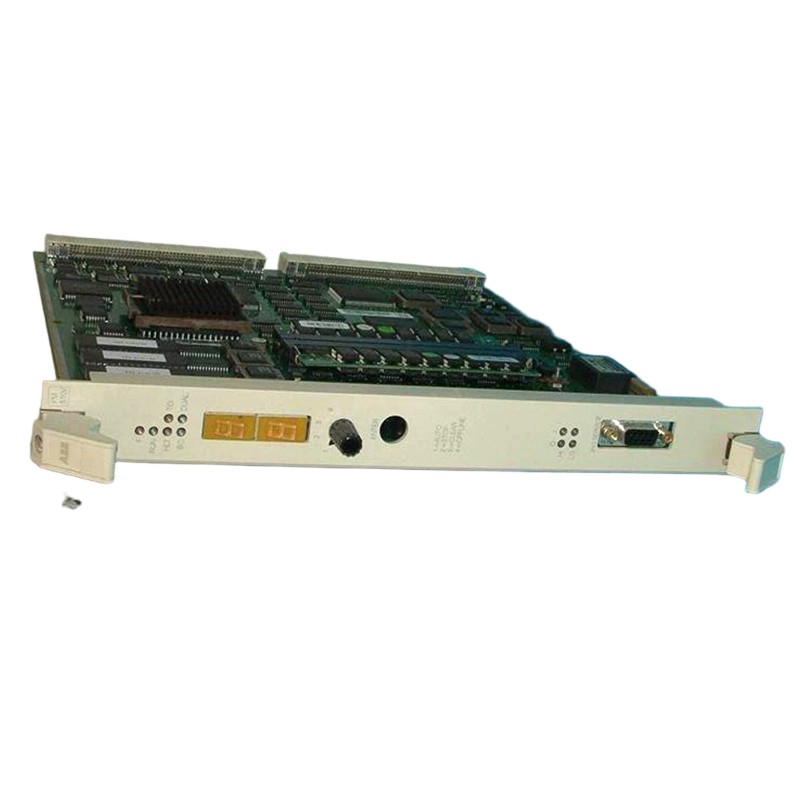

ABB PM510V16 3BSE016240R1 CPU Processor Module

Overview

The ABB PM510V16 is a CPU processor module designed for industrial automation and control systems. It provides stable and efficient processing performance for executing control logic, managing communication tasks, and coordinating overall system operations in PLC-based environments. The module is suitable for continuous operation in demanding industrial applications requiring reliable performance.

General Information

Part Number: 3BSE016240R1

Manufacturer: ABB

Brand / Country of Origin: ABB / Switzerland

Series: PM500

Type: CPU Processor Module

Application: Industrial automation and process control

Mounting: Rack or control system chassis installation

Technology: Embedded industrial processor for real-time control and communication

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 10 W (system dependent)

Backplane Power: Supplied via system rack

Protection: Overvoltage protection and internal fault monitoring

Status Indicators: LED indicators for CPU status, run, fault, and communication

Communication & Interface

System Interface: Control system backplane

Communication Ports: Industrial communication interfaces depending on system configuration

Diagnostics: CPU status monitoring, system diagnostics, and fault reporting

Configuration: Software-based configuration via ABB automation tools

Operator Interface: LED status indicators for operational feedback

Environmental

Operating Temperature: 0°C to +60°C

Storage Temperature: -40°C to +70°C

Humidity: Up to 95% RH, non-condensing

Vibration Resistance: Industrial-grade control environment suitable

Protection Rating: Industrial cabinet installation (IP20 equivalent)

Dimensions & Weight

Dimensions (L × W × H): 477 × 22.5 × 261 mm

Weight: 0.875 kg
