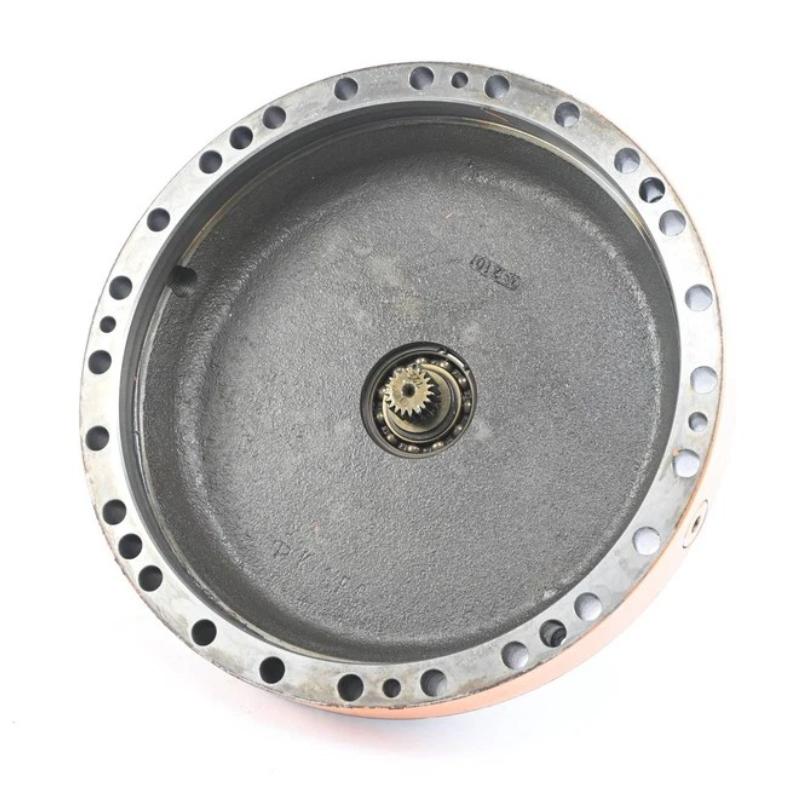

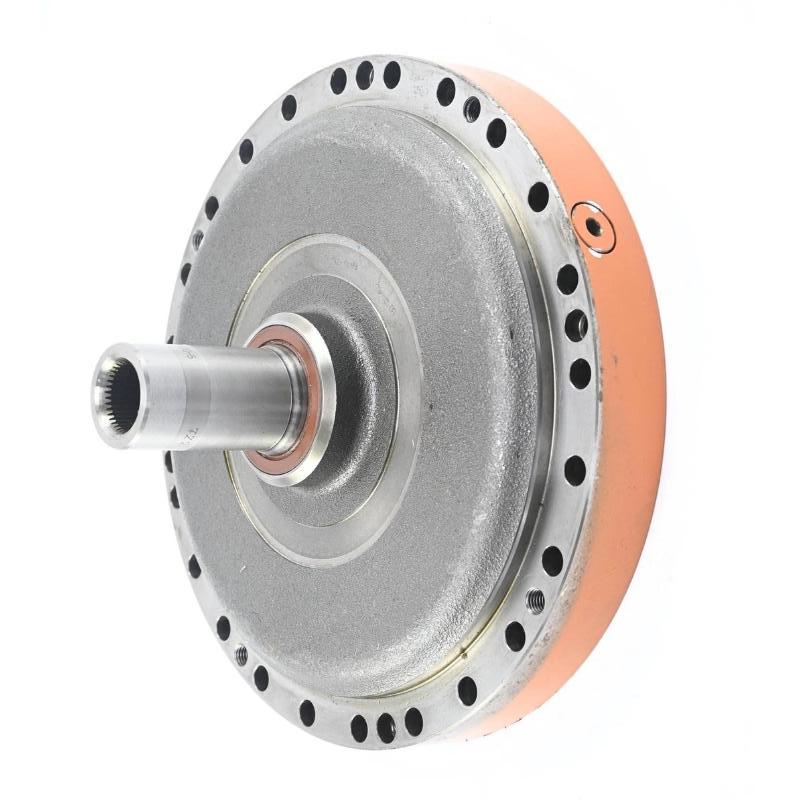

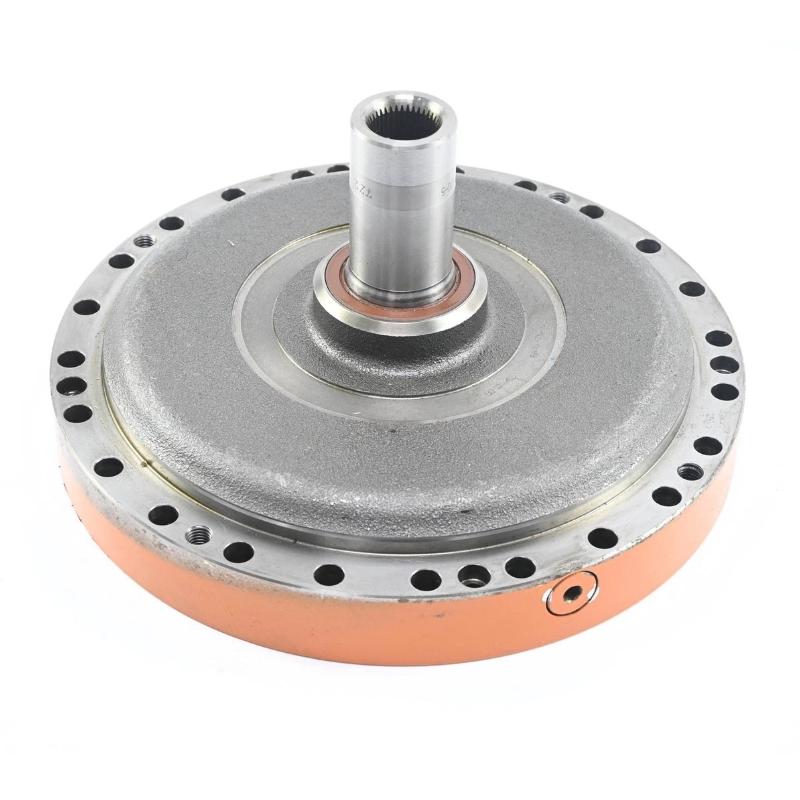

ABB(KUKA) 00-104-986 Transmission

Overview
The ABB 00-104-986 Transmission is an industrial mechanical drive component used in robotic and automation systems. It is typically integrated into machine architectures associated with KUKA platforms, where it supports torque transfer, motion transmission, and mechanical power distribution within automated production systems.

General Information

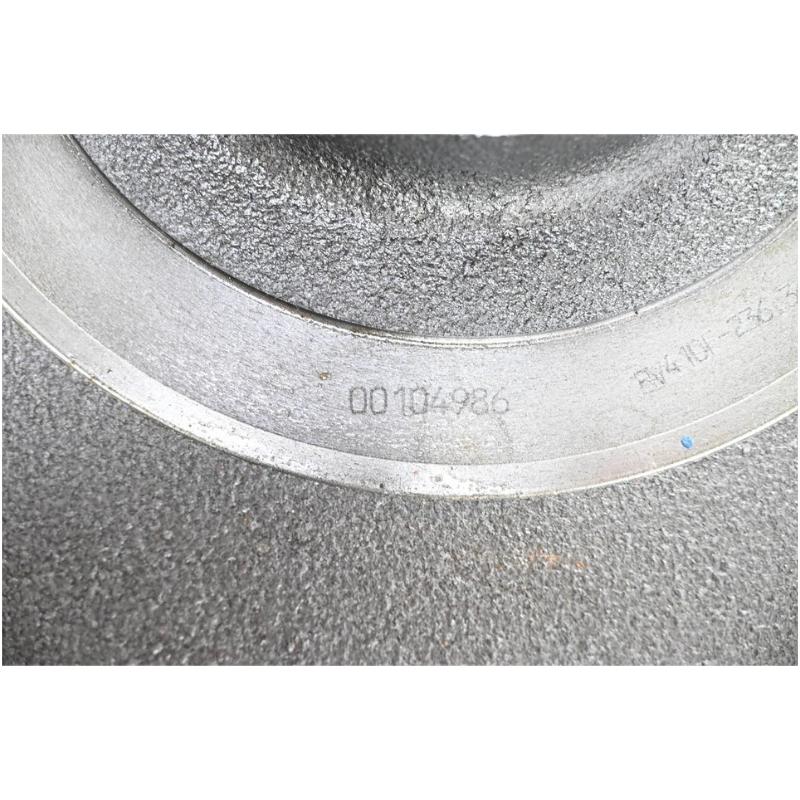

Part Number: 00-104-986

Manufacturer: ABB

Associated System: KUKA industrial robot systems

Product Type: Transmission / Mechanical Drive Unit

Country of Origin: Switzerland / Germany (system integration dependent)

Function: Power transmission and mechanical torque conversion

Application: Industrial robotics, automation machinery, and motion drive systems

Mounting Type: Mechanical assembly within robot drive or gearbox structure

Power Specifications
Operating Drive Type: Mechanical torque transmission (motor-driven)

Power Handling: High-torque industrial application capability

Lubrication System: Industrial gearbox lubrication required

Protection: Heavy-duty sealed mechanical housing

Efficiency: Optimized for stable torque transfer in continuous operation

Communication & Interface
Control Interface: Mechanical coupling with motor and actuator systems

System Integration: Connects servo motors to robotic mechanical structures

Signal Handling: None (mechanical component, no electronic signaling)

Diagnostics: Indirect monitoring via robot controller sensors

Feedback Integration: Supported through external encoder/motor feedback systems

Environmental
Operating Temperature: 0 to 60 °C (industrial operating environment)

Storage Temperature: −25 to 80 °C

Humidity: 5% to 95% non-condensing

Vibration Resistance: Heavy-duty industrial robotics rated

Protection Rating: Sealed mechanical housing for industrial environments

Pollution Degree: 2 (industrial indoor use)

Dimensions & Weight
Dimensions (L × W × H): 320 × 260 × 50 mm

Weight: 27.22 kg

Heavy-duty performance — built for reliable power transmission in demanding automation systems!
