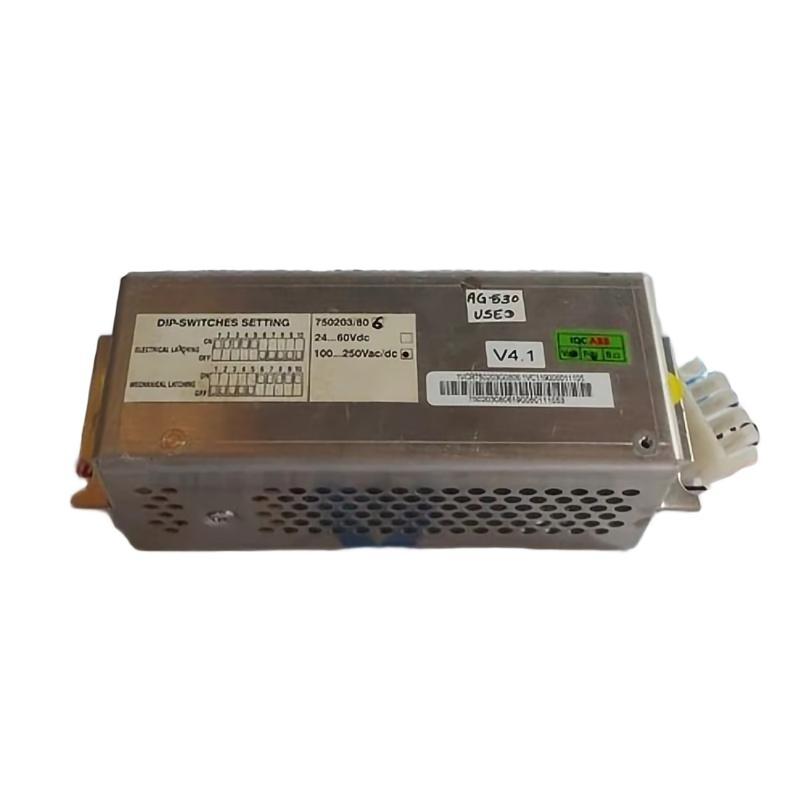

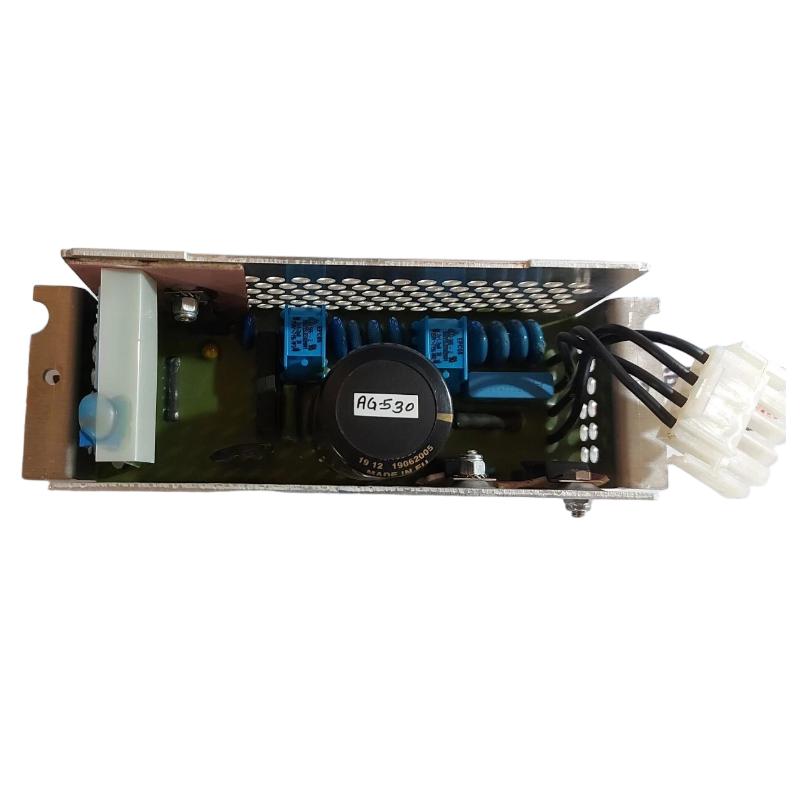

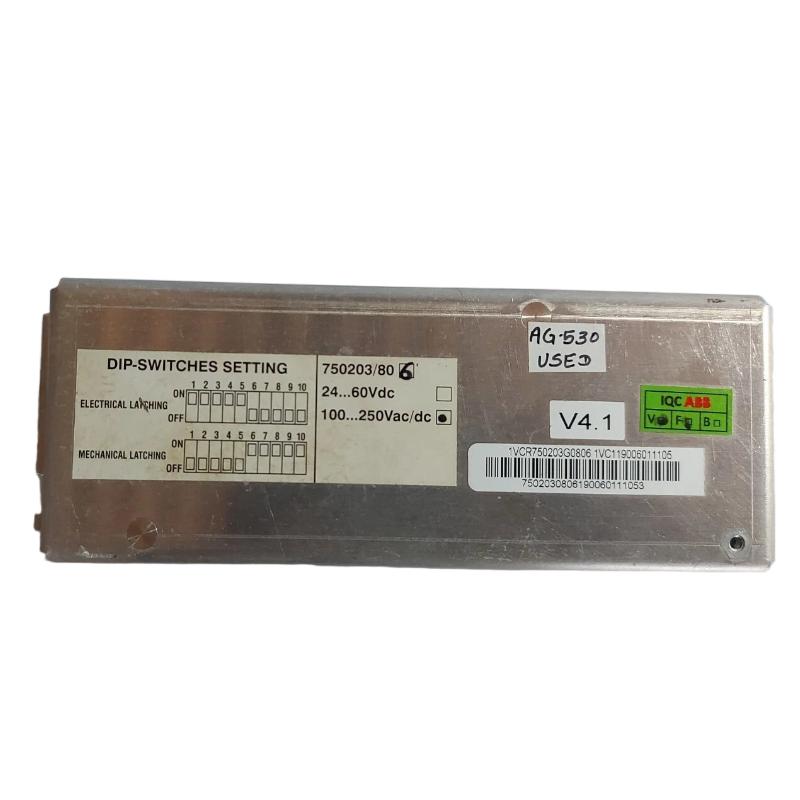

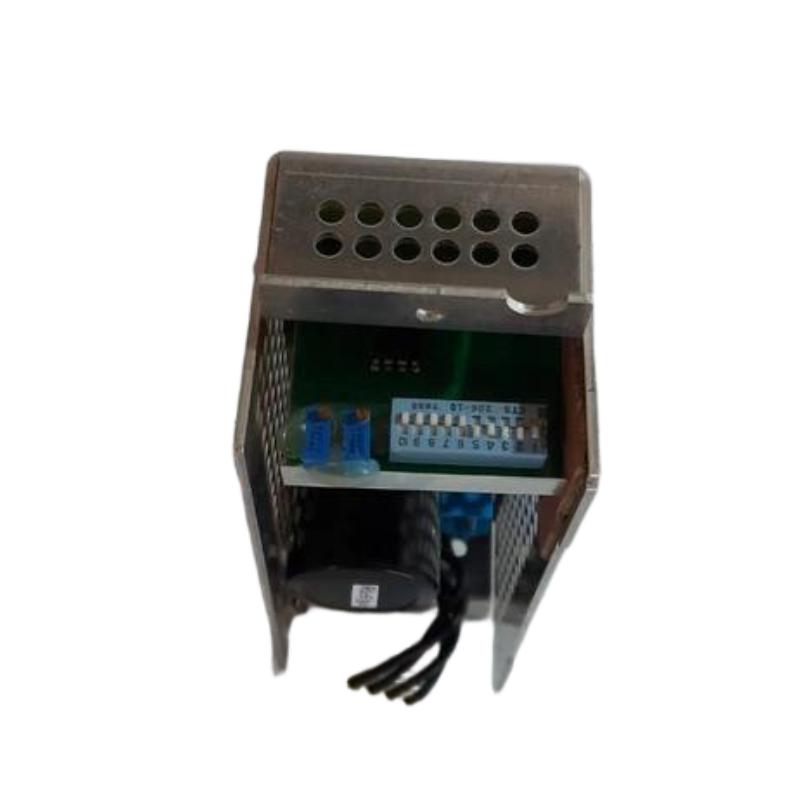

ABB 750203/806 1VCR750203G0806 Power Supply

Overview

The ABB 750203/806 1VCR750203G0806 is an industrial-grade power supply designed to deliver stable and reliable DC power for automation and control systems. It is engineered for use in demanding industrial environments where consistent voltage regulation and operational reliability are critical for system performance.

General Information

Part Number: 750203/806 (1VCR750203G0806)

Manufacturer: ABB

Brand: ABB

Country of Origin: Switzerland

Series: Industrial Power Supply Modules

Type: Industrial AC/DC Power Supply

Mounting: DIN rail or control cabinet installation

Function: Converts AC input into regulated DC output for automation systems

Power Specifications

Input Voltage: 100–240 V AC (wide range industrial input)

Output Voltage: 24 V DC regulated output

Output Power: Industrial-grade power capacity (model-dependent)

Efficiency: High-efficiency switching power design

Protection: Overload, short-circuit, overvoltage, and thermal protection

Communication & Interface

Interface Type: Hardwired electrical power terminals

Monitoring: Status LED indicators for power and fault conditions

Control Features: Stable regulated output with internal feedback control

Diagnostics: Basic visual status indication (no digital communication interface)

Environmental

Operating Temperature: −25 to +70 °C

Storage Temperature: −40 to +85 °C

Humidity: 5% to 95% RH, non-condensing

Protection Rating: Industrial enclosure (IP20 typical)

Cooling Method: Natural convection air cooling

Dimensions & Weight

Dimensions (H × W × D): 125 × 50 × 100 mm

Weight: 0.45 kg

Reliable power delivery for uninterrupted industrial automation performance.
