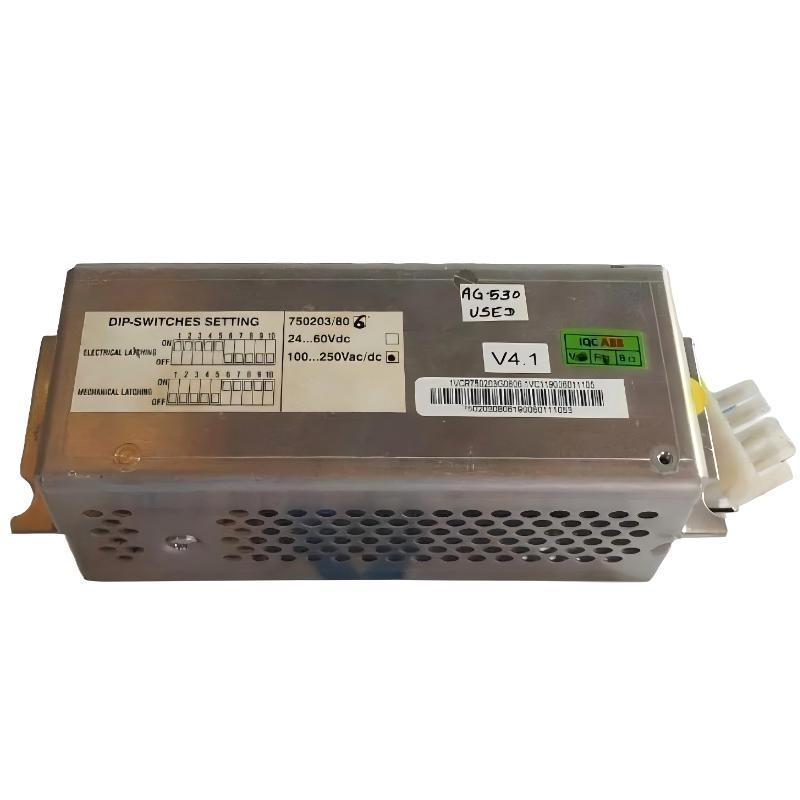

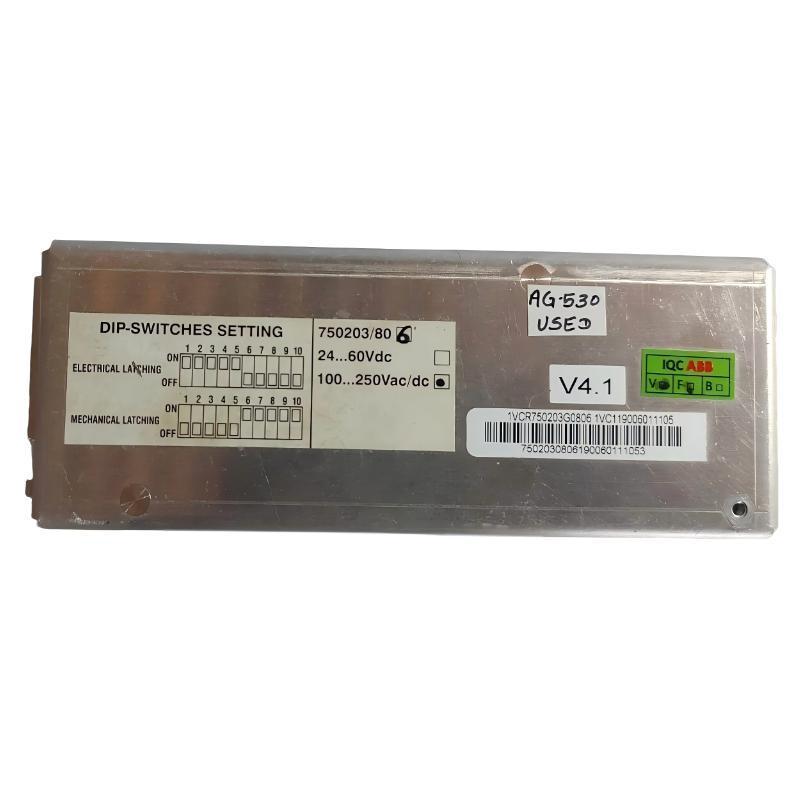

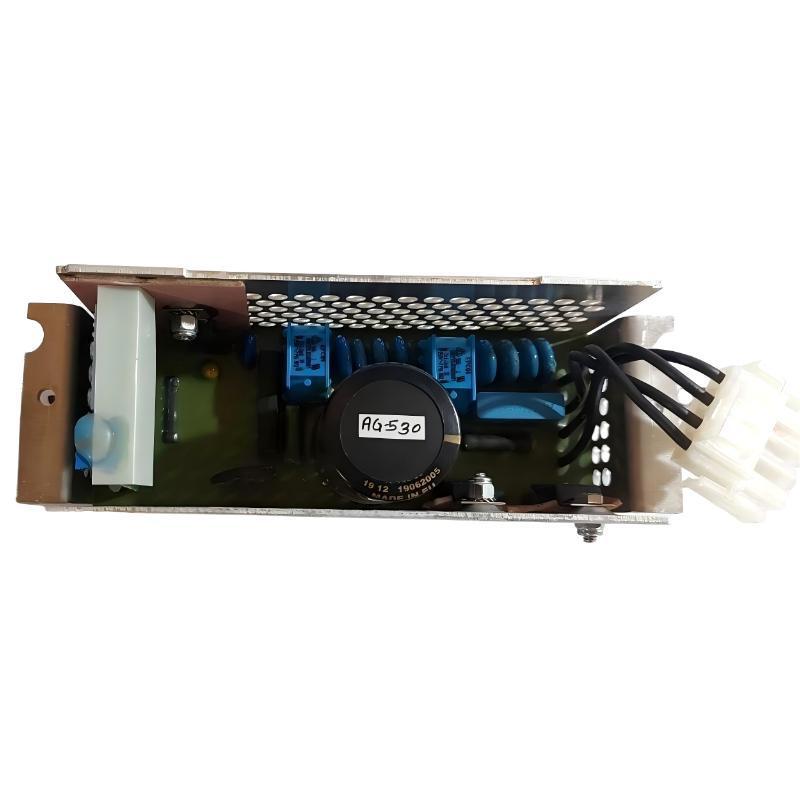

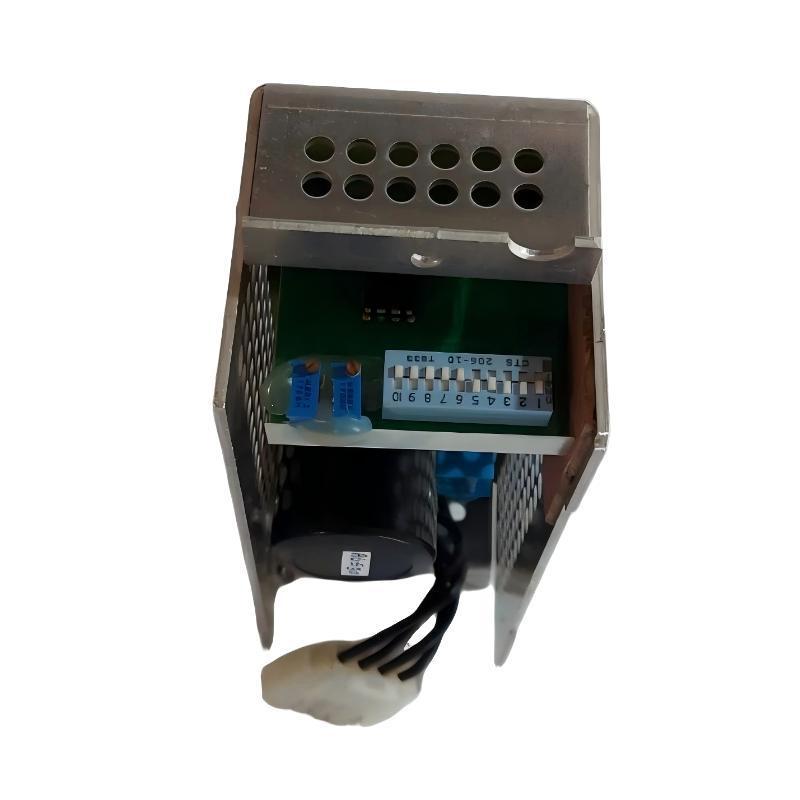

ABB 750203/806 1VC119006011105 Power Supply

Overview

The ABB 750203/806 1VC119006011105 is an industrial-grade power supply designed to provide stable and regulated DC power for automation and control systems. It is built for reliable operation in demanding industrial environments, ensuring consistent performance for sensitive electronic and control equipment.

General Information

Part Number: 750203/806 (1VC119006011105)

Manufacturer: ABB

Brand: ABB

Country of Origin: Switzerland

Series: Industrial Power Supply Modules

Type: AC/DC Industrial Power Supply

Mounting: DIN rail or control cabinet installation

Function: Converts AC input into stable DC output for industrial automation systems

Power Specifications

Input Voltage: 100–240 V AC (wide range input)

Output Voltage: 24 V DC regulated output

Output Power: Industrial-rated output capacity (model-specific)

Efficiency: High-efficiency switching power conversion

Protection: Overload, short-circuit, overvoltage, and thermal protection

Communication & Interface

Interface Type: Hardwired electrical terminal connection

Monitoring: LED indicators for power and fault status

Control Function: Stable regulated output with internal control circuitry

Diagnostics: Visual status indication (no digital communication interface)

Environmental

Operating Temperature: −25 to +70 °C

Storage Temperature: −40 to +85 °C

Humidity: 5% to 95% RH, non-condensing

Protection Rating: Industrial cabinet (IP20 typical)

Cooling Method: Natural convection cooling

Dimensions & Weight

Dimensions (H × W × D): 125 × 50 × 100 mm

Weight: 0.45 kg

Stable industrial power designed for continuous and reliable system operation.
