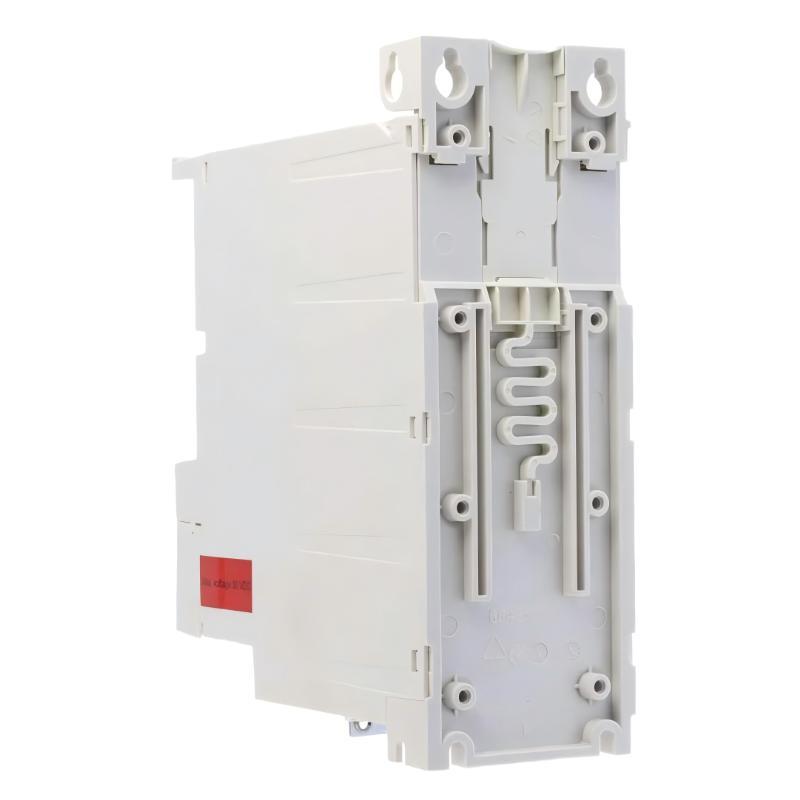

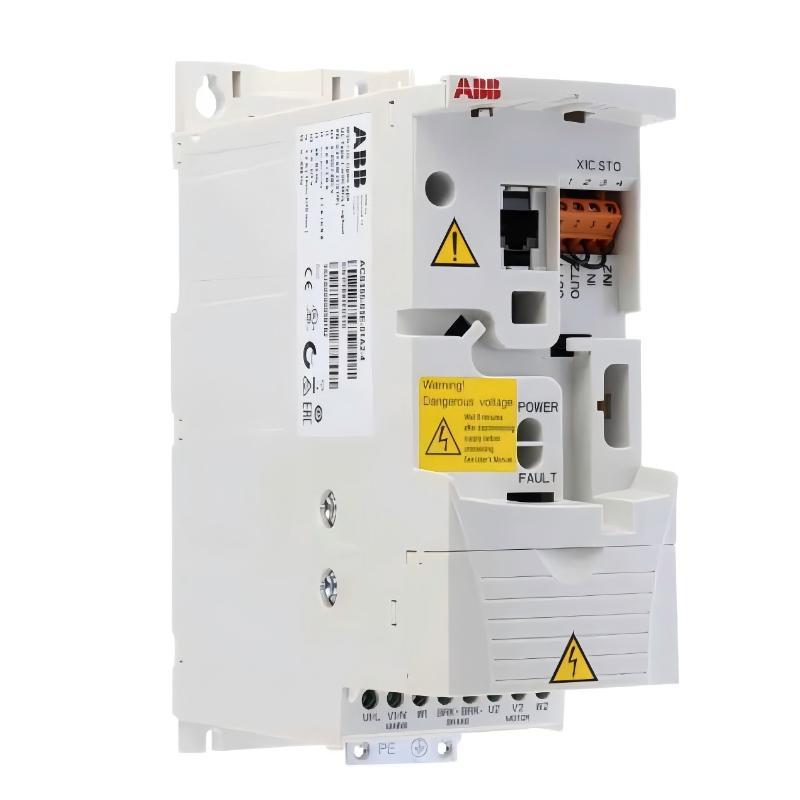

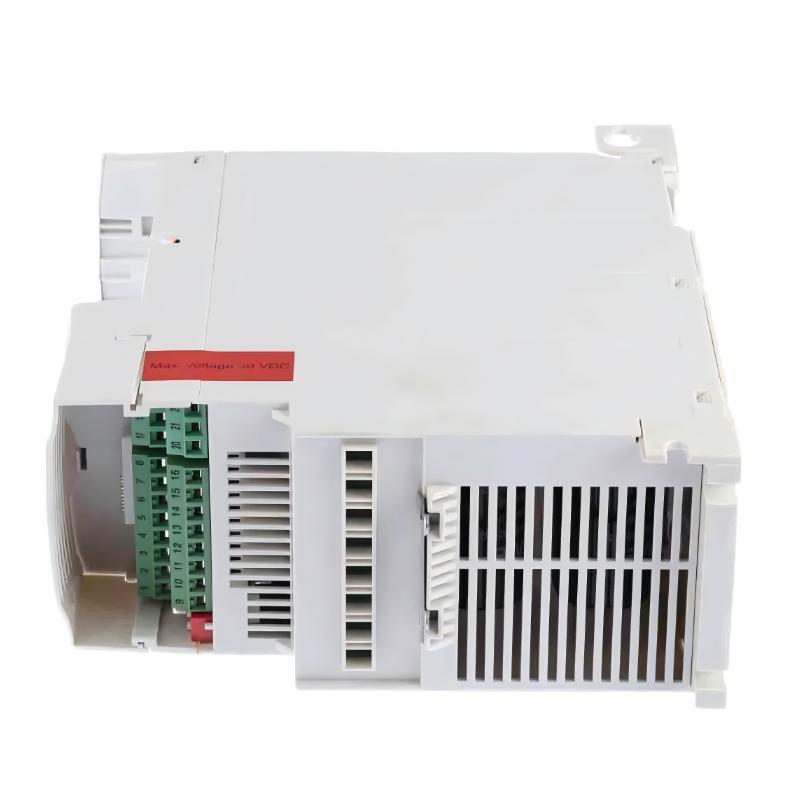

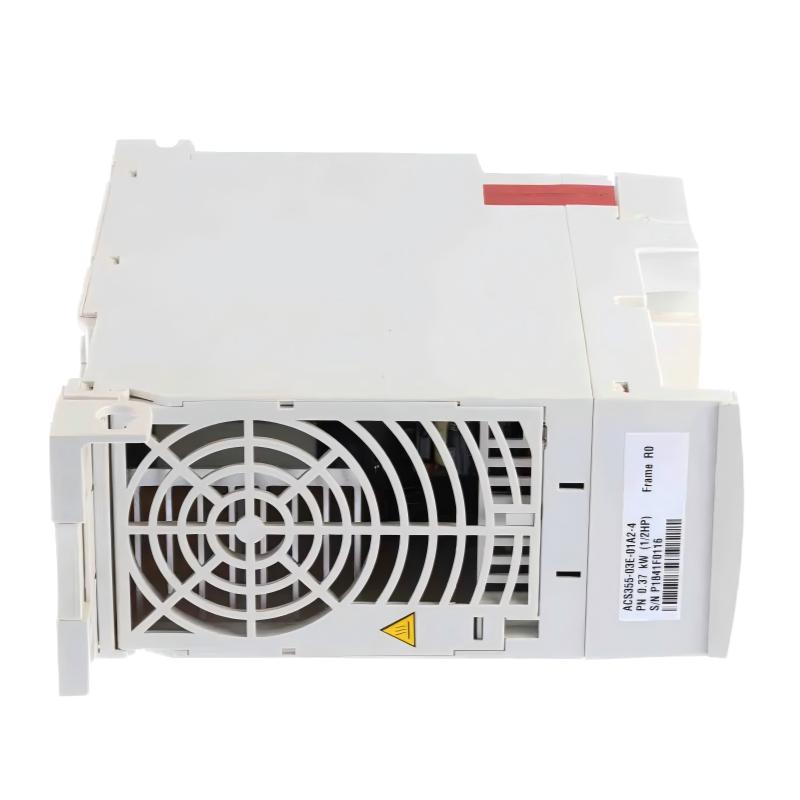

ABB ACS355-03E-01A2-4 3ABD0000058242 Variable Frequency Drive

Overview

The ABB ACS355-03E-01A2-4 is a compact variable frequency drive designed for controlling AC motors in industrial automation applications. It provides precise motor speed and torque control, improving energy efficiency and operational performance in pumps, fans, conveyors, and other machinery.

General Information

Part Number: ACS355-03E-01A2-4 (3ABD0000058242)

Manufacturer: ABB

Brand: ABB

Country of Origin: Switzerland

Series: ACS355 Micro Drives

Type: Variable Frequency Drive (VFD)

Mounting: Wall-mounted or panel installation

Function: Motor speed and torque control for industrial AC motors

Power Specifications

Supply Voltage: 3-phase 380–480 V AC (typical for ACS355 series variants)

Output Voltage: Variable AC output for motor control

Output Frequency: 0–500 Hz (application dependent)

Power Range: Small power industrial motor control (exact rating model-specific)

Protection: Overvoltage, undervoltage, overload, and short-circuit protection

Communication & Interface

Control Interface: Digital I/O and analog reference inputs

Communication Options: Fieldbus support (e.g., Modbus, optional modules depending on configuration)

Programming: Local keypad or external software configuration

Diagnostics: Fault codes, status LEDs, and real-time operating feedback

Control Modes: Scalar (V/Hz) and sensorless vector control

Environmental

Operating Temperature: −10 to +40 °C (derating above typical thresholds)

Storage Temperature: −40 to +70 °C

Humidity: 5% to 95% RH, non-condensing

Protection Rating: IP20 (cabinet installation)

Cooling Method: Forced air cooling via integrated fan

Dimensions & Weight

Dimensions (H × W × D): 169 × 70 × 161 mm

Weight: 1.08 kg

Efficient motor control for optimized industrial performance and energy savings.
