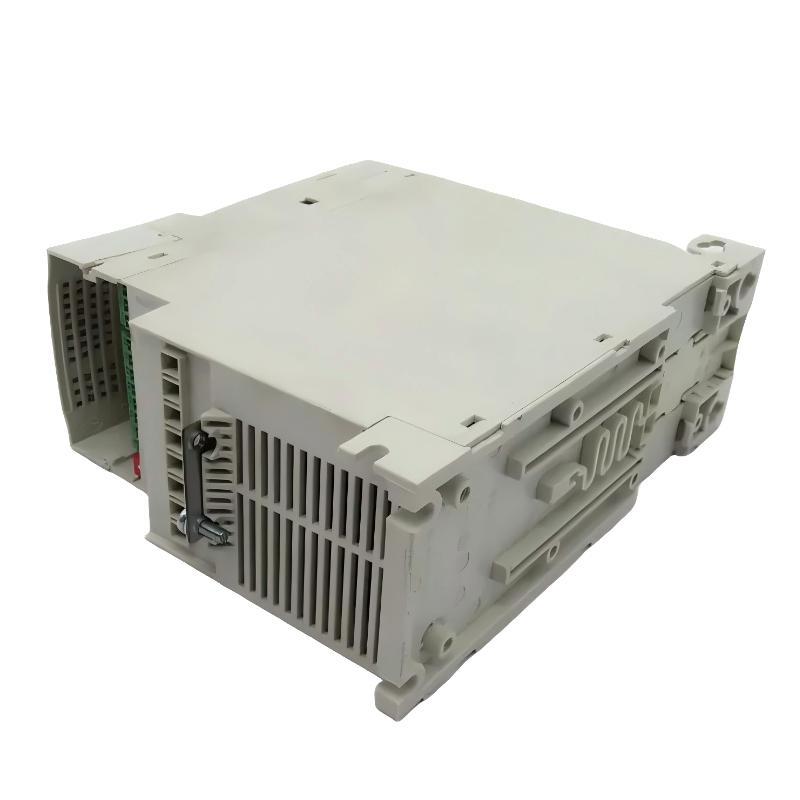

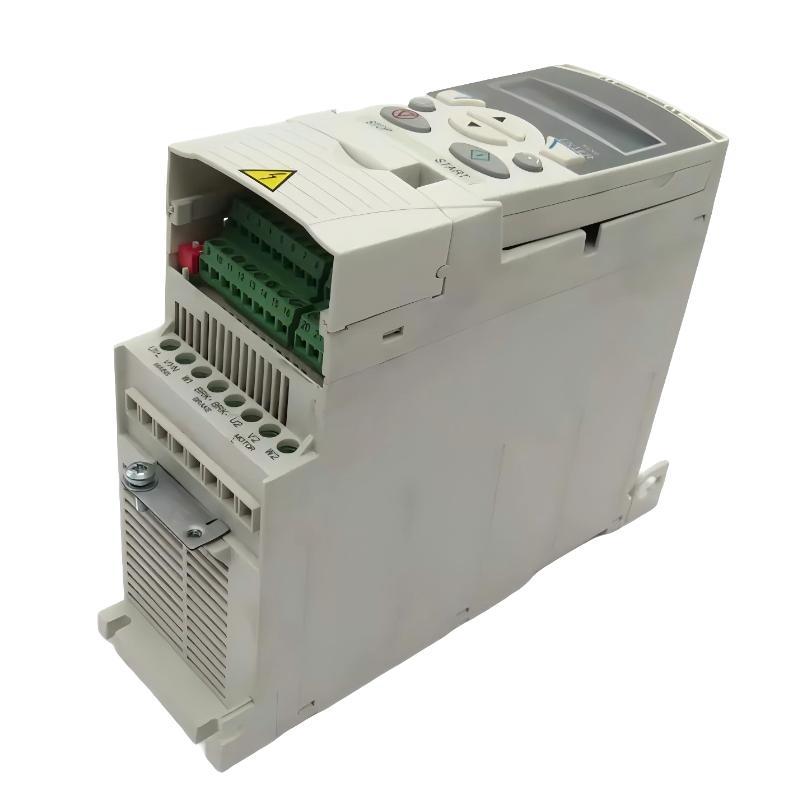

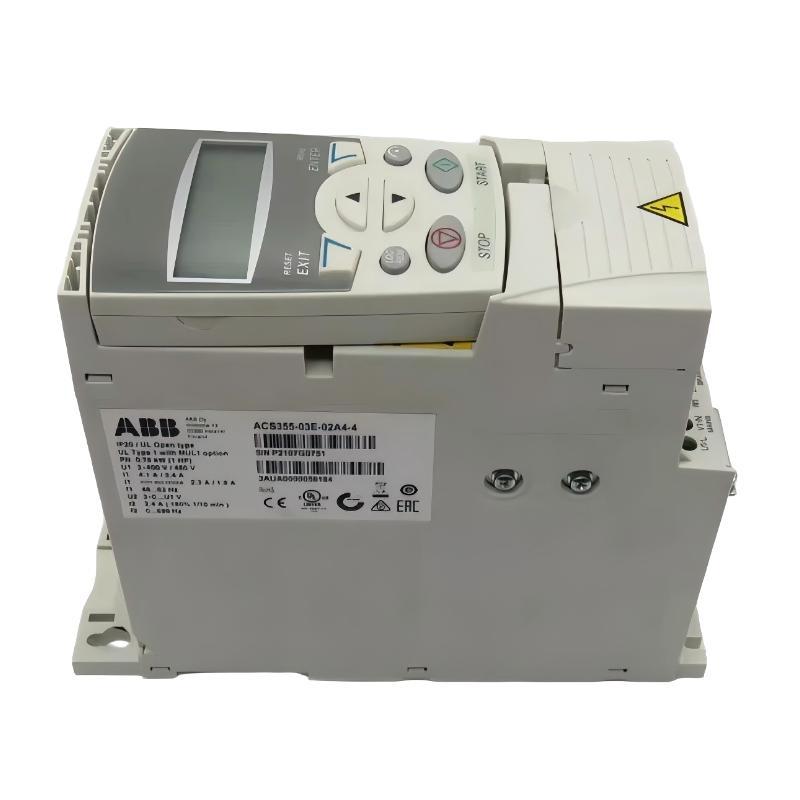

ABB ACS355-03E-02A4-4 3ABD0000058244 Variable Frequency Drive (VFD)

Overview

The ABB ACS355-03E-02A4-4 is a compact variable frequency drive designed for precise speed and torque control of AC motors in industrial automation systems. It is widely used to improve energy efficiency and process stability in applications such as conveyors, pumps, fans, and general machinery control.

General Information

Part Number: ACS355-03E-02A4-4 (3ABD0000058244)

Manufacturer: ABB

Brand: ABB

Country of Origin: Switzerland

Series: ACS355 Micro Drives

Type: Variable Frequency Drive (VFD)

Mounting: Panel or wall-mounted installation

Function: AC motor speed and torque control for industrial automation systems

Power Specifications

Supply Voltage: 3-phase 380–480 V AC (typical ACS355 series class)

Output Voltage: Variable AC output for motor control

Output Frequency: 0–500 Hz (application dependent)

Power Range: Small-to-medium power industrial drive (model-specific rating)

Protection: Overvoltage, undervoltage, overload, and short-circuit protection

Communication & Interface

Control Inputs: Digital and analog I/O for speed reference and control signals

Communication Options: Fieldbus support (Modbus and optional communication modules depending on configuration)

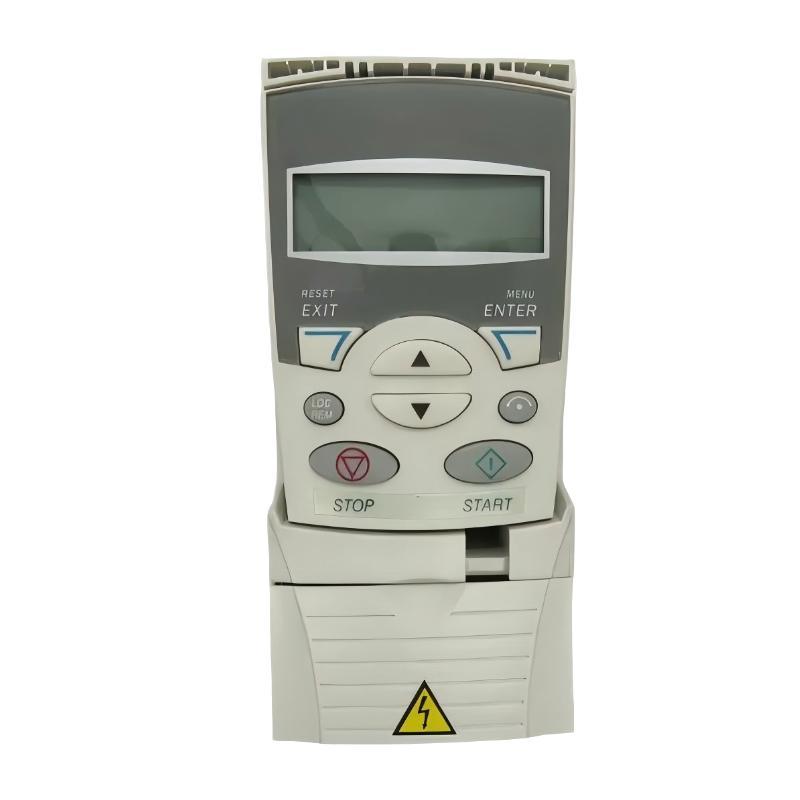

Programming Interface: Built-in keypad and parameter configuration tools

Diagnostics: Fault codes, LED indicators, and real-time system status monitoring

Control Modes: Scalar (V/Hz) and sensorless vector control

Environmental

Operating Temperature: −10 to +40 °C (with derating in higher conditions)

Storage Temperature: −40 to +70 °C

Humidity: 5% to 95% RH, non-condensing

Protection Rating: IP20 (cabinet installation)

Cooling Method: Forced-air cooling with integrated fan system

Dimensions & Weight

Dimensions (H × W × D): 169 × 70 × 161 mm

Weight: 1 kg

Efficient motor control for improved performance and reduced energy consumption.
