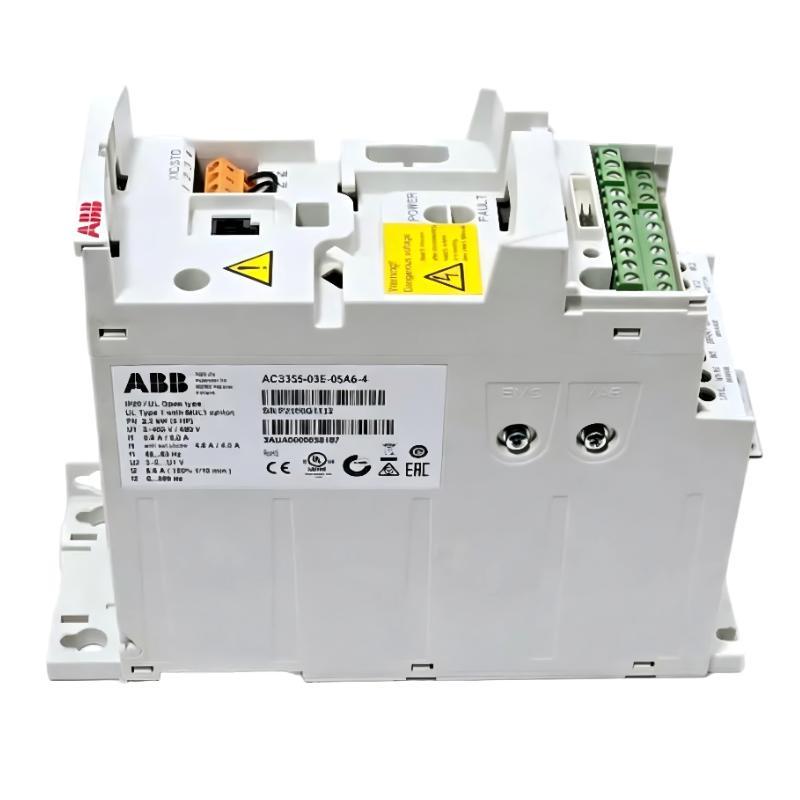

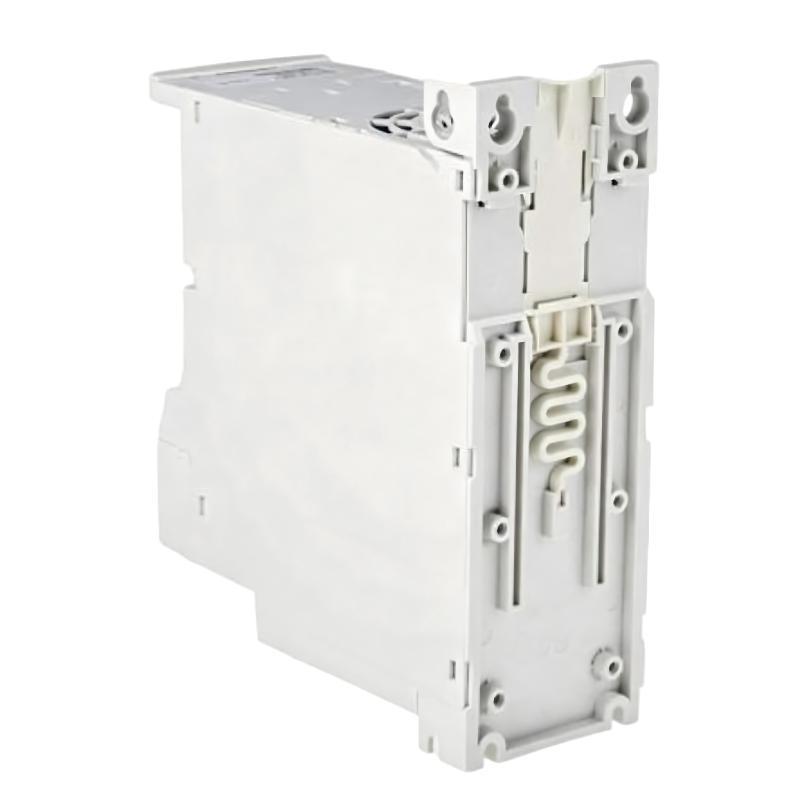

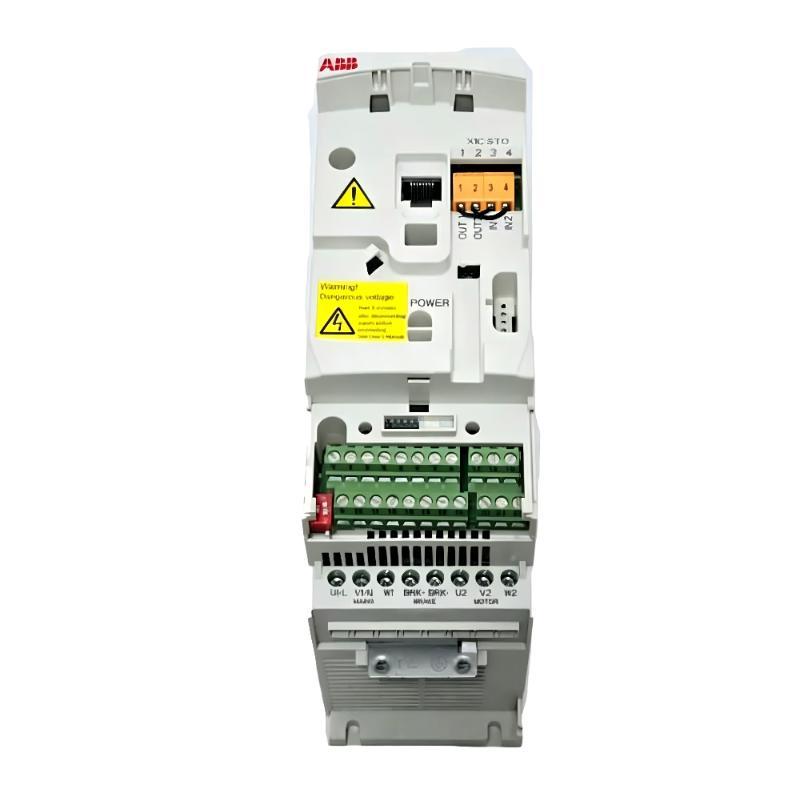

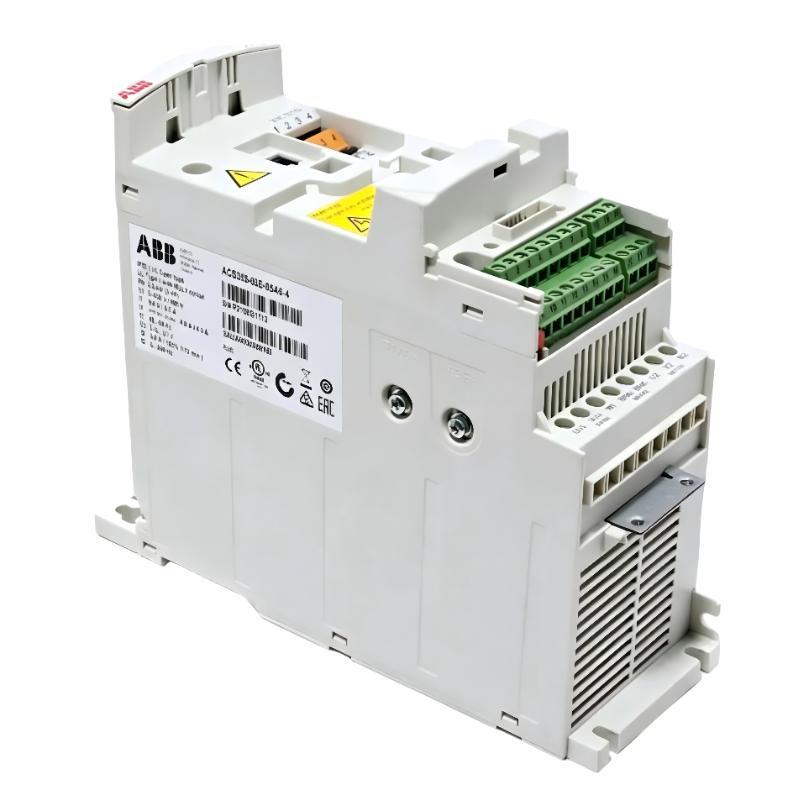

ABB ACS355-03E-05A6-4 3ABD0000058247 Variable Frequency Drive (VFD)

Overview

The ABB ACS355-03E-05A6-4 3ABD0000058247 Variable Frequency Drive is a compact and high-performance variable frequency drive designed for precise motor control in machine building and light industrial automation applications. It delivers stable torque, smooth speed regulation, and improved energy efficiency for pumps, fans, conveyors, and general-purpose machinery.

General Information

Part Number: ACS355-03E-05A6-4 / 3ABD0000058247

Brand: ABB

Country of Origin: Switzerland

Series: ACS355 Drive Series

Type: Variable Frequency Drive (VFD)

Mounting: Panel / cabinet installation

Application: Industrial automation, motor speed control, light machinery systems

Power Specifications

Input Voltage: 380–480 V AC (3-phase)

Output Voltage: 0–input voltage (variable frequency output)

Rated Current: 5.6 A

Power Rating: ~2.2 kW (typical class range)

Control Method: Scalar (V/Hz) and sensorless vector control

Protection: Overcurrent, overvoltage, undervoltage, and thermal protection

Communication & Interface

Control Interface: Digital I/O with optional fieldbus communication modules

Programming: Built-in keypad with parameter configuration

Diagnostics: Fault memory, LED status indicators, and alarm monitoring

Expansion Options: Compatible with plug-in ABB communication adapters

Motor Control Features: Smooth acceleration/deceleration, torque optimization, and energy-efficient operation

Environmental

Operating Temperature: 0 to +40 °C (derating up to +50 °C)

Storage Temperature: −40 to +70 °C

Humidity: 5% to 95% non-condensing

Cooling: Forced air cooling

Protection Class: IP20 (requires cabinet installation)

Dimensions & Weight

Dimensions: 169 × 70 × 161 mm

Weight: 0.98 kg

Efficient Drive Control — Compact Power for Reliable Industrial Performance!
