Overview

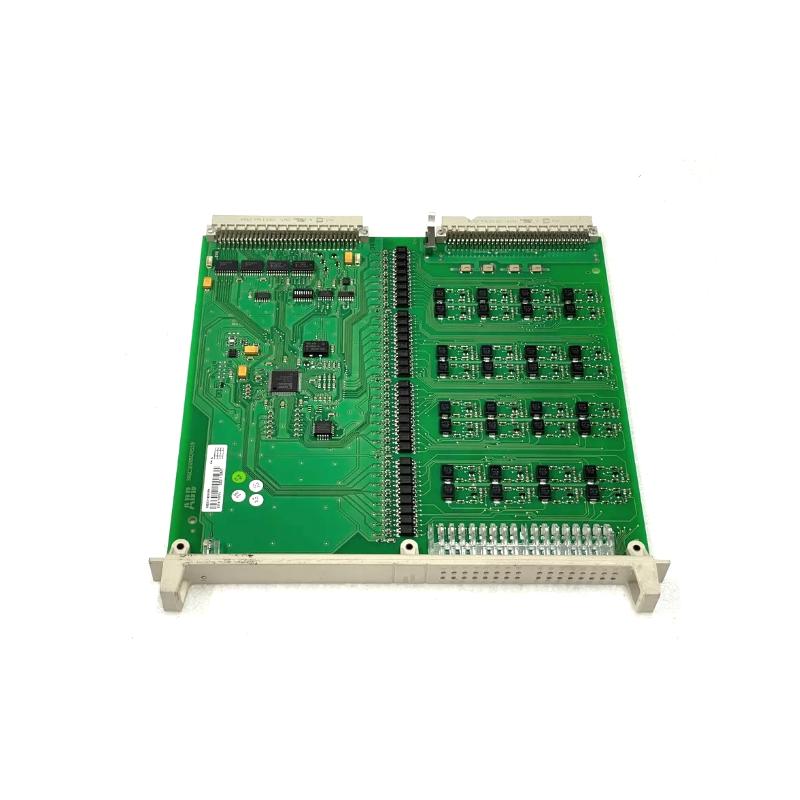

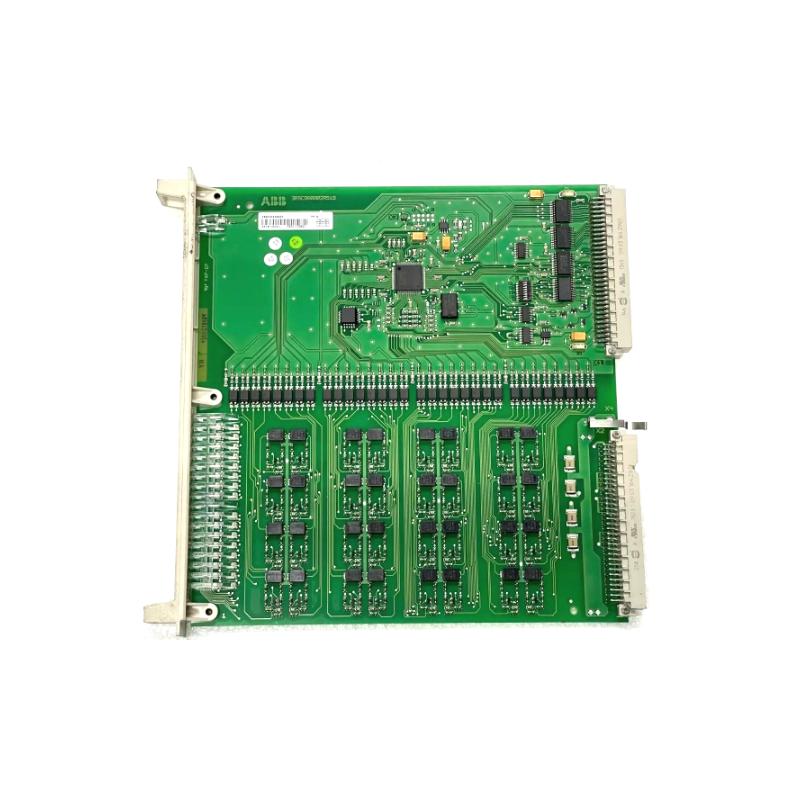

The ABB DSDI 110AV1 / 3BSE018295R1 is a digital input module designed for ABB’s AC800M control systems. It provides reliable signal acquisition from field devices and ensures accurate monitoring and control in industrial automation applications.
General Information

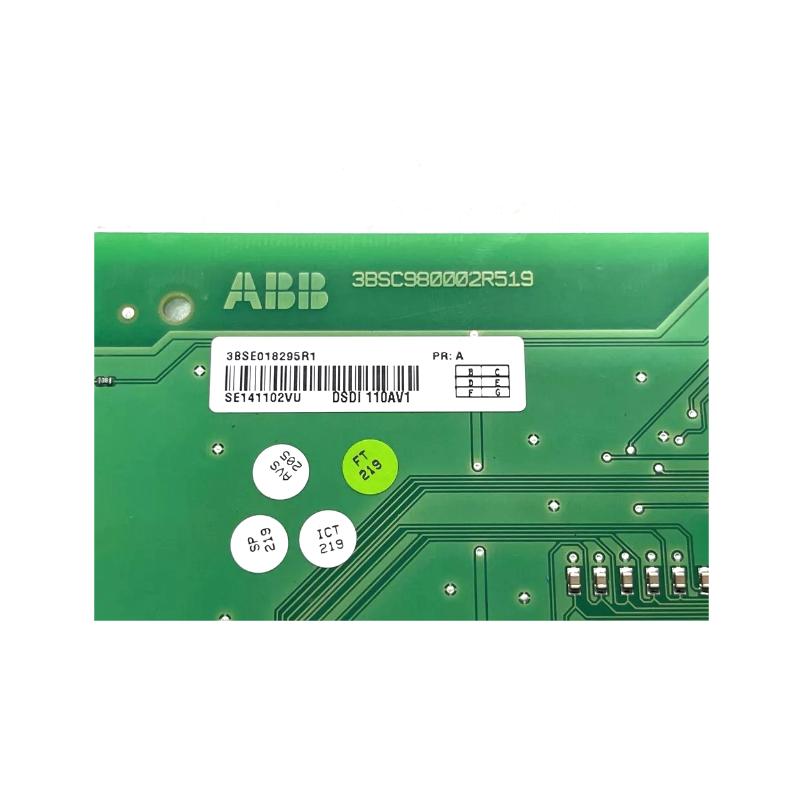

Part Number: DSDI 110AV1 / 3BSE018295R1
Manufacturer: ABB
Brand / Country of Origin: ABB / Switzerland
Type: Digital Input Module
Series: S800 I/O
Mounting: DIN rail or module carrier installation
Input Channels: 16 digital inputs
Signal Type: 24 V DC, sink/source type
Power Specifications
Supply Voltage: 24 V DC
Power Consumption: Approx. 3 W
Input Current: 7 mA per channel typical
Isolation: Optical isolation between field and logic circuits
Protection: Reverse polarity and surge protection
Communication & Interface
Interface Type: ModuleBus communication
Connection: Pluggable screw terminals
Indicators: LED indicators for power and input status
Diagnostics: Channel status and module health reporting
Configuration: Parameterized via ABB Control Builder
Environmental
Operating Temperature: −20 °C to +70 °C
Humidity: Up to 95% RH, non-condensing
Storage Temperature: −40 °C to +85 °C
Protection Rating: IP20, for use in industrial cabinet
Dimensions & Weight
Dimensions: 234 × 18 × 229.5 mm
Weight: 0.332 kg
