Overview

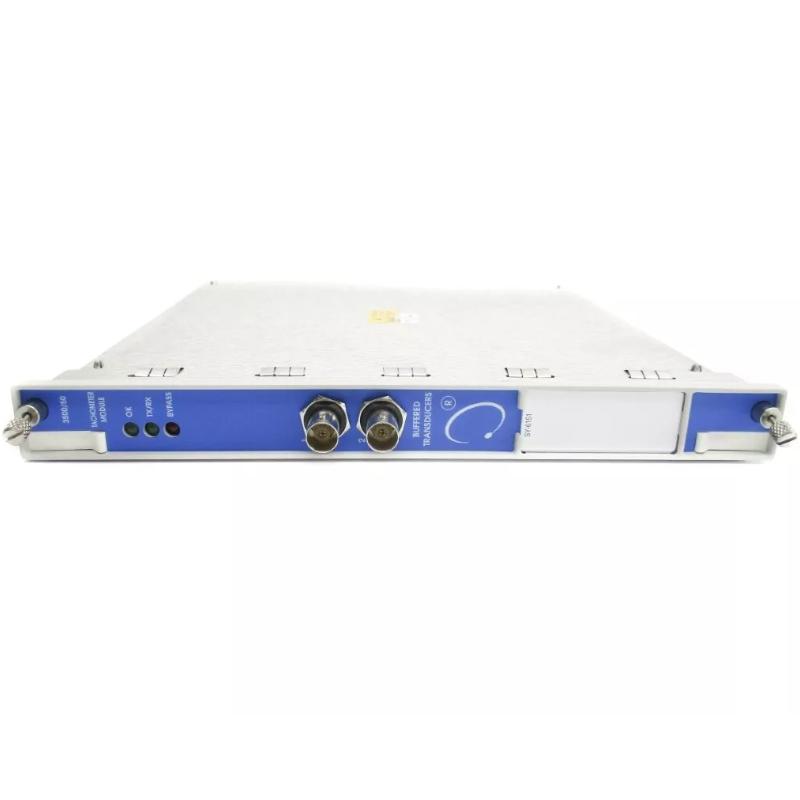

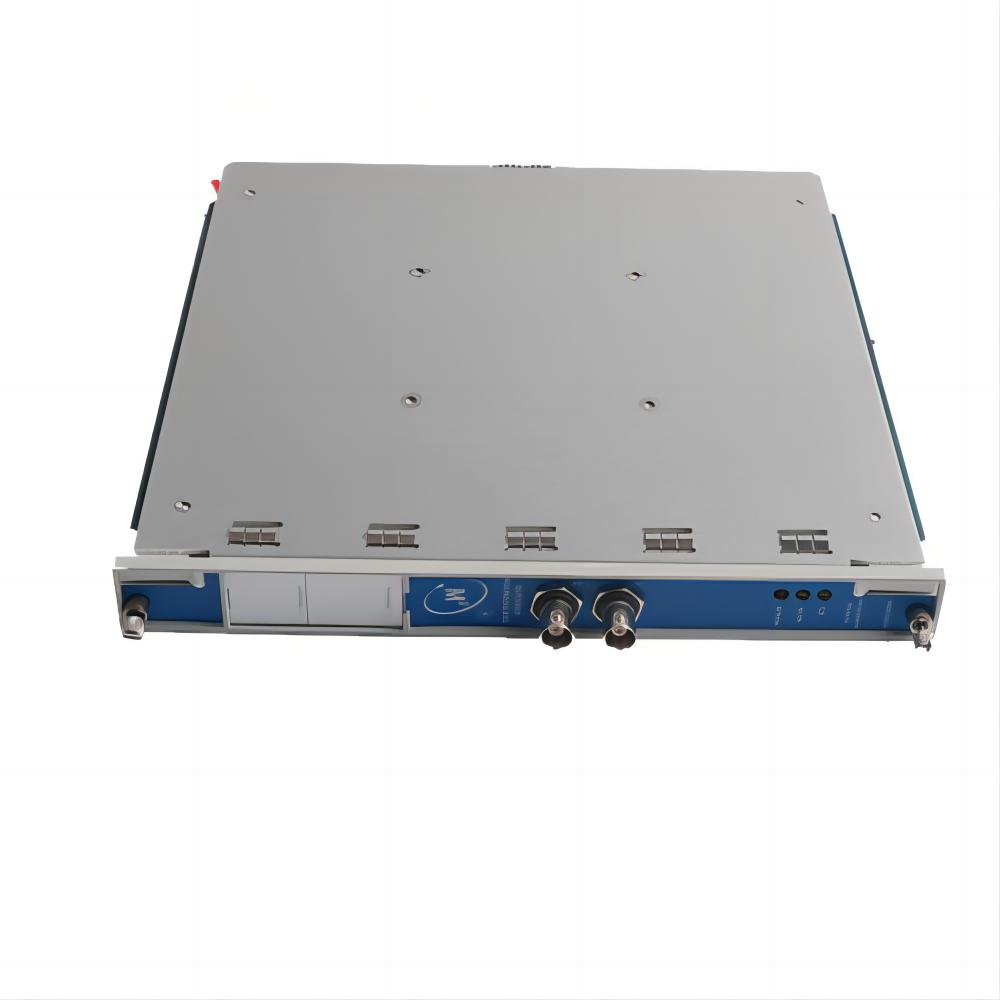

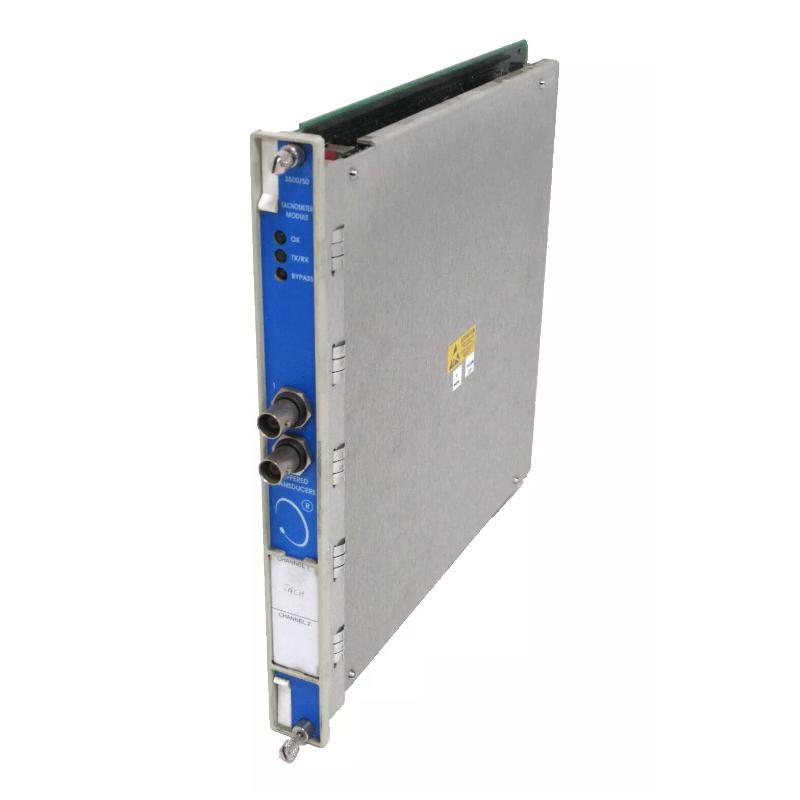

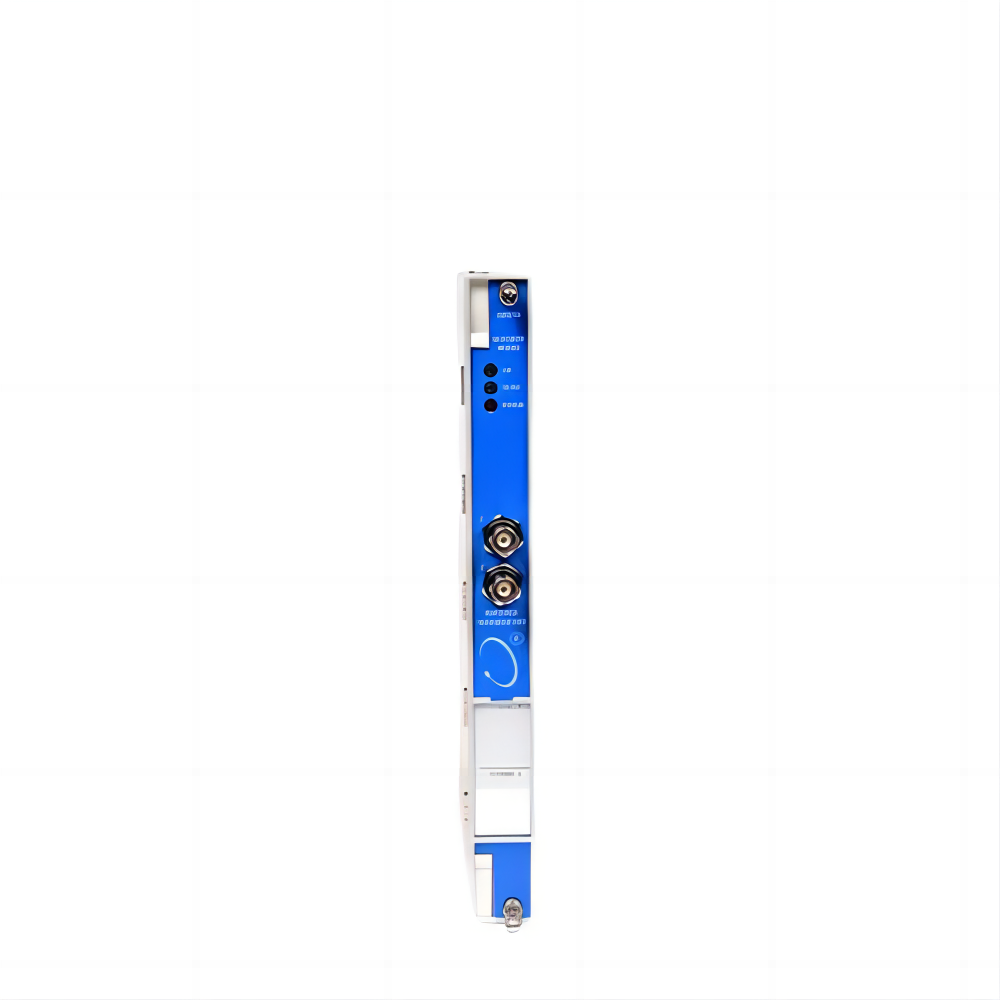

The Bently Nevada 3500/50 286566-02 is a vibration sensor module used for monitoring the health of rotating machinery. It measures shaft vibration and displacement to prevent mechanical failure and ensure reliable operation in turbines, compressors, and industrial equipment.
General Information
Model: 3500/50 286566-02
Manufacturer: Bently Nevada
Product Type: Vibration Sensor Module
Country of Origin: USA
Application: Shaft vibration and displacement monitoring in turbines and industrial machinery
Power Specifications
Supply Voltage: Powered via the Bently Nevada 3500 monitoring system
Power Consumption: Low-power design for continuous operation
Protection: Resistant to electrical noise and transient disturbances
Indicators: Status monitored through the 3500 system diagnostics
Communication & Interface
Interface: Connects to the Bently Nevada 3500 system rack
Signal Type: Analog vibration and displacement signals
Channels: Single-channel input per module
Diagnostics: Supports system-level diagnostics, alarms, and event logging
Environmental
Operating Temperature: −40 to +70°C
Humidity: Up to 95% RH, non-condensing
Protection: Industrial-grade design suitable for harsh environments
Mounting: Rack-mounted in the 3500 monitoring system
Dimensions & Weight
Dimensions: 241.3 × 24.4 × 241.8 mm
Weight: 0.82 kg
