Bently Nevada 3500/62 136483-01+163179-03 | Proximity Probe Module 30-Day Returns

Overview

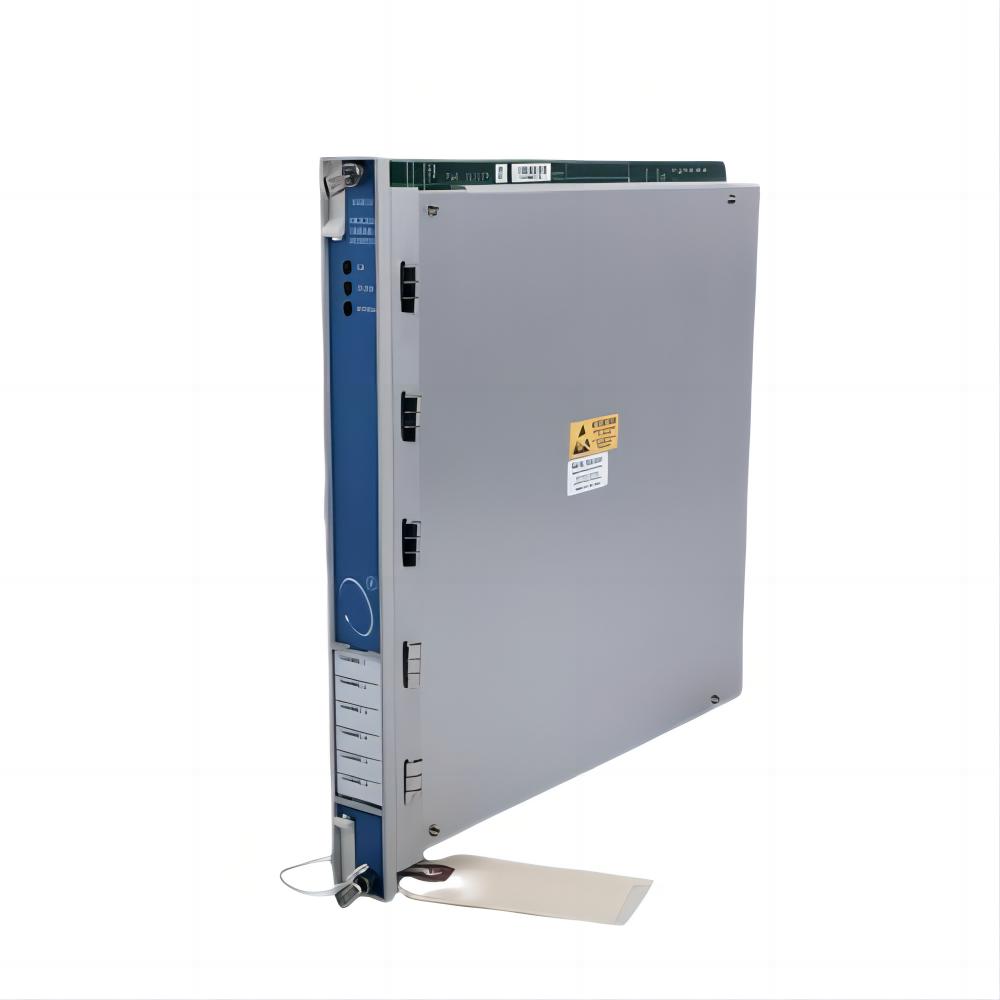

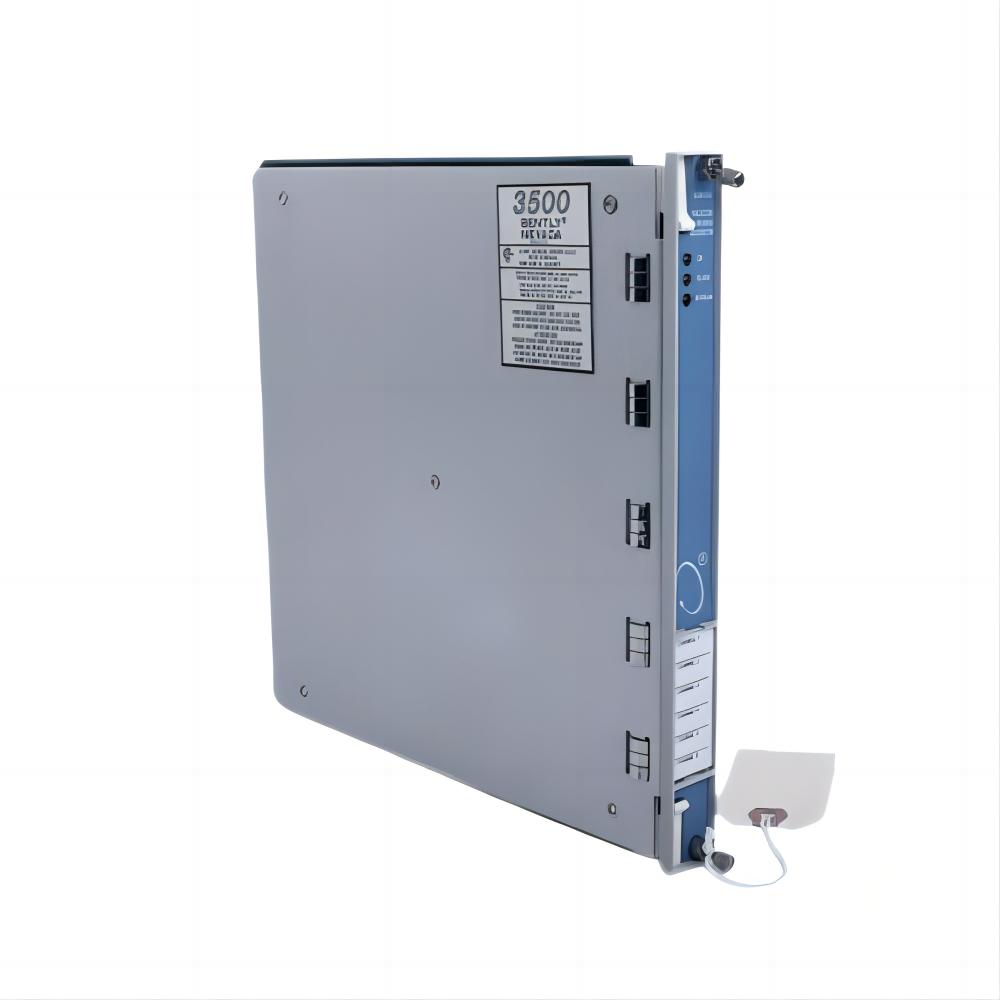

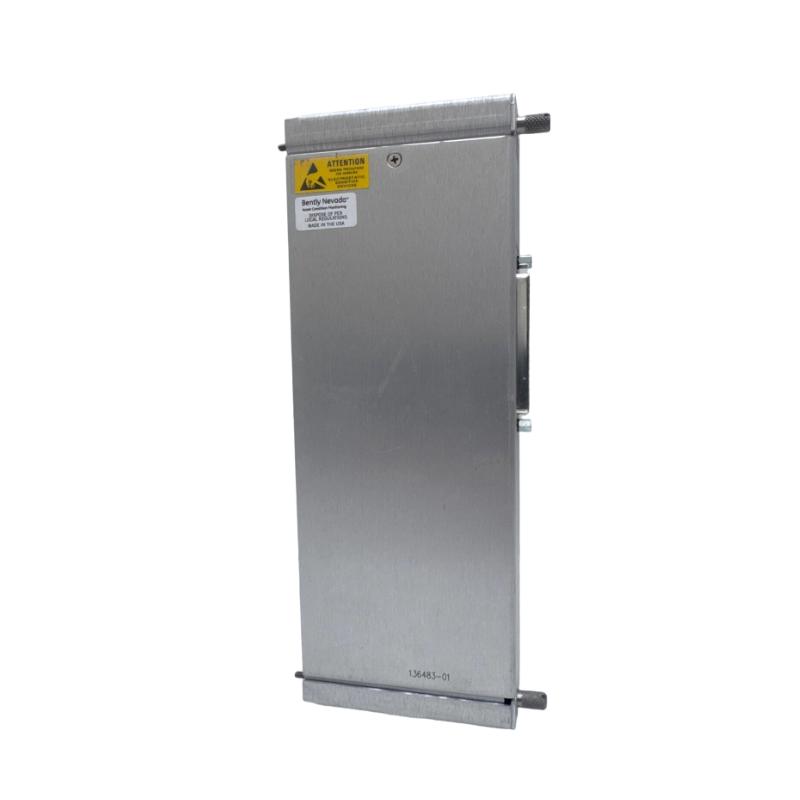

The Bently Nevada 3500/62 (136483-01 + 163179-03) combines a proximity probe power supply and overspeed monitoring functionality within the 3500 series machinery protection system. It provides regulated excitation voltage to proximity probes while simultaneously monitoring shaft speed to trigger overspeed trips, protecting rotating machinery from mechanical damage.

General Information
Part Number: 136483-01 + 163179-03

Manufacturer: Bently Nevada

Series: 3500

Type: Proximity Probe & Overspeed Module

Mounting: Installed in 3500 series rack or chassis

Brand / Country of Origin: Bently Nevada / United States

Technology: Regulated DC excitation for proximity probes combined with high-speed overspeed detection circuitry

Power Specifications
Supply Voltage: Powered via the 3500 system backplane

Power Consumption: Low, suitable for continuous operation

Input: Accepts signals from proximity probes and tachometers

Protection: Overcurrent, short-circuit, and EMC-protected

Indicators: LED indicators for module status, channel health, and trip conditions

Communication & Interface
Interface Type: Backplane connector for integration with 3500 system

Module Role: Supplies regulated voltage to proximity probes and monitors overspeed conditions, triggering trips when limits are exceeded

Diagnostics: Monitors probe signals, shaft speed inputs, and relay outputs

Operator Interface: LED indicators for operational status and alarms

Reset Features: Manual or system-controlled reset

Environmental
Operating Temperature: −40 to +70 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20, suitable for installation in enclosed industrial control cabinets

Dimensions & Weight
Dimensions (L × W × H): 241.3 × 24.4 × 241.8 mm

Weight: 0.82 kg
