Bently Nevada 330105-02-12-10-02-05 Reverse Mount Proximity Probe Rave reviews

Overview

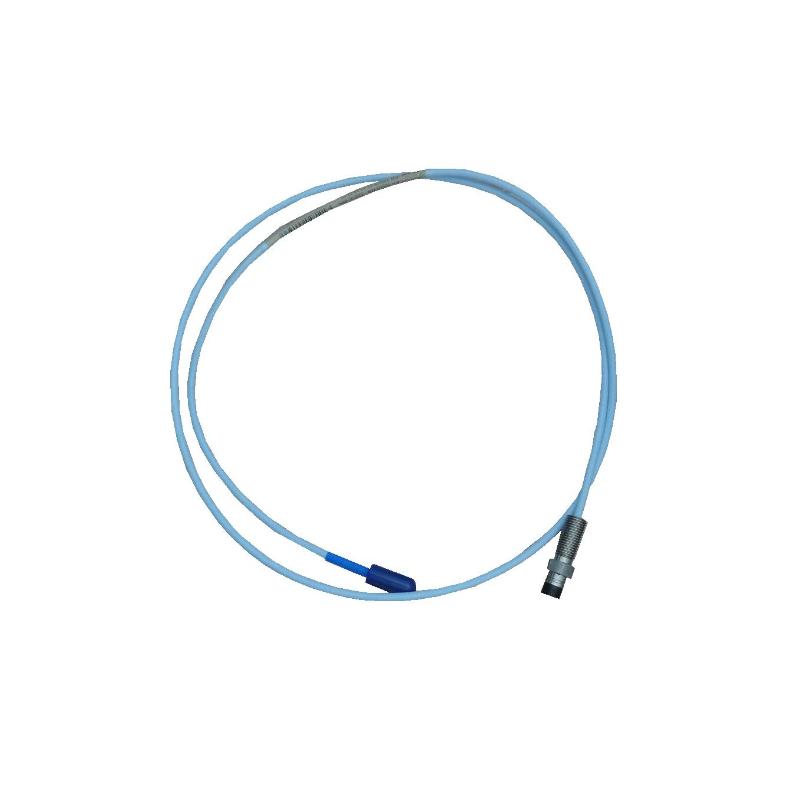

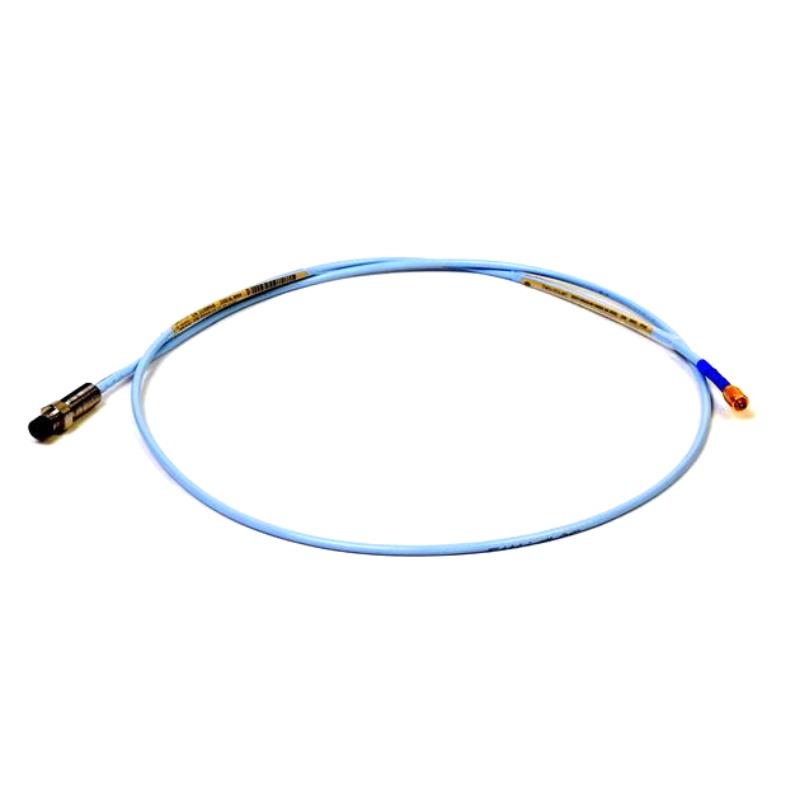

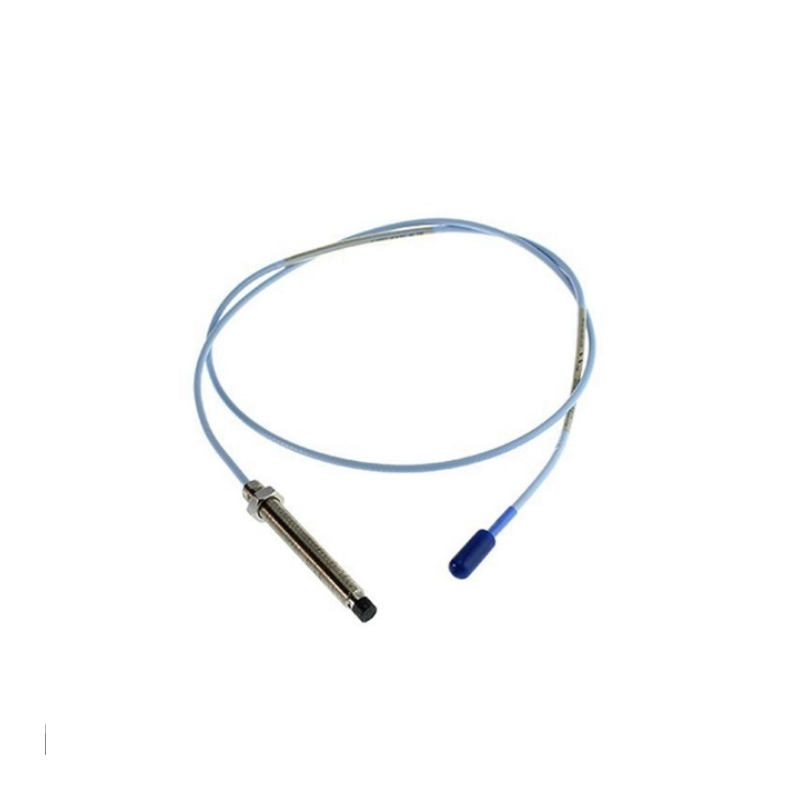

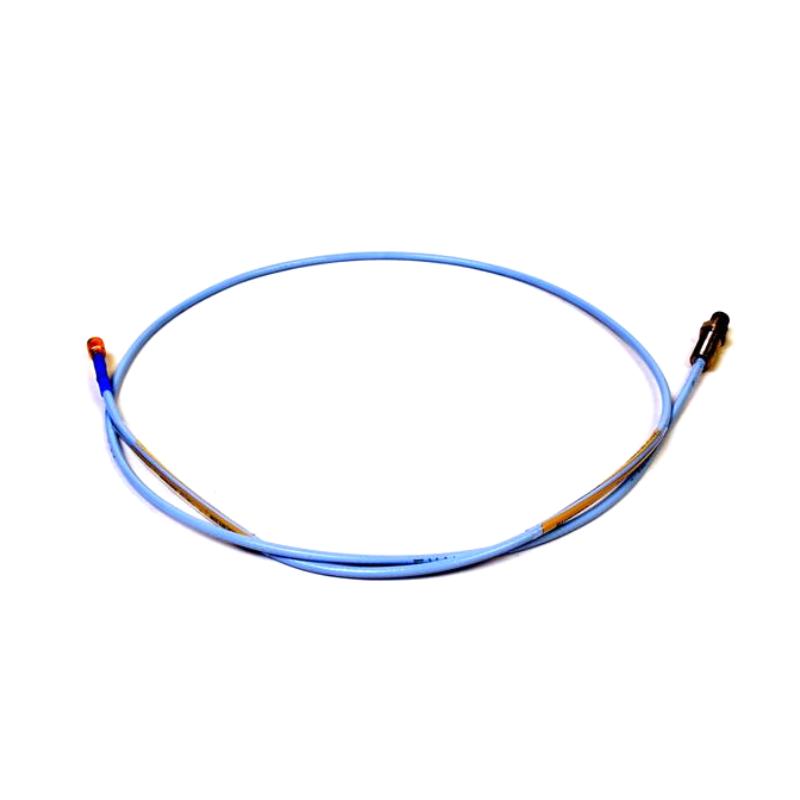

The Bently Nevada 330105-02-12-10-02-05 is an 8 mm reverse mount proximity probe designed for use in the 3300 XL Proximity Transducer System. It measures the displacement between the probe tip and a conductive surface, providing critical data for machinery protection and condition monitoring.

General Information

• Manufacturer: Bently Nevada (a Baker Hughes business)

• Model Number: 330105-02-12-10-02-05

• Type: Reverse Mount Proximity Probe

• Thread Type: 3/8 - 24 UNF

• Connector Type: Miniature ClickLoc coaxial connector

• Total Length: 1.0 meter

• Agency Approvals: CSA, ATEX, IECEx

• Country of Origin: United States

Electrical Specifications

• Output Voltage: Proportional to the distance between the probe tip and the observed conductive surface

• Frequency Response: Suitable for high-frequency applications

• Impedance: Matched to Bently Nevada Proximitor Sensors

• Linearity: High linearity across the sensing range

• Temperature Stability: Designed to maintain accuracy across a wide temperature range

Environmental Specifications

• Protection Rating: IP67 when properly installed

• Armor: Optional; armored versions available for additional protection

• Operating Temperature: -51 °C to +177 °C (-60 °F to +351 °F)

• Storage Temperature: -51 °C to +177 °C (-60 °F to +351 °F)

• Humidity: 5–95% RH, non-condensing

Dimensions & Weight

• Total Length: 1.0 meter

• Weight: 0.323 kg

Brand-new and unused inventory, stable supply, and 24-hour service.
