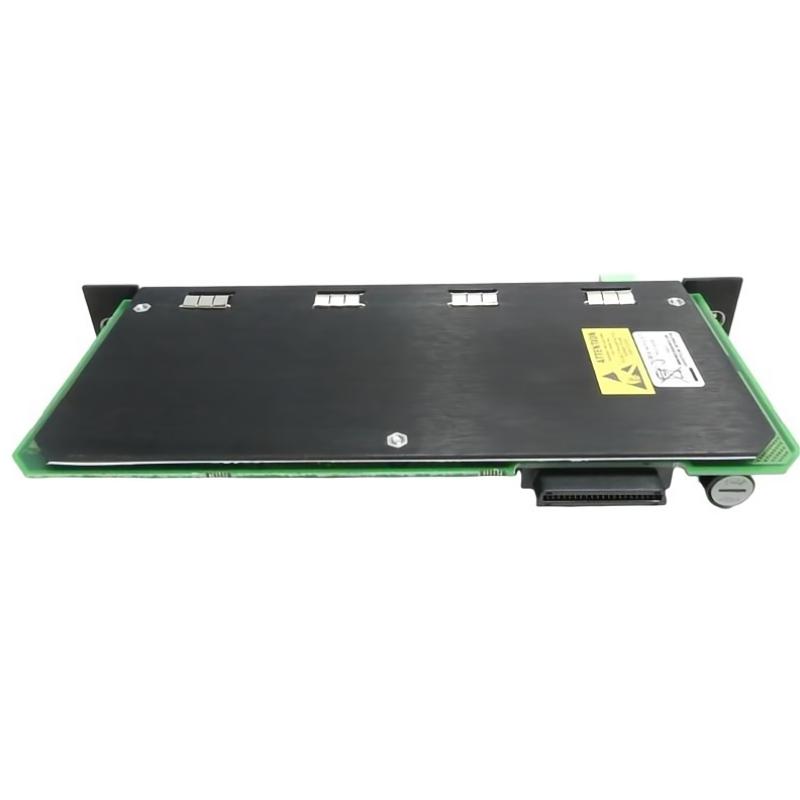

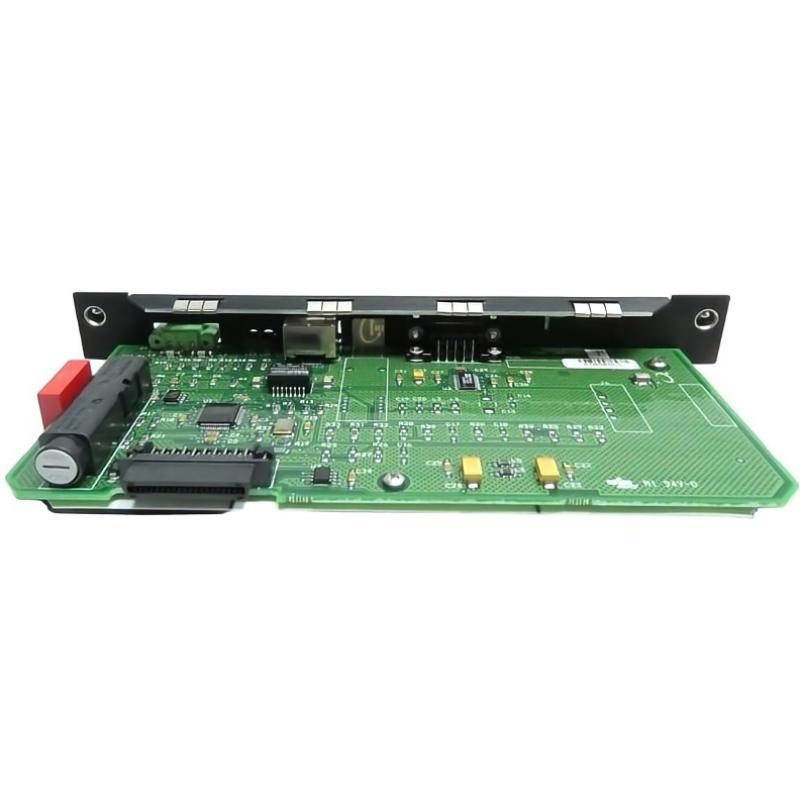

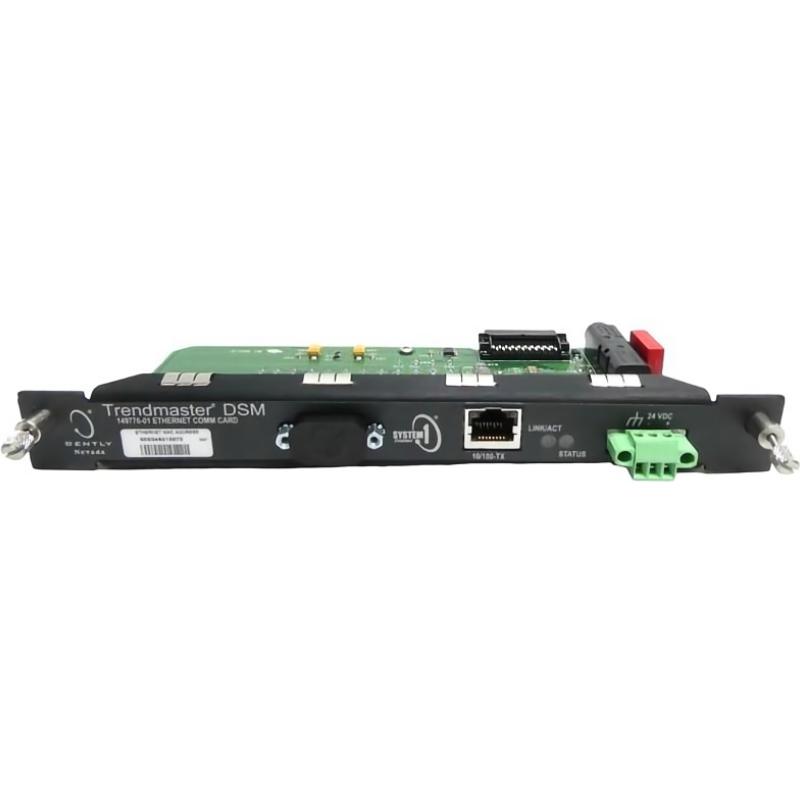

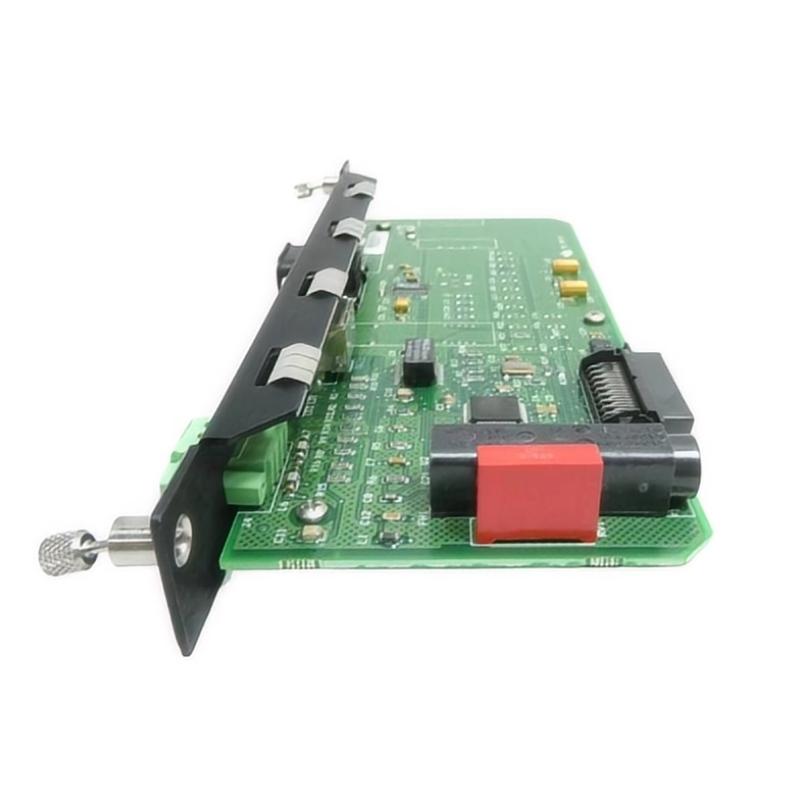

Bently Nevada 149776-01 Backup Fiber Optic Ethernet Communication Card

Overview

The Bently Nevada 149776-01 is a high-performance backup fiber optic Ethernet communication card. It provides secure and reliable network connectivity for industrial monitoring systems, ensuring uninterrupted data transmission and system redundancy in critical applications.

General Information

Part Number: 149776-01

Manufacturer: Bently Nevada

Brand / Country of Origin: Bently Nevada / USA

Series: 1497

Type: Backup Communication Card / Fiber Optic Ethernet Module

Mounting: Card installation within monitoring or control chassis

Technology: Fiber optic Ethernet interface, system redundancy support, diagnostic monitoring

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 15 W

Input: Powered from the monitoring system backplane

Protection: Overvoltage, reverse-polarity, and surge protection

Indicators: LEDs for power, communication link, and fault status

Communication & Interface

Interface Ports: Fiber optic Ethernet connections

Card Role: Provides backup communication to ensure system reliability and uninterrupted data flow

Diagnostics: Link supervision, fault detection, and status monitoring

Operator Interface: LED indicators for operational and fault status

Reset Features: Supports soft and hardware reset

I/O & Channels: Data routing only; does not drive external loads

Environmental

Operating Temperature: −20 to +70 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 or suitable for industrial cabinet environment

Dimensions & Weight

Dimensions (L × W × H): 241 × 25 × 114 mm

Weight: 1.36 kg
