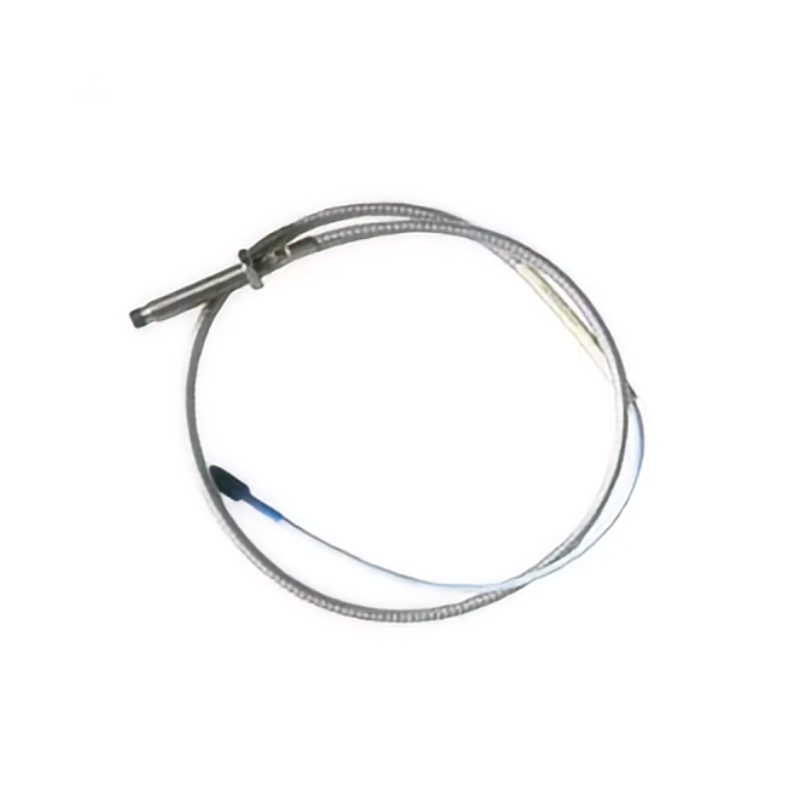

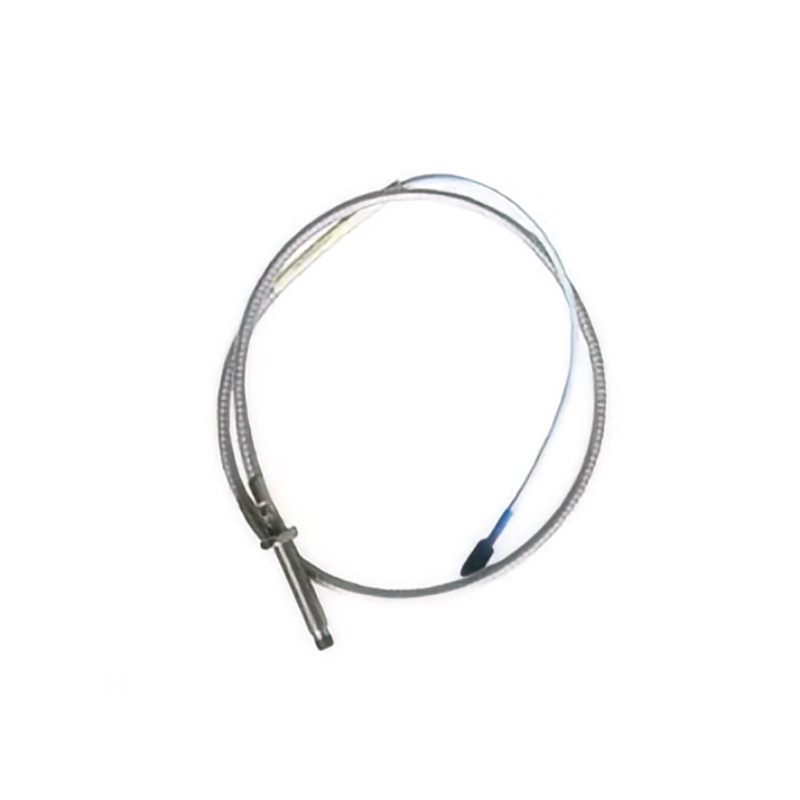

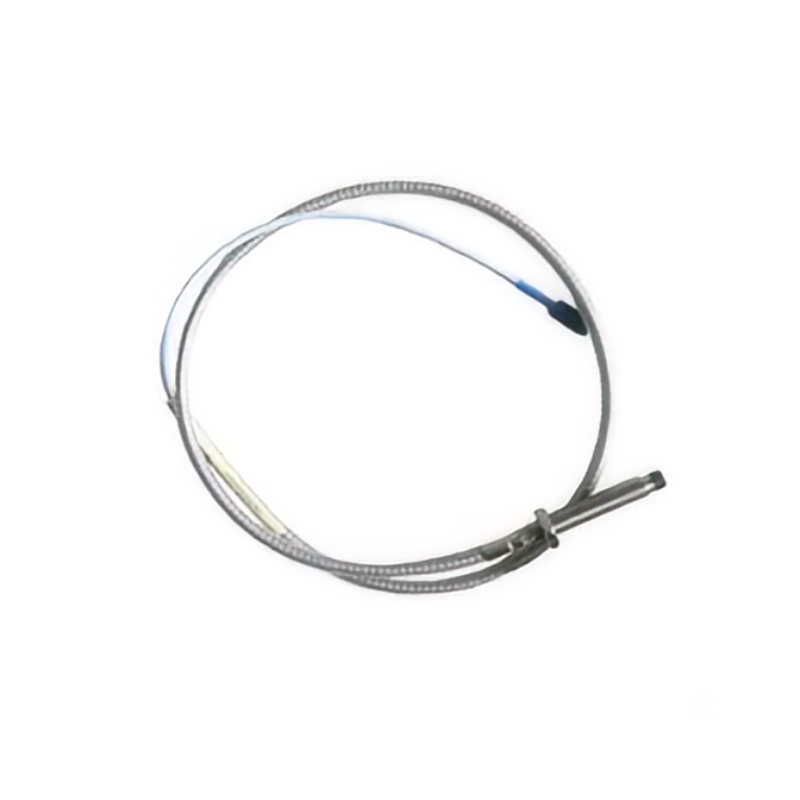

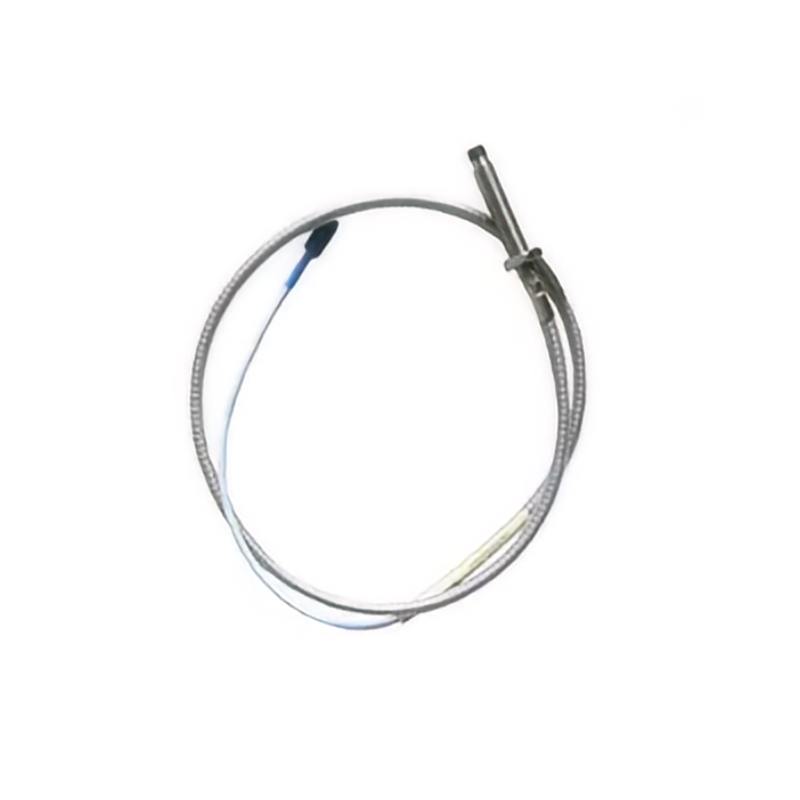

Bently Nevada 21505-022-055-10-02 7200 8 mm Standard Mount Armored Probe

Overview

The Bently Nevada 21505-022-055-10-02 is an 8 mm armored eddy current probe with a standard mount, designed for precise vibration and shaft monitoring in industrial applications. Its rugged construction provides enhanced durability while maintaining high measurement accuracy.

General Information

Part Number: 21505-022-055-10-02

Manufacturer / Brand: Bently Nevada

Country of Origin: USA

Series: 7200 / Armored Probe Series

Type: Standard Mount Armored Eddy Current Probe

Probe Diameter: 8 mm

Total Length: 1.0 meter

Technology: Non-contact displacement and vibration measurement using eddy current principles with armored protection

Power Specifications

Not applicable – passive probe

Protection: Armored design protects the probe from mechanical damage and harsh industrial environments

Indicators: None

Communication & Interface

Interface: Compatible with Bently Nevada 7200 and 3300XL monitoring systems

Diagnostics: None (probe only)

Operator Interface: None

Reset Features: Not applicable

Environmental

Operating Temperature: −40 to +120 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: Suitable for industrial environments

Vibration & Shock: Designed to withstand heavy industrial vibration and mechanical stress

Dimensions & Weight

Probe Diameter: 8 mm

Total Length: 1.0 meter

Weight: ~ 0.22 kg
