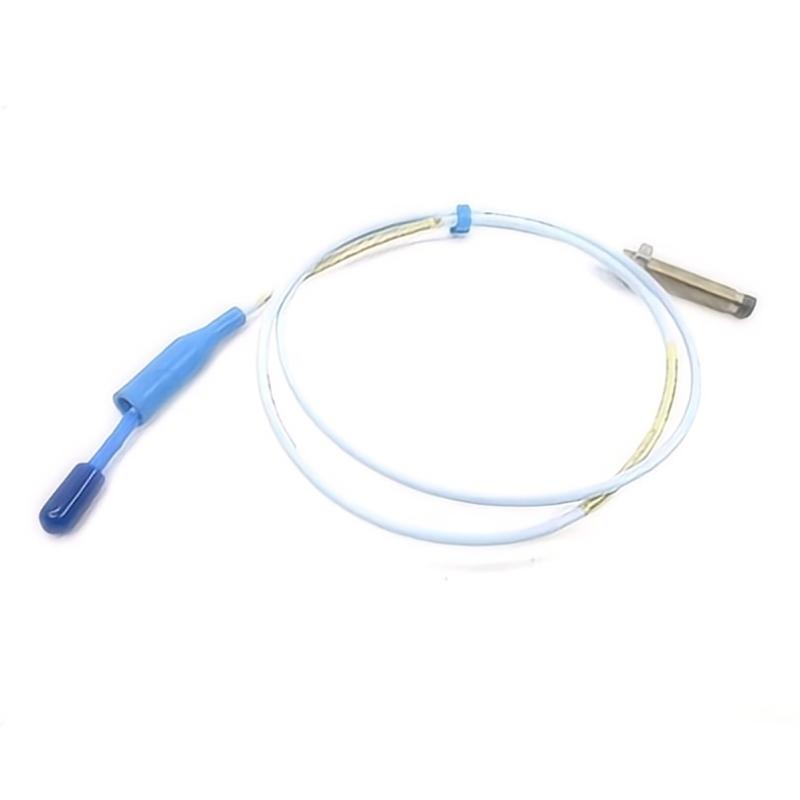

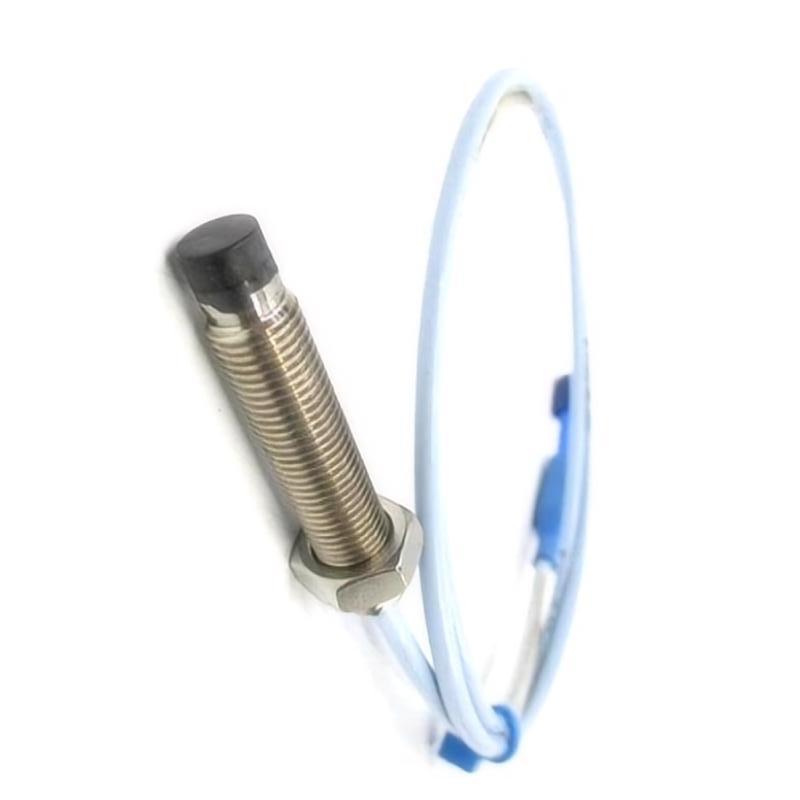

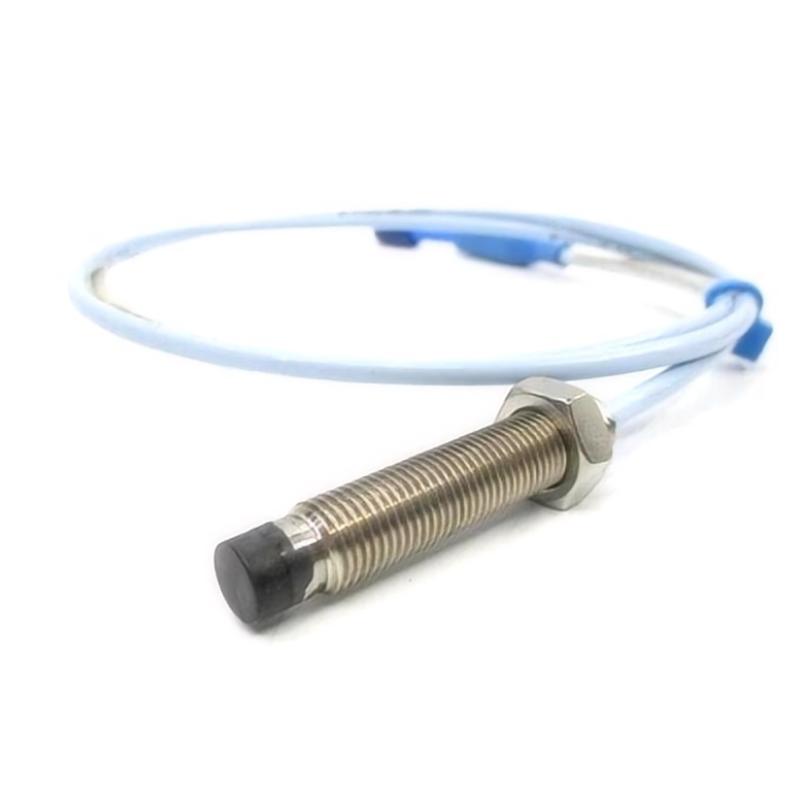

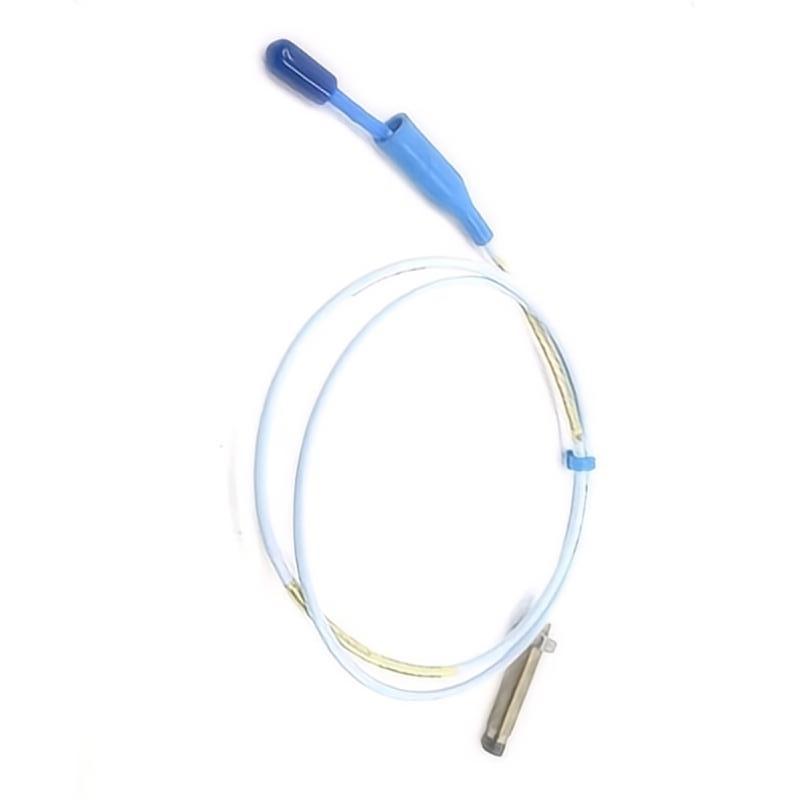

Bently Nevada 330101-00-65-10-11 3300 XL 8 mm Proximity Probe

Overview
The Bently Nevada 3300 XL 8 mm Proximity Probe is a precision sensor for non-contact monitoring of rotating machinery. It measures the gap between the probe tip and the shaft surface, providing reliable vibration and position data to predictive maintenance systems. Designed for use with the 3300 XL monitoring system, it ensures efficient machine protection and operational reliability.

General Information

Part Number: 330101-00-65-10-11

Manufacturer: Bently Nevada

Brand / Country of Origin: Bently Nevada / USA

Series: 3300 XL

Type: Proximity Probe

Sensing Method: Eddy-current displacement sensor

Mounting: Threaded or fixed mounting compatible with standard 3300 XL housings

Technology: Non-contact, high-speed position and vibration detection

Power Specifications

Supply Voltage: Supplied via 3300 XL monitor system

Current Draw: Minimal, compatible with standard 3300 XL electronics

Protection: Short-circuit and overvoltage protection handled by the monitoring system

Indicators: None on probe; status monitored through the 3300 XL system

Communication & Interface

Output Signal: AC displacement signal (mV/mil) compatible with 3300 XL system

Connector Type: Standard 3300 XL connector interface

Diagnostics: Monitored via 3300 XL monitor for open-circuit, grounding, or signal issues

Operator Interface: Signal interpreted and displayed via 3300 XL monitoring unit

Environmental

Operating Temperature: −40 to +120 °C

Humidity: Up to 95% RH, non-condensing

Vibration & Shock: Suitable for high-vibration industrial environments

Protection Rating: IP67 when installed in compatible housings

Dimensions & Weight

Probe Diameter: 8 mm

Total Length: 1.0 meter

Weight: 0.323 kg

Mounting Thread: Standard 3300 XL probe thread
