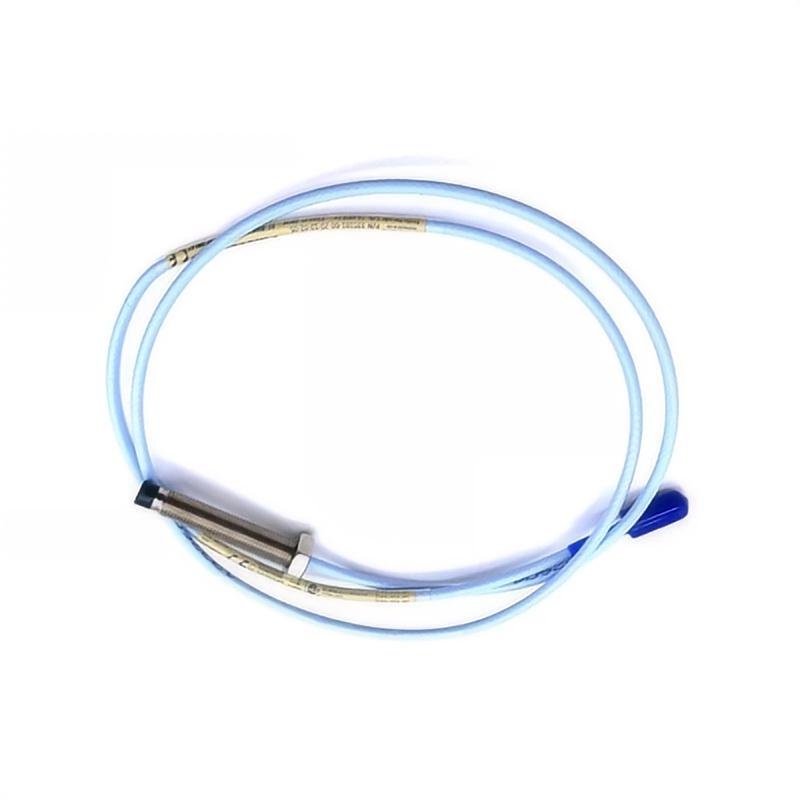

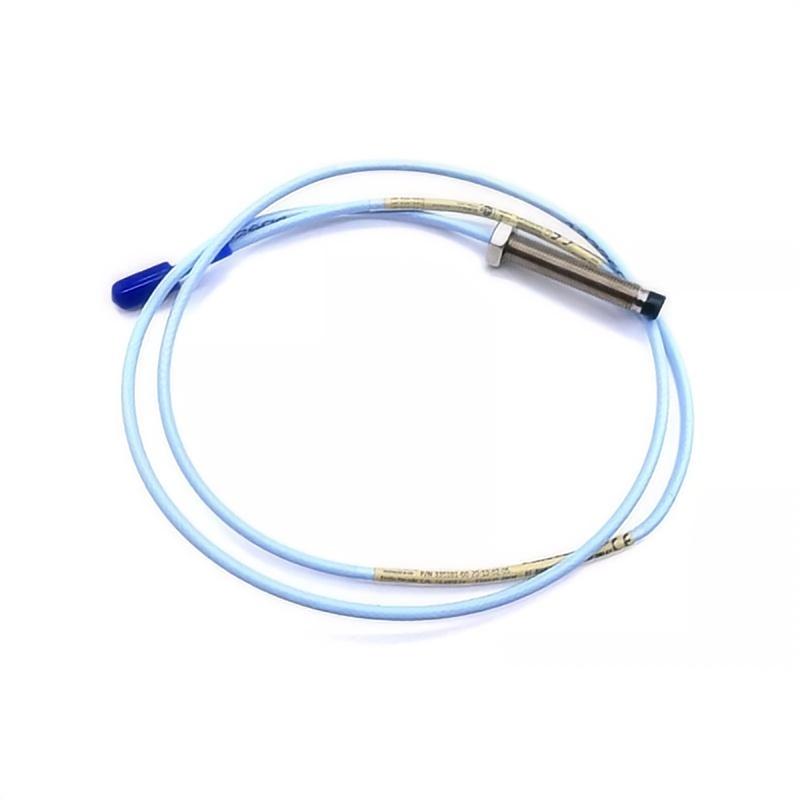

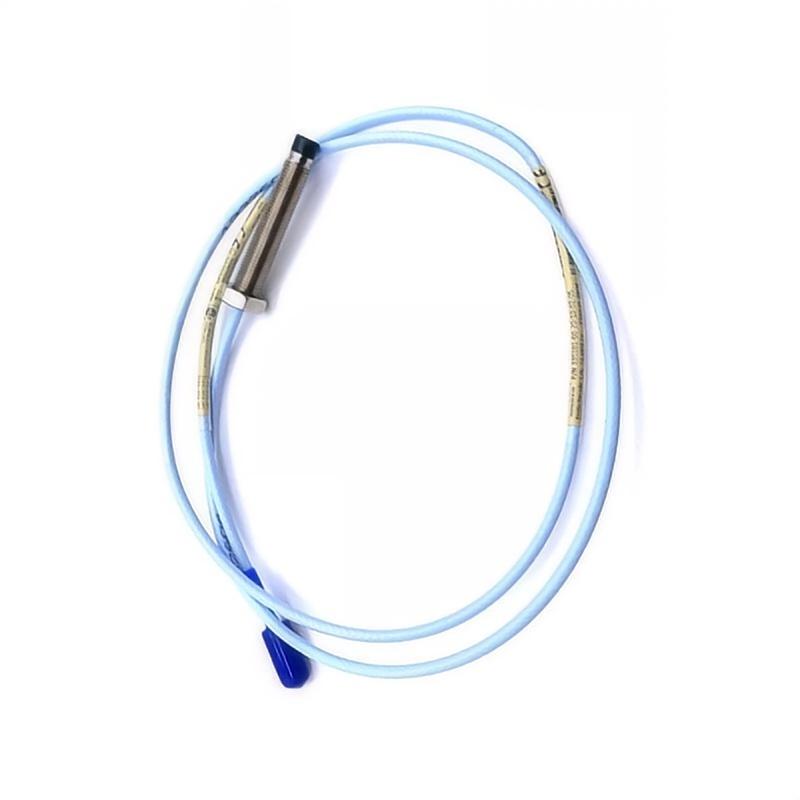

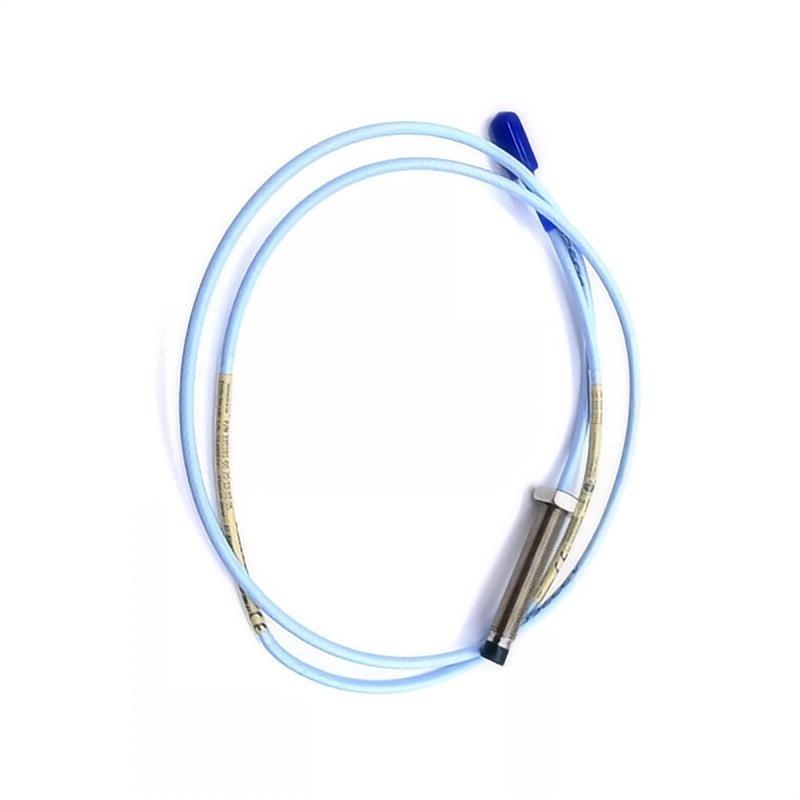

Bently Nevada 330101-30-63-10-02-CH 3300 XL 8 mm Proximity Probe

Overview

The Bently Nevada 330101-30-63-10-02-CH is a 3300 XL series proximity probe designed for precise vibration and position monitoring in rotating machinery. It provides accurate displacement measurement and reliable performance in industrial applications.

General Information

Part Number: 330101-30-63-10-02-CH

Manufacturer: Bently Nevada

Brand / Country of Origin: Bently Nevada / USA

Series: 3300 XL

Type: Proximity Probe

Technology: Non-contact displacement measurement, rugged industrial design

Power Specifications

Supply Voltage: 18–30 V DC (typical for 3300 XL systems)

Power Consumption: Low power, integrated into 3300 XL monitor system

Input Protection: Overvoltage and short-circuit protection within system

Indicators: N/A (probe signals processed by 3300 XL monitor)

Backup Power: N/A

Communication & Interface

Signal Output: AC voltage signal proportional to displacement

Connector Type: Standard Bently Nevada 3300 XL connector

Diagnostics: Signal integrity monitored by 3300 XL monitor

Operator Interface: Indicators and monitoring through the main 3300 XL system

Reset Features: N/A (handled by system controller)

Environmental

Operating Temperature: −40 to +120 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP67 (probe tip), suitable for industrial and harsh environments

Vibration & Shock: Tested to ISO 7919 standards for rotating machinery

Dimensions & Weight

Probe Diameter: 8 mm

Total Length: 1.0 meter

Weight: 0.323 kg
