Bently Nevada 3500/94M 147663‑01 | VGA Display I/O Module Hot Items

Overview

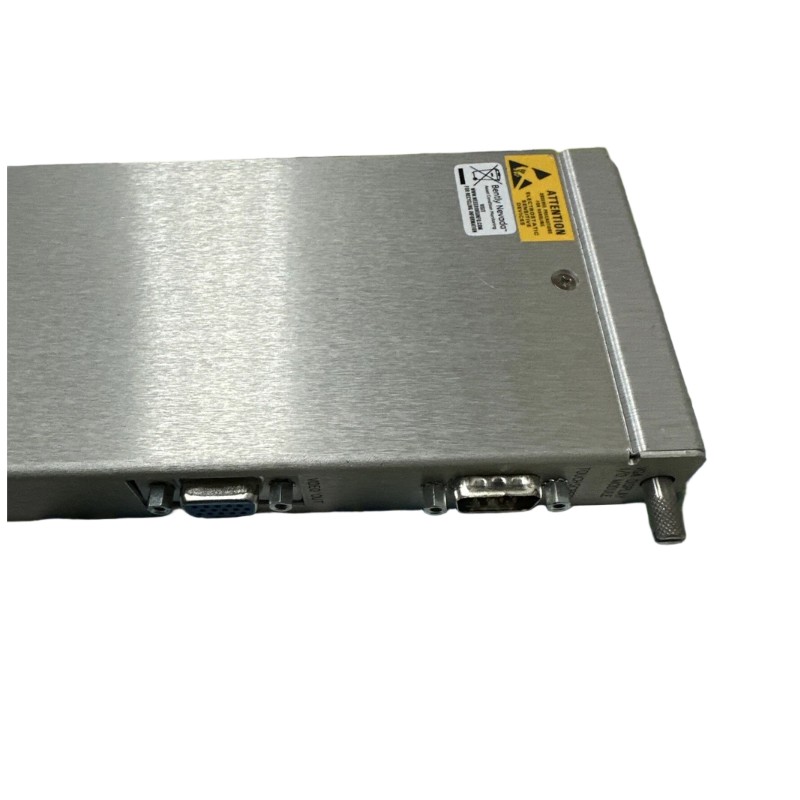

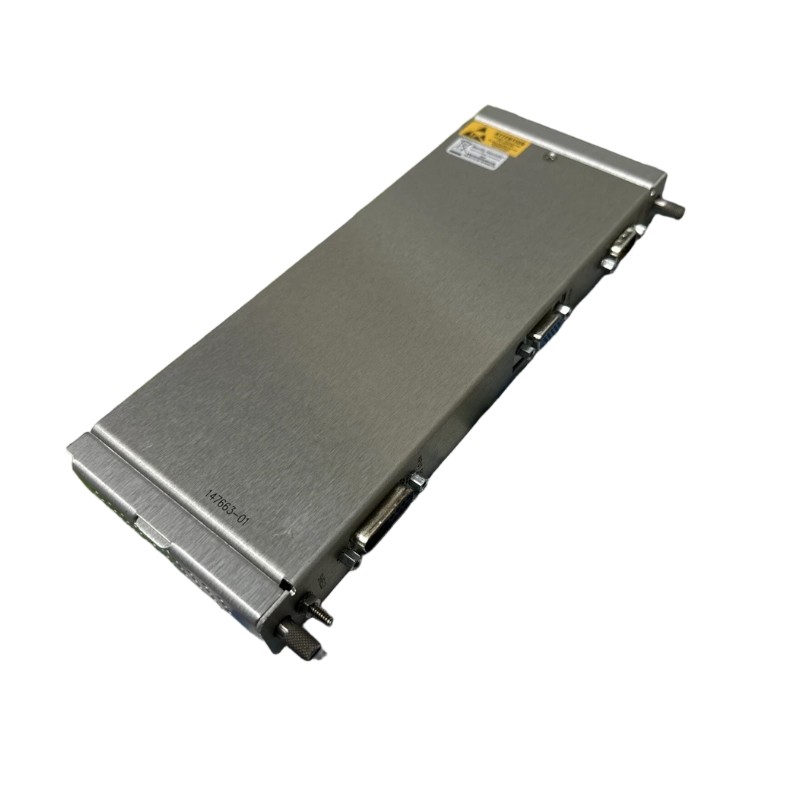

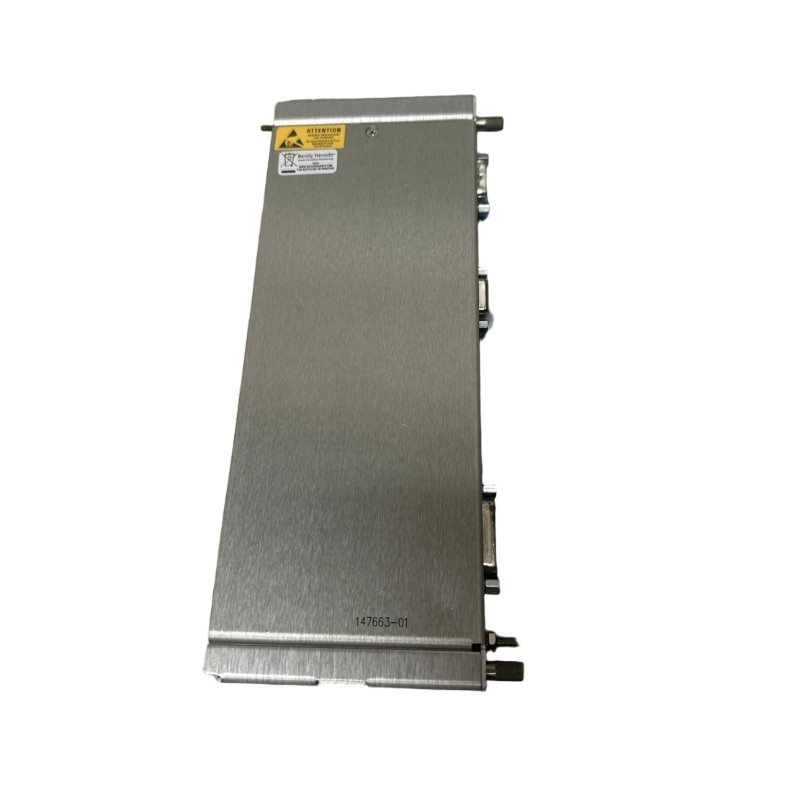

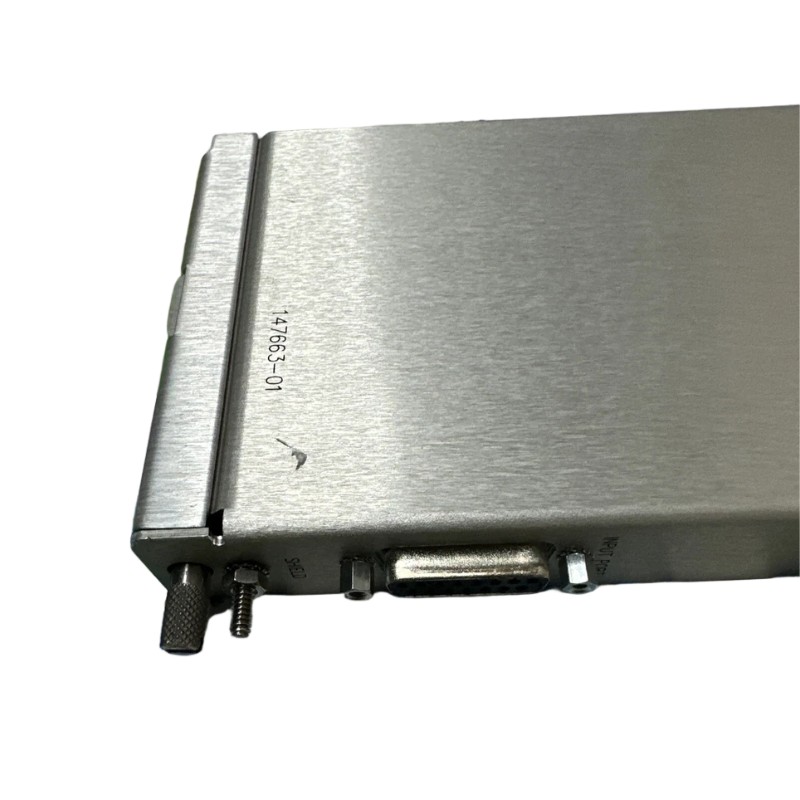

The 147663‑01 module from Bently Nevada is part of the 3500/94M system, serving as a VGA display input/output interface. It enables the display of system data, alarms and diagnostics on a standard monitor via touch‑screen technology. Brand: Bently Nevada. Country of Origin: USA.

General Information
Part Number: 147663‑01
Manufacturer: Bently Nevada
Brand: Bently Nevada
Country of Origin: United States of America
Series / Model: 3500/94M
Type: VGA Display I/O Module
Function: Provides the physical interface for VGA display in the 3500 rack system, enabling operator interaction and system monitoring.

Power Specifications
Power Consumption: Up to 15.5 W maximum for combined display unit & interface module, with the display unit itself at approximately 5.6 W.
Supply Interface: +24 V DC nominal supply typical for rack modules in the 3500/94 series.

Communication & Interface
Video Inputs: Accepts VGA inputs from the 3500 rack I/O for monitoring and control.
Display Output: Touch‑screen capable monitor attached to module; display location can be remote (up to ~10 m from rack).
Operator Interface: Touch‑screen menus, custom screen setup (up to nine custom screens), local display of alarm, event and channel data.

Environmental
Operating Temperature: –20 °C to +65 °C
Storage Temperature: –40 °C to +85 °C
Humidity: Up to 95% RH, non‑condensing
Protection Rating: IP20 when installed inside an industrial cabinet.

Dimensions & Weight
Dimensions (H × W × D): 241.3 x 24.4 x 99.1 mm
Weight:  0.34 kg

All items are original and new, with sufficient stock and active customer support anytime.
