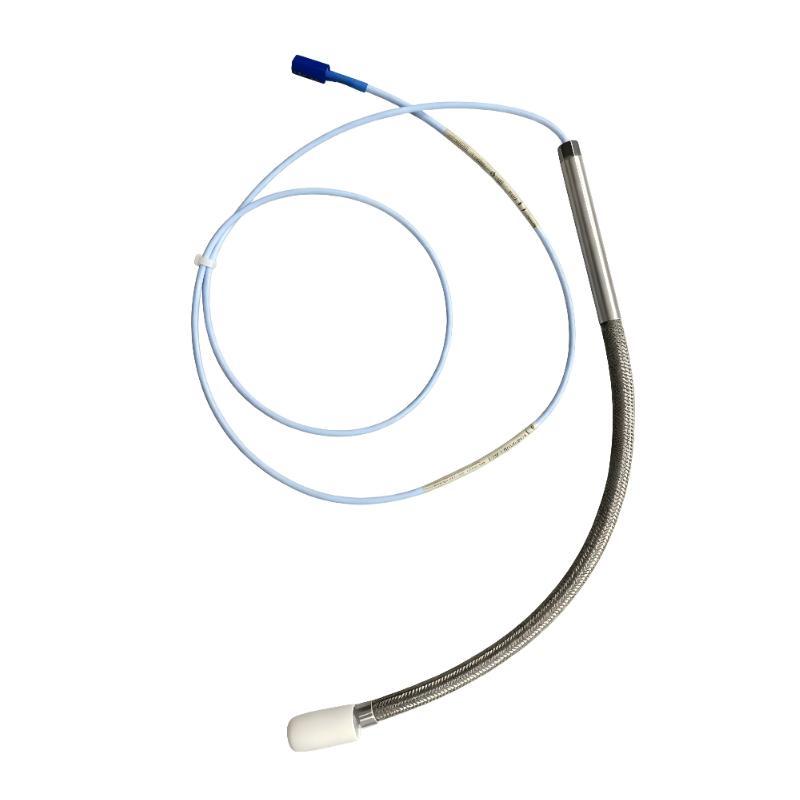

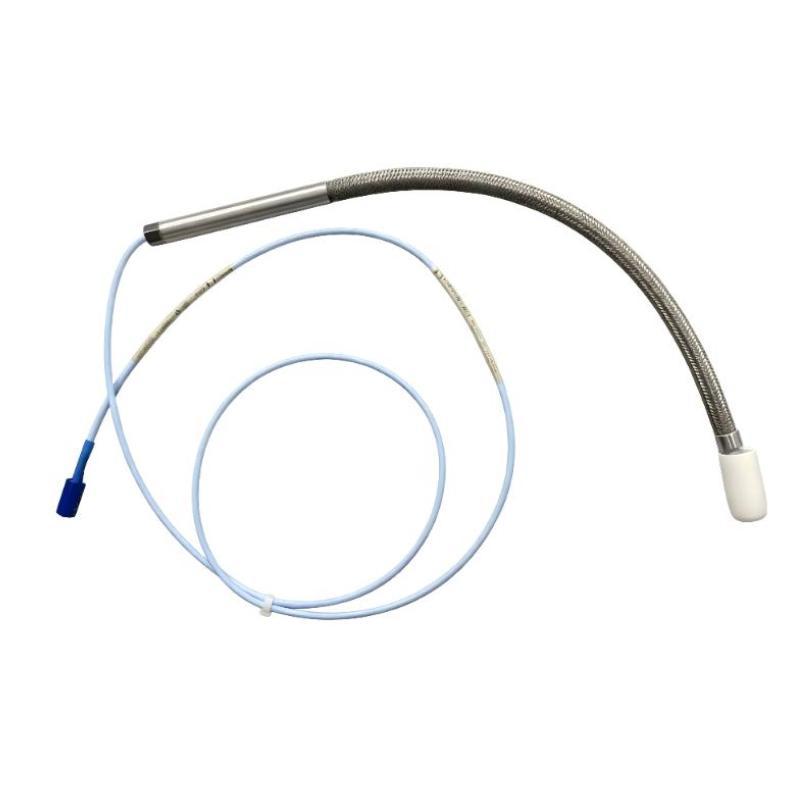

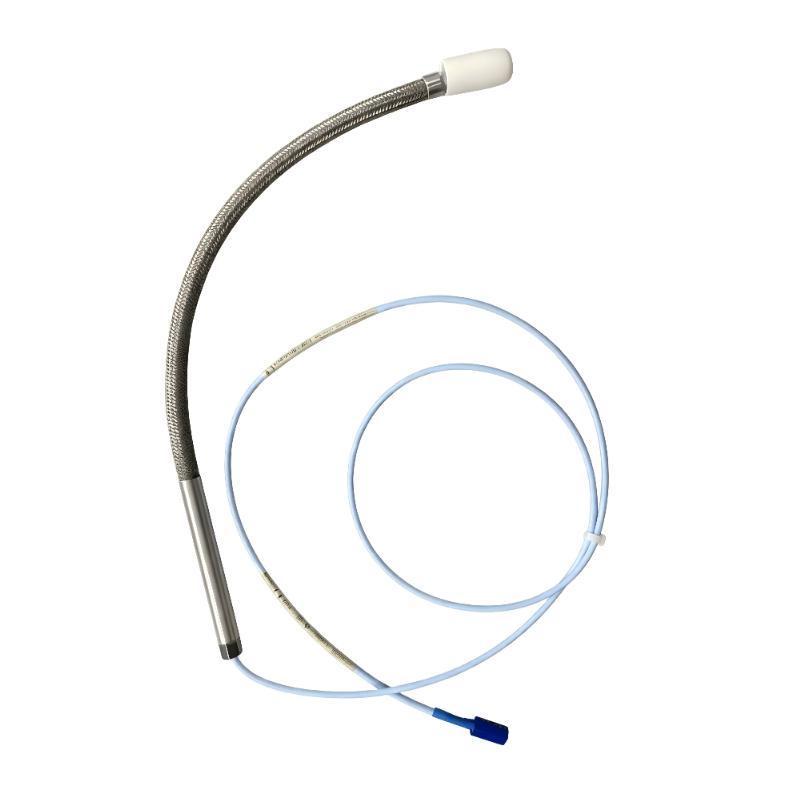

Bently Nevada 129716-173-037-15-05 3300 XL Proximity Sensor

Overview

The Bently Nevada 129716-173-037-15-05 is a 3300 XL proximity sensor designed for non-contact measurement of shaft vibration and displacement in rotating machinery monitoring systems. It provides accurate and reliable vibration signals for machinery protection, condition monitoring, and predictive maintenance applications.

General Information

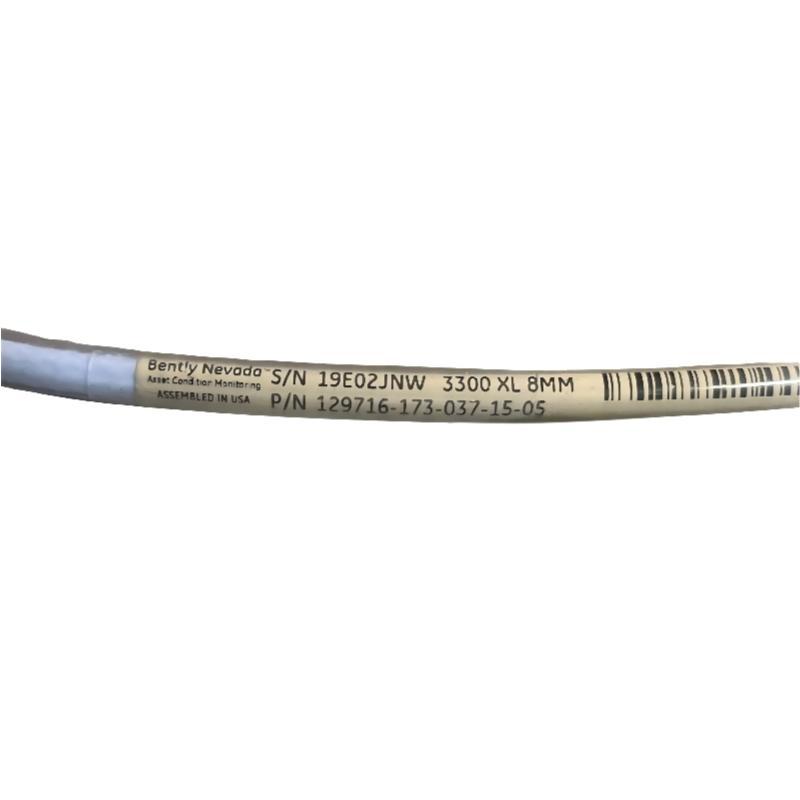

Part Number: 129716-173-037-15-05

Manufacturer: Bently Nevada

Brand: Bently Nevada

Country of Origin: USA

Series: 3300 XL Proximity Sensors

Type: Proximity Sensor

Application: Machinery vibration monitoring, shaft displacement measurement, and rotating equipment protection

Sensor Head Diameter: 8 mm

Technology: Eddy current proximity sensing technology

Function: Detects relative shaft movement and provides displacement measurement signals

Design: Non-contact sensor construction for high-precision machinery monitoring

Power Specifications

Supply Voltage: −24 V DC nominal system supply

Power Consumption: Low power sensor operation

Signal Output: Proportional voltage output related to shaft displacement

Measurement Method: Eddy current sensing for accurate position detection

Protection: Reverse polarity and industrial electrical protection through compatible systems

Operating Principle: Generates vibration and displacement signals through electromagnetic field measurement

Communication & Interface

Interface Type: Proximity sensor signal interface

Connection Method: Coaxial cable connection to compatible monitoring systems

Signal Transmission: Transfers shaft vibration and displacement data to monitoring modules

System Compatibility: Designed for use with Bently Nevada 3300 XL monitoring systems

Data Function: Provides real-time machinery condition feedback

Diagnostics: Supports fault detection and equipment health monitoring through connected protection systems

Environmental

Operating Temperature: −35 to +180 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Installation Environment: Industrial rotating machinery, turbines, compressors, and monitoring systems

Protection Rating: Industrial sensor design for harsh operating conditions

Mechanical Design: Compact and durable construction for continuous vibration monitoring

Dimensions & Weight

Sensor Head Diameter: 8 mm

Shipping Weight: 3 kg
