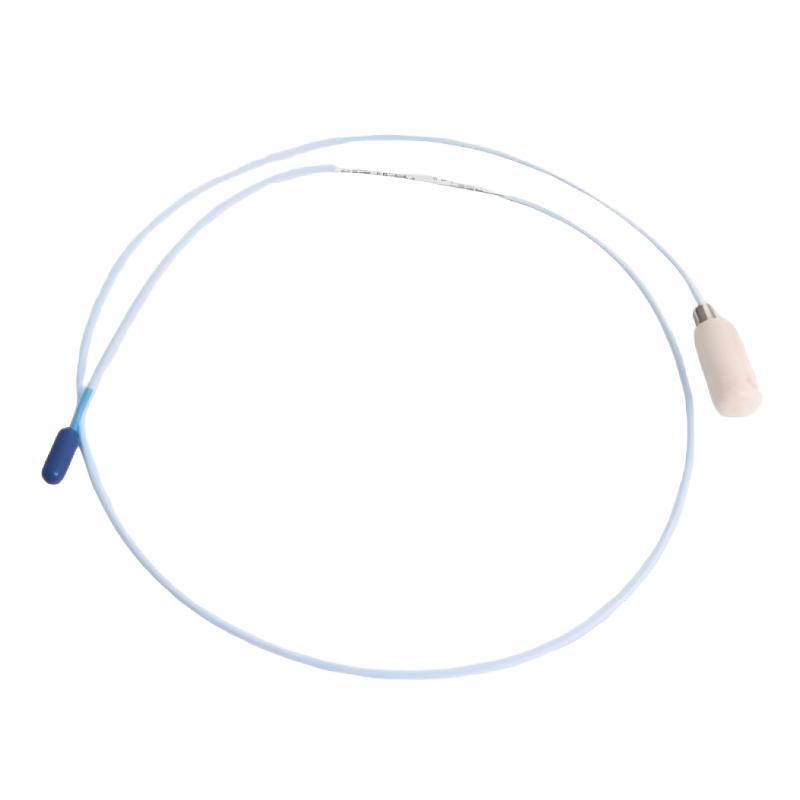

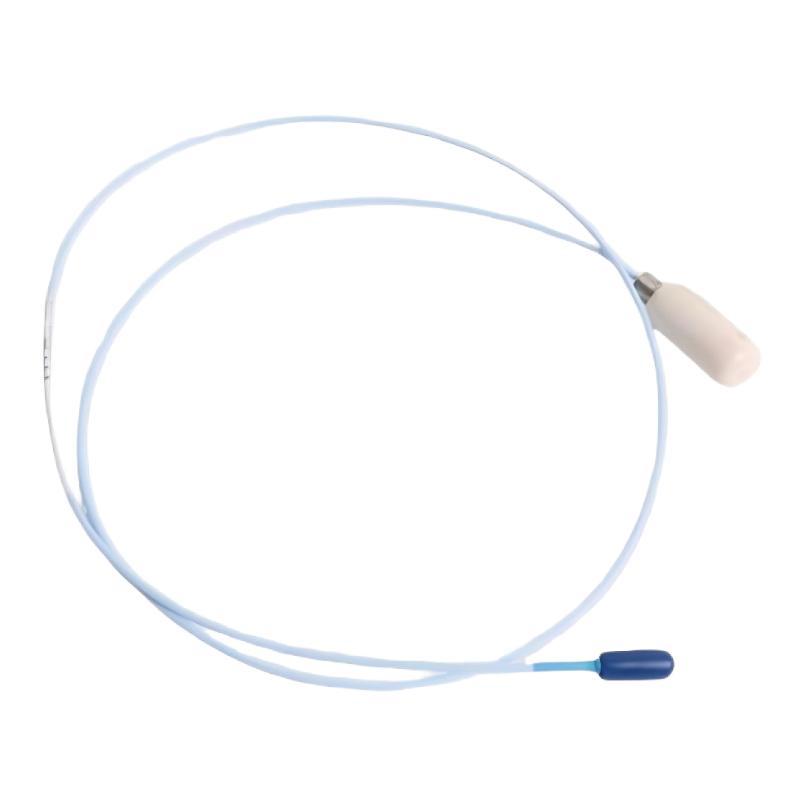

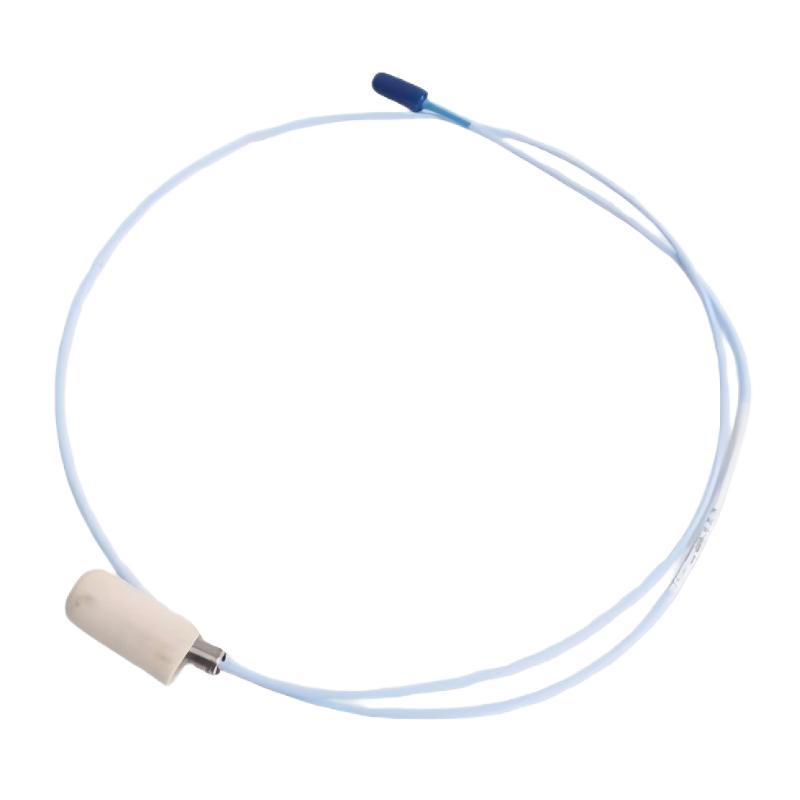

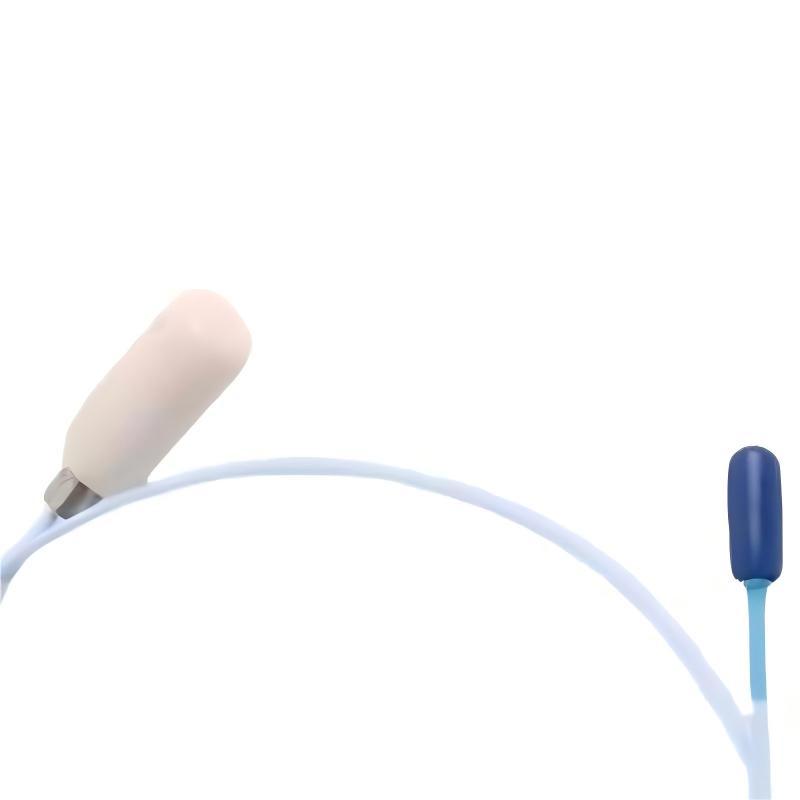

Bently Nevada 146054-12-05-02-05 3300 XL Ceramic Cap Probe

Overview

The Bently Nevada 146054-12-05-02-05 is a 3300 XL ceramic cap probe designed for precise vibration and displacement measurement in rotating machinery monitoring systems. It provides reliable non-contact sensing performance for machinery protection, condition monitoring, and predictive maintenance applications in industrial environments.

General Information

Part Number: 146054-12-05-02-05

Manufacturer: Bently Nevada

Brand: Bently Nevada

Country of Origin: USA

Series: 3300 XL Proximity Sensors

Type: Ceramic Cap Probe

Application: Rotating machinery vibration monitoring, shaft displacement measurement, and equipment protection

Probe Type: Eddy current proximity probe

Total Length: 0.5 meters

Technology: Non-contact displacement sensing technology with ceramic tip construction

Function: Measures shaft position and vibration signals for machinery condition monitoring

Design: High-temperature resistant probe structure for demanding industrial applications

Power Specifications

Supply Voltage: −24 V DC nominal system supply

Power Consumption: Low-power sensor operation

Signal Output: Proportional voltage output related to shaft displacement

Measurement Method: Eddy current sensing technology

Protection: Reverse polarity and electrical protection through compatible monitoring systems

Operating Principle: Detects changes in electromagnetic fields caused by target movement

Communication & Interface

Interface Type: Proximity probe signal interface

Connection Method: Coaxial cable connection to compatible monitoring modules

Signal Transmission: Transfers vibration and displacement signals to machinery protection systems

System Compatibility: Designed for use with Bently Nevada 3300 XL monitoring systems

Data Function: Provides real-time shaft vibration and position feedback

Diagnostics: Supports machinery condition analysis and fault monitoring

Environmental

Operating Temperature: −35 to +180 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Installation Environment: Turbines, compressors, rotating machinery, and industrial monitoring systems

Protection Rating: Industrial sensor design for harsh operating conditions

Mechanical Design: Durable ceramic cap construction for reliable operation in high-temperature applications

Dimensions & Weight

Total Length: 0.5 meters

Shipping Weight: 3 kg
