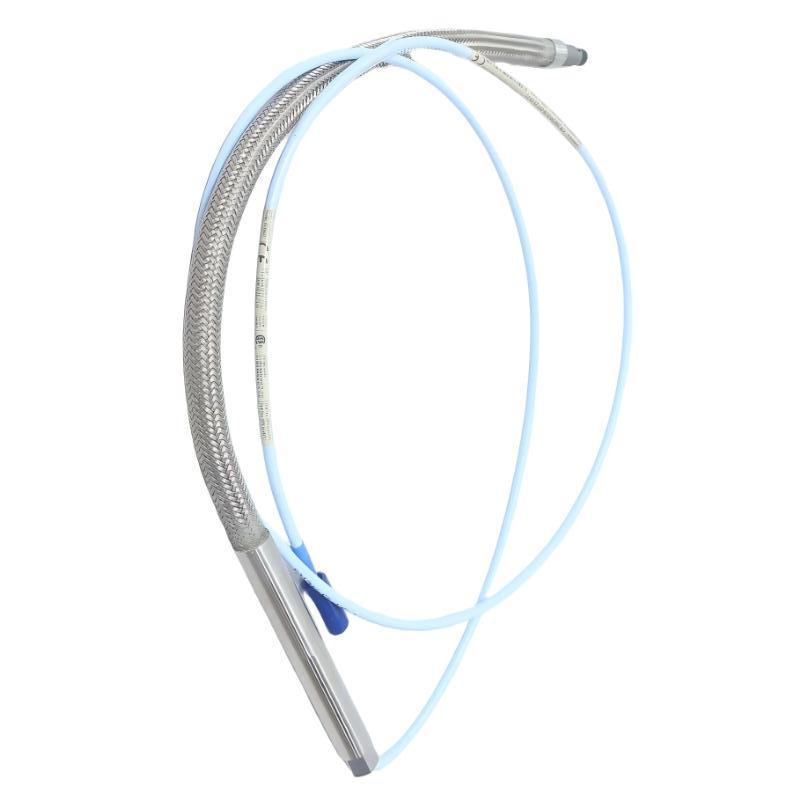

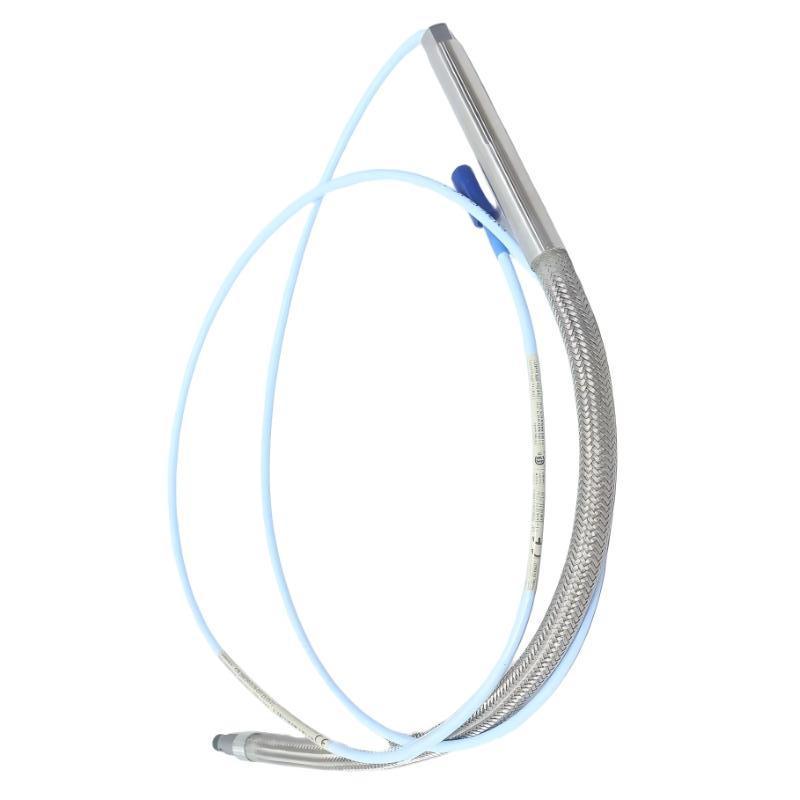

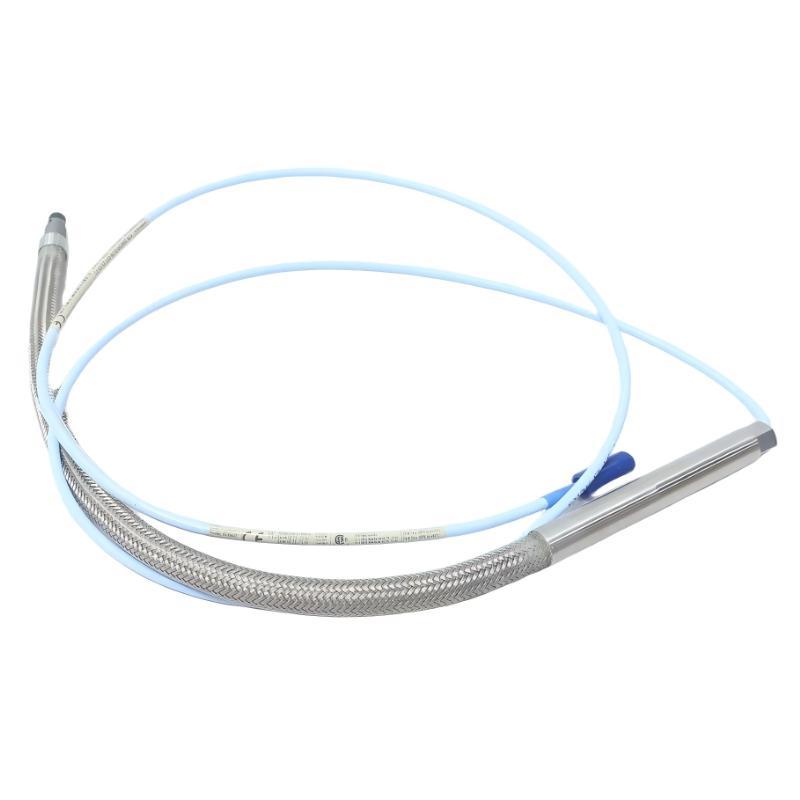

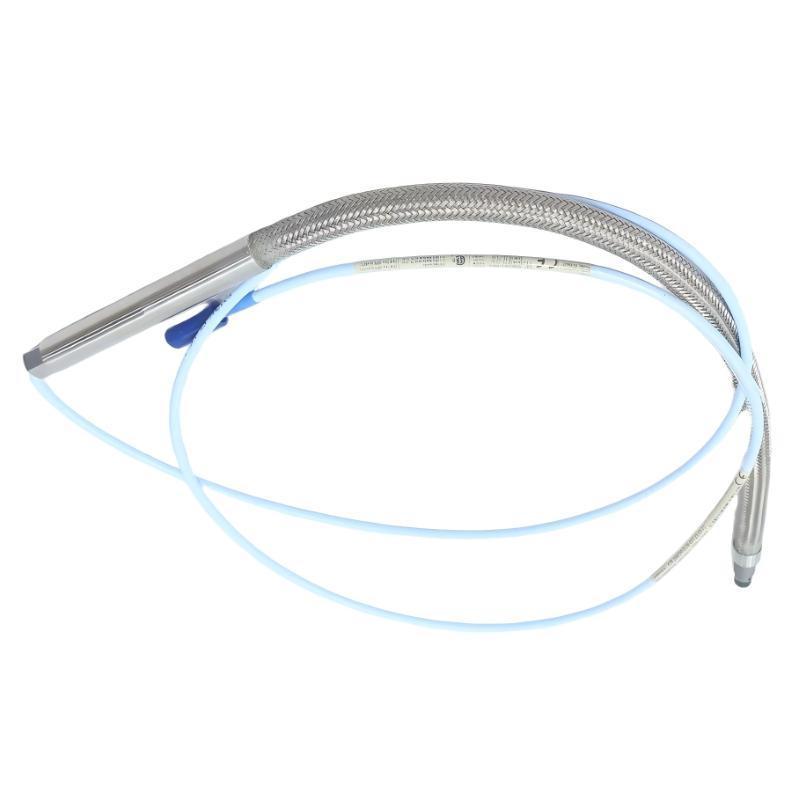

Bently Nevada 168209-479-040-15-05-01 3300 XL 8 mm Probe

Overview

The Bently Nevada 168209-479-040-15-05-01 is a 3300 XL 8 mm proximity probe designed for accurate shaft vibration and displacement measurement in rotating machinery monitoring systems. It provides reliable non-contact sensing performance for machinery protection, condition monitoring, and predictive maintenance applications.

General Information

Part Number: 168209-479-040-15-05-01

Manufacturer: Bently Nevada

Brand: Bently Nevada

Country of Origin: USA

Series: 3300 XL Proximity Sensors

Type: 8 mm Proximity Probe

Application: Rotating machinery vibration monitoring, shaft displacement measurement, and equipment protection

Probe Type: 3/8-24 FLEX SHORT

Sensor Diameter: 8 mm

Technology: Eddy current proximity sensing technology

Function: Measures shaft vibration and relative displacement for machinery condition monitoring

Design: Compact flexible probe construction for installation in limited-space applications

Power Specifications

Supply Voltage: −24 V DC nominal system supply

Power Consumption: Low-power sensor operation

Signal Output: Proportional voltage output related to shaft displacement

Measurement Method: Eddy current sensing technology

Protection: Reverse polarity and electrical protection through compatible monitoring systems

Operating Principle: Detects shaft movement through electromagnetic field variation

Communication & Interface

Interface Type: Proximity probe signal interface

Connection Method: Coaxial cable connection to compatible monitoring modules

Signal Transmission: Transfers vibration and displacement signals to machinery protection systems

System Compatibility: Designed for use with Bently Nevada 3300 XL monitoring systems

Data Function: Provides real-time shaft position and vibration feedback

Diagnostics: Supports machinery condition analysis and fault monitoring

Environmental

Operating Temperature: −35 to +180 °C

Storage Temperature: −40 to +85 °C

Humidity: Up to 95% RH, non-condensing

Installation Environment: Turbines, compressors, motors, and industrial rotating equipment

Protection Rating: Industrial sensor design for harsh operating conditions

Mechanical Design: Flexible and durable probe construction for reliable long-term operation

Dimensions & Weight

Probe Type: 3/8-24 FLEX SHORT

Sensor Diameter: 8 mm

Shipping Weight: 3 kg

New In Stock!
