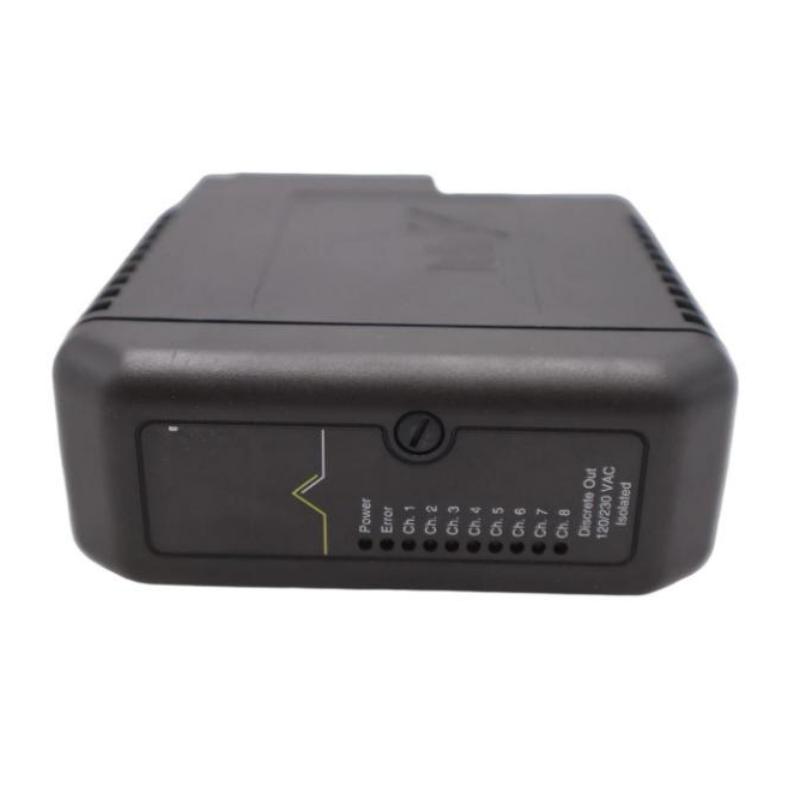

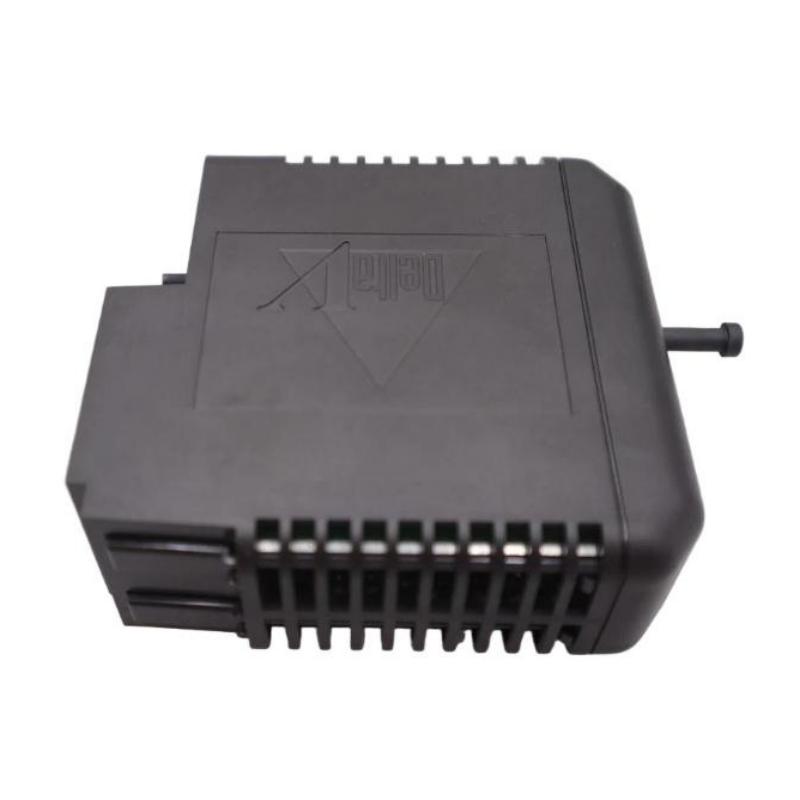

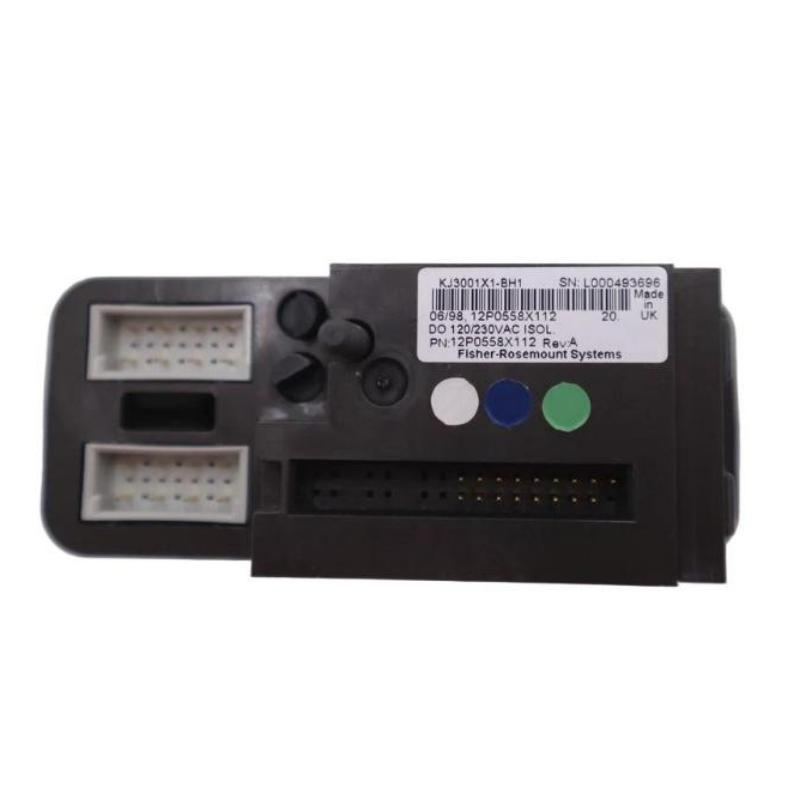

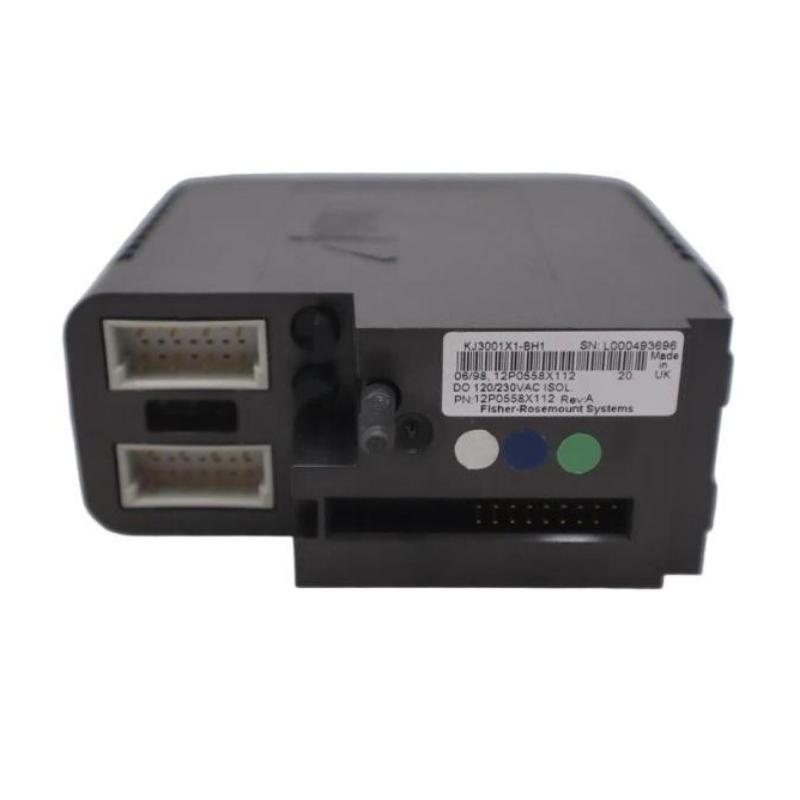

Emerson KJ3001X1-BH1 Output Module

Overview

The Emerson KJ3001X1-BH1 is an Output Module designed for industrial automation and process control systems. It provides an interface between the control system and field devices, allowing controller commands to be transmitted to connected equipment for process operation and control.

General Information

Part Number: KJ3001X1-BH1

Manufacturer: Emerson

Brand: Emerson

Product Type: Output Module

System: Industrial Automation and Process Control

Function: Field output signal control

Application: Digital output and field device control

Typical Applications: Actuators, relays, solenoids, indicators, alarms, and other controlled field devices

Country of Origin: United States

Power Specifications

Output Type: Discrete control output

Power Requirement: Supplied through the associated control system and field circuit

Output Function: Transfers control commands to connected field devices

Electrical Interface: Designed for connection to external field loads

Signal Control: Provides controlled output states according to system commands

The KJ3001X1-BH1 operates as an output interface, allowing the control system to command connected field equipment according to the configured process logic.

Communication & Interface

Interface Type: Industrial control output interface

Output Signal: Discrete field control signal

Field Interface: Connection to actuators, relays, solenoids, indicators, and other field devices

Signal Processing: Converts controller commands into corresponding output states

Controller Interface: Provides an output path between the control system and field equipment

Diagnostics: Supports monitoring of output circuit operating conditions

The module enables reliable transmission of control commands to field devices for process control, sequencing, alarm functions, and equipment operation.

Environmental

Installation Environment: Industrial control and process automation systems

Operating Environment: Suitable for industrial control cabinet installation

Storage Environment: Suitable for controlled industrial equipment storage

Humidity: Suitable for standard industrial automation environments

Installation: Designed for integration into the associated control system

Environmental Design: Intended for continuous operation in industrial process control applications

Dimensions & Weight

Dimensions (H × W × D): 107 × 41 × 105 mm

Weight: 0.181 kg

Reliable Field Control — Built for Efficient Process Automation!
