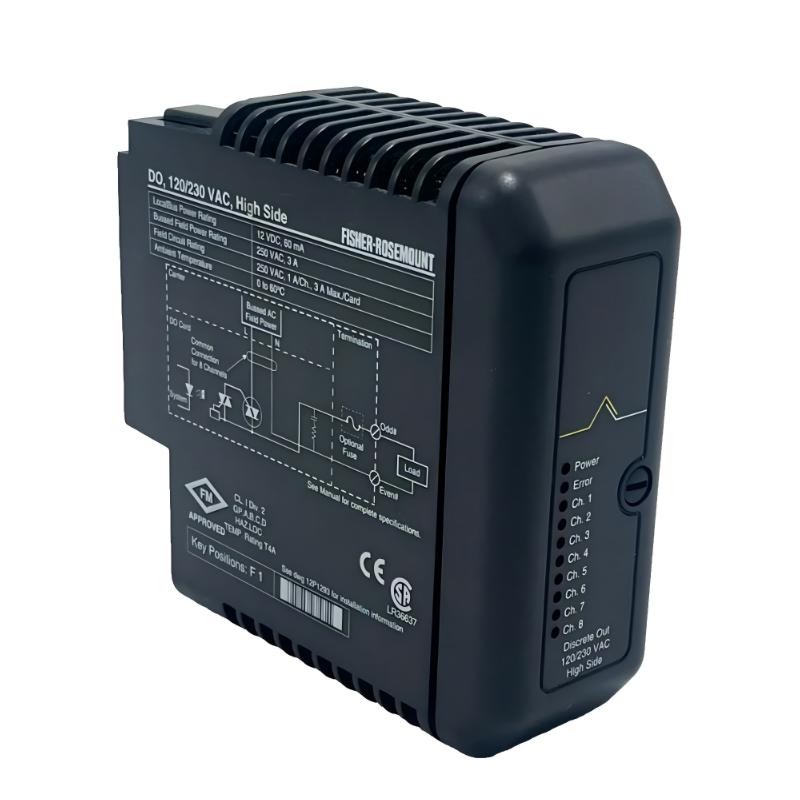

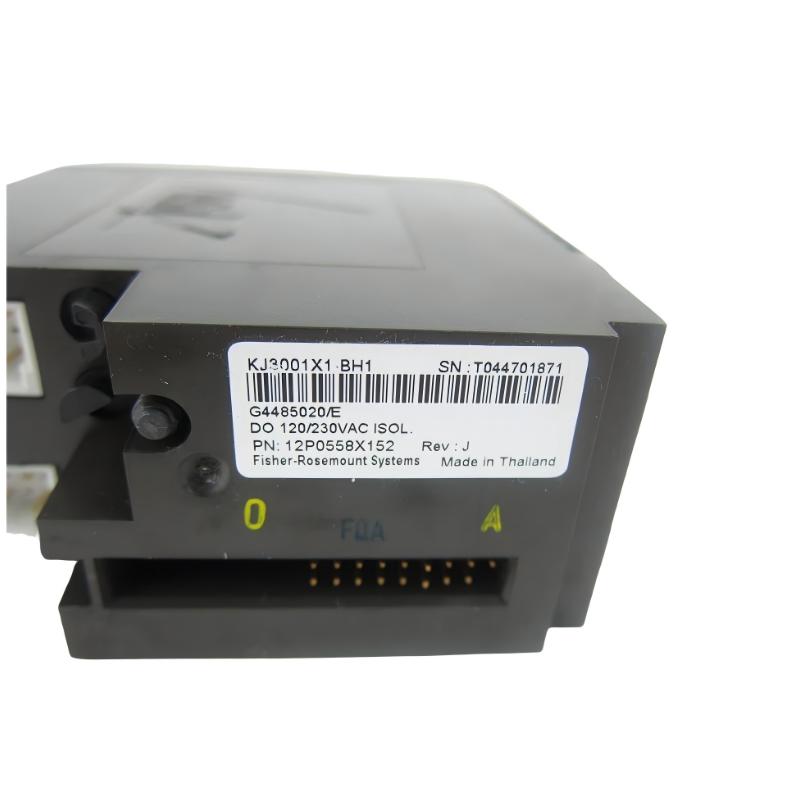

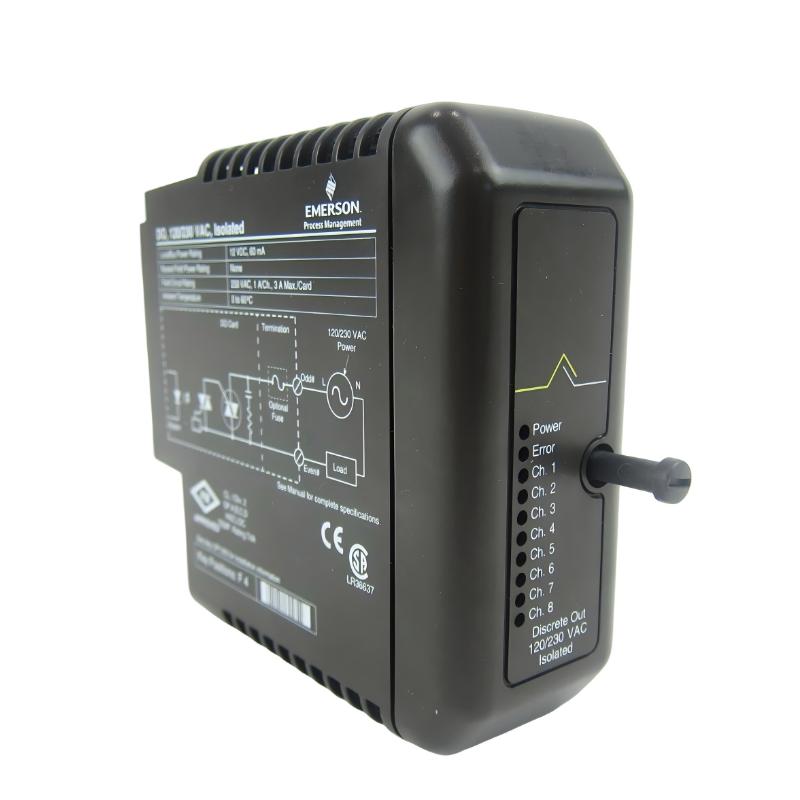

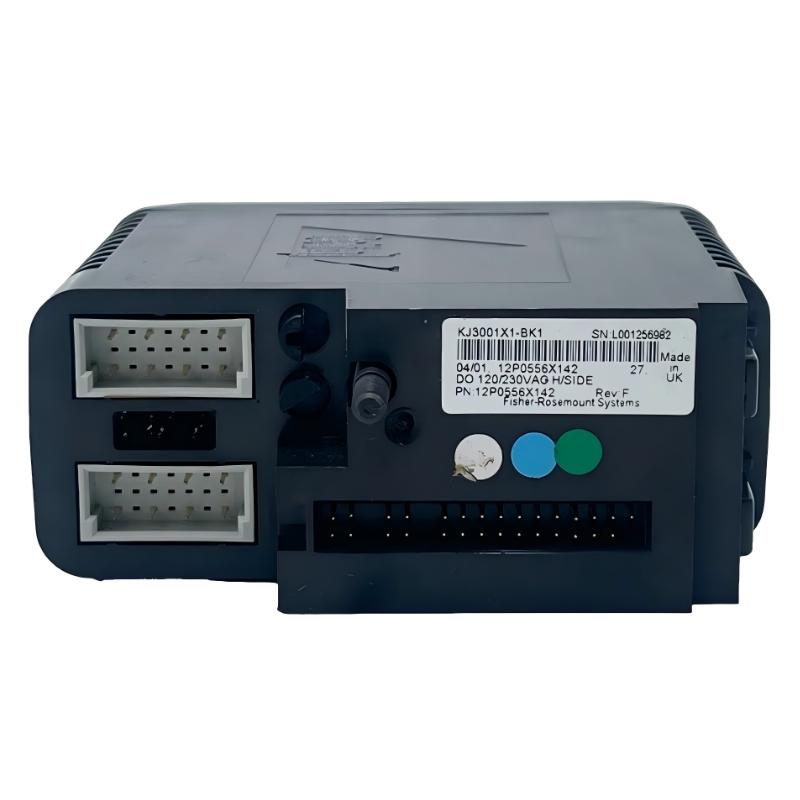

Emerson KJ3001X1-BH1+KJ3001X1-BK1 Input/Output Module

Overview

The Emerson KJ3001X1-BH1+KJ3001X1-BK1 is an Input/Output Module combination designed for industrial automation and process control systems. It provides a practical interface for exchanging field input and output signals with the control system, supporting monitoring and control of connected process equipment.

General Information

Part Number: KJ3001X1-BH1 + KJ3001X1-BK1

Manufacturer: Emerson

Brand: Emerson

Product Type: Input/Output Module

System: Industrial Automation and Process Control

Function: Field signal input and output interface

Application: Process monitoring and field device control

Typical Applications: Digital field signal acquisition, equipment status monitoring, actuator control, alarms, and interlocks

Country of Origin: United States

Power Specifications

Signal Type: Discrete input and output signals

Power Requirement: Supplied through the associated control system and field circuits

Input Function: Receives digital status information from connected field devices

Output Function: Transfers control commands to connected field devices

Electrical Interface: Designed for integration with the associated control system and field wiring

The combined KJ3001X1-BH1 and KJ3001X1-BK1 arrangement supports both signal acquisition and field control within the same industrial automation architecture.

Communication & Interface

Interface Type: Industrial digital I/O interface

Input Signal: Discrete field status signals

Output Signal: Discrete control signals

Field Interface: Connects switches, contacts, alarms, actuators, relays, and other field devices

Controller Interface: Exchanges field status and control information with the associated control system

Signal Processing: Supports transfer of digital input and output states between the field and control architecture

The Input/Output Module combination provides a convenient interface for process monitoring, sequencing, alarm handling, interlocks, and equipment control.

Environmental

Installation Environment: Industrial control and process automation systems

Operating Environment: Suitable for industrial control cabinet installation

Storage Environment: Suitable for controlled industrial equipment storage

Humidity: Suitable for standard industrial automation environments

Installation: Designed for integration into the associated control system

Environmental Design: Intended for continuous operation in industrial process control applications

Dimensions & Weight

Dimensions (H × W × D): 107 × 41 × 105 mm

Weight: 0.181 kg

Flexible I/O Integration — Ready for Reliable Process Control!
