Overview

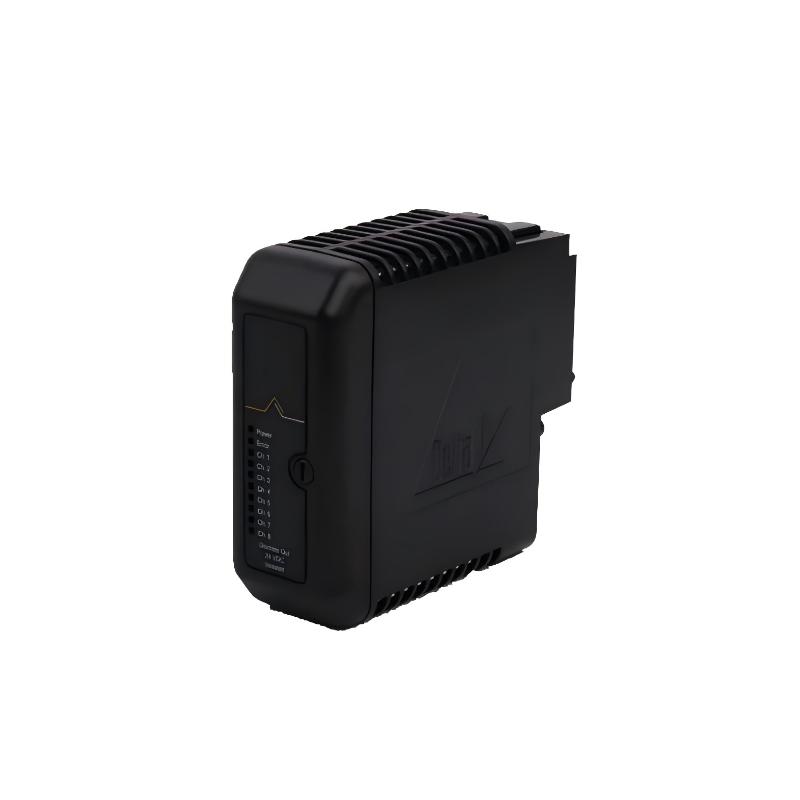

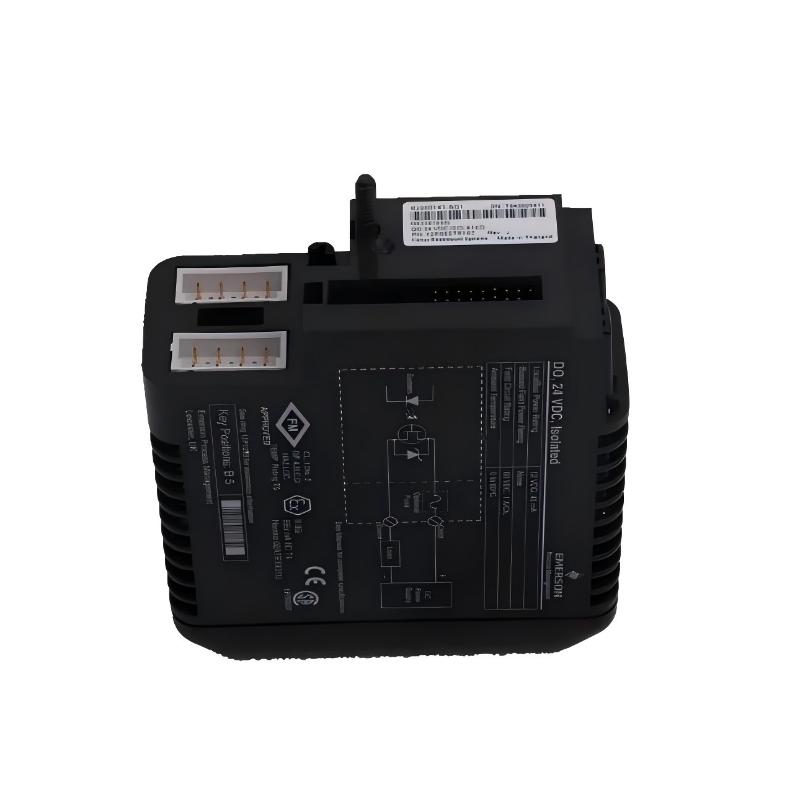

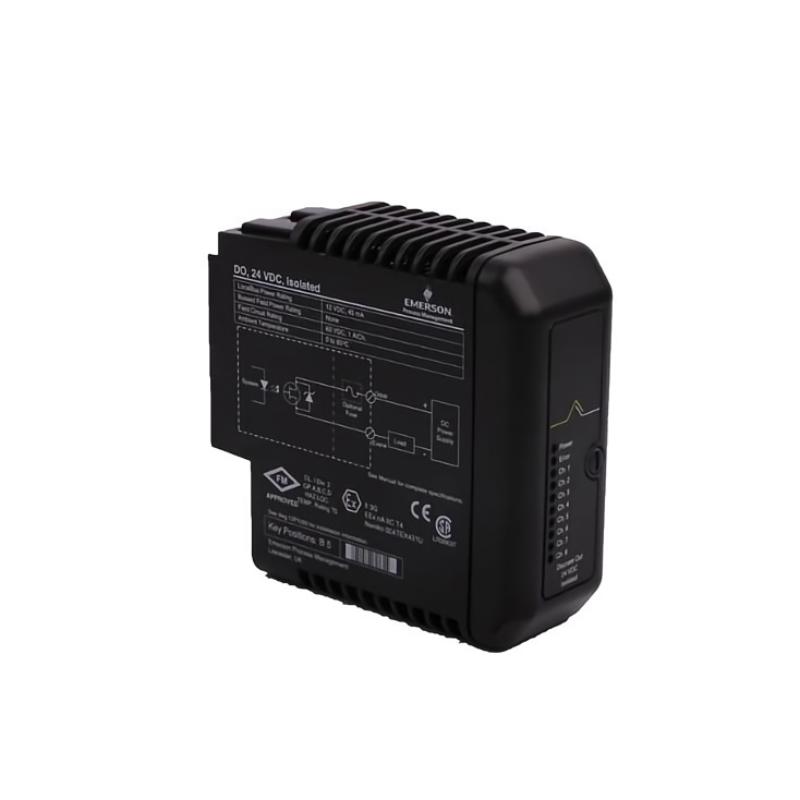

The Emerson KJ3001X1-BG1 12P0557X162 Discrete Output Isolation module is designed to provide reliable and isolated digital output control in industrial automation systems. This module ensures that discrete signals are properly isolated from other parts of the system, helping to protect sensitive components and ensuring stable performance in demanding environments.
General Information
Part Number: KJ3001X1-BG1 12P0557X162
Manufacturer: Emerson
Series: Discrete Output Isolation
Type: Isolation Module
Application: Signal isolation and discrete output control
Country of Origin: USA
Power Specifications
Supply Voltage: 24 V DC
Power Consumption: ≤ 5 W
Input: Powered from the control system
Protection: Overvoltage, overcurrent, and short-circuit protection
Communication & Interface
Interface: Integrated with Emerson control systems
Output Type: Discrete digital outputs
Diagnostics: LED indicators for output status and system health
Reset Features: Soft reset for system maintenance
Environmental
Operating Temperature: −20 to +60 °C
Humidity: 5% to 95%, non-condensing
Protection Rating: IP20, suitable for panel-mount installations
Dimensions & Weight
Dimensions (L × W × H): 107 × 41 × 105 mm
Weight: 0.19 kg
