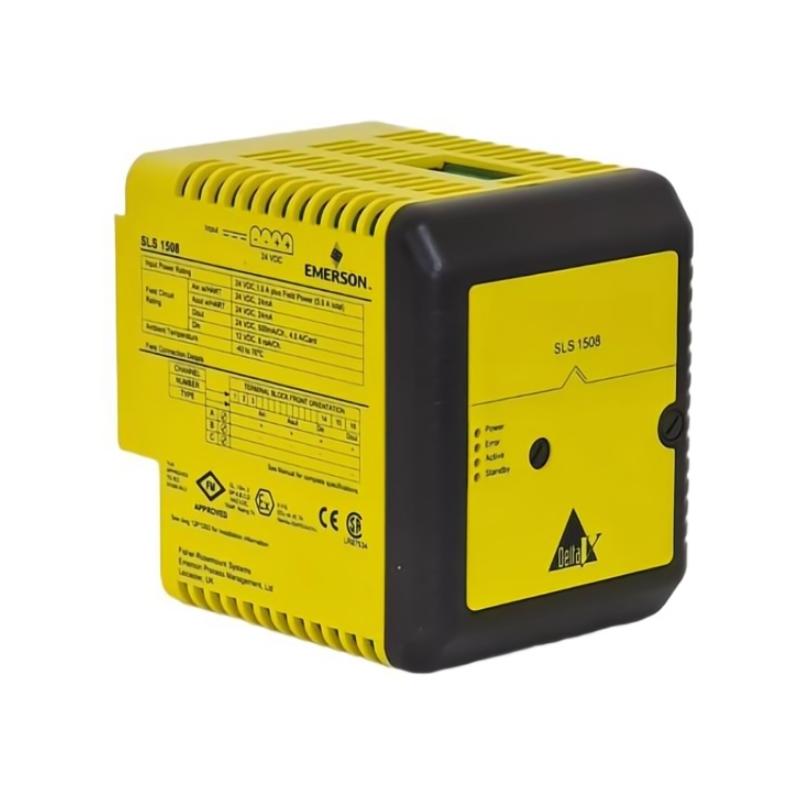

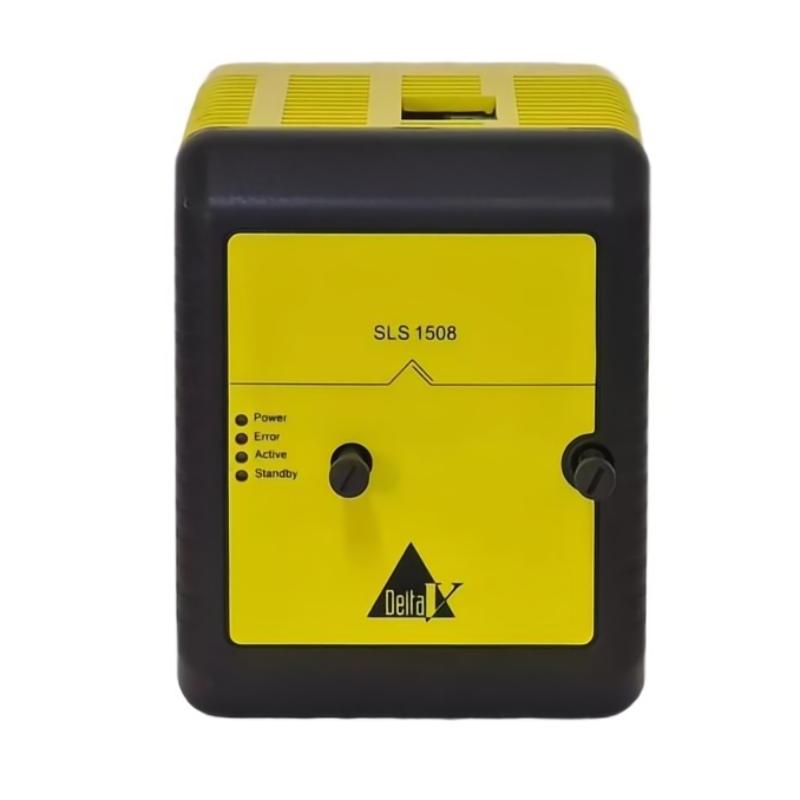

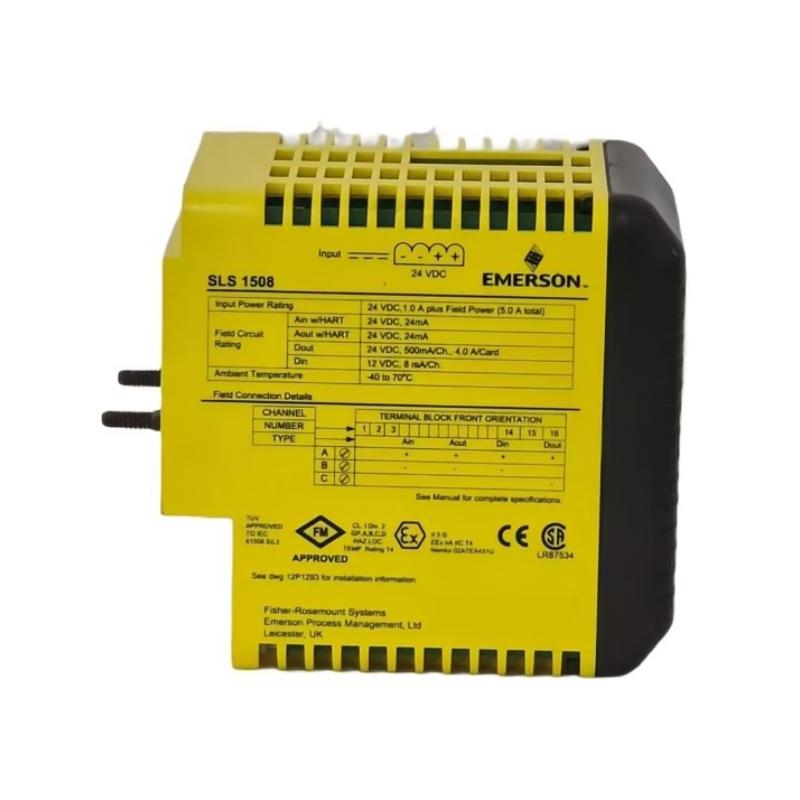

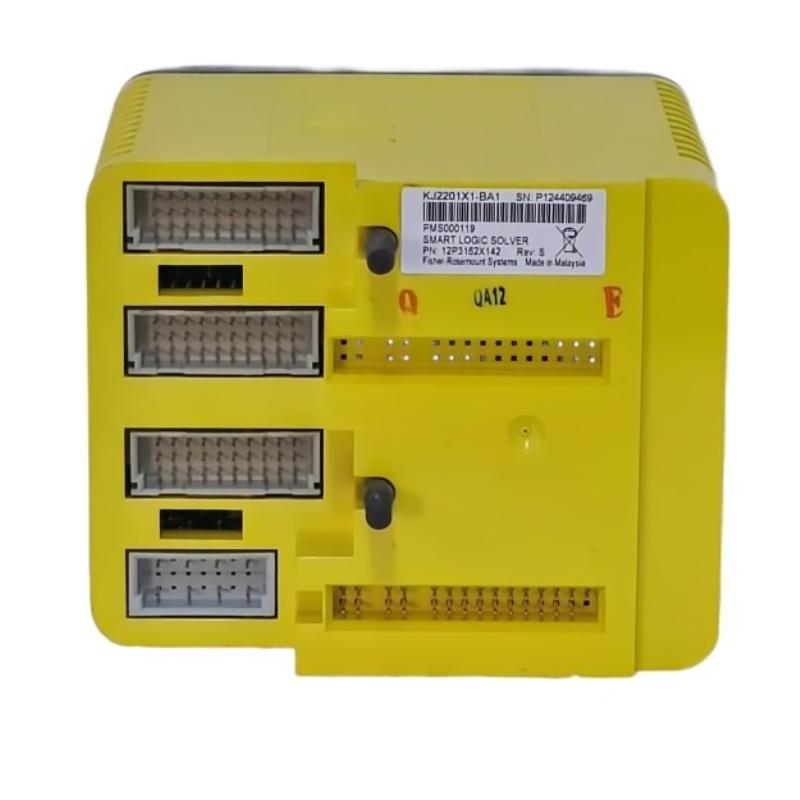

Emerson KJ2201X1-BA1 Intelligent Logic Solver

Overview

The Emerson KJ2201X1-BA1 is an intelligent logic solver designed for advanced process automation and safety systems. It delivers high-speed processing for safety-related logic, ensuring reliable decision-making and secure control in critical industrial operations.

General Information

Part Number: KJ2201X1-BA1

Manufacturer: Emerson

Brand / Country of Origin: Emerson / USA

Series: KJ22

Type: Intelligent Logic Solver / Safety Controller

Mounting: Cabinet or rack installation within control system

Technology: Safety-rated logic processing, diagnostic support, high-reliability computation

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 25 W

Input: Powered via system backplane

Protection: Overvoltage, reverse-polarity, and surge protection

Indicators: LEDs for power, system status, fault detection, and communication

Communication & Interface

Interface Ports: Backplane connection and system communication ports

Module Role: Executes safety-related logic and decision-making for process control

Diagnostics: Continuous self-diagnostics, fault detection, and status reporting

Operator Interface: LED indicators and system monitoring software

Reset Features: Supports soft and hardware reset

I/O & Channels: Configurable channels; designed for logic computation and safety control

Environmental

Operating Temperature: 0 to +60 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 or suitable for industrial cabinet installation

Dimensions & Weight

Dimensions (L × W × H): 83.8 × 105.5 × 110 mm

Weight: 1.2 kg
