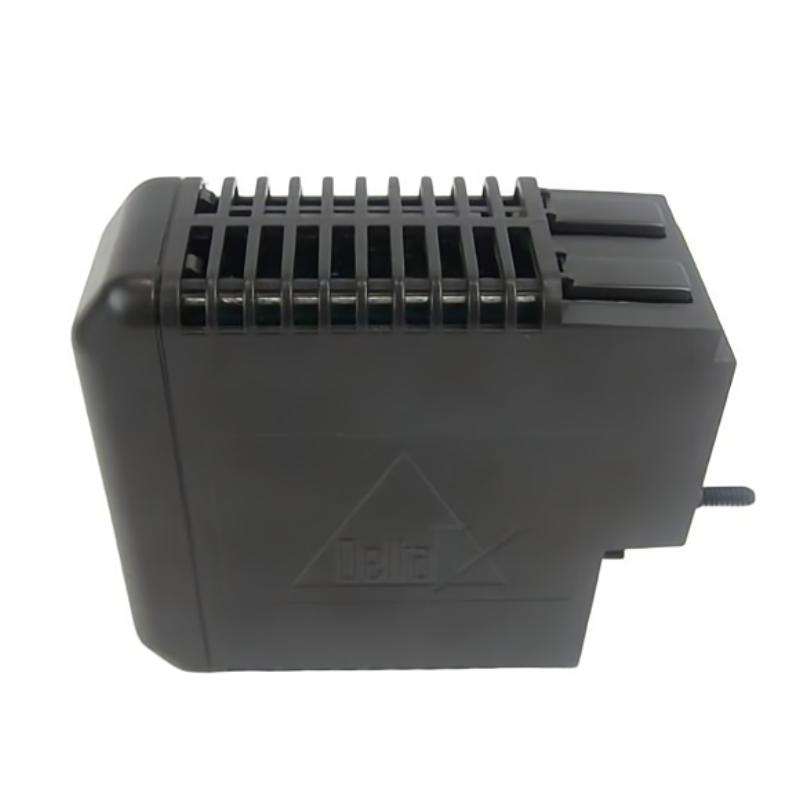

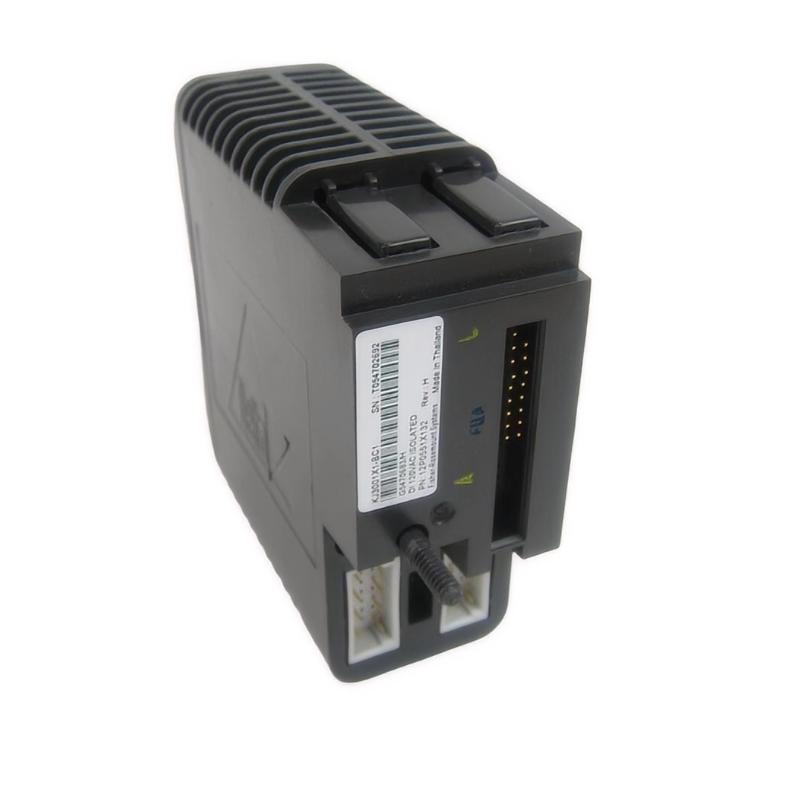

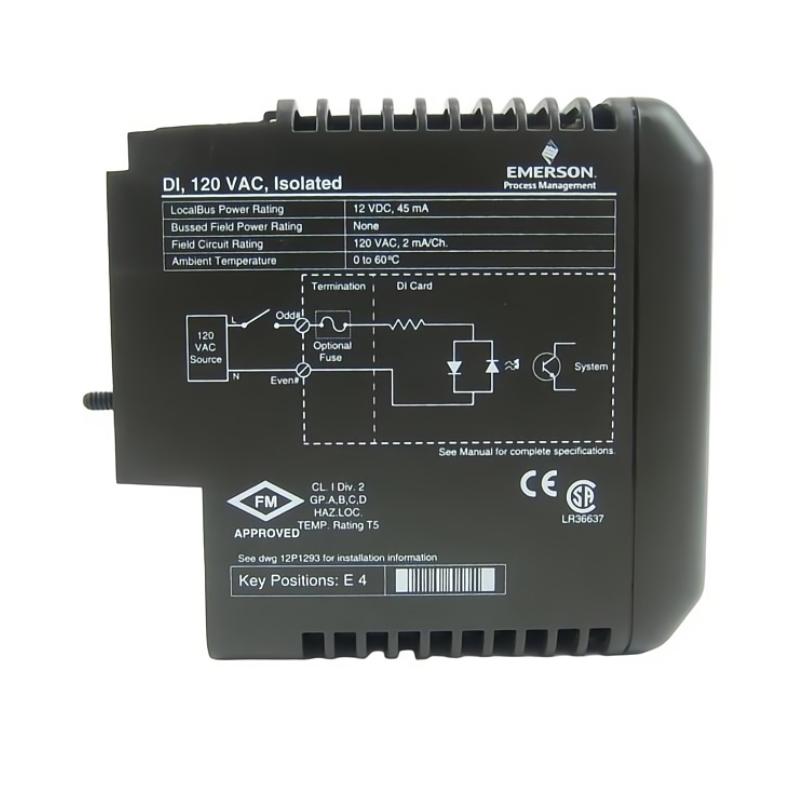

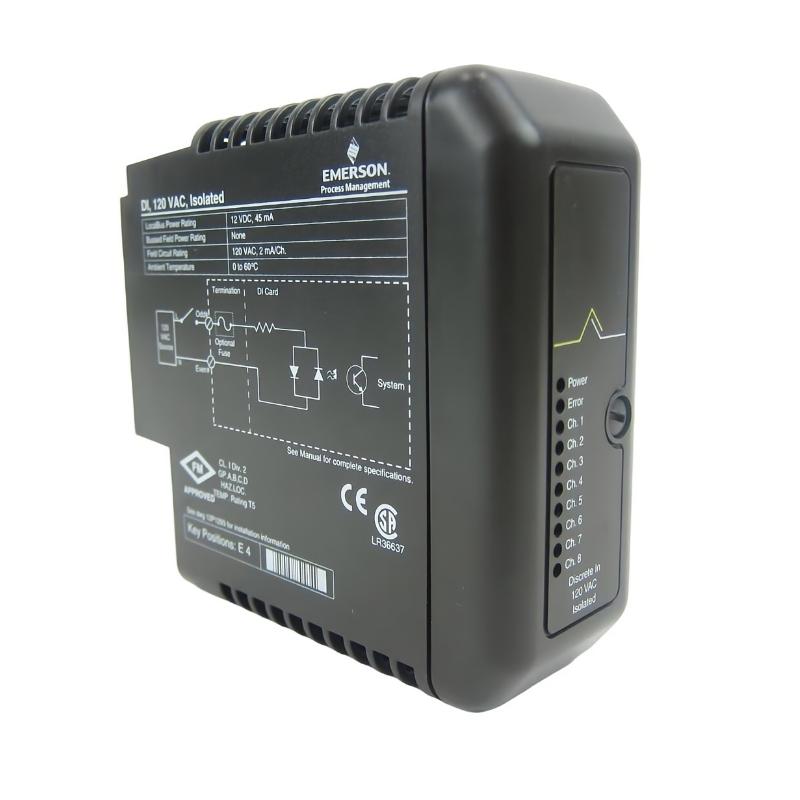

Emerson KJ3001X1-BC1 VE4001S3T1B1 DeltaV Discrete Input Card

Overview

The Emerson KJ3001X1-BC1 DeltaV Discrete Input Card is designed for Emerson DeltaV process automation systems. It provides reliable acquisition of discrete signals from field devices, enabling accurate monitoring, control, and fail-safe operation in industrial applications.

General Information

Part Number: KJ3001X1-BC1 / VE4001S3T1B1

Manufacturer: Emerson

Brand / Country of Origin: Emerson / USA

Series: DeltaV / KJ30

Type: Discrete Input Card / Digital Signal Acquisition

Mounting: Cabinet or rack installation within DeltaV control system

Technology: Safety-rated digital input, high-speed signal acquisition, diagnostic support

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 5 W

Input: Powered via DeltaV system backplane

Protection: Overvoltage, reverse-polarity, and surge protection

Indicators: LEDs for power, input channel status, and fault detection

Communication & Interface

Interface Ports: Backplane connection to DeltaV control system

Module Role: Receives discrete signals from field devices and transmits them to the DeltaV system for monitoring and control

Diagnostics: Continuous self-diagnostics, fault detection, and status reporting

Operator Interface: LED indicators for operational and fault conditions

Reset Features: Supports soft and hardware reset

I/O & Channels: Configurable discrete input channels for DeltaV automation applications

Environmental

Operating Temperature: 0 to +60 °C

Humidity: Up to 95% RH, non-condensing

Protection Rating: IP20 or suitable for industrial cabinet installation

Dimensions & Weight

Dimensions (L × W × H): 107 × 41 × 105 mm

Weight: 0.23 kg
